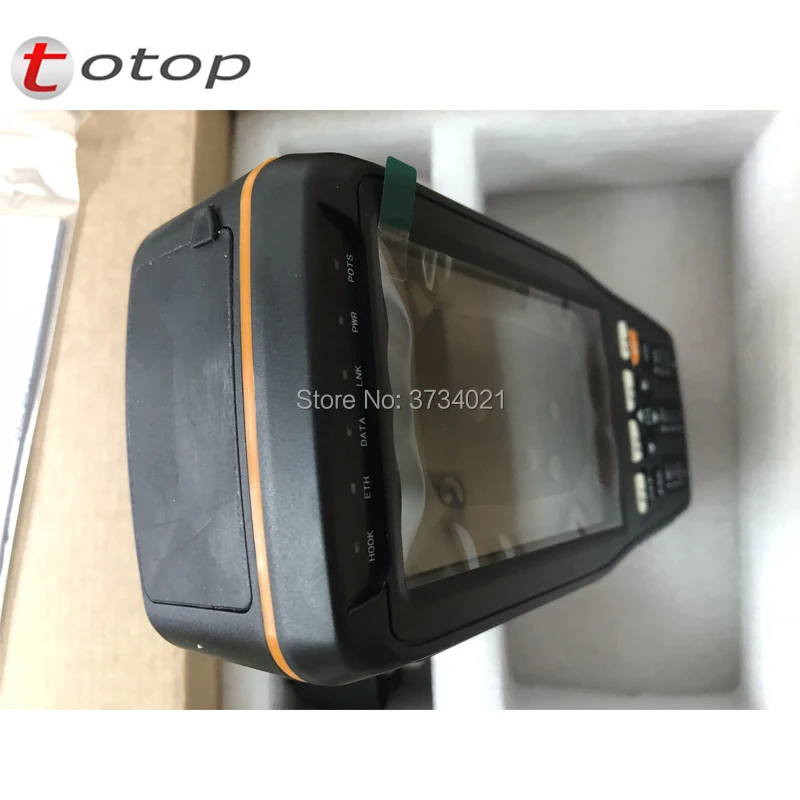

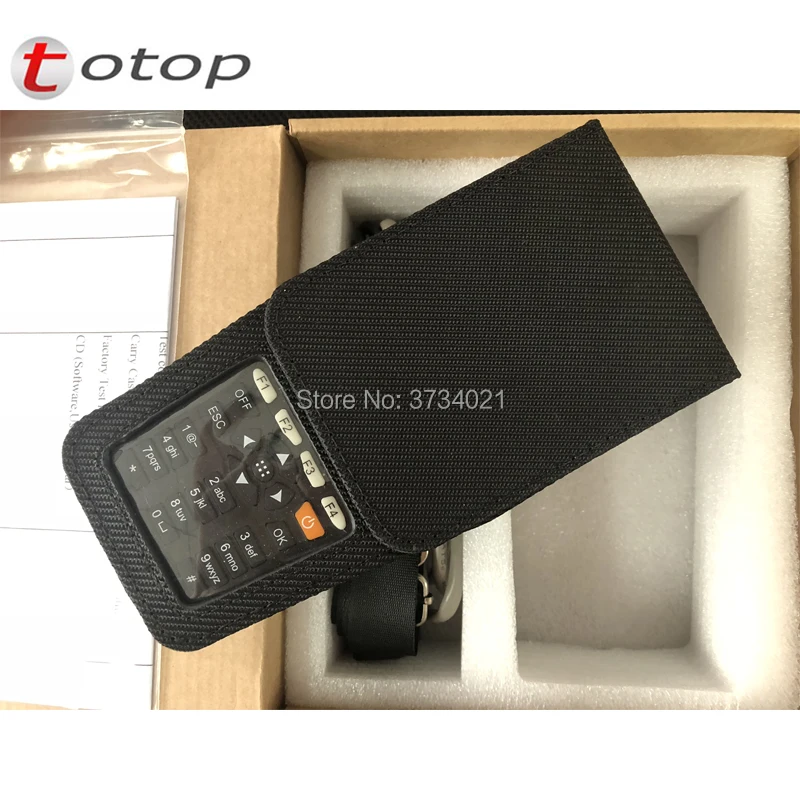

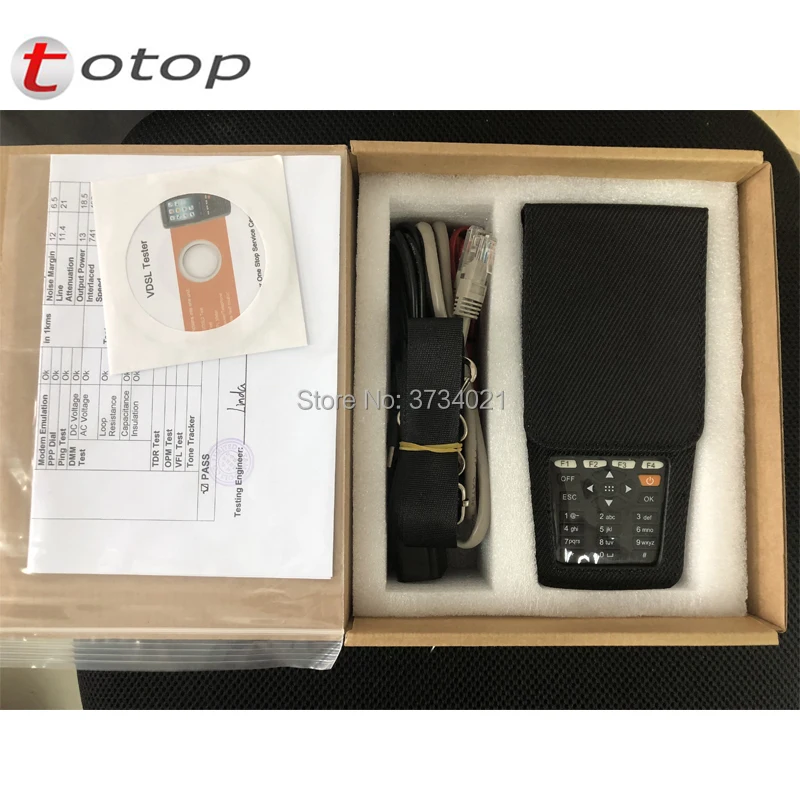

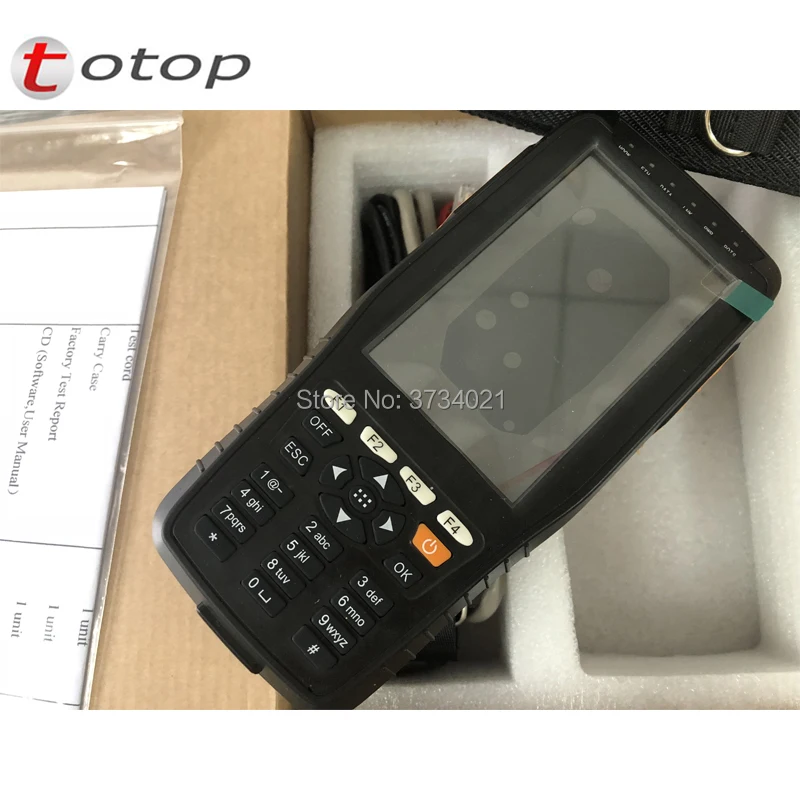

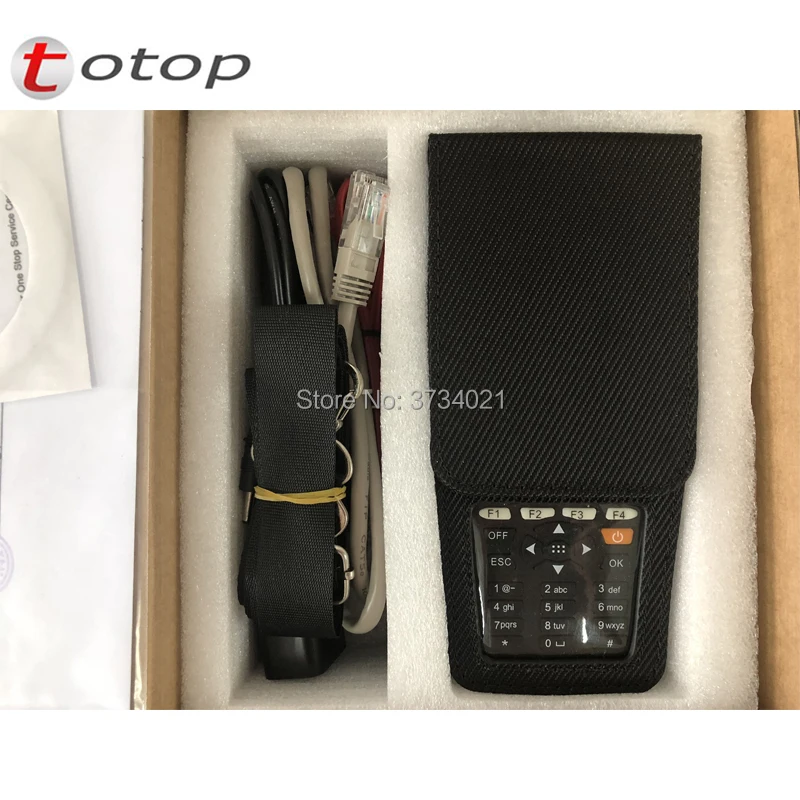

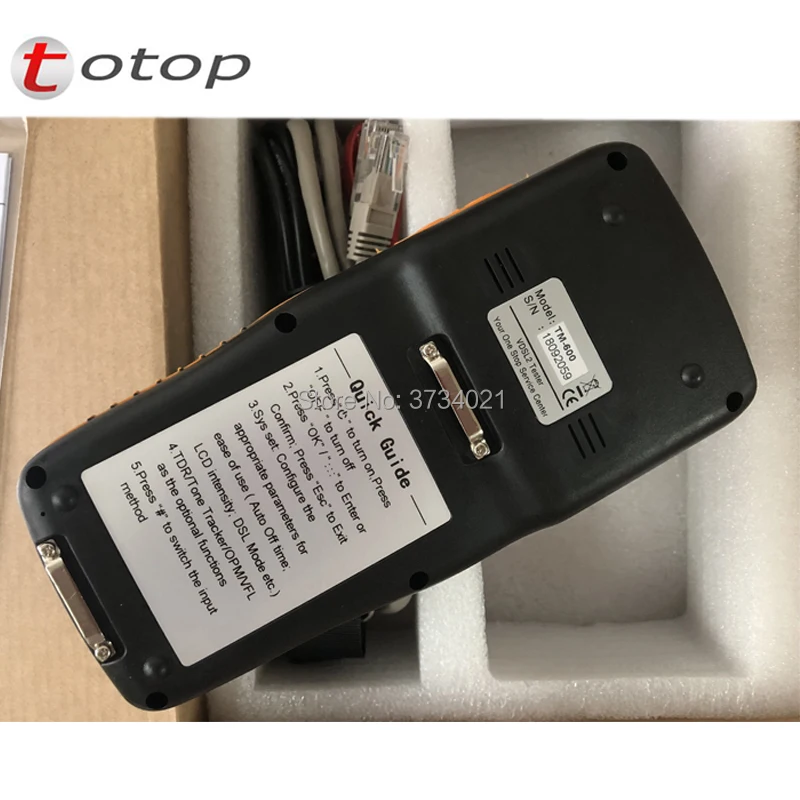

TM-600 TOVC VDSL VDSL2 Tester ADSL WAN & LAN Tester xDSL Line Test Equipment with DMM and Tone Tracker Function





Description:
TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc

Features:
1. Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
2. Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
3. Supports Modem emulation and simulating login to Internet
4. Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
5. Supports all multi-protocol, PPPoE
6. Connects to CO via alligator clip or RJ11
7. Rechargeable Li-ion Battery
8. Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
9. Data memory fuction
10. LCD display, Menu operation
11. Auto shut off if no any operation on keyboard
12. Compliant with all known DSLAMs
13. Software management
14. Simple, portable and money-saved

    Specification: ADSL2+ Standards ITU G.992.1(G.dmt), ITU G.992.2(G.lite), ITU G.994.1(G.hs), ANSI T1.413 issue #2, ITU G.992.5(ADSL2+)Annex L, Up channel rate 0~1.2Mbps Down channel rate 0~24Mbps Up/Down attenuation 0~63.5dB Up/Down noise margin 0~32dB Output power Available Error test CRC, FEC, HEC, NCD, LOS Display DSL connect mode Available Display channel bit map Available ADSL Standards ITU G.992.1 (G.dmt) ITU G.992.2(G.lite) ITU G.994.1(G.hs) ANSI T1.413 Issue # 2 Up channel rate 0~1Mbps Down channel rate 0~8Mbps Up/Down attenuation 0~63.5dB Up/Down noise margin 0~32dB Output power Available Error test LCD, OCD, HEC, FEC, CRC Display DSL connect mode Available Display channel bit map Available VDSL2 Be compatible with ADSL2+, ADSL standard. DSL line attenuation DSL line noise margin DSL line up/down channel speed (Inter/Fast mode) DSL line up/down maximum rate DMT sub channel bit number: 0~15, and each sub channel frequency points DSL line error number (CRC, HEC, FEC, LCD, OCD) DSL line local output power DSLAM information Error Code Second Impulse Noise Protection (INP) Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a DMM Test DC voltage (V): 0~400 AC voltage (V): 0~400 Loop resistance(Ω): 0~20000 Capacitance (nF): 0~1000 Insulation resistance (MΩ): 0~50     Optical Power Meter (optional) Measurement range: -70~+10dBm or -50~+26dBm Wavelength 850nm 1300nm 1310nm 1490nm 1550nm 1625nm   Visual Fault Locator ( optional  ) Output Power 10mw Wavelength 650nm ± 20nm   Tone Tracker (Cable tracker) ( Have) Output Power 10mw Wavelength 650nm ± 20nm   TDR Function ( optional ) -Test the cable fault distance (Cable Break/ Cable Mix) Test Range <2.5km Dead Zone <1m Resolution Rate 1m
