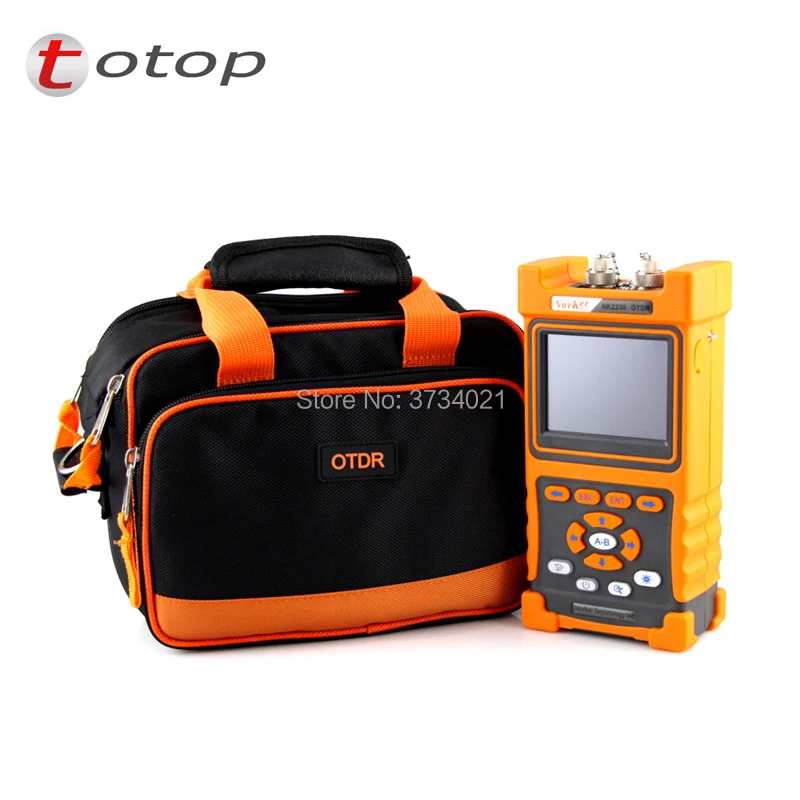

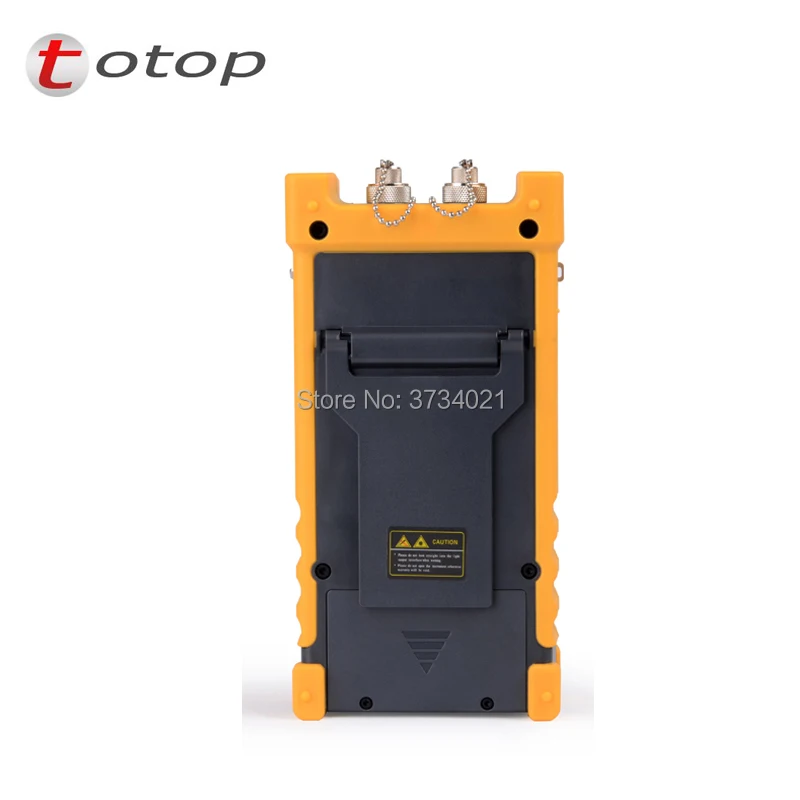

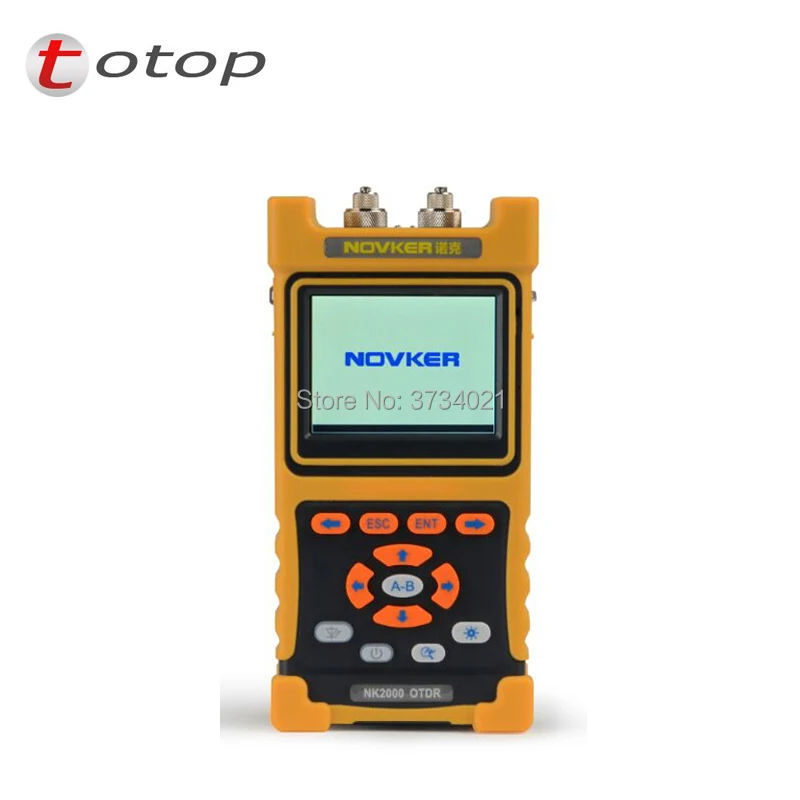

Handheld NK2000 SM OTDR 1310nm/1550nm 28/26dB,Integrated 2MW VFL,Touch Screen 70km~80km Optical Time Domain Reflectometer VFL

Product Attributes

1.The novel and beautiful structural design of the appearance.

2.The most convenient operation mode in the industry is as simple as available.

3.ultra-short event dead zone can test the wire jumper of the optical fiber.

4.It can test the circuit with light and give an alarm, avoiding existence of the equipment whose signal light isdamaged in the optical fiber tested

5.High-power visible laser fault location function is equipped inside.

6.USB interface can transfer the documents and make the report forms fast

7.Universal light output interface which is easy to be replaced enables a variety of interface tests.

8.The working duration of more than 8 hours enables long-time field construction.

9.Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.

Highly intelligent analytical software can accurately recognize the melting point of the fault. The junctor may bend.

Technical Specification:

Model  Item
OTDR
Optical fiber type:Single-mode
Central wavelength:(nm) :1310/1550
Maximum  dynamic range(dB):28/26
Event dead zone(m):1
Attenuation dead zone(m):10
Display screen type:3.5 inch color LCD, operation of the touch screen
Optical interface:FC/UPC (can be interchanged to SC or ST)
Test range (km):   70km~80km
Pulse width(ns):10,30,50,100,275,500,1000,5000,10000
Ranging accuracy(m):± (1m+ sample interval +0.005%×distance)
Attenuation measurement (dB/dB):±0.05
Reflection measurement (dB):±5
Data storage:≥800 testing curves
Communication interface:USB
     Visible red light source
Output power:≥2mW
Testing distance:≥5km
         Environmental adaptability
Power supply mode:AC/DC adapter: alternating current:100V~240V (1.8A), 50/60Hz
              direct current: 19V±1V(2A)
Internal lithium ion battery groups: 8.4V,4400mAh
Working duration of the  battery:≥8hours
Working temperature:-5℃~50℃
Preserve temperature:-20℃~70℃
Weight:≤1kg

Volume:208mm×110mm×56mm
