Dear Customers,Please remind following things:

1.Package includes 2pcs data radio modem,2pcs connection cable,2pcs small sucker antenna.

2.The default parameters set in factory is 433.250MHZ ,RS232&RS485,2400BPS,2W,5V DC;

3.this radio modem can also be TTL interface,if need TTL please tell me after placing order;

4,the air data rate and interface(serial)data rate can be confirgured via software.

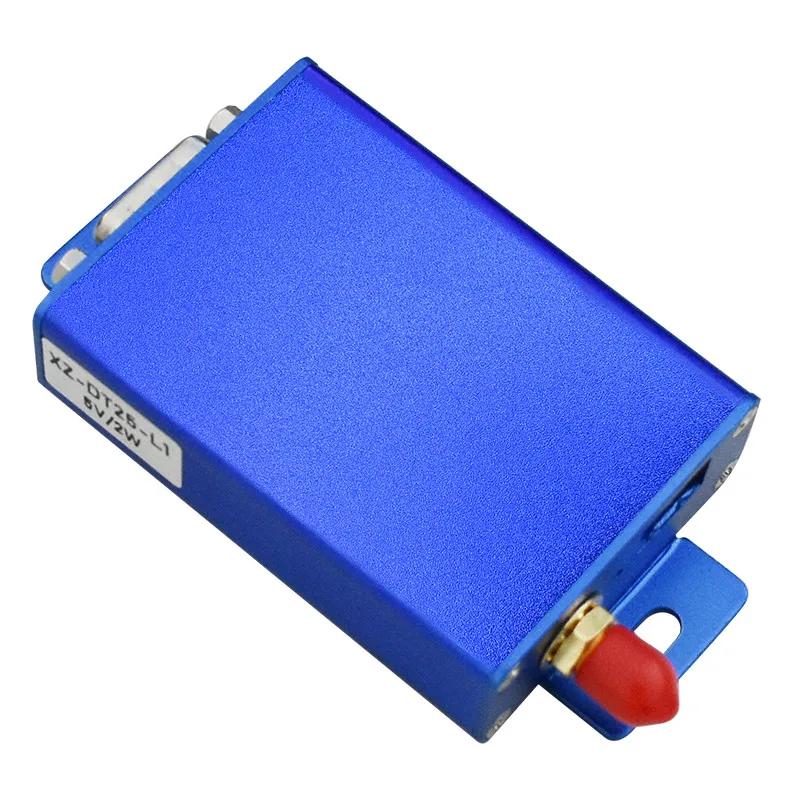

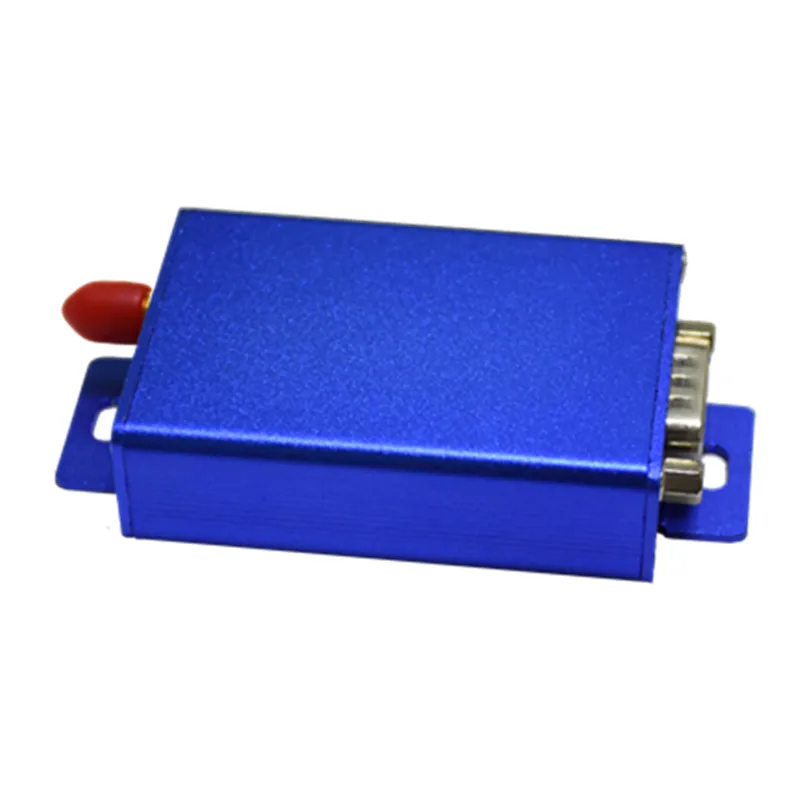

Specifications:

1)Main Features

2)Technical Parameters:

Frequency Range

136-174MHZ,220-240MHZ,410-470MHZ

Frequency stability

≤±2.5PPm

Transmit Power

2W(33dBm)

Modulation

GFSK/4GFSK

RF Data Rate

1200～115200bps

Interface

RS232&RS485(TTL customized)

Power Supply

5V@2A(8～36V customized in factory)

Interface Data Format

8E1/8N1/801

Transmission Distance

5KM in open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 1200bps

Receiving Sensitivity

-123dBm@1200bps

Channel Bandwidth

10KHZ@1200bps

Working Temperature

-40℃～80℃ (industrial grade)

Working Humidity

10% to 90% relative humidity, no condensation

Emission Current

≤1.5A(Max Output Current is not less than 2A)

Receiving Current

≤80mA

Dimension(L/W/H)

86 X 45 X 20 mm

Weight(g)

≤80g

3)Dimension

4)Pin Definitions

Pins

XZ-DT25-L1/2/4E

Remark

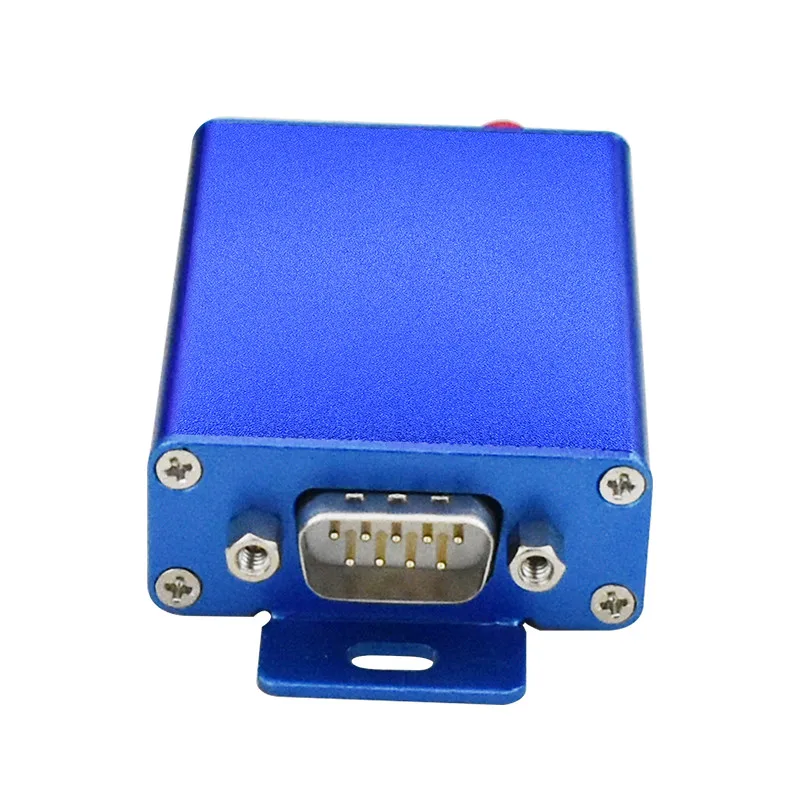

DB9 Male Connector

1

VCC (+5V)

5～36V customized

2

RS-232/RXD

3

RS-232/TXD

4

GND

Grounding of power supply

5

AGND

Signal Ground

6

RS-485/A

7

RS-485/B

8

SET_EN（Set Enable）

9

SQ（Receiving Signal Indicator）

5)Working Frequency

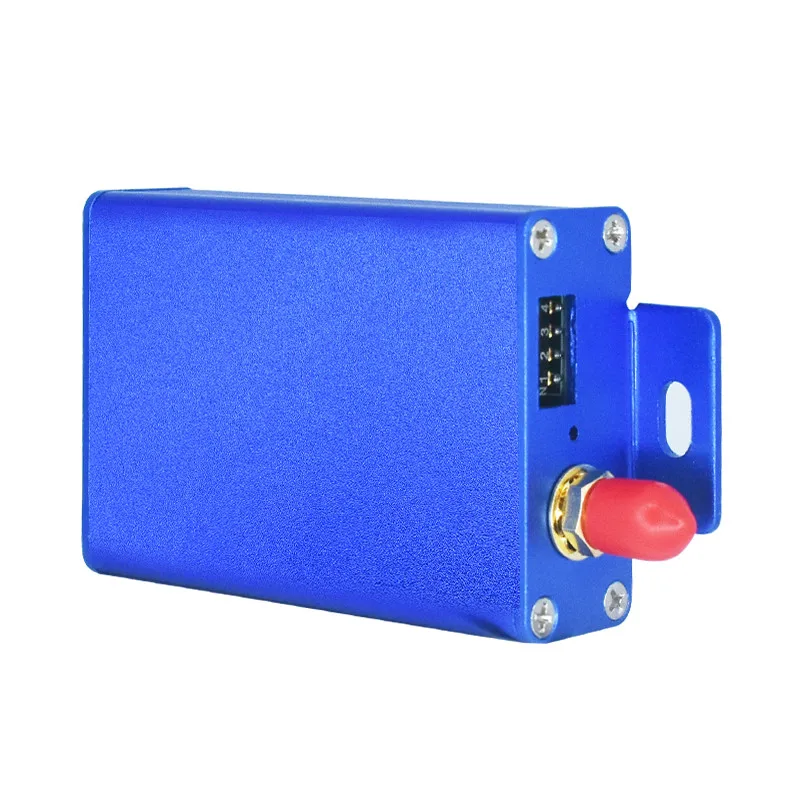

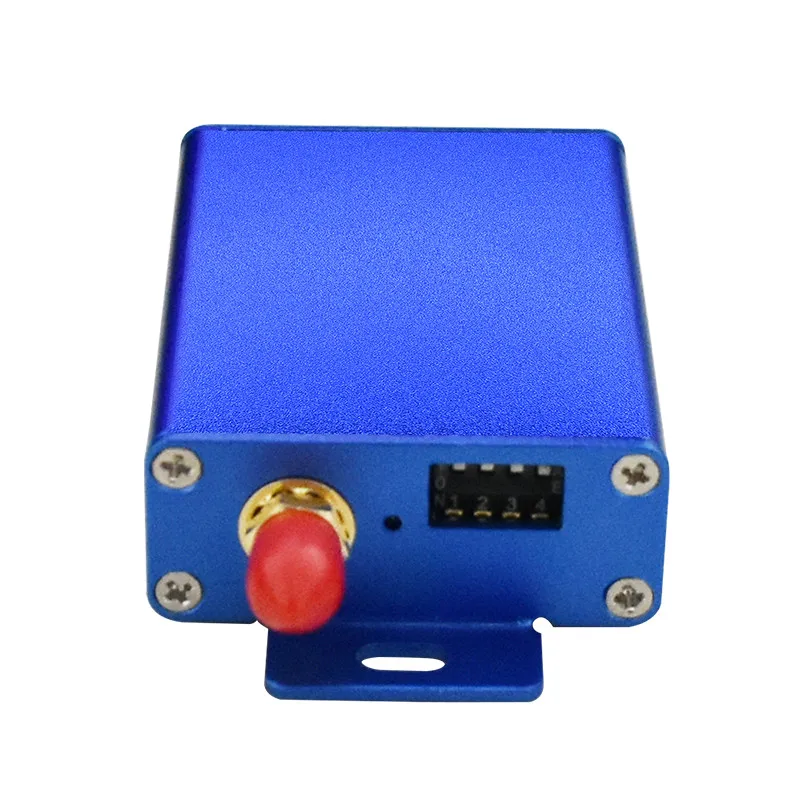

Dip switch can choose 0-16channels, ch1 to ch15 are fixed, frequency of ch0 can be set arbitrarily via software and save. Dip switch dials to“ON”means“1”, dials to“OFF”means“0”,1byte is high byte,4byte is low byte.

Channel (1234)

XZ-DT25-L1E

XZ-DT25-L2E

XZ-DT25-L4E

0(0000)

156.025MHZ

230.025MHZ

430.025MHZ

1(0001)

140.025MHZ

221.025MHZ

410.025MHZ

2(0010)

142.025MHZ

223.025MHZ

414.025MHZ

3(0011)

144.025MHZ

224.025MHZ

418.025MHZ

4(0100)

146.025MHZ

225.025MHZ

422.025MHZ

5(0101)

148.025MHZ

226.025MHZ

426.025MHZ

6(0110)

150.025MHZ

227.025MHZ

434.025MHZ

7(0111)

152.025MHZ

228.025MHZ

437.025MHZ

8(1000)

154.025MHZ

229.025MHZ

441.025MHZ

9(1001)

158.025MHZ

231.025MHZ

445.025MHZ

10(1010)

160.025MHZ

232.025MHZ

449.025MHZ

11(1011)

162.025MHZ

233.025MHZ

453.025MHZ

12(1100)

164.025MHZ

234.025MHZ

457.025MHZ

13(1101)

166.025MHZ

235.025MHZ

461.025MHZ

14(1110)

168.025MHZ

236.025MHZ

465.025MHZ

15(1111)

170.025MHZ

237.025MHZ

469.525MHZ

Software Function

1.1 Enter setup mode

Hardware: connect the 8th foot with Ground and green led keeps lighting, the module enters setup mode, serial port rate is 9600 8N1

Software: at the current baud rate, 3 + numbers are sent continuously, XZ-DT25 enters setup mode, and the serial port output is OK

Format    + + +

Return     OK

1.2 Channel 0 Frequency Setting(this frequency is the working frequency of 0 channel

Format     >WF0/RX:453.25000/TX: 453.25000

Return     <Channel_0:RX:453.25000/TX:453.25000

Explain    >WF0 means working frequency of writing channel 0

RX: means receiving frequency 453.25000 MHz, please notice frequency needs be accurate to 5 digits after the decimal point；

TX: means transmitting frequency 453.25000 MHz, please notice frequency needs be accurate to 5 digits after the decimal point；

The same XZ-DT25 receiving and transmitting frequency setup can be the same or different, but modules in the same communication system must have the same receiving and transmitting frequency. Dip Switch can only set frequency in Channel 0.

1.3 Interface Baud rate setup

Format     >WBA

Return     <Com_Rate:1200

Explain     >WB means writing interface baud rate

A~G means 1200~115200bps；A=1200、B=2400、C=4800、D=9600、E=19200 、F=38400、G=115200

1.4 Parity Bits Setup

Format     >WVN

Return     <Verify:8N1

Explain    >WV means Interface Parity Bit

N、E、O means 8N1、8E1、8O1

1.5 Air Baud Rate Setting

Format     >WAA

Return     <Air_Rate:1200

Explain     >WA means Air baud rate

A~G means 1200~115200bps；A=1200，B=2400，C=4800，D=9600，E=19200，F=38400,G=115200

Notice: if air baud rate and interface baud rate are set the same, can transmit data continuously. To transmit longer distance, air baud rate can be set lower, while interface baud rate can be set higher.

1.6 Read all Parameters Command

Format    >R

Return   <Channel_0:RX:453.25000/TX:453.25000

<Com_Rate:1200

<Air_Rate:1200

<Verify:8N1

Explain    Output XZ-DT25current working parameters

1.7 Exit Setup Mode

Format     >E

Return     OK

XZ-DT25 exit setup mode, if XZ-DT25 enters setup mode it will exit when it does not have any command actions at continuous 60S.

Standard Accessories:

rs232&rs485 programming cable

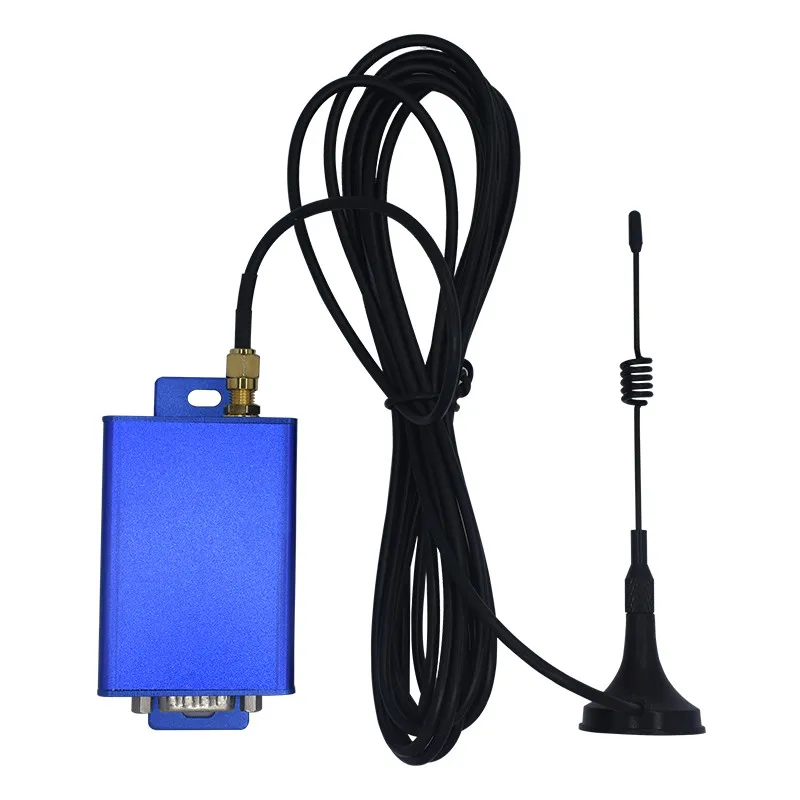

small sucker antenna
