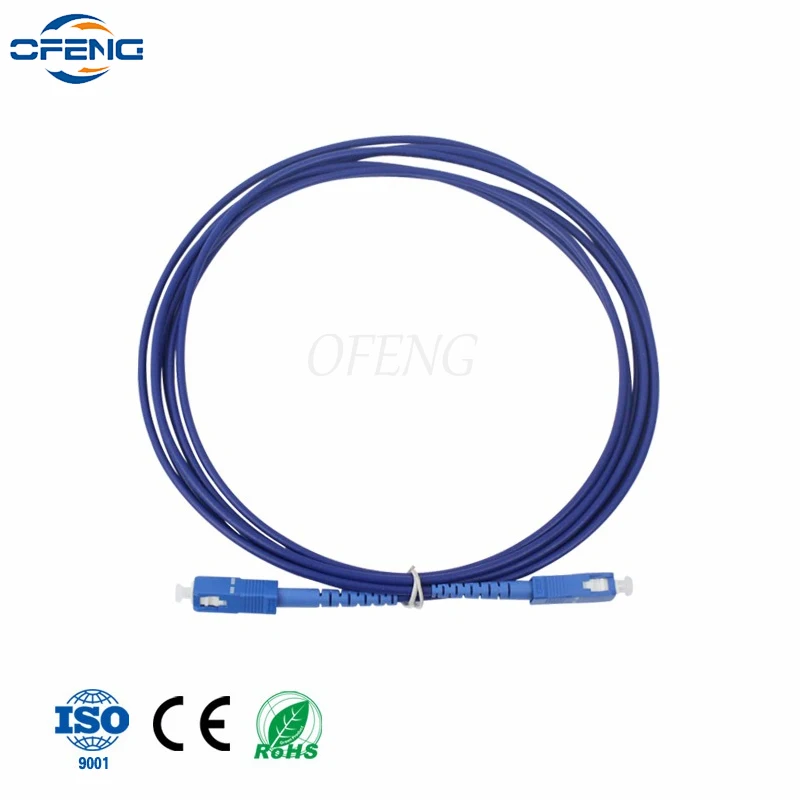

10PCS SCUPC/SCUPC Armored fiber Patch Cord SM Single Mode SC UPC FTTH Fiber Optic Patch Jumper Cable free shipping

Features

1.Low Insertion Loss

2.Factory terminated and Tested

3.Fiber Options: G.652 /G.657/OM1/OM2/OM3

4.Connector Options: FC/SC/LC/ST

6.Polishing Options: PC/UPC/APC

5.Feature Connector with Ceramic Ferrules

6.Cable: Tight buffer, easy stripping tight buffer, loose tube

Applications

1.Access Network

2.Telecom/CATV Systems

3.FTTx

Specification

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657A)

MM(OM1/OM2/OM3)

Jacket Materials

LSZH/PVC

Connector Type

SC/LC/ST/FC

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)
TIA/EIA-455-107

≤ 0.3dB
(PC/UPC/APC)

≤ 0.3dB
(PC/UPC)

Return Loss(dB)TIA/EIA-455-107

≥45dB(PC/UPC)
≥55dB(APC)

≥35dB(PC/UPC)≥35dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out PatchcordPigtail/Simplex/Duplex/Fan-out Patchcord

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)Storage Temperature (° C)Storage Temperature (° C)Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag
