PKMC02 Automatic Gate Opener Kit Heavy Duty Dual Gate Operator for Dual Swing Gates Up to 16 Feet or 880 Pounds Gate AC Motor

List Of Kit Package:

All kits are complete kits with different accessories. The content of the selected kit items will be shown in the picture.(Different content is shown in photos)

Produrct Feacture:

1.Easy to install and operate,and easy to connect wired.PKM C02 Loosen the clutch to stretch the arm without rotating,Is the easiest to install type.
2.Open and close the gate by remote control and keypad wifi controller with phone.
3.Time promotation function.when open gate,speed is slow,then a little quick,and when close the door,speed is slow again.

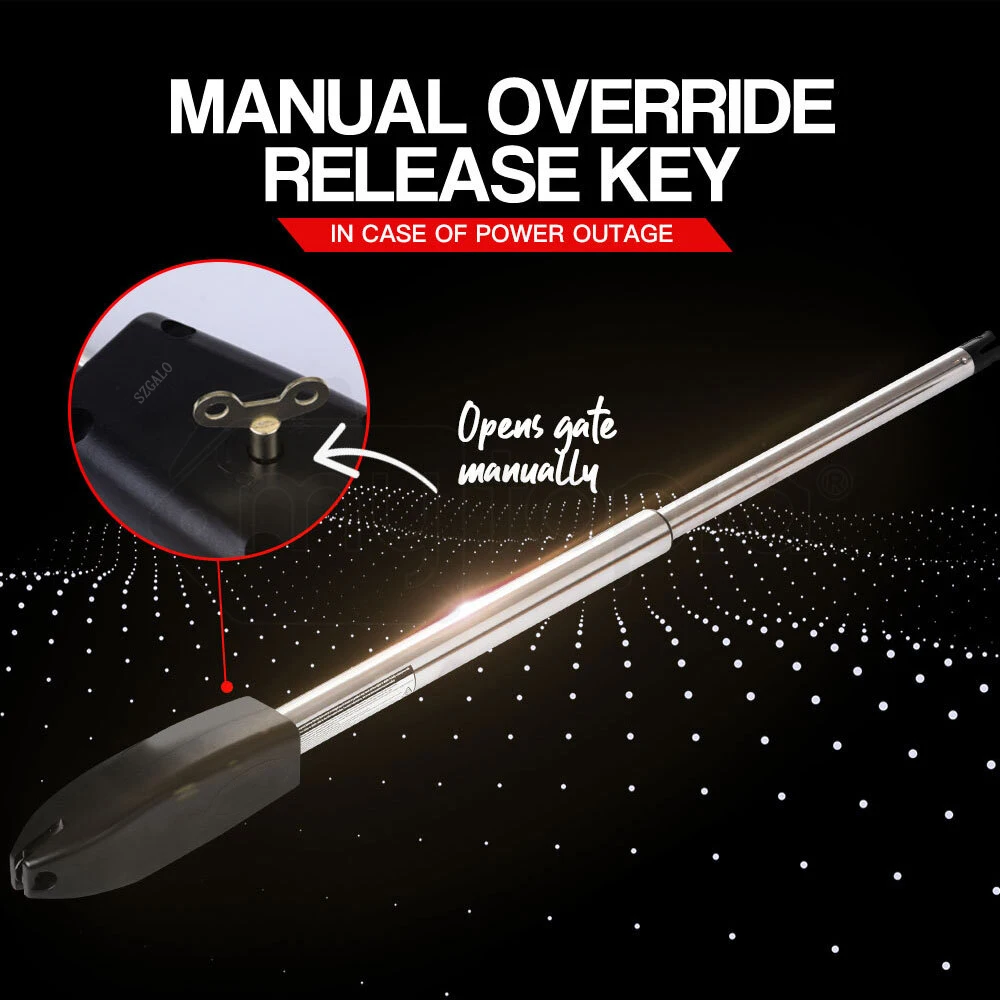

4.In case of power failure,release the clutch easily,and can operate the gate manually.
5.Stop working when gate meets with obstacle.
6.Rod's max travel is 300mm.
7.Motor's Poweer : 24VDC 40W
8.Running Speed :1.6cm/s
9.Run travel : 300mm
10. Max single leaf gate width: 4.5M
11.Max single leaf gate weight: 350KG

PKM C02 Opener Arm SIZE

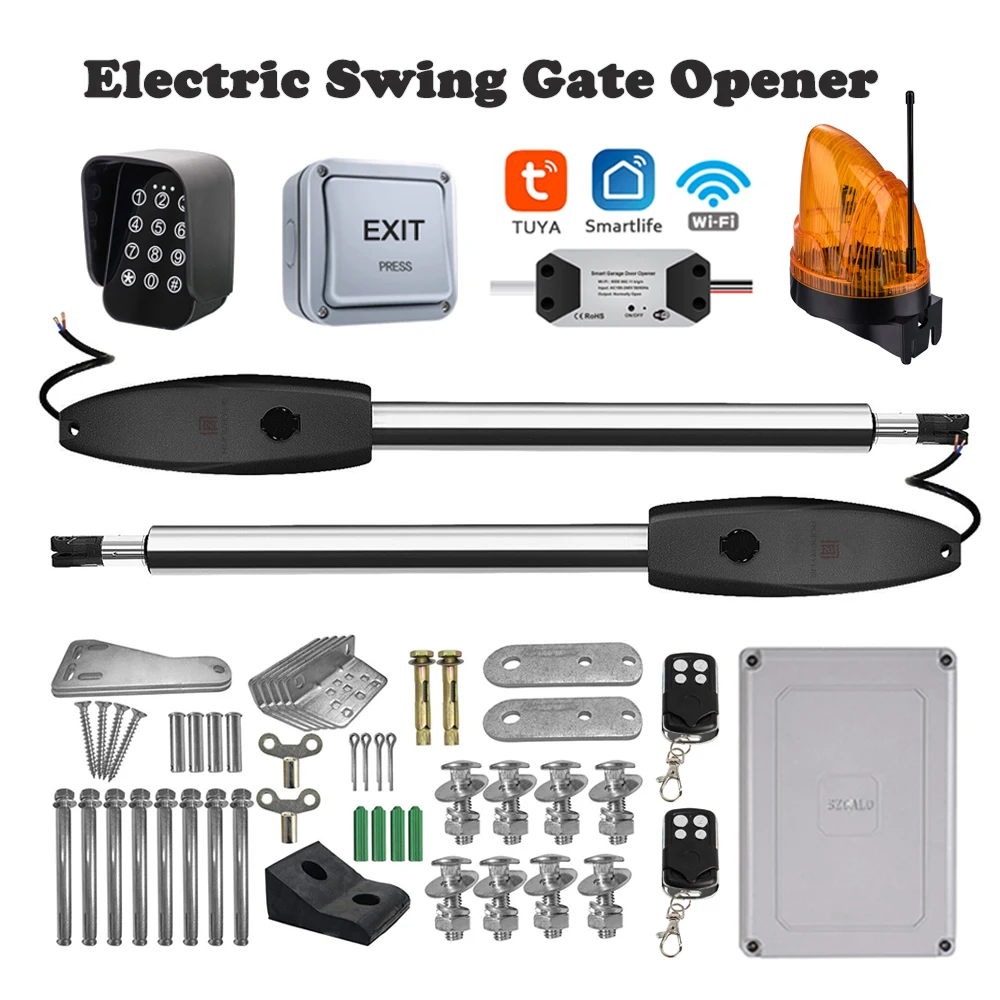

Standad KIT Components:

①2* Arms Gate Openers(drive motor)
②1* Control Box(with transformer)
③1* A set of Hardware Accessories
④1*Rubber stopper
⑤2* Remote Control
⑥1* Manual English
Accessories optional, select color kit shown in photo
In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

Full kit include Necessary installation accessories
Warning lights are optional items, not included in the standard package

Control Box Details:

Input AC110V or AC220V order mark or Message seller.
The conventional control box cannot be equipped with a spare battery. The large box can be loaded with a spare battery. The battery is not included.

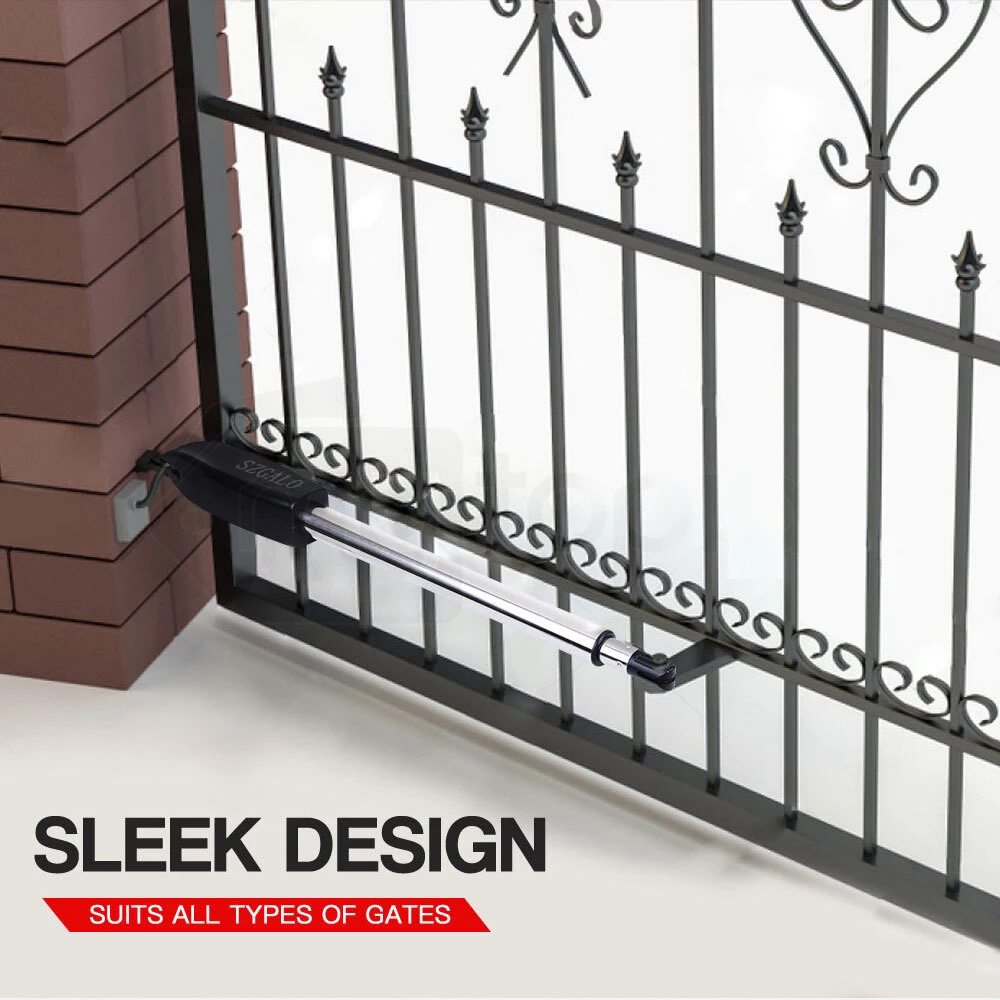

Metal Body, Stainless Steel Pull Arm

The seller recommends this style, easy to install, suitable for universal gates.High-quality quality, the seller provides installation guidance

Product Details

Waterproof Wall Exit Push Button(Optional Accessories)

Adopting the single relay output signal, the reset switch is perfect to control the operation of gates, doors and exits.

Extra Security IR Photocells(Optional Accessories)

The system itself has impact rebound function.For more secure protection, some users can be added photocells sensor.for Outward gate.when the gate close,cut IR or the kid run through the Closing gate,the gate will be open.

Flashing Warning Light(Optional Accessories)

When the door opener is turned on at night, the flash can alert intruders in the dark.(The color of the lamp is optional. Pay attention to the color when placing the order.)

Wireless Password Keypad(Optional Accessories)

When there are many people in your family, then you need a keyboard. As long as you know the password, gate will open the door for the master.

The Remote Control in Car(Optional Accessories)

There are too many keys in life today, and my belt is full, which is simply a burden.
Don't worry, the remote control button inside the car is hung on the sun visor, and it is more convenient to open the door.

500m super long-distance remote control optional

Wifi Control Module(Optional Accessories)

Load the wifi module, you can control the opening of the door directly on the mobile phone app. Remote control, not limited by distance, need to ensure the device is networked, support 2.4G wireless network.suppoer Google home Wizard voice control.

GSM Remote Control/WIFI Camera(Optional Accessories)

Mobile app remote control, mobile phone card SIM needs to be installed,2G only
The camera is a separate app and needs to be connected to the Internet. In order to see the working status of the gate and record security, optional accessories

Gate Lock(Optional Accessories)

In order to ensure the safety of the door and prevent the door from being blown by the strong wind, please use additional door locks, automatic door locks.remote control open the lock and gate same time.
But the DC12V RFID lock,this is for side door,not same time to open,It is independent, but the power supply of the control box can be used.

Support for Solar Systems(Optional Accessories)

Can be plugged into a solar system, using a home circuit, or solar powered. Note that we cannot transport the batteries and need to prepare the batteries yourself.

Installation Details:

Preparation before installation:
1. Prepare the electric drill for drilling, the motor arm needs to be fixed on the wall or wood;
2. Prepare power protectors, lightning protection switches, power strips, and home wiring cables;
3. Some line protection tubes can be prepared;
4. If it is an iron gate, you need to prepare electric welding if necessary.

Door Stop

It is necessary to install a rubber stopper at the bottom of the gate.
It is recommended to install in the horizontal position at the bottom of the door, 5cm away from the door opening direction

Smart Control Center

Function indication of corresponding port

1. 2 SIDE terminal is used for connecting any external device that operates double gate
2. COM terminal is COMMON used for connecting the ground” of external devices
3. 1 SIDE terminal is used for connecting any external device that operates single gate
4. Swipe Card terminal is used for connecting any external devices that will operate to open the gate
5. COM terminal is COMMON used for connecting the ground” of external devices
6. Infrared terminal is used for connecting photo electric sensor
7. 12V DC output is used for connecting photo electric sensor (Continuous output current <=200mA)
8. 24V battery output is used for connecting the back up battery +
9. 24V battery output is used for connecting the back up battery -
10. 24V DC output is used for connecting external device. (such as photo electric sensor, max current output 1A)
11. GND is used for connecting the ground” of external devices
12. 24V DC lamp output is used for connecting flash light +.
13. 24V DC lamp output is used for connecting flash light -.
14. 24V DC lock output—the NF terminal which used for connecting the electric lock
15. COM is COMMON used for connecting the ground” of lock
16. 24V DC lock output—the NA terminal which used for connecting the magnetic lock
17. 24V DC alarm output
18. 24V DC alarm output
19. and 20. Motor1 terminal is used for connecting the motor 1 installed on the gate that opens later and close first. This terminal connect 1st red wire (counted from your left hand side to right hand side)
21. and 22. Motor2 Delay terminal is used for connecting the motor 2 installed on the gate that opens first and close later. This terminal connect 1st blue wire (counted from your left hand side to right hand side). NOTE! If for single gate, the gate motor just can connect the Motor2 Delay terminal.
23. AC24V input is used for connecting the transformer
24. AC24V input is used for connecting the transformer
25. digital display is used for showing you the setting data
26. INC+ is used for figure increase when setting the data
27. FUN is used for store the data
28. DEC- is used for figure decrease when setting the data
29. Learning button is used for program/remove remote

Support Inward and Outward Opening

Actual Effect of Installation

For reference only

Friendly Reminder

1. Technical services can be provided at any time;
2. Non-artificial damage is guaranteed for 24 months, (starting from the time of payment);
3. Please communicate with the seller in time for any installation or technical problems. Feedback to the seller and the installation renderings can extend the seller's technical service to 2 years.
4. According to the policy of the importing country, if the customs requires the buyer to pay the import cost, the buyer is obliged to obey the policy of his country.
5. Products are divided into: product price + shipping price. The seller only charges the price of the product, and the transportation fee is set and collected by the express. Any doubt about the transportation price can be verified on the transportation website.
6. If you do not get a quick reply, please send the message to the email: szgalo21@sina.com
