    MPPT 20A 48V solar charge controller | Обустройство дома

    Описание товара

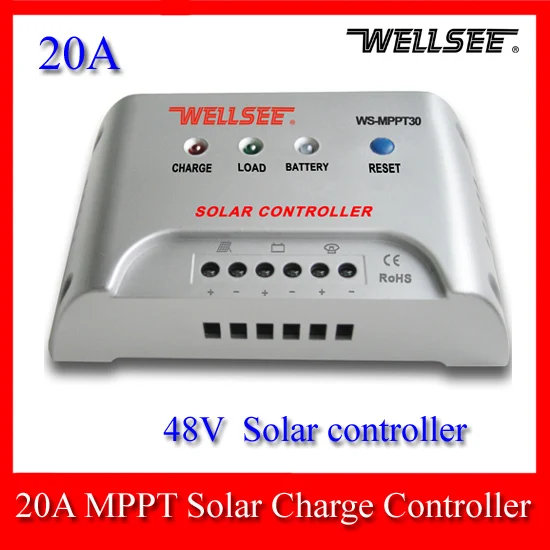

    Mppt soalr charge regulator WS-MPPT30 20A ,48V



    Brief Introduction:



    This mppt controller WS-MPPT30 20A (also known as WELLSEE solar controller,charge controller,solar charge controller,solar regulator,PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. WELLSEE mppt controller 10A--60A includes 12V series, 24V series and 48V series.   MPPT advantage:   Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1  A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point).   Product features:   Applicable to various types of batteries, MPPT function Temperature sensor battery charging compensation Overload protection (automatic restoration) Overcharge protection Short circuit protection (automatic restoration) , Thunder protection Reverse discharge protection Reverse polarity connection protection (automatic restoration) Under voltage protection     MPPT principle:   The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. The intensity of sunshine being constant, the maximum output power decreases with the rise of the temperature. The temperature being constant, when the sunshine intensifies, the open circuit voltage of PV battery basically keeps unchanged. But the short circuit current increases substantially, thus the maximum output power increases substantially.   This WS-MPPT mppt controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.   However, due to many different factors, such as the difference in solar panel making, the change the Sun illuminance, change in temperature, the efficiency of the controller etc., the actually available increased rate is 10%-30%.   Technical Index:













    Model WS-MPPT30 20A WS-MPPT30 30A Rated Voltage 12V / 24V / 48V   Max Load current 20A 30A Input voltage range 12V~20V / 24V~40V / 48V~80V Length≤1m  Charge loop drop 0.25V Length≤1m Discharge loop drop 0.05V Over voltage protection 17V / 34V / 48V Full charge cut 13.7V / 27.4V / 54.8V Low voltage cut 10.5~11V / 21V~22V / 42V~43V Temperature compensation -3mv/ °C/ cell No load loss ≤10mA ≤20mA Max wire area 4 mm2 4 mm2 Ambient temperature -25°C---+55°C



    INDICATE LIGHT AND BUTTON   1.Red LED Red Led(CHARGE) is always on,battery is charged up strongly; Red LED is flickering,battery is charged up in constant voltage; Red LED is off,charge off. 2. Green LED Green Led(LOAD / LIGHT) is on, loads are normally working; Green LED(LOAD / LIGHT) is off, loads are stop working. 3. Three Color-changing LED Three Color-changing LED(BATTERY),low battery voltage is red,full battery is green,normally working is orange. Color-changing LED working voltage indicate area: Color-changing LED 12V 24V 48V Red LED ≤10.5 ≤21 ≤42 Orange LED 11-13.7 22-27.4 43-54.8 Green LED ≥13.7 ≥27.4 ≥54.8 Connection:   There are 6 connection ports with marks which will help you connecting. Note   1.Don’t use the lamplight shine solar panels to generate electricity (the lamplight intensity is weak) 2.Don’t replace the solar panel with DC power supply in case of troubles to solar controller. 3.Do connect the solar controller with the battery first, and have the solar panel connected. 4.Don’t reverse electrodes (the positive and negative poles) of the Solar panels, Battery and Loads   We produce different kinds of 12V/24V/48V 6A-60A solar charge controllers including: WS-C series PWM solar controllers for PV system WS-MPPT series solar controllers for PV system WS-L series PWM solar controllers for solar lighting system WS-AL series solar light-adjusting controllers for solar lighting system WS-AL MPPT series solar high efficiency controllers for solar lighting system Pls feel free to contact me for any requirement.
