1шт SMA Женский разъем для печатной платы RF Coax с гайкой Прямой тип с золочением Оптовая цена Быстрая доставка на.

1шт SMA Женский разъем для печатной платы RF Coax с гайкой Прямой тип золочением Оптовая цена Быстрая доставка на.

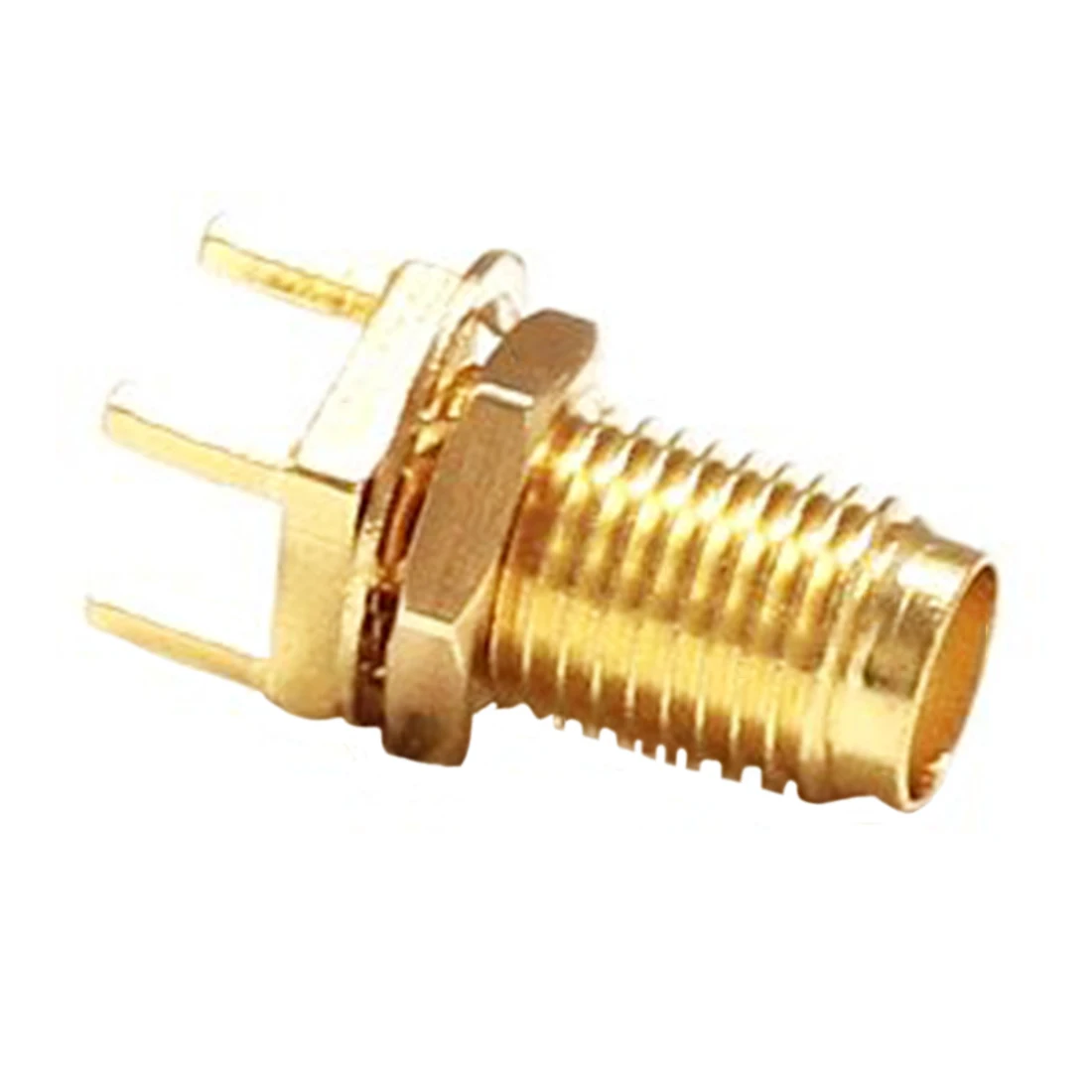

SMA Female Jack PCB Mount with Nut RF Coax Connector Straight  Wholesale Price

Click here for 10pcs of this connector at wholesale price

SMA connectorseries product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.

Applications

1.Antennas

2.Broadcast

3.radios

4.Electronic test equipment

5.Serial digital and Analog interface

6,Non-professional radio antenna connections

50Ω Specifications

Electrical

Impedance

50 Ω

Frequency Range

0-4 GHz with low reflection

Voltage Rating

500 volts peak

Dielectric Withstanding Voltage

1,500 volts rms

VSWR

M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz

MIL-C-39012 Contact Resistance

Center contact: ≤3mΩ; Outer contact: ≤2mΩ

MIL-C-39012 Insulation Resistance

5,000 MΩ

Durability

500 Cycles

APPLICABLE STANDARD

IEC169-15  MIL-C-39012

Material

Contact

Brass,goldplated

Insulator

PTFE

Crimp Ferrule

Copper/brass

Environmental

Temperature Range

TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C

Note: These characteristics are typical but may not apply to all connectors.
