Brand TX ED-300 Digital Coating Thickness Gauge meter 0~150um NF(eddy current) reliable aluminium profile quality testing |

Brand TX ED-300 Digital Coating Thickness Gauge meter 0~150um NF(eddy current) reliable aluminium profile quality testing |

Introduction

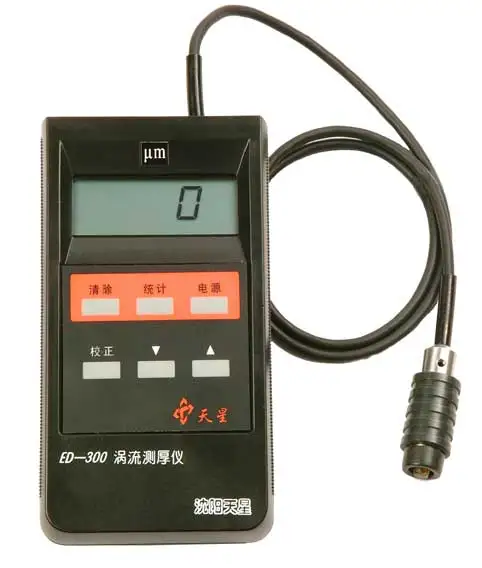

Ed300 coating thickness gauge is a portable instrument which has stable performance, high accuracy, good repeatability and economical practicability. It applies eddy current principle according to the international ISO 2160 standard. It is used to test the thickness of the non-conductive coatings on non-ferrous metal substrates. It is applied to test the thickness of the anodic coating or coat of paint on aluminium profile, aluminum composite panel, aluminum work pieces and etc. It is widely used in the field of aluminium profile production, metal surface finishing, door, window and curtain wall, quality supervision and inspection of products and engineering. This instrument has gained good reputation and wide reliance from customers.

In China, it is popular to use ED300 coating thickness gauge and W-20 Webster hardness together as an assortment of aluminium profile quality testing instruments, almost all of the aluminum extrusion factories in China use these two instruments to do the products quality supervision and inspection.

Coating thickness calibration plate is the measurement benchmark of the instrument. All the correction plates of this instrument have been tested by China national measure institute and attached with testing certificates.

The probe is the most damageable part of the thickness gauge. After a long time of tracking and improvement of probe,it has improved the design of durability and make the probe have the protection function of shockproof, preventing acid corrosion, rust prevention and antilocking.

The probe cable is another damageable part of the thickness gauge when the gauge is used frequently. Its probe cable from Japan can stand million times of twists without any damage.

The operating environment of the thickness gauge is very poor in the aluminum extrusion factories. The probe will always be corroded by water or acidity oxidation bath. Normally it will be used for thousand time’s everyday shocks and falls happen very commonly, so it requests a strong durability of the thickness gauge.

Ed300 had stood the test of more than ten years in the poor operating environment. During these years, Manufacturer has been working so hard to improve and perfect the performance of the gauge. It has been proved that ED300 coating thickness gauge is a reliable instrument which has excellent performance.

Application

Ed300 coating thickness gauge is applied to test the thickness of the non-conductive coatings on non-ferrous metal substrates.For example, it is applied to test the thickness of the anodic coating or coat of paint on aluminium profile, aluminum plate, aluminum tubing, aluminum composite panel, aluminum working pieces and etc. It is suitable to make quick nondestructive coating thickness inspection on-site for production, sale and engineering. It is used for production inspection, acceptation inspection and quality supervision and inspection.
