Free shipping Wavecom Fastrack M1306B Modem Q2406B M2M Data transfer gsm modem Open AT command agreements

Product introduce

M1306B France WAVECOM original MODEM, can be used in repeater, GPS positioning system vehicle management, SMS software, wireless remote monitoring, wireless POS, mobile office as well as medical care and other fields

1,support the standard AT command set, in line with the WAVECOM Q2403A/Q2406A/Q2406B module.
2,dual-band integrated GSM modem (EGSM900/1800MHz or EGSM900/1900MHz), applied to data, fax, short message and voice applications.
3,the design and development in line with the ETSI GSM

Phase2+standard (general phone)
4,size: 95 × 54 × 25mm-+2 mm
5,input voltage:6V-32V

Input current:
5mA standby,140mA call in a state of GSM900MHZ @ 12V
5mA standby,100mA call in a state of GSM1800/1900MHZ @ 12V
1,the limits of the conditions of the environment:
Operating temperature: -20 ° C to 55 ° C Storage temperature: -25°C to 70°C
Humidity:0-95% Vibration (non-working):18g pressure:86-106KPa

2,the support of the SIM card: You can also support the SIM card 3V/5V
3,the receiving frequency range:

(EGSM 900):925 to 960 MHz (GSM 1800):1805 to 1880 MHz
Send frequency range:
(EGSM 900):880 to 915 MHz (GSM 1800):1710 to 1785 MHz
Interval of carrier frequency 200kHz.
4,the transmitter of the root-mean-square phase error:<5°
5,the transmitter frequency error:+/-l ×10-7max
6,a single transmitter phase deviation:<20°
7,the maximum transmitter output power:
Grade 4 (2W @ 900MHz): 33 dBm+/-2 dB
Grade 1 (1W @ 1800/1900MHz): 30 dBm +/-2dB

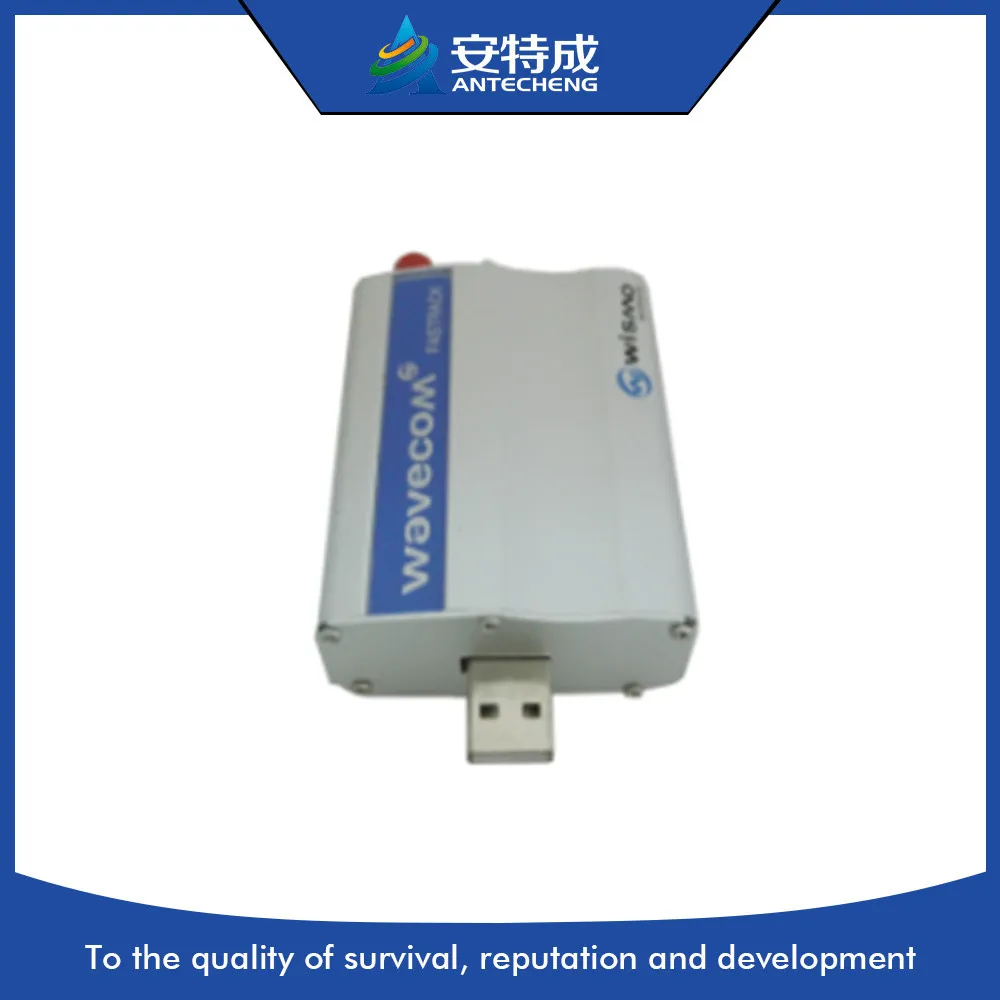

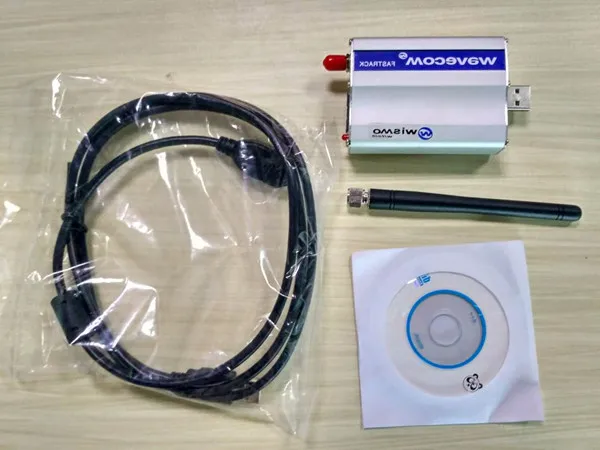

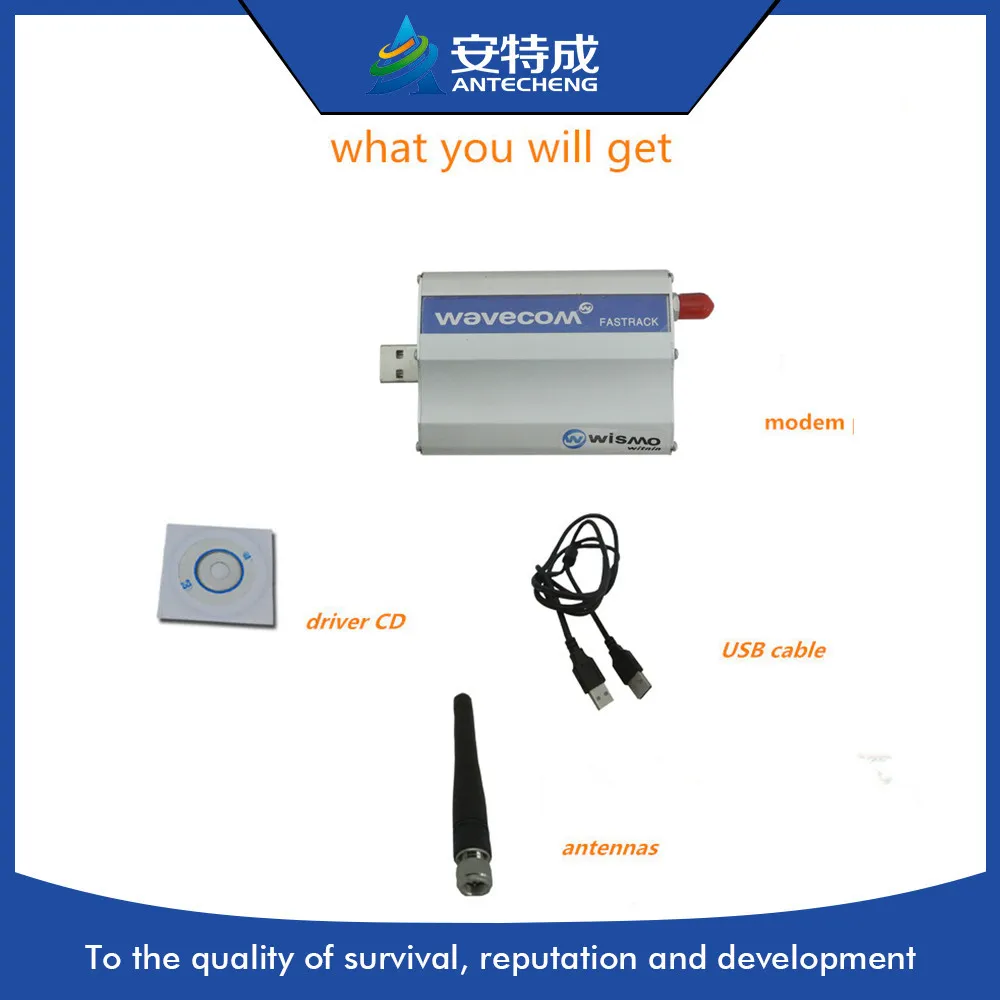

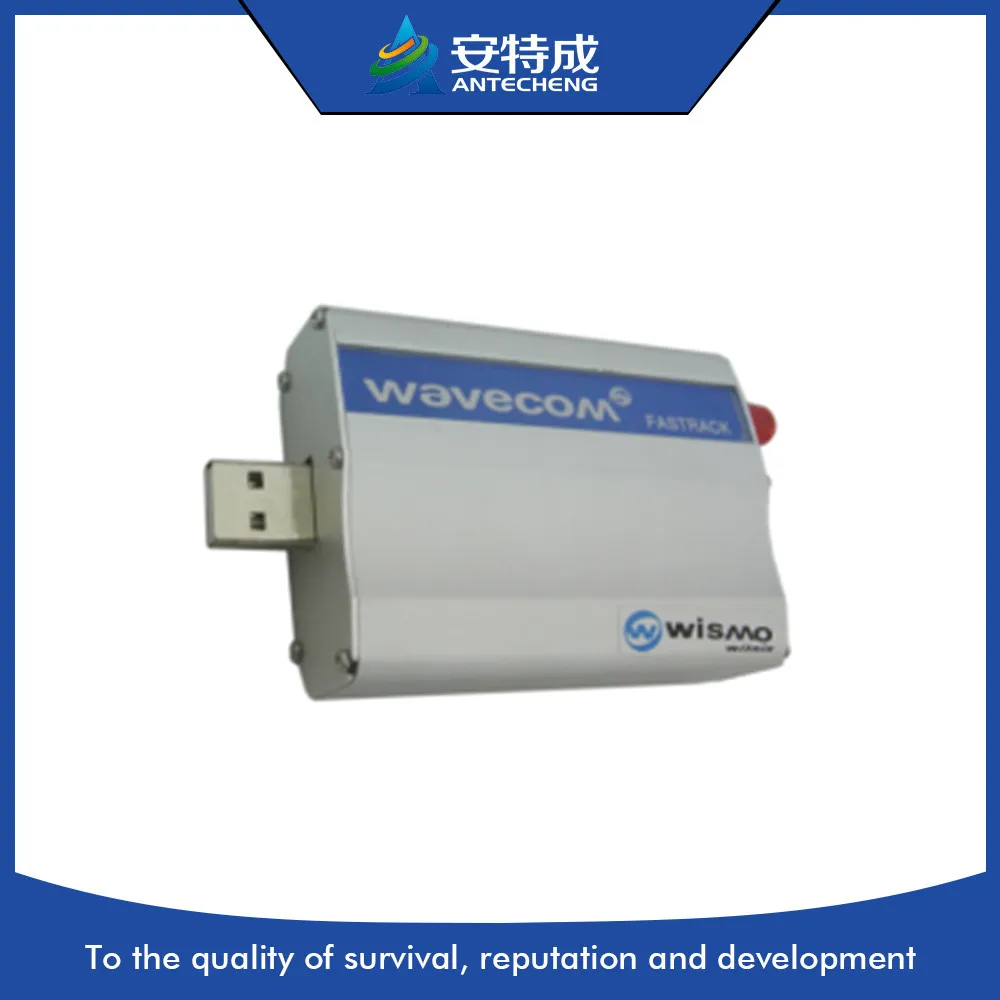

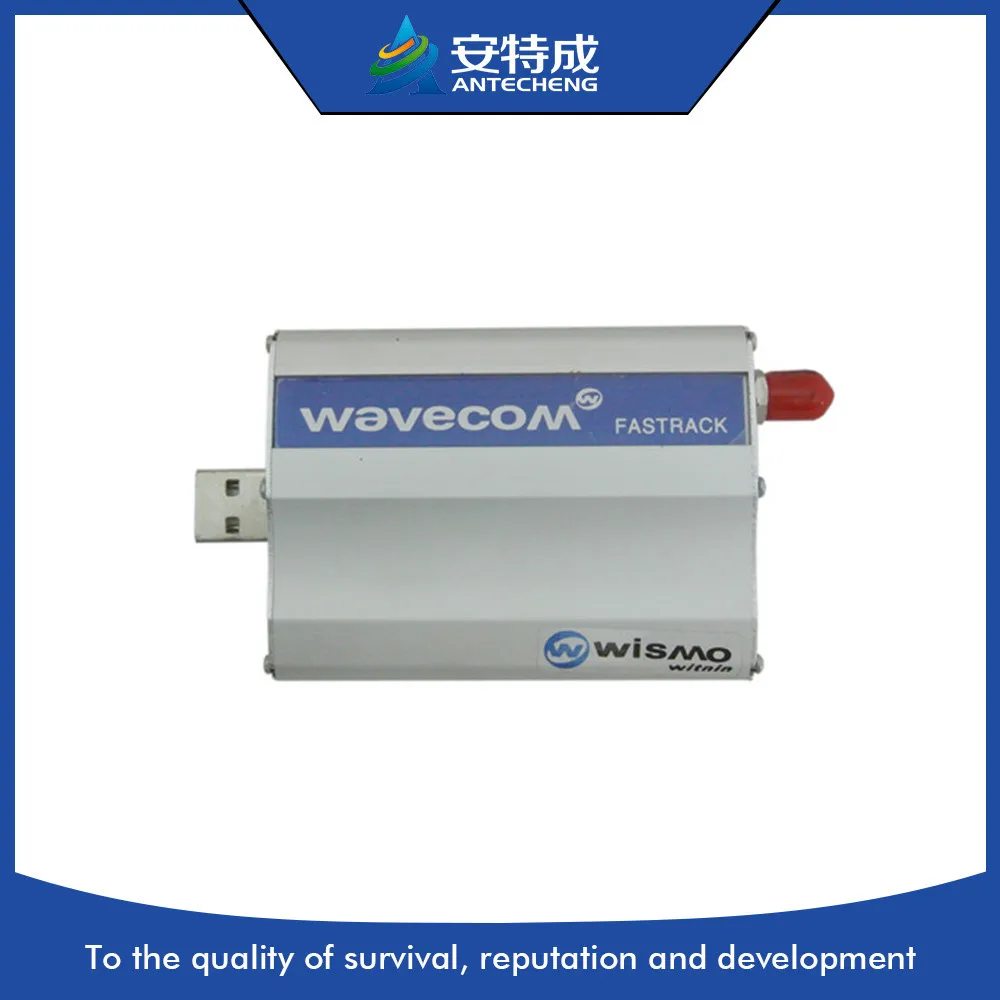

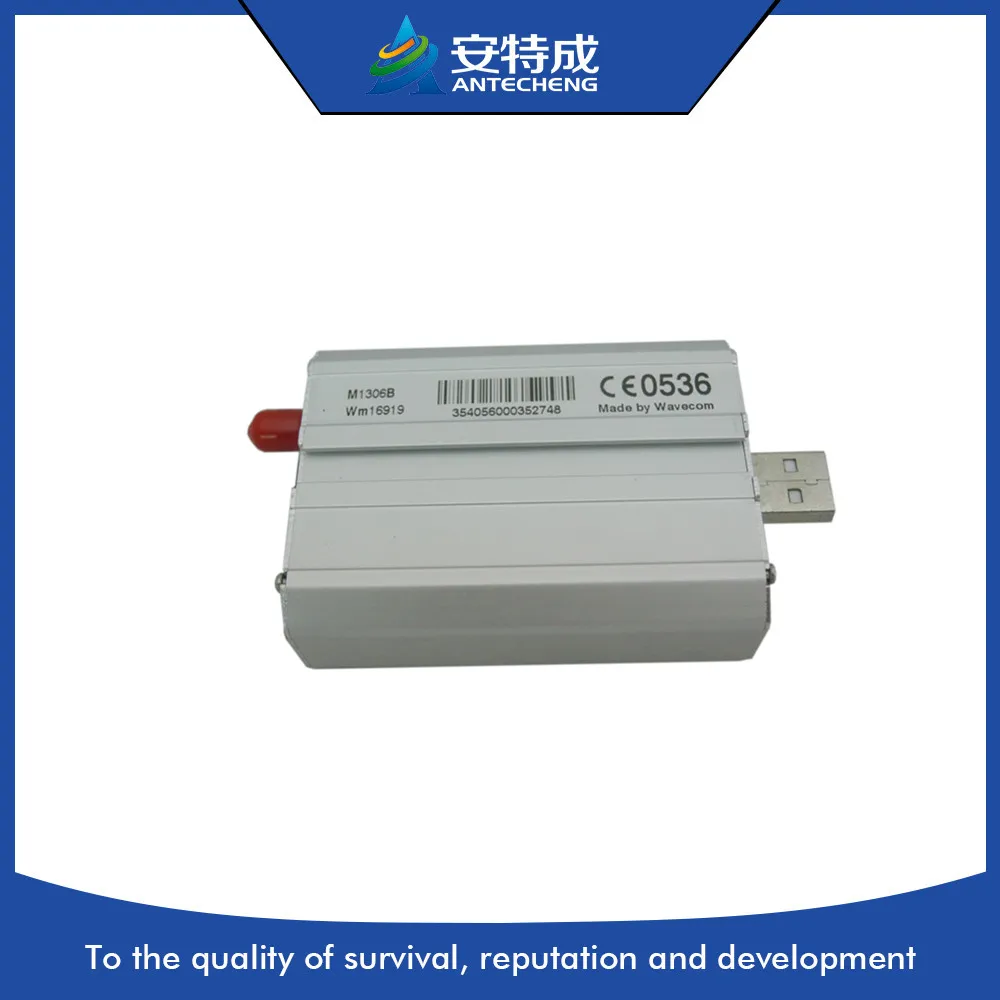

Product pictures :
