OW18B Digital Multimeter Data Logger Thermometer Kit Bluetooth Ammeter Voltmeter

Features:

100% brand new and high quality

Large display with flashlight,large display with high brightness flashlight. Can implement the test in darkness.

NCV non-contact voltage sense--While getting the non-contact voltage sensor close to conductor, the instrument will beeps and flash with the frequency according to AC voltage strength.

Multifunctional, it is not only a multimeter,also a data logger and thermometer

This Digital Multimeter support bluetooth wireless transmission



Function:  1. Large display with flashlight--Large display with high brightness flashlight. Can implement the test among darkness.
2. NCV non-contact voltage sense--While getting the non-contact voltage sensor close to conductor, the instrument will beeps and flash with the frequency according to AC voltage strength.
3. Support temperature test
4. BLE 4.0 wireless transmission, support muti-devices connection and single-display monitoring--One mobile end can connect  with  multiple  multimeters, the test object is totally isolated with user to secure their life.
5.Not only a multimeter,also a data logger and thermometer.--Real time data are updated and recorded to end   user device, no need to be in field. User can define the record time and sampling gap, data can be shown as chart and diagram, multi-devices connection supports data comparison.
User and test object are totally isolated, which secure the life
6. Voice broadcast secures the test--After installing the TTS voice pack on smartphone, the app supports voice broadcast.
User can focus on wire connection without watching the display value. This assure the connection safety.
7. Build-in offline record function--No need to put the end device in field, multimeter will save the data in its memory. Use the smartphone to load the data when connected.
8. Widely supported on Android, iOS, and Windows （needs optional Bluetooth adaptor）system.（The Bluetooth Adaptor is Not Included）

Specification:

Brand Name:owon
Model Number:OW18B multimeter
Dimensions:196mm x 88.5mm x 56mm
Operating Temperature:-20 - 10000 ℃
Measuring Resistance Range:6-600ohm
Measuring Capacitance Range:6-60nF
Measuring Inductance Range:Digital Multimeter
Display Type:Digital Display
DIY Supplies:Electrical
Operating Mode:OW18B Multimeter
AC Voltage:0.01-60V
DC Voltage:0.01-60V
AC Current:0.01-60uA
DC Current:0.01-60uA





Measurement Range

Resolution Accuracy

DC Voltage(V)

mV

600.0mV/6.000V/60.00V/600.0V 0.1 mV ±(0.5%+2 dig) V 1000V 1V ±(0.8%+2 dig) A C Voltage(V) mV 600.0mV/6.000V/60.00V/600.0V 0.1mV ±(0.8%+3dig) V 750V 1V ±(1%+3dig)     DC current μA 60.00uA/600.0μA 0.01μA ±(0.8%+2dig) mA 60.00mA/600.0mA 0.01mA ±(0.8%+2dig) A 10.00A 0.01A ±(1.2%+3dig) AC current μA 60.00uA/600.0μA 0.01μA ±(1%+3dig) mA 60.00mA/600.0mA 0.01mA ±(1%+3dig) A 10.00A 0.01A ±(1.5%+3dig)

Resistance (Ω)

  600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ
0.1Ω ±(0.8%+2dig)   60.00MΩ 0.01 MΩ ±(2%+3dig) Capacitance (F)   60.00nF/600.0nF/6.000μF/60.00μF 01nF ±(2.5%+3dig)   600.0μF/6.000mF/60.00mF 0.1μF ±(3%+5dig) Frequency   9.999Hz/99,99Hz/999.9Hz/9.999kHz/ 0.001Hz ±(0.8%+2dig)   99.99kHz/99.9kHz/9.999MHz ±(0.8%+2dig)

Duty Ratio (%)

  0.1%~99.9%(typical value: Vrms=1V,f=1kHz) 0.1% ±(1.2%+3dig)   0.1%~99.9%(≥1kHz) ±(2.5%+3dig)

Temperature (°C/°F)

  - 50 ℃~400℃ 1℃ ±(2.5%+3dig)     -58 ℉ ~ 752 ℉ 1℉ ±(4.5%+5dig) Display   5999

Frequency Response

  (20 - 1000) Hz

Shift Rate



3 times/s



On-off Warning

bluetooth communication yes

Auto-scale

yes

True RMS

yes

LCD Backlight

yes

Diode Test



Audion Test

yes Automatic manual range selection yes

Flashlight

yes Input protection yes

Auto Power-off

yes  input impedance ≥10MΩ   yes Safety norms 600V CAT, 1000V CA

Low-battery Indicator

yes NCV yes

Data Hold

yes

Relative Measurement

yes   Size 196mm x 88.5mm x 56mm Weight 533g   Battery

3V (1.5V x 2) AA

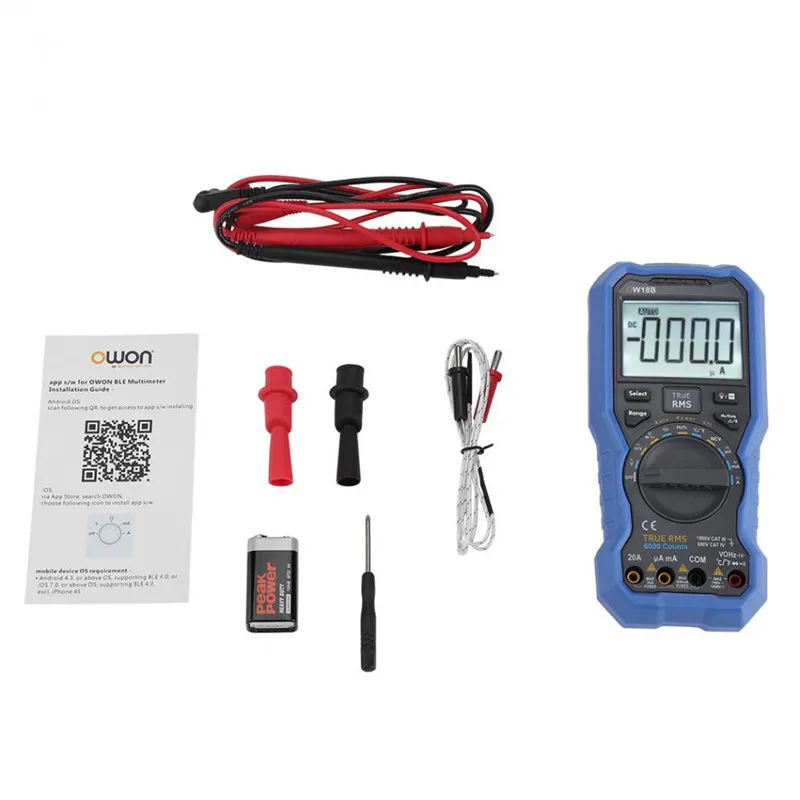

Package Included:

1 x multimeter (battery not included)
1 x Multimeter Lead
1 x K-type Thermocouple
1 x Manual
2 x clip
1 x screwdriver
