Access control enables you to control who has access to your building. Locks and keys also allow you to secure your building, but when keys are lost or stolen, the inconvenience and expense of changing locks and re-issuing keys can be considerable. Keys may also be copied, creating even more security risks.

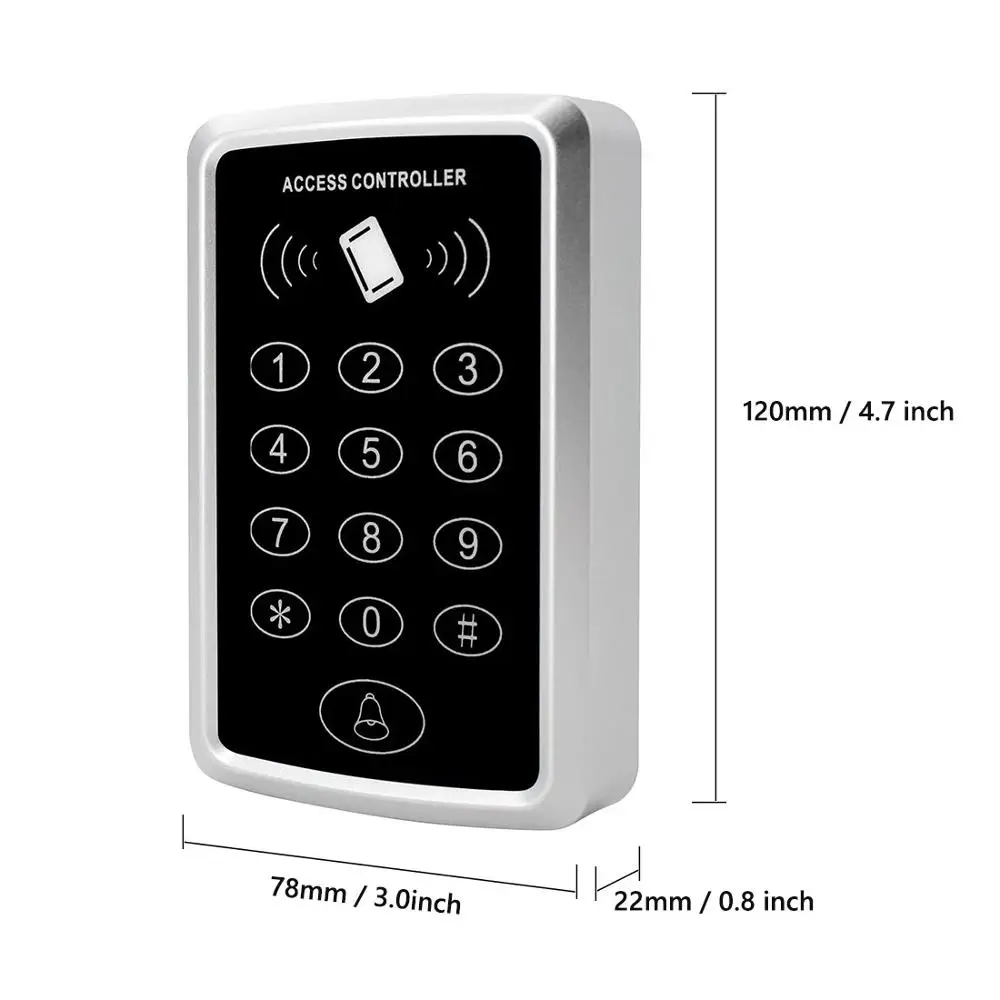

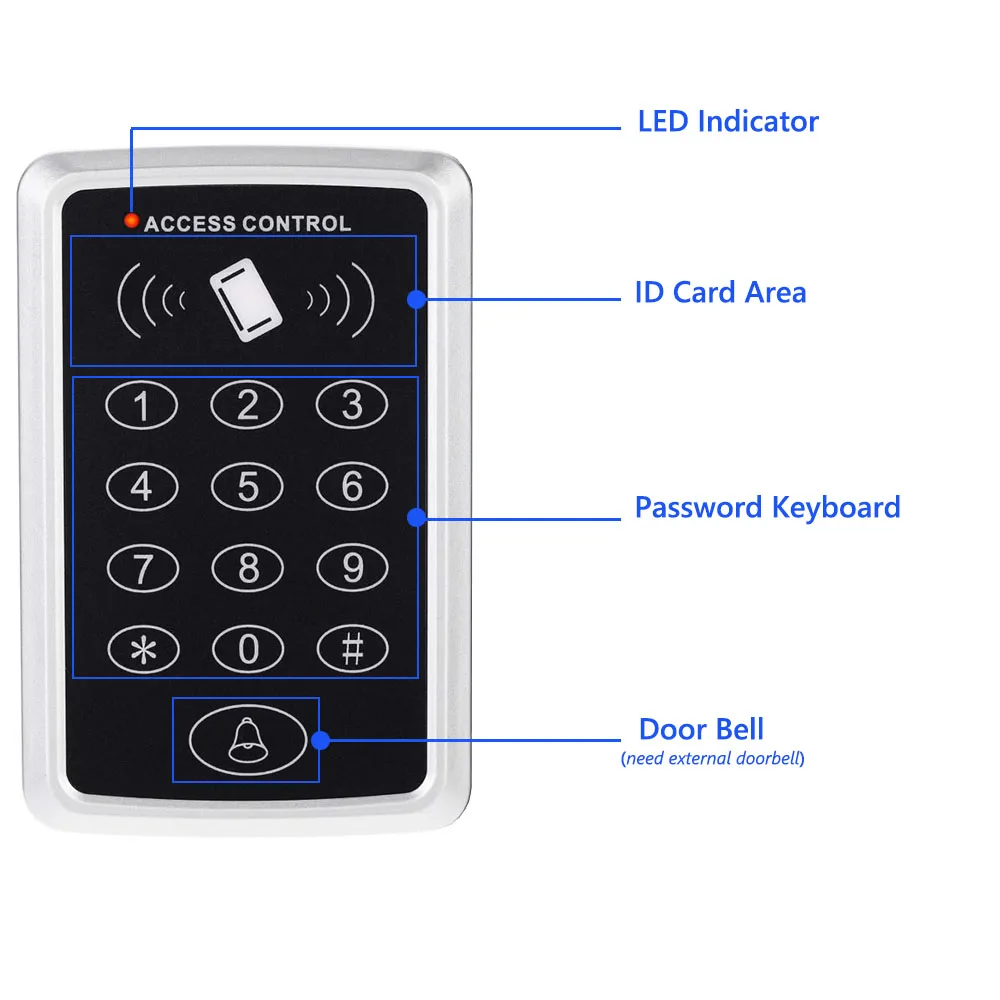

Access control keypad:

Features:

Strong Zinc Alloy Electroplated anti-vandal case, IP68 Waterproof, high security.

125kHz RFID Proximity ID Token Tag Key keyfobs for Access Control.

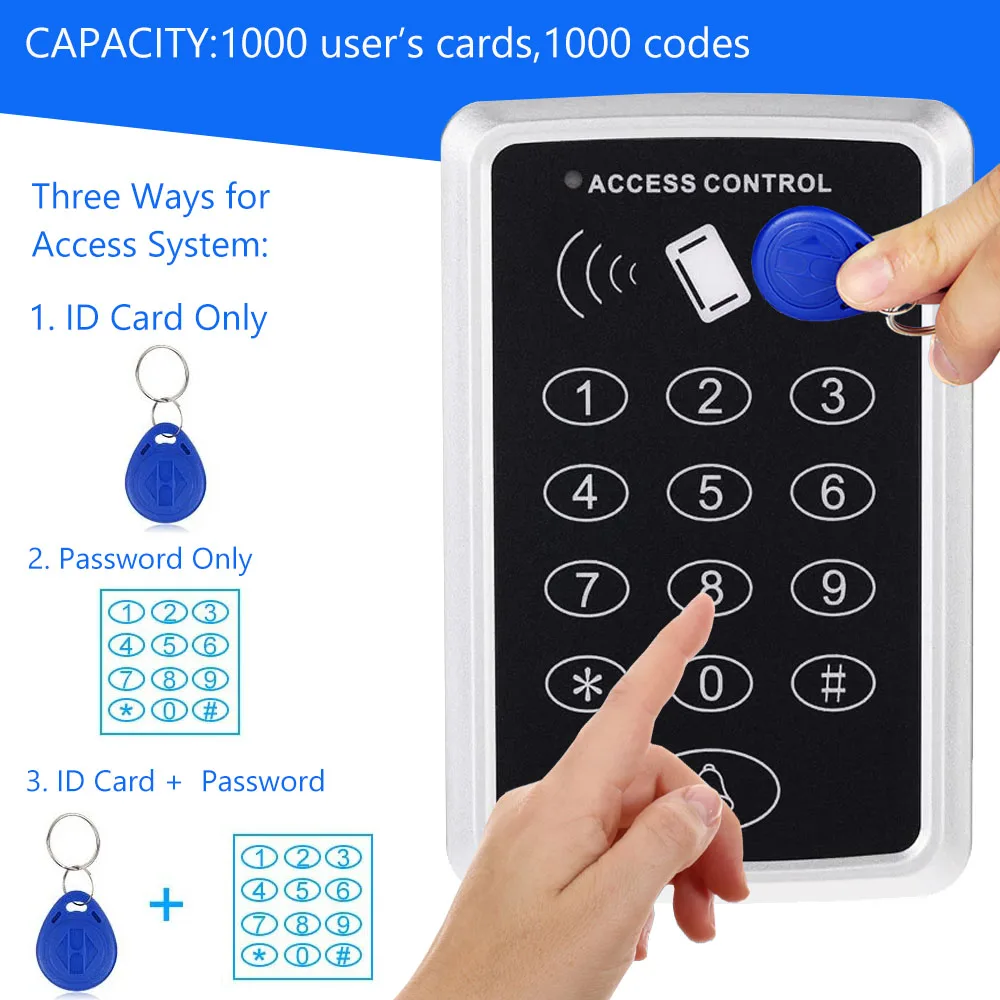

Support 2000 standard users, Supports ID Card, Password, ID Card + Password, Can add user and delete user as your requirement.

Full programming from the keypad, Built-in proximity card reader, Built-in keypad for PIN code entry, Backlight keys.

With lock relay output, Lock output current short circuit protection, Very low power consumption.

Secure / normal Mode, NO / NC output, Build-in buzzer, Built-in light dependent resistor (LDR) for anti tamper.

Red, Yellow and Green LEDs display the working status.

Built-in bell button can connect a external bell, Wiegand 26 output for connection to a controller.

Supports Home, Garage, Office, or Gate Use.

Surface Waterproof and dustproof panel

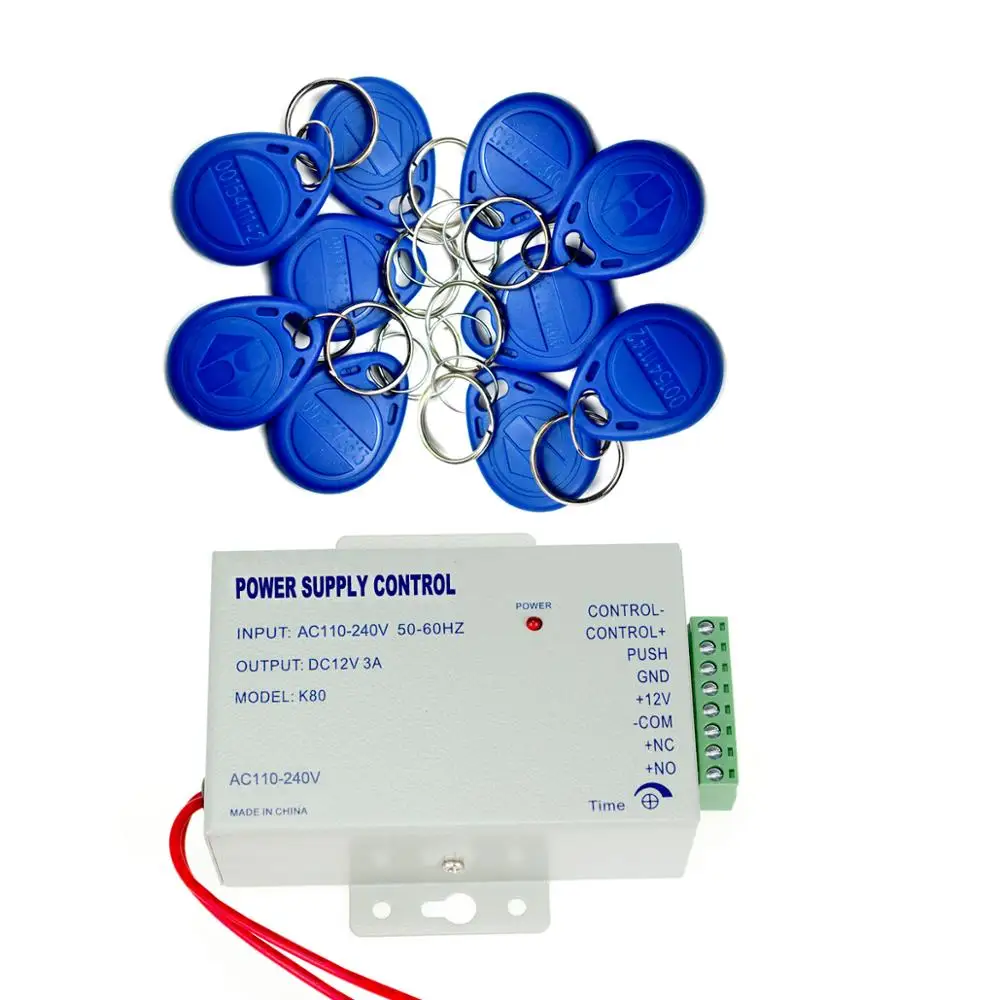

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Exit Button :

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)

Performance Testing: 1000000 times aging test

Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc

Application: wood/iron doors

125KHz rfid frequency key card

Operating frequency: 125kHz

Detection range: 0-10cm

Each card pre programmed and has a unique identity number on it.

This is the 125K Thin RFID Proximity Card , with high-quality, it can work with the product which has the RFID card reader,it will meet your need completely.

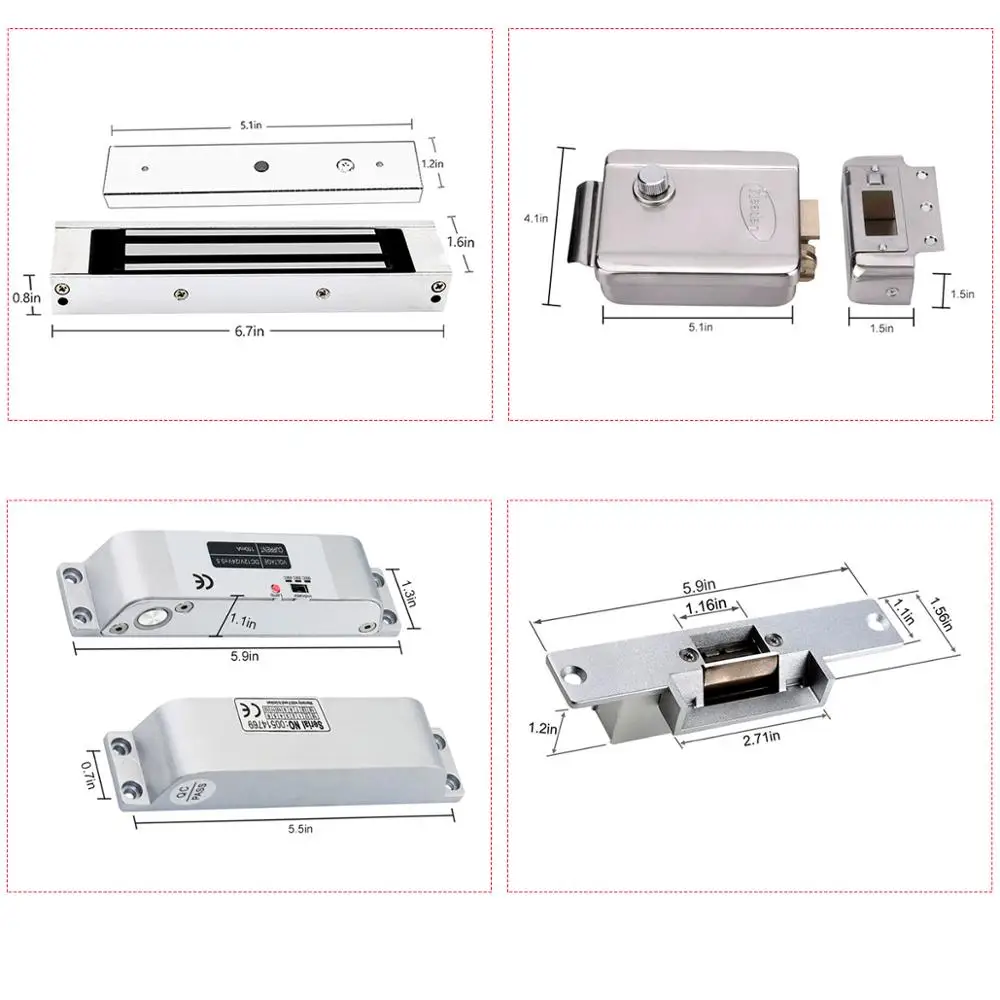

180KG Electric Magnetic Lock

NCfail safemode ___ Lock while supplied with power, and unlock without power.

Suitable for wooden, metal and glass door, not need bracket, convenient to install.

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

Material: Aluminium Alloy + Metal Plate

Color: Silver

Holding Force: 180kg/350lbs

Input Voltage: DC 12V

Operation Current: 500mA

Size: 168Lx39Wx21H(mm) / 6.6Lx1.5Wx0.8H(in)

Package Weight: Approx. 2.6lb

NOFail-securemode___Unlock while supplied with power, and lock without power.

suitable for wooden door, convenient and beautiful.

Features:

1. High-Temperature painted, durable and beautiful article.

2. Stainless steel bolt structure, structural linkage is made of steel and hardened to resist severe impact.

3. Installation simplified, non-polarized connection to your access control or egress device.

4. With two contacts and no polarity requirement.

5. Suitable for:90 degree swinging door, such as wooden door, metal door, PVC door, etc

Specifications:

Type: NO electric strike

Material: stainless steel / zinc alloy

Withstand Tension: 600lb

Performance Testing: 1000000 times aging test

Input Voltage: DC12V

Operating Current: 240m

Applicable Door Type: wooden door, metal door, PVC door

Surface Temperature: within +20℃ / 68℉

Suitable Temperature: -10℃~+55℃(14℉-131℉)

Operating Humidity: 0~90% (non-condensing)

Size: 150x34x28mm / 5.9x1.3x1.1in

Weight: Approx. 1.1lb

***(We will send theNOFail-securemodeby default, if you wantNCFail-safemode, please leave us a message.)***

Kits3:Access Control keypad + Power supply + Exit button + 10pcs Keyfobs+ Electric Drop Bolt Lock

NCfail safemode ___ Lock while supplied with power, and unlock without power.

Suitable for Wooden door, Glass door, Metal door, Fireproof door, not need bracket, convenient to install.

1. NC mode - (locked while supplied with power), fail safe mode, lock while supplied with power, and unlock without power.

2. Surface mounted installation, aluminum alloy material, lock body use hexagon screw, fixed panel, anti-theft and more security.

3. Special circuit design, with no external interference, the door will unlock until the power is cut off, with 0, 3, 6 seconds time delay adjustable.

Material: Aluminium Alloy

Input Voltage: DC 12V

Working Current: 150mA

Starting Current: 1.2A

Holding Force: 1000KG

Delay Function: 0s/3s/6s delay

Secure Mode: NC model/ fail safe model ( Locked when power on, unlocked when power off )

Lock Cylinder Size: 12.5mm/0.5in diameter, 15mm/0.6in extension length

Lock Body Size: Approx.150*34*28mm/5.9*1.3*1.1in

Package Weight: Approx.515g/18.2oz

Kits4:Access Control keypad + Power supply + Exit button + 10pcs Keyfobs+ Electric Control Lock

NOFail-securemode___Unlock while supplied with power, and lock without power.

Suitable for Wooden door, Glass door, Metal door, Fireproof door, not need bracket, convenient to install.

Product Features:

1. Secure mode: Locked when power on, still locked when power off, you can open the door with hand.
2. Especially suitable for wooden/metal doors.
3. Have the lever effect of the lock tongue, but with electronic anti-theft door.
4. Electric control, knob, all can unlock keys.
5. Static electricity power consumption, long service life, strong security.
6. Metal wire drawing processing, lock body surface anti-corrosion, durable and beautiful.
7. Suitable for residential buildings, public door, organs, schools, hotel building, factory warehouse and other departments.

Technical Information:
Working voltage: 12VDC
Opening Voltage: 9 to 18V
Working current: 150mA
Material: Metal
Dimension: 131mm(L) x 107mm(W) x 39mm(H)
Dimension: 5.1"(L) x 4.2"(W) x 1.5"(H)inch
