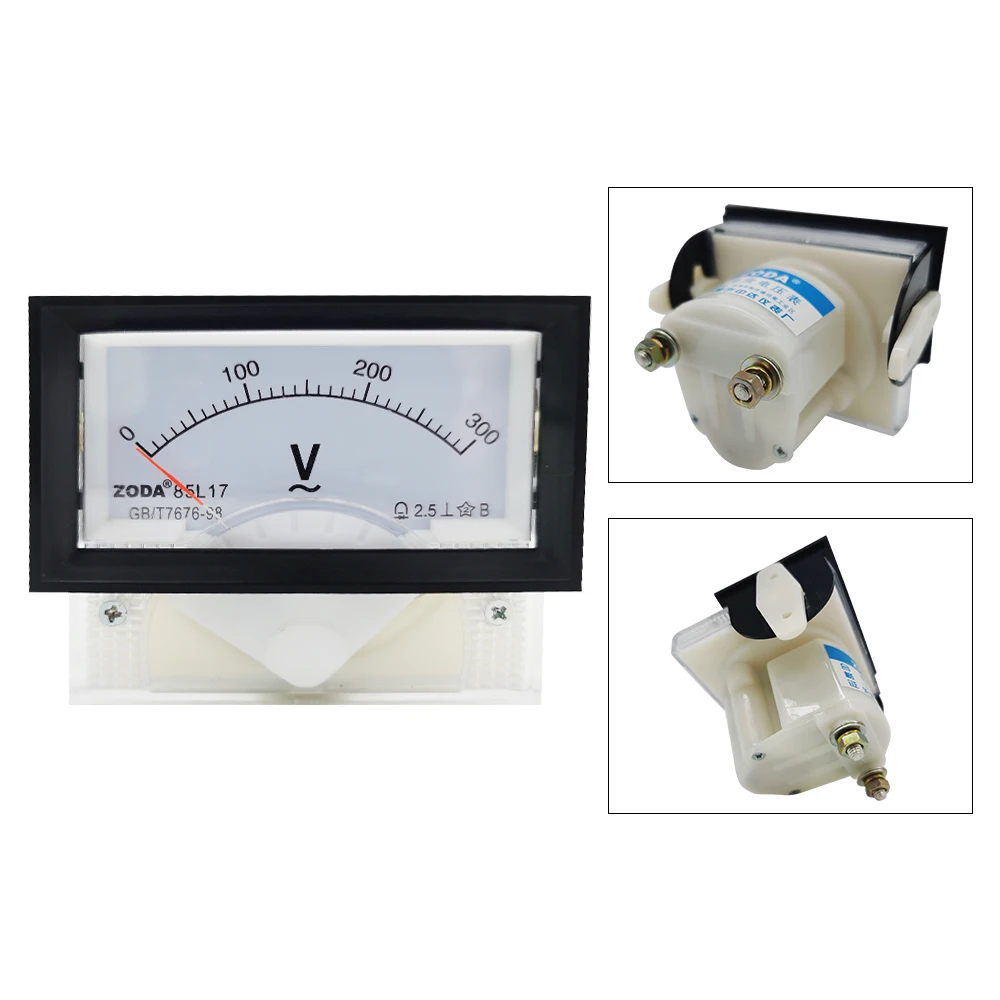

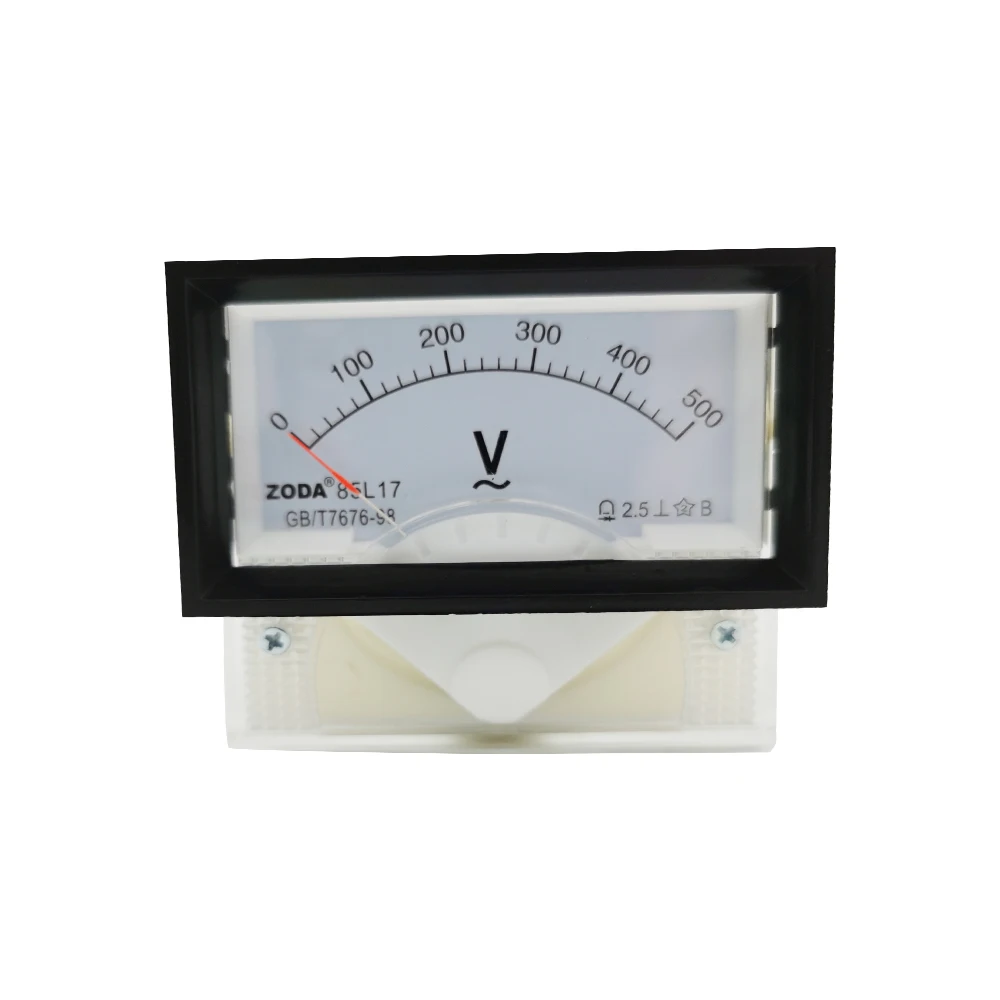

1 шт. 85L17-V 250В 300В 450В 500В переменный аналоговый измерительный инструмент для счетчика напряжения и тока 70 * 40 мм Вольтметр Voltimetro on.

1 шт. 85L17-V 250В 300В 450В 500В переменный аналоговый измерительный инструмент для счетчика напряжения и тока 70 * 40 мм Вольтметр Voltimetro on.

Product details:
1. Model: 85L17-V

2. Color: White and Black

3. Accuracy: 2.5

4. Size: 70mm x40 mm x 56 mm(L*H*W)

5. Package:1*Analog Voltage Current Panel Meter.
6. Measuring Range: According to your choice.

First. Use

This instrument is a switched magnetoelectric instrument, which is used for measurement of AC / DC current or voltage. The ambient temperature is -20 - +55°, and the relative humidity is not more than 96% (25).

Two. Specifications

AC ammeter 0.5~50A (direct access)

5A~15KA (connected by current transformer, secondary current 5A)

AC voltmeter 5V~750V (direct access)

DC ammeter (direct access)(50uA~10A)

15A~15KA (using external partition constant value shunt)

Direct current voltmeter (direct access)  (5V~600V)

Three. The main technical characteristics

1. the damping time is less than 4S.

2. Insulation strength: AC2000V (50HZ), 1 minutes.

Four. Use of rules

1.Work position: vertical.

2. Instrument installation should be fastened, not loose or inclined.

3. The current ratio of the external current transformer must be in line with the calibration ratio of the instrument, and the accuracy grade is matched.

Notes:
1. Please allowed 1-3mm differences due to manual measurement. :)
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Make sure that the correct parameters are selected and leave a message: the size, voltage, model and so on.
