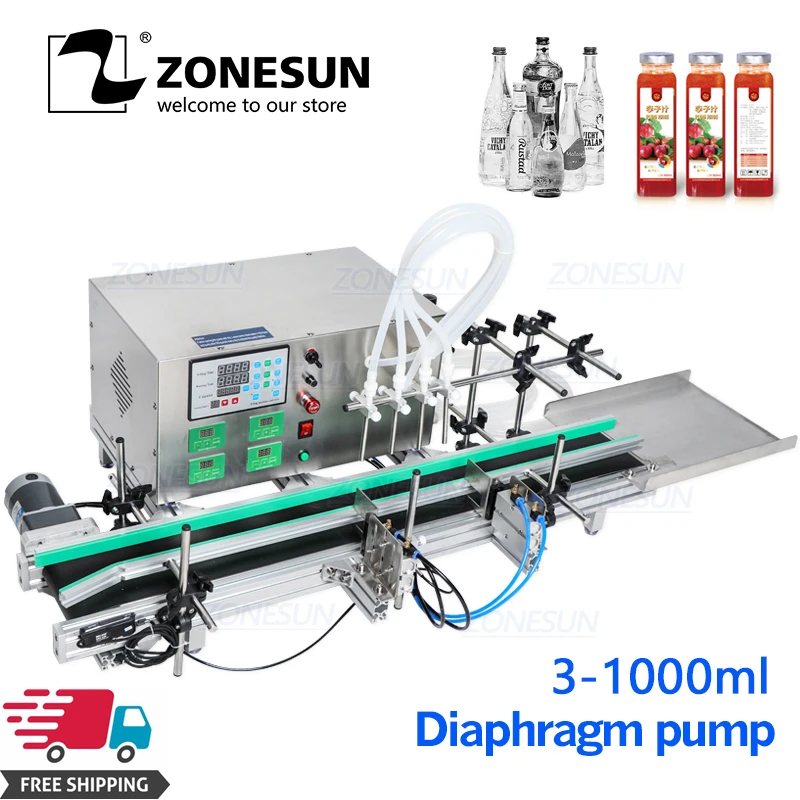

ZONESUN 4 Nozzles Benchtop Automatic Juice Water Filler Soft Drinks Liquid Bottling Filling Machine Line | Бытовая техника

ZONESUN 4 Nozzles Benchtop Automatic Juice Water Filler Soft Drinks Liquid Bottling Filling Machine Line | Бытовая техника

Parameter

Power Supply Voltage

110/220V 50-60HZ

Power

250W

Machine Pump

Diaphragm Pump

Filling Nozzle

4 Nozzles

Maximum flow velocity

4000ml/min(Each nozzle and base on water)

Working speed

1500-3000 bottles/hour(depends on bottle size and liquid)

Air pressure

0.3-0.4MPa

Filling accuracy

≤+1% (For water)

Diameter of filling nozzle

6/8mm

Delay Range

0.01-999.9s

Count Range

1-99999 Times

Package size

About 1110*650*420mm

Gross weight

About 46.5kg

Filling Volume

3-1000ml(220V)3-500ml(110V)

Since the power of 110v machine is not large, so we recommend 3-500ml for each nozzle

Size of air compressor connector

OD 8mm

Bottle height

＜220mm(Can be customized,max height 300mm)

Feature

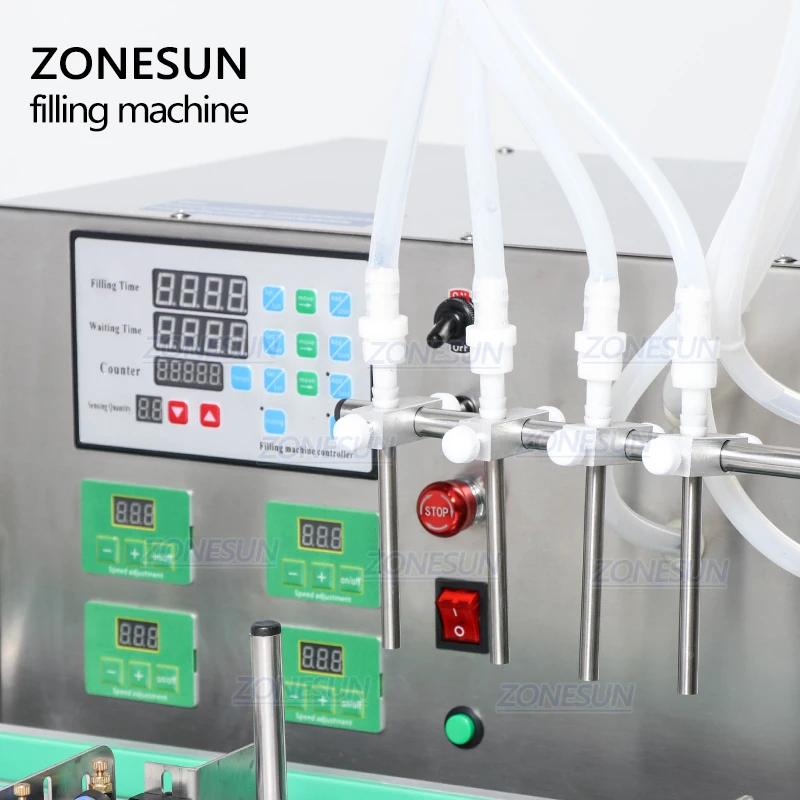

[Numerical Control Panel]Through the control panel, it's easy to set working parameters like filling time. It is with an inching button, which is good for testing the machine. Easy to operate.

[Adjustable Filling Speed] The filling speed of the nozzles can be adjusted separately on the panel. Easy and convenient.

[Wide Application] This machine is used for filling low-viscosity liquid, such as juice, water, milk, soy sauce, etc.

[Automatic Production] This machine can work with automatic capping machine and labeling machine, realizing automated production. Please contact us if you need.
