Хайфай XLR кабель мужской и женский микрофонный сбалансированный, полностью сделанный вручную с использованием провода Mogami 2549 с разъемами Neutrik Gold.

Хайфай XLR кабель мужской и женский микрофонный сбалансированный полностью сделанный вручную с использованием провода Mogami 2549 разъемами Neutrik Gold.

Specifications

Interface type：XLR to XLR
Wire：mogami w2549
Wire diameter：6.0mm
Wire material：OFC（Oxygen free copper）
Plug：NEUTRIK NC3FXX-B/NC3MXX-B
Plug material：Copper
Welding：Hand soldering using 5% silver solder

▲If you are unable to find the length and type of cable you are looking for, please feel free to contact us, we will strive to assemble the required cable for you.

Packing List

1piece*xlr to xlr cable

NOTE

▲The colors deviation might differ due to different monitor settings.

▲Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

▲The brand of wire we used for this custom cable assembly: Mogami, one of the most sought after Pro cable brands, preferred by major recording studios and leading sound engineers around the world. All Mogami cables are made in Nagano - Japan using the best materials and technological expertise of decades of R&D.

▲ W2549 wrote on the official website that it is the wire that can restore the original sound. The whole wire gives a very pleasant listening experience. It inherits the characteristics of relatively strong and warm low frequencies in audio equipment in Japan. The sound is very "human." The degree of reduction is also very high, and the sound is transparent and natural, just like a clear Ganquan straight into the heart.
▲The sound and audio of the cable are very balanced, so it is speculated that the instrument with a wide frequency range such as a guitar should be good. This is indeed the case. The transparent and clean sound has a feeling of reproducing the original sound. Wire characteristics: small sound dyeing, accurate timbre, balanced frequency band.

①High temperature resistant insulating layer
The use of XLpE (cross-linked polyethylene), this material has very good electronic properties, and can prevent the shrinkage of the wire during high temperature welding.
②PVC tensile rope
Using PVC, this material has very good toughness and elastic properties, and can prevent the wire from being damaged when pulling and swinging the cable.
③Oxygen-free copper core
22Awg conductor, copper content up to 99.99%, the sound is purer, the degree of reduction is higher, the details are more abundant, the dynamic is greater, and the impedance is lower.
④99.99% spiral oxygen-free copper shielding layer
The ultra-high density spiral oxygen-free copper shield is used. The design of this shield layer is better than the sound quality of aluminum foil or braided shield, and it can effectively shield electromagnetic and radio frequency interference. Avoid annoying background noise, hum, hum.
⑤Super soft skin
Using PVC, this material has very good toughness and elastic properties, wear-resistant, durable, easy to bend, very soft, very suitable for use in various occasions.

▲The brand of connector we used for this custom cable assembly: The NC3MXX-B/ NC3FXX-Bis the latest and the highest-end Male XLR offering by Neutrik AG-Liechtenstein, the world's leading brand for professional audio connectors. XX series offers greater reliability, improves contact integrity and reduces cable strain, comes in a Black metal housing and features Gold plated contacts.

▲The welding is purely manual welding, and the solder joints are made of lead-free solder containing 5% silver with constant temperature welding, and each solder joint is full and smooth.

▲Each welding point is sealed with a heat shrinkable tube after welding to improve the oxidation resistance of the welding point and ensure a long sound
▲The same, while improving the tensile resistance and durability of the wire.

SPECIFICATIONS

▲Part No. ：2549
▲No. of Conductor
Details：30/0.12 OFC
Size(mm2 )：0.339mm2 (#22AWG)
▲Insulation
Ov. Dia. (mm) ：1.9(0.075")
Material：XLPE( Cross-Linked Polyethylene )
Colors：Blue/Clear
▲Shield：Served Approx. 62/0.18A
▲Jacket
Ov. Dia. (mm) ：6.0(0.236")
Material：Flexible PVC
Colors：Black/Red/Yellow/Green/Blue

ELECTRICAL & MECHANICAL CHARACTERISTICS

▲DC Resistance at 20℃
Inner Cond.：0.058Ω/m(0.018Ω/Ft)
Shield：0.012Ω/m(0.004Ω/Ft)
▲Capacitance at 1kHz, 20℃( Partial C. Value )See below figure
K0：76pF/m(23 pF/Ft)
K1：11pF/m(3.4 pF/Ft)
▲Inductance between conductors at 1kHz, 20℃ ：0.8H/m (0.24H/Ft)
▲Electrostatic Noise：50 mV Max.
▲Electromagnetic Noise ：0.15 mV Max.
▲Microphonics at 50kΩ Load：30 mV Max.
▲Voltage Breakdown：Must withstand at DC 500V/15 sec.
▲Insulation Resistance：105 MΩm Min. at DC 125 V, 20℃
▲Flex Life：14,500 cycles
▲Tensile Strength：657 N
▲Emigration：Non-Emigrant to ABS
▲Applicable Temperature：-20℃ ~ + 70℃

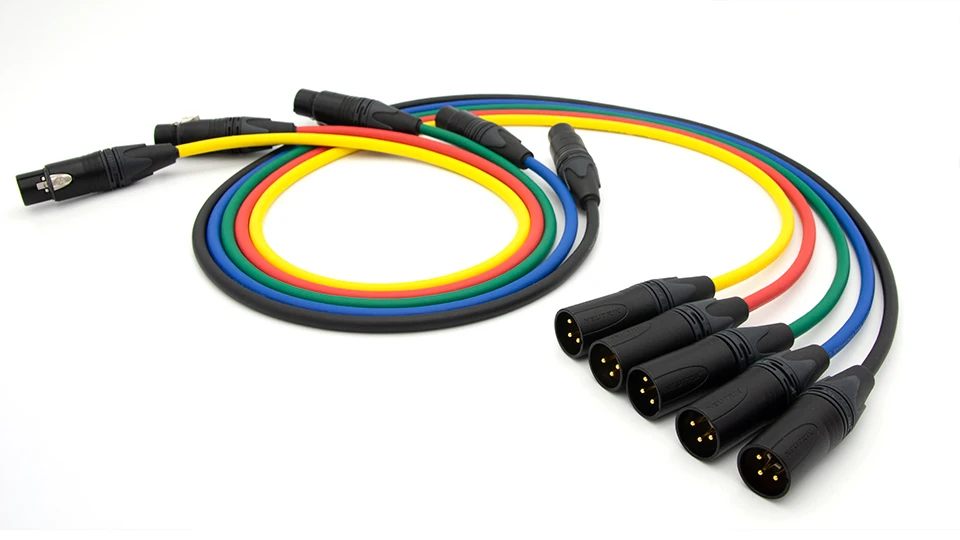

Physical display

▲The colors deviation might differ due to different monitor settings.
