Оригинальный кабель Mogami 2549 на сборной проволоке OFC с проводником 22AWG, емкость низкая, с экранированием и сплетением в пару.

Оригинальный кабель Mogami 2549 на сборной проволоке OFC с проводником 22AWG емкость низкая экранированием и сплетением в пару.

NOTE

------The colors deviation might differ due to different monitor settings.

------If you need a large quantity, Please be free to contact us for a good price.

------The unit price is the price of one meter in a loose line, not including plug

------If you shoot how many pieces in a few meters, for example, you need 5 meters, please shoot 5 pieces, we will ship a piece of 5 meters

Introduction

▲2549 has been designed using our famous Neglex OFC to provide the highest quality of audio reproduction in any recording application. It features ＃22AWG conductors and lower capacitance than our quad cables.
▲The served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when high frequencies are important and where long cable runs are needed, and, it is cheaper and easier to terminate than quad cables.

▲W2549 wrote on the official website that it is the wire that can restore the original sound. The whole wire gives a very pleasant listening experience. It inherits the characteristics of relatively strong and warm low frequencies in audio equipment in Japan. The sound is very "human." The degree of reduction is also very high, and the sound is transparent and natural, just like a clear Ganquan straight into the heart.
▲The sound and audio of the cable are very balanced, so it is speculated that the instrument with a wide frequency range such as a guitar should be good. This is indeed the case. The transparent and clean sound has a feeling of reproducing the original sound. Wire characteristics: small sound dyeing, accurate timbre, balanced frequency band.

①High temperature resistant insulating layer
The use of XLpE (cross-linked polyethylene), this material has very good electronic properties, and can prevent the shrinkage of the wire during high temperature welding.
②PVC tensile rope
Using PVC, this material has very good toughness and elastic properties, and can prevent the wire from being damaged when pulling and swinging the cable.
③Oxygen-free copper core
22Awg conductor, copper content up to 99.99%, the sound is purer, the degree of reduction is higher, the details are more abundant, the dynamic is greater, and the impedance is lower.
④99.99% spiral oxygen-free copper shielding layer
The ultra-high density spiral oxygen-free copper shield is used. The design of this shield layer is better than the sound quality of aluminum foil or braided shield, and it can effectively shield electromagnetic and radio frequency interference. Avoid annoying background noise, hum, hum.
⑤Super soft skin
Using PVC, this material has very good toughness and elastic properties, wear-resistant, durable, easy to bend, very soft, very suitable for use in various occasions.

SPECIFICATIONS

▲Part No. :2549
▲No. of Conductor
Details:30/0.12 OFC
Size(mm2 ):0.339mm2 (#22AWG)
▲Insulation
Ov. Dia. (mm) :1.9(0.075")
Material:XLPE( Cross-Linked Polyethylene )
Colors:Blue/Clear
▲Shield:Served Approx. 62/0.18A
▲Jacket
Ov. Dia. (mm) :6.0(0.236")
Material:Flexible PVC
Colors:Black/Red/Yellow/Green/Blue

ELECTRICAL & MECHANICAL CHARACTERISTICS

▲DC Resistance at 20℃
Inner Cond.:0.058Ω/m(0.018Ω/Ft)
Shield:0.012Ω/m(0.004Ω/Ft)
▲Capacitance at 1kHz, 20℃( Partial C. Value )See below figure
K0:76pF/m(23 pF/Ft)
K1:11pF/m(3.4 pF/Ft)
▲Inductance between conductors at 1kHz, 20℃ :0.8H/m (0.24H/Ft)
▲Electrostatic Noise:50 mV Max.
▲Electromagnetic Noise :0.15 mV Max.
▲Microphonics at 50kΩ Load:30 mV Max.
▲Voltage Breakdown:Must withstand at DC 500V/15 sec.
▲Insulation Resistance:105 MΩm Min. at DC 125 V, 20℃
▲Flex Life:14,500 cycles
▲Tensile Strength:657 N
▲Emigration:Non-Emigrant to ABS
▲Applicable Temperature:-20℃ ~ + 70℃

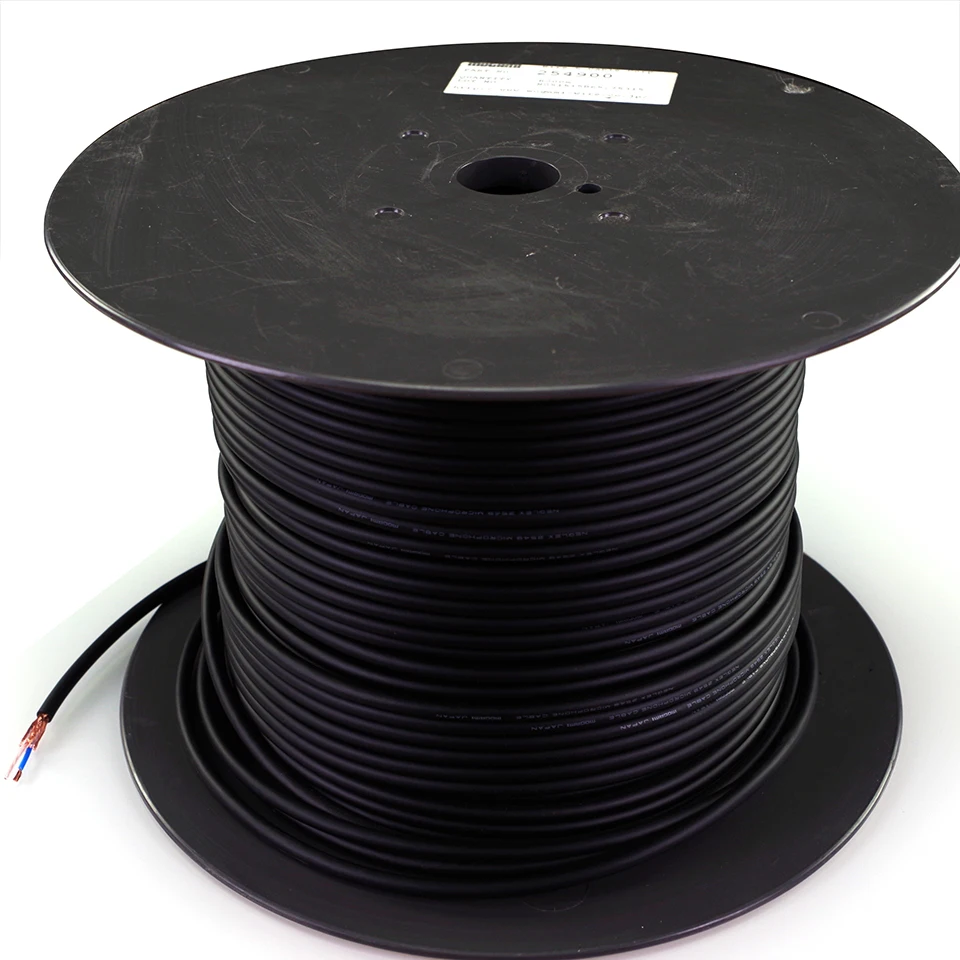

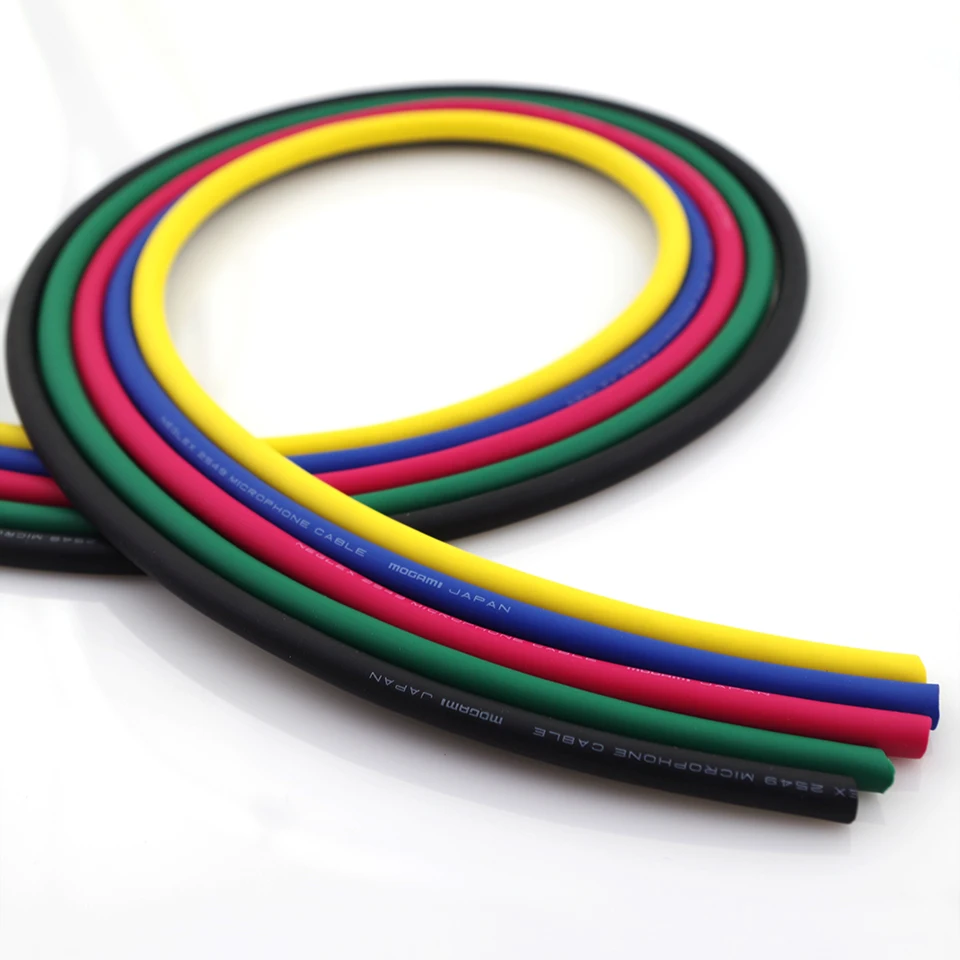

Physical display

▲The colors deviation might differ due to different monitor settings.
