Product Feature

Flangeless fittings benefits a lot for low pressure (up to 0.8Mpa) removavle and reusable systems.

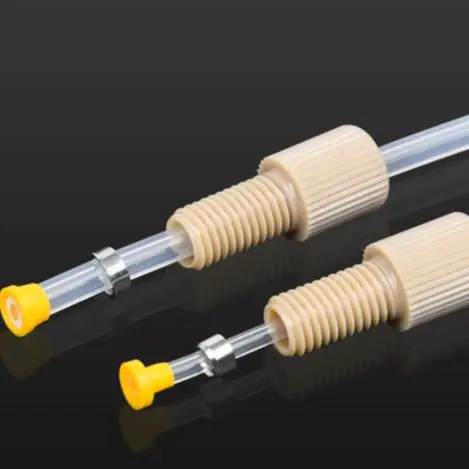

PEEK flangeless nut come with ETFE ferrule

Compatible with flat bottom receiving port

Finger-tight convenience, no wrenches required

Flangeless ferrules provide a leak-proof seal, users no need to spend time flanging tubing

User for standard rigid tubing OD1/16"(1.6mm), 2.0mm, 2.5mm, 3.0mm, 1/18"(3.175mm), 3.2mm

For tubing type: PEEK, FEP, PTFE, ETFE, PFA

High temperature and corrosion resistance

Application Note

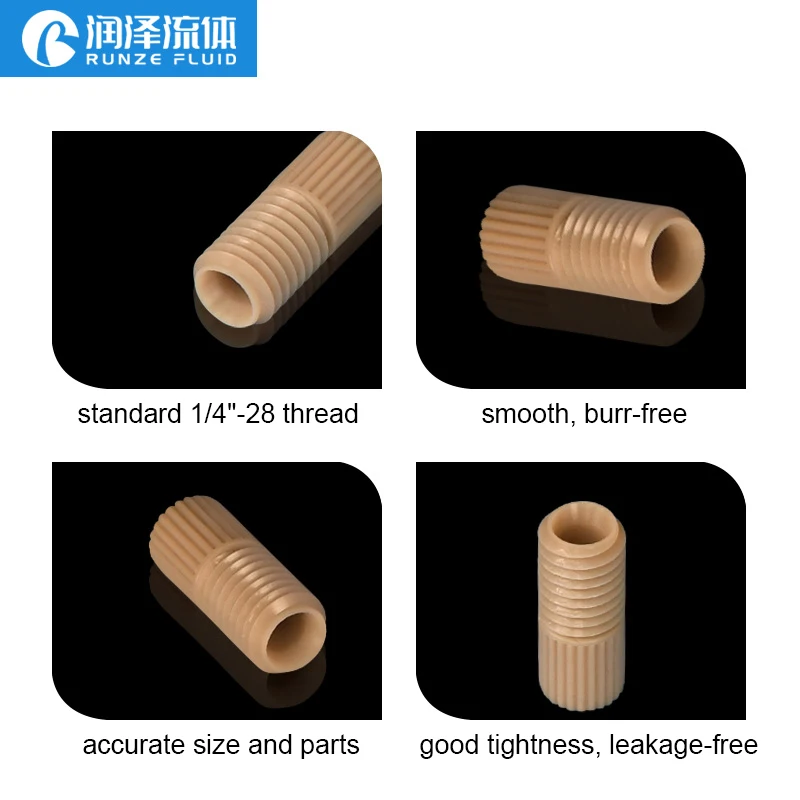

1. 1/4-28 nut used for receiving port 1/4-28

2. Before connecting fittings, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.

3. Two-Piece Fittings Installation Steps:

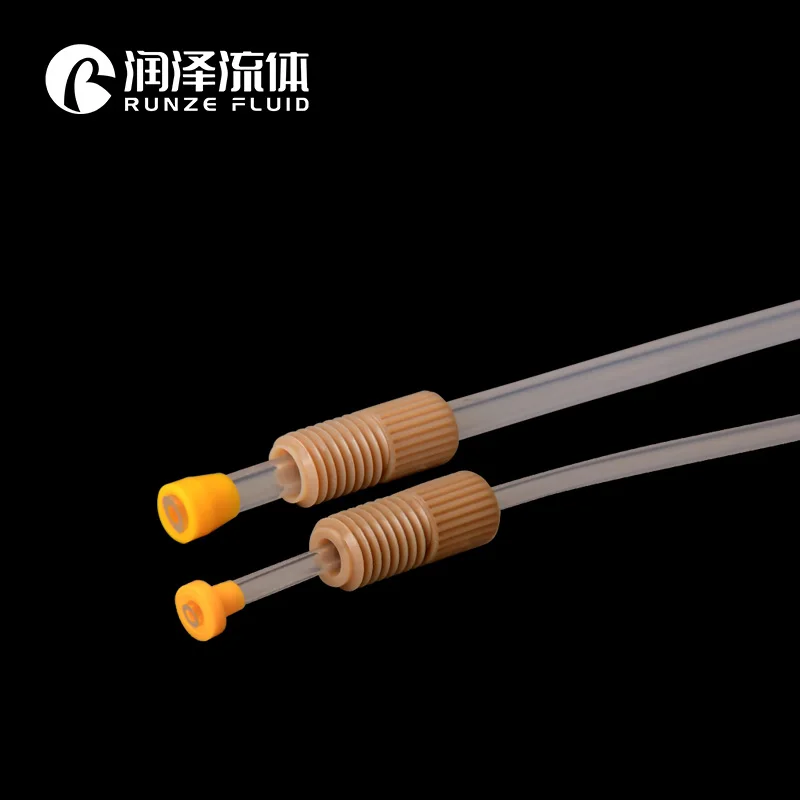

a. Slide the nut, followed by the ferrule, at least 3/16”(4.7625mm) from the end of the clean cut tubing

b. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.

c. Finger tighten the nut into the port until snug.

d. After several uses (especially at high pressure) the ferrule should be replaced.

4. PEEK and ETFE material works well for corrosive liquid

5. For now we only have PEEK nut compatible with YC ferrules (2.5/3.0/3.2mm), PEEK nut compatible with YE ferrules (1.6/2.0mm) will coming soon, we will update the optional SKU when available.

Product Specification

Model No.

Description

Compatible Ferrules

Ferrules

SKU

WP08B-1/4-28-K

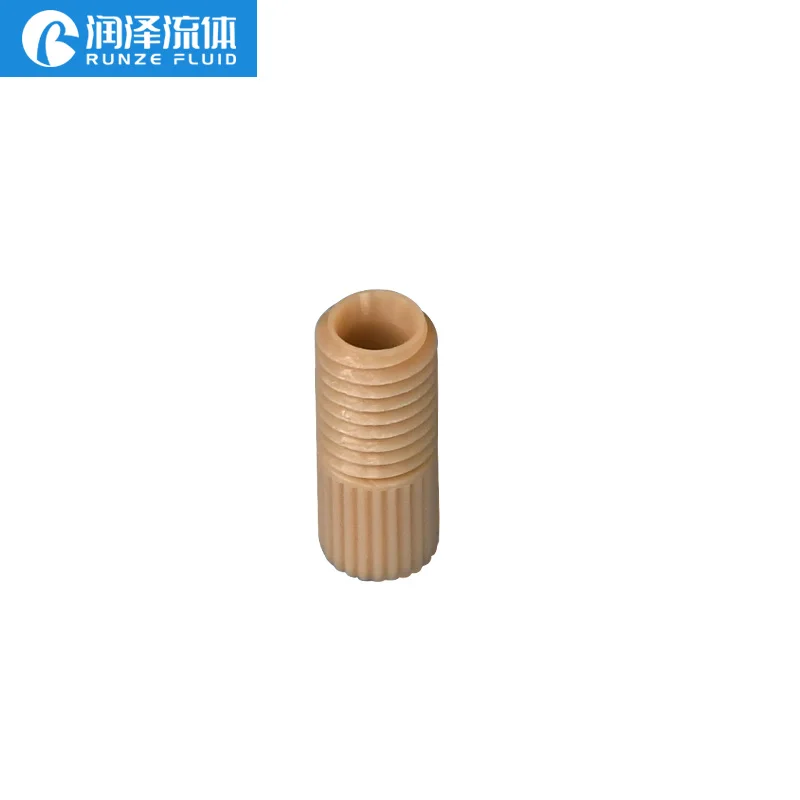

1/4-28UNF nut, PEEK material

YC-032-F

3.2mm ETFE material

1-4-28-3.2-PEEK

YC-030-F

3.0mm ETFE material

1-4-28-3.0-PEEK

YC-025-F

2.5mm ETFE material

1-4-28-2.5-PEEK

WF09B-1/4-28-K

YE-020-F

2.0mm ETFE material

1-4-28-2.0-PEEK

YE-016-F

1.6mm ETFE material

1-4-28-1.6-PEEK

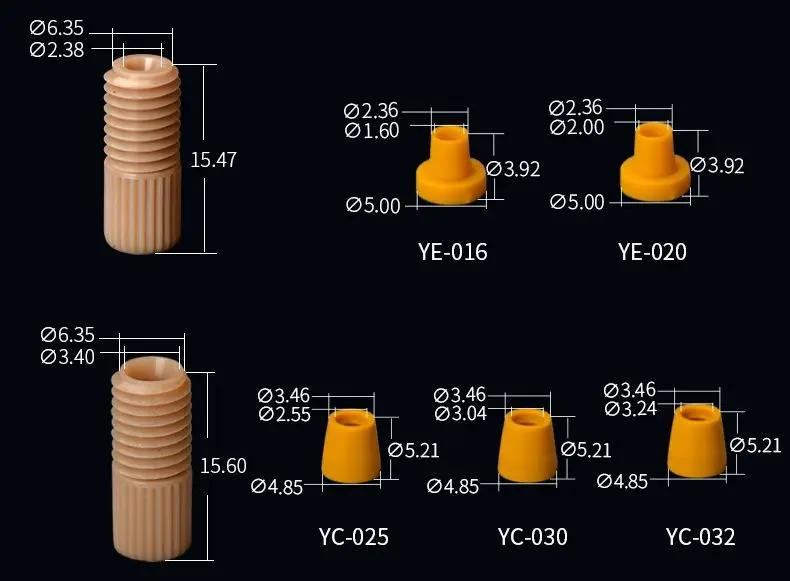

Nut Dimension (unit: mm)
