    Plug&Play, No need soldering.

    This kit is for lcd LP141WP1-TLB8 only, please make sure that your lcd model number is the same before placing the order. If your lcd is the different one, please remember to contact us with lcd model number for suggestion.

     Necessary Accessories for turning this bare LCD to desktop monitor:

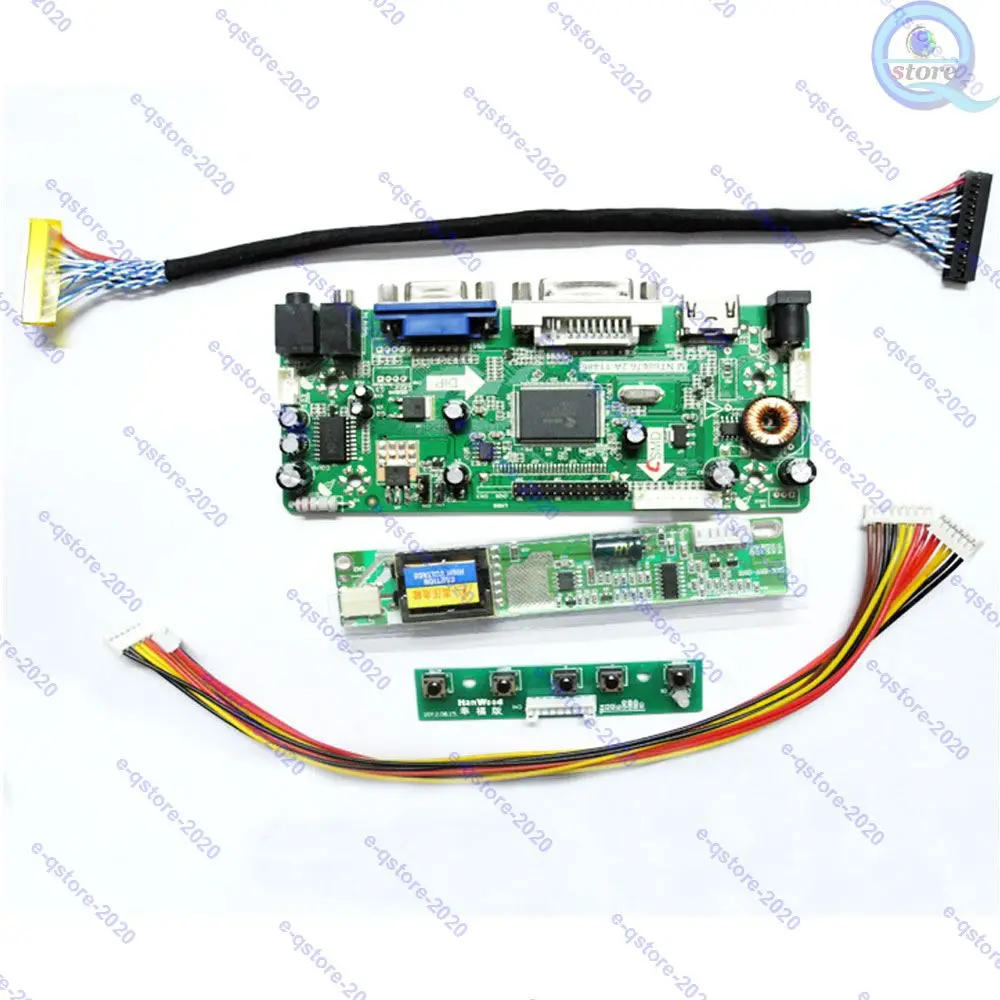

   1. LCD Controller board

   2. Inverter

   3. LVDS cable

   4. Keypad

   5. VGA cable/DVI Cable/HDMI cable (not included)

   6. Power Adapter(not included)

   If you have already had a VGA cable/DVI cable/HDMI cable and a power adapter (Ouput 12V/4A -- it is for small size lcd from 10.1inch to 22inch), this kit is a great choice for you, if you want to buy VGA cable/DVI cable/HDMI cable/power adapter, please feel free to let us know.

   1. Please make sure that your LCD is in good condition before bidding this item, else you will be responsible for the incompatibility.

   2. If you concern much about resolution setting, please reconsider before bidding!

   3. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

  Successful examples collection:

United Kingdom Friend p33dy_b' successful example:

Poland Friend biputox's great splicing screen ( however, we don't know how to make it yet):

Germany Friend god-of-games's Successful example:

Portugal Friend jcag1986's project connected to PS3:


      Germany Friend d-mantion's Project:

American Friend cryalith's Raspberry PI Computer:

Australian Friend beyelka's Project:

Successful Example (rossg77 -- an American friend's Project ):

  Successful Example (radicalboy_fr -- a French friend's Project ):

Successful Example (docpot2008 -- a Canadian friend's Project ):

Malta Friend drac1977's Project:

USA  Friend loafer_tingo's Project :

Instruction to connect the controller board to the LCD:



  No metal contact is allowed.

1. Take away the old inverter and old LVDS cable from the LCD panel.

2. Connect the new inverter and new LVDS cable to your LCD panel.

3. Connect controller board kit to the PC with VGA cable/DVI cable/HDMI cable.

4. Input power of 12V/4A. ( Please don't revise the voltage jumper setting on the lcd controller board before confirmation from us, because wrong revising of this volt age will get your lcd burnt. By the way, please don't connect the lvds cable wrong, some wrong connection can get your lcd burnt too, if you are not sure, please feel free to contact us.)
