Raspberry Pi 4 Model B 7 inch IPS LCD 1024x600 Touch Screen Adjustable Backlight Display + Bracket for Raspberry Pi 4B/3B+/3B/PC

Specification：

Size: 7 inch
Resolution: 1024*600 (dots)
Touch: five-point capacitive touch for computer；one-point for Raspberry Pi
Compatible With: Raspberry Pi 4B / 3B+ / 3B, Jetson Nano and PC .

Feature：

1. Resolution: 1024*600
2. USB interface capacitive touch , more convenient
3. Support the backlight control, saves the electricity
4. With 3.5mm audio interface and fixed feet
5. It can support five-finger touch to computer. Single touch support for Raspberry Pi
6. HDMI-compatible interface is used to display and USB interface is used to touch

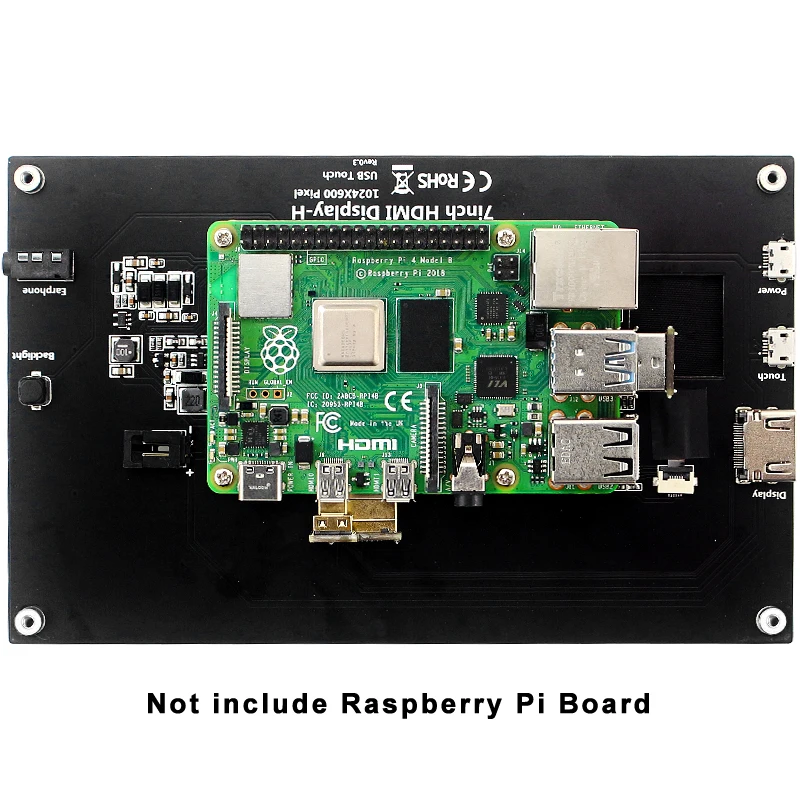

7. This screen can directly fix the Raspberry Pi motherboard on the back.
8. The 7 inch touch screen compatible with Raspberry Pi 4B / 3B+ / 3B, Jetson Nano and PC .

IPS full Angle Display

1. The viewing Angle is large
2. True color
3. Dynamic picture quality is excellent
4. Energy saving and environmental protection

1024X600 HD Vision

1. Resolution for hd 1024X600 dot matrix
2. It is more delicate than 800X480 ordinary screen

Tempered Glass Touch Panel

Hardness up to 6H, more durable and more scratch resistant

External Audio Output Interface

1. Built - in power amplifier circuit
2. 3.5mm external audio interface

Used as a Mini PC Monitor

1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board
2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.
(Please note thant if you use for other system , we can not make sure can work)

Used as a Computer Display

Support win10/win8/win7 system, support five-point touch plug and play driver

How to use for Raspberry Pi

Step 1. Download and install the Official Raspberry Pi OS/Ubuntu Mate/Kail/Retropie to micro SD card

Step 2. Modify the “config.txt” configuration file
Open the “config.txt” file in the root directory of SD card on the computer, Add the following at the end of the file, save and exit.(Don't input the "-compatible" )
hdmi-compatible_force_edid_audio=1
max_usb_current=1
hdmi-compaitble_force_hotplug=1
config_hdmi-compatible_boost=7
hdmi-compatible_group=2
hdmi-compatible_mode=87
hdmi-compatible_drive=2
display_rotate=0
hdmi-compatible_cvt 1024 600 60 6 0 0 0

Step 3. Insert SD card
After the above steps are completed, pop up the SD card on the computer and insert it into the SD card slot on the back of the raspberry pi.

Step 4. Running system
Connect the HDMI-compatible interface and touch interface of the display screen to raspberry pi, connect the power supply of raspberry pi,
and start the machine to display and touch normally..

If you have any question,please refer to this link:
http://www.lcdwiki.com/7inch_HDMI-compatible_Display_(H)

#Product_Description

Work as HDMI-compatible touch monitor

This product can be used as the HDMI-compatible touch monitor of Windows computer, only need to connect HDMI-compatible interface and TOUCH interface, can normally display and support up to five points touch.

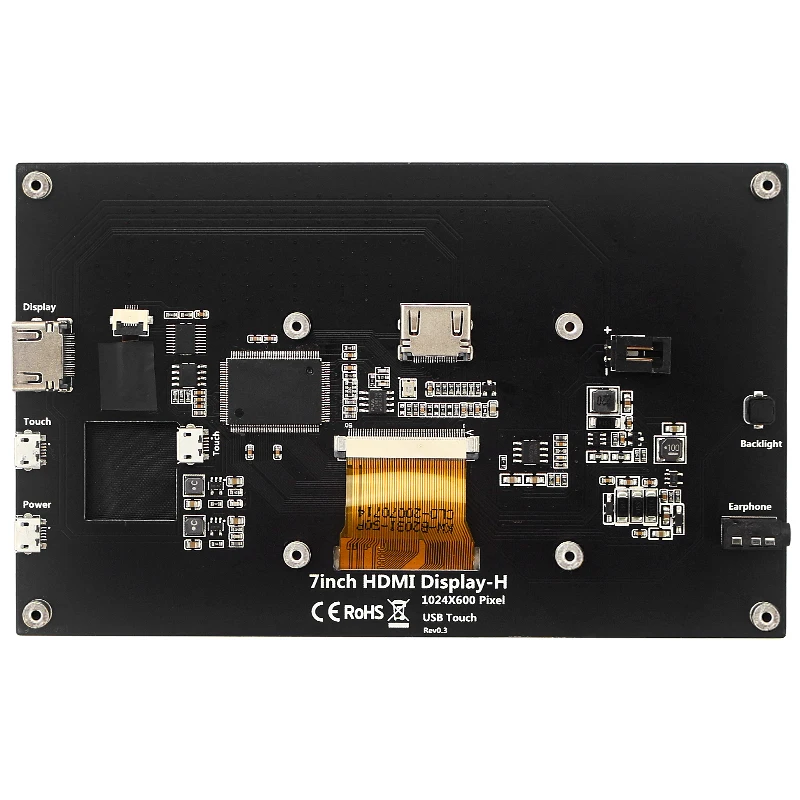

Key and Interface Function Description

① HDMI-compatible Interface: Input HDMI-compatible signal, using HDMI-compatible cable connection, commonly used to connect to the computer，The maximum supported resolution is 1920x1080
② Touch Interface: Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface: Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ Touch Interface: Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑤ 3.5mm Audio Interface: Output audio signal, connect audio output device, such as headphones
⑥ Backlight Adjustment Button: Adjust the backlight brightness of the display screen. With each click, the backlight brightness increases by 10, the maximum increases to 100, and then starts from 0，Press and hold for 3 seconds to turn off the backlight
⑦ Cooling Fan Interface: Connect cooling fan
⑧ HDMI-compatible Interface: Input HDMI-compatible signal, connect with HDMI-compatible adapter, only used to connect to the Raspberry Pi，The maximum supported resolution is 1024x600

Power Supply

1. Input: 100-240V AC 50/60Hz, 0.5A Max
2. Output: 5V DC, 3A
3. Interface: USB Type C
4. Plug: EU/US
5. Cable length: 1.5m approx
6. Weight: 100g approx
7. Use for: Raspberry Pi 4 ( also suitable for cellphone)

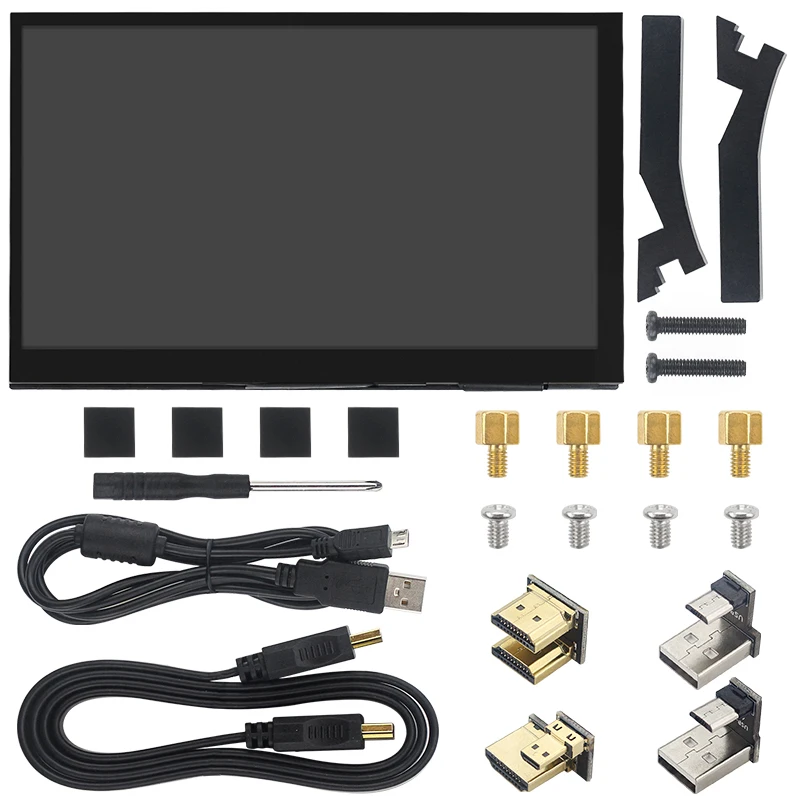

Package list:

1 x 7 inch HDMI-compatible LCD Display （1024*600）
（Raspberry Pi is not included!）
OR
1 x 7 inch HDMI-compatible LCD Display （1024*600）
1 x 5V 3A Type-C Power Supply（EU/AU/US/UK）
（Raspberry Pi is not included!）

Note:
UK=US +UK adapter
AU=US +AU adapter
