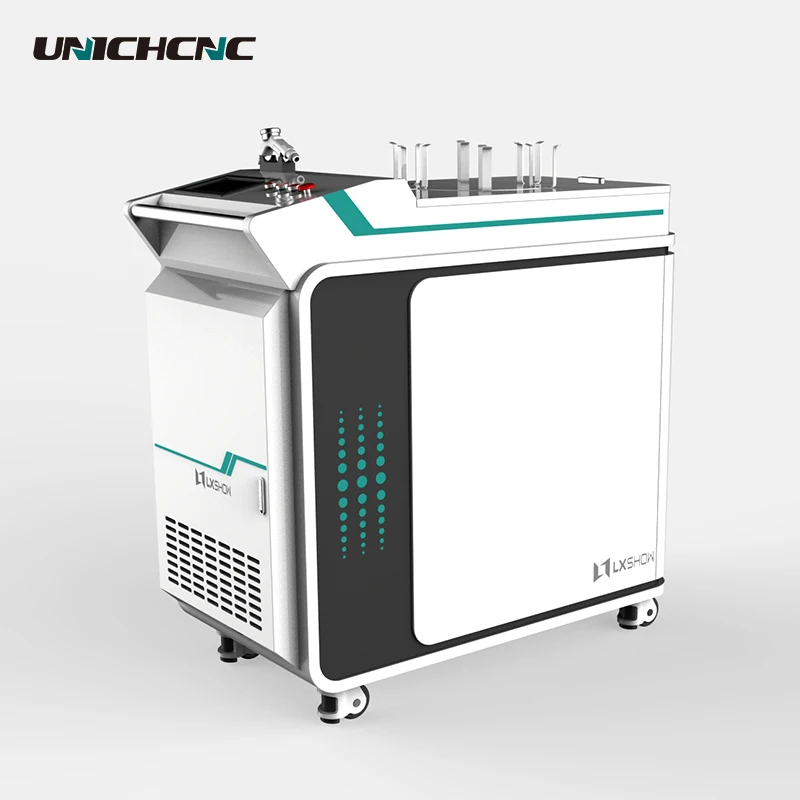

Handheld fiber laser welding machine

Application:

This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.

Features :
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Laser power

LXW-1000w/1500W/2000W

Center wavelength

1070+-5nm

Output power stability

<2%

Laser frequency

50Hz-5KHz

Adjustable power range

10-90%

Beam quality

1.1

Optimal operating environment

Temperature 10-35 ° C, humidity 20% -80%

Electricity demand

AC220V

Output fiber length

5/10/15m (Optional)

Cooling method

Water Cooling

Dimensions

93*60*88cm

Weight

200kg

Cooling water temperature

5-45 ° C

Average consumed power

2500/2800/3500/4000W
