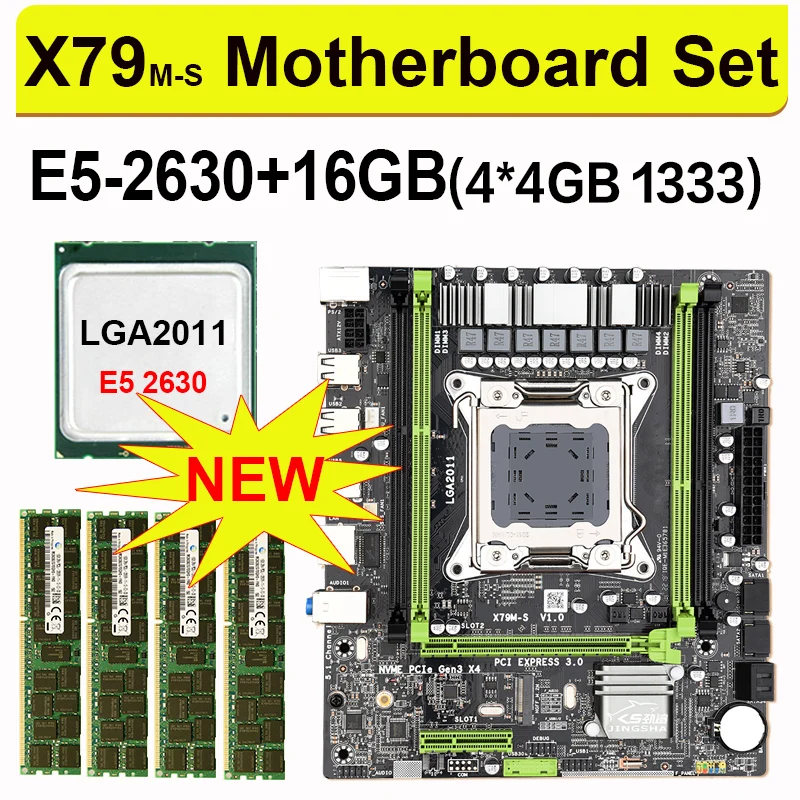

X79 M-S 2.0 Motherboard Set With Intel Xeon E5-2630 2.3GHz CPU 4* 4GB= 16GB DDR3 1333MHz ECC/REG RAM M.2 SSD 6 core 12 threads | Компьютеры

X79 M-S 2.0 Motherboard Set With Intel Xeon E5-2630 2.3GHz CPU 4* 4GB= 16GB DDR3 1333MHz ECC/REG RAM M.2 SSD 6 core 12 threads | Компьютеры

X79M-S Motherboard Set With Intel Xeon E5-2630 2.3GHz CPU 4* 4GB (16GB) DDR3 1600MHz ECC/REG RAM

Parte #

JINGSHA X79M-S 2,0

Chip

Q67/H67/Q65/Z68 u otro

Característica

Interfaz NVMe M.2 de alta velocidad
4 * DDR3 ranura RAM, soporta hasta 64GB

CPU

LGA 2011 E5-V1/V2 serie

Factor de forma

M-ATX 220mm x 190mm

Memoria

4 * DDR3 ranura

Capacidad máxima de ram

64GB

Gráfico

1 * PCI-E 1X
1 * PCI-E 16X

De almacenamiento de

4 * SATA2.0

LAN

A bordo 1 * Realtek RTL8111F Chipset Gigabit Ethernet

De Audio

Códec de Audio Realtek ALC662, canal de sonido 5,1 compatible.

Puertos USB

10 * USB2.0(Panel trasero, conector USB de placa Media)

PSU solución

Fuente de alimentación de 1x8 pines + 1x24 pines

Otros

Interfaz NVMe M.2 de alta velocidad a bordo

Accesorios

1 escudo i/o
1 x cable SATA

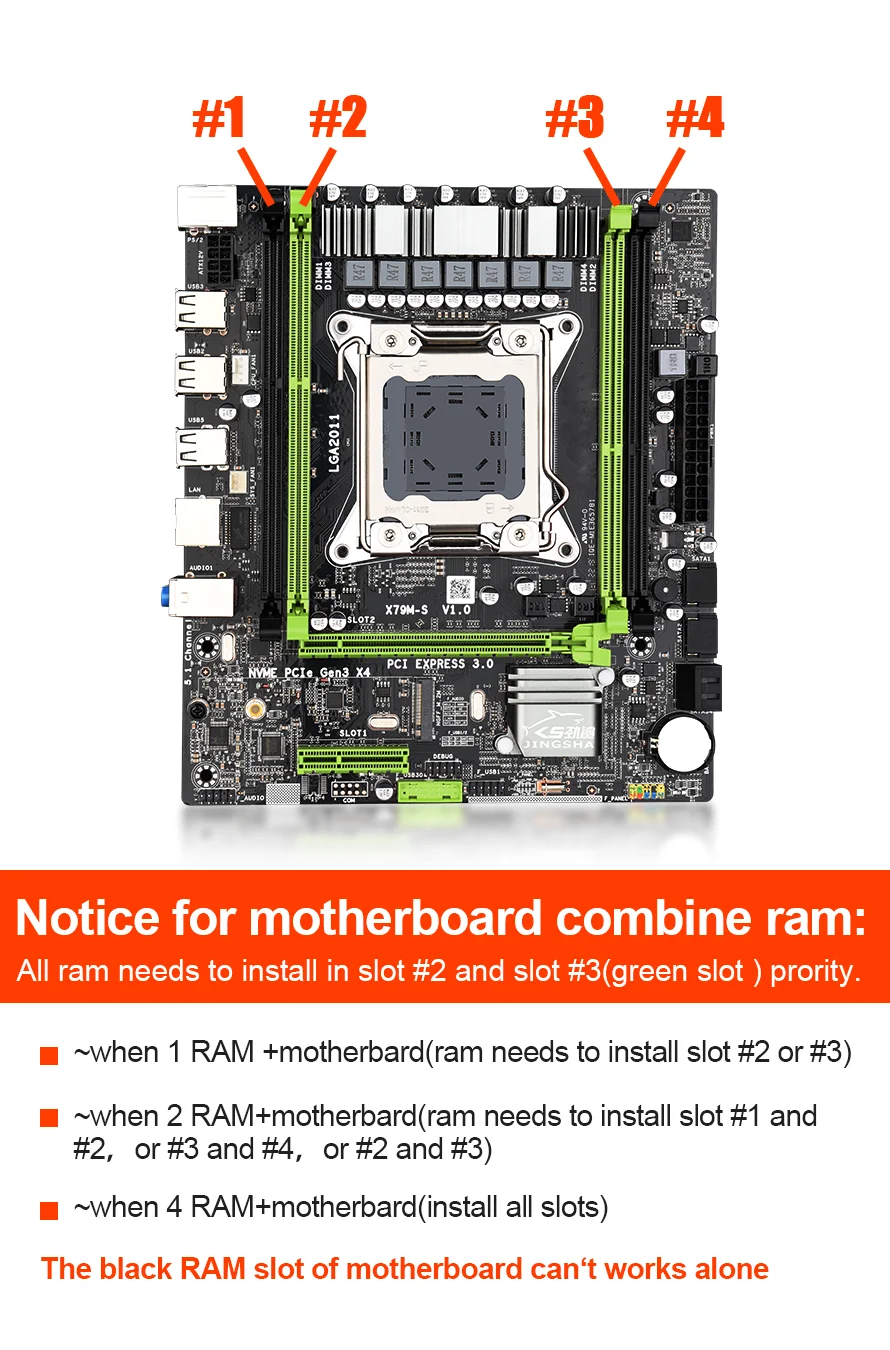

Note:1:The memory slot may vary from batch to batch, but it will not affect the use of the product.The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.
4:This planform needs powerful power supply.please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
