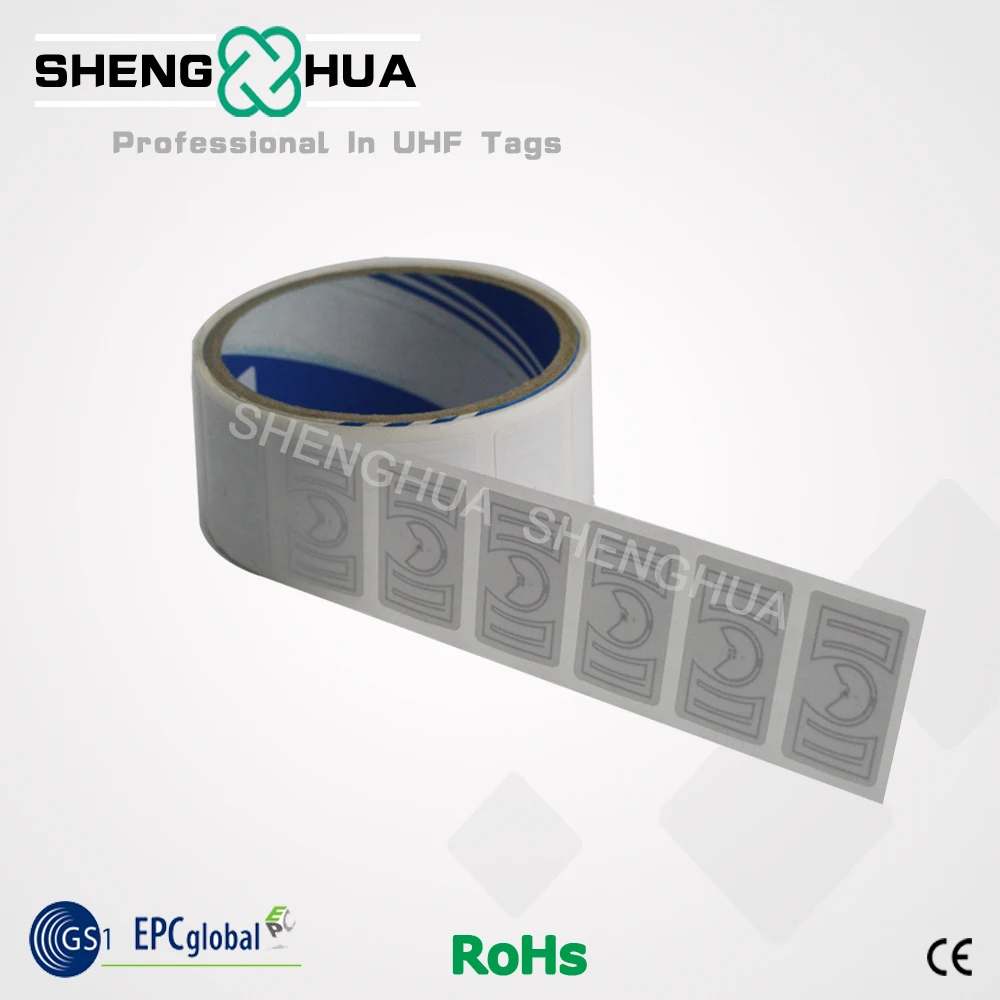

2000pcs/roll RFID Supermarket Electronic Price UHF Passive Tag small Label Sticker Paper White Printable Management | Безопасность и

2000pcs/roll RFID Supermarket Electronic Price UHF Passive Tag small Label Sticker Paper White Printable Management | Безопасность и

GENTAL REMINDER:

Because the current global RFID chips are in short supply, starting from January 1,2021, this model label will be randomly equipped with Alien h9, Alien HEC,Monza R6, Monza 6P, Monza 4QT, or Monza 4I chips whichever avalible, with the same excellent perforemance.

Model

SH-L3622

Type

UHF passive RFID tags

Frequency

860~960MHz

Standards/Protocols

EPC CLASS1 GEN2, ISO 18000-6C

•Physical parameters

Size

36*22mm=1.41*0.87inch(Customized Design)

Antenna Material

PET+AL

Outer Material

Paper (Customized design)

•Performance Parameters

Memory Size

Up to 512bit

Chip

Alien H3 (Customized design)

Operating Mode

R/W

Reading Distance

Up to 3M(Related to reader performance and working environment)

•Environmental parameters

Operating Temp

-20~+50(Celsius)

Storage Temp

-40~+100(Celsius)

•Specific applications

Applications

Aviation, logistics, warehousing, retail, clothing, medical, security, etc.

•Packaging and delivery

Package

2000pcs(Customized Design)

Warm Reminder

Printable

Can print whatever you want on the blank label

Usage

Very convenient

Multi-tag reading

Can read large quantity of tags at the same time

Frequency

860~960MHz broadband design for global use

Wide application

Aviation, logistics, warehousing, retail, clothing, medical, security, etc.

Customized design

Size can be changed according to your need

Competitive product

High-performance with low price; reliable quality; quality post-sales service.

Certificate

CE; RoHS; EPC global

* Warm prompt:

1. If you are doubt about the freight, pls feel free to ask me.

2. This label we are selling is BLANK

If you want it to be customized (print logo or any other thing)

Pls kindly leave a message or consult us.

3. Standard product would be UHF 860~960MHz with chip H3

Could provide the service to write EPC Code

*Sample of printed labels

(sample size: 36*22mm)

Aviation, logistics, warehousing, retail, clothing, medical, security, etc.

1.Anti-counterfeit and anti-metastasis of product (fragile paper/copper paper with knife marks)

    1)Anti- metastasis

It can not be used again, because it would be completely destroyed.

    2)Anti-counterfeit

The unique global coding TID (tag identifier) cannot be modified after production. You can identify the authenticity of tag by integrated machine and the TID.

2.Rewritable information of chip

RFID tags adhere to each packaging of goods, could be identified by fixed or handheld reader. And the goods’ information, which could include storage location, delivery and details, is written on the chip.

3.Warehouse management of in and out

    1)Warehouse keeper has to check each good to make sure it is qualified based on orders when it put in or out the warehouse.

    2)Warehouse keeper passes the qualified goods to stored keeper.

    3)The information of goods will be uploaded to the host to compare with the prior orders when it goes through the fixed reader at the warehouse entrance.

4.Real-time inventory

Collecting data by handheld reader, such as material tab, shelves and quantity.

The main job of making an inventory is scanning the labels and location data. System can classify and make an inventory of goods automatically basing on preset data.

5.Logistics management

    1) The self-adhesive label can track the product’s location, status and other information during transport.

    2) The software can link the ID with the product of the order.

    3) Installing readers to each vehicle, then you could know a real-time status of goods, throughout the process of loading and unloading of goods.

    4) In case of any error or loss of the goods, the system will send an alert.

6.The Smart Supermarket

Shopping carts can communicate with RFID systems to guide shoppers around the store. It helps shoppers manage shopping lists, pay for items, and find products in the store.

Shoppers can find the way to get items, or organize a grocery list by aisle to make shopping easier. RFID systems can also enable real-time price checks and allows customers to pay for items through the cart, without having to go through a checkout line.

Related Products

Warm Reminder

*Products can be shipped by DHL,FedEx, SF, UPS, etc.

*You can choose whatever logistics you like.

*Freight can be consulted in advance.

  1. FREE for product sample.

  2. The MORE you buy,

the CHEAPER the unit price will be.

Certificates

CE; RoHS: be safe to us and environmental friendly

    Shenghua Electronic Science and Technology Co.,Ltd. is one of the leading manufacturers of RFID tags and readers of China. We are high tech manufacturing company which specialized in producing a whole series of HF & UHF tags. Founded in 2006, Shenghua has become a reliable, loyal and trustworthy partner of our clients after years’ effort.

    As a manufacturer with professional R&D team, advanced facilities, rich experience and complete production line, we can customize various RFID tags according to our clients’ specific requirements.

                     Your requirement is our pursuit !

            For more information, please feel free to contact us.
