OTV-MT26 DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold.

OTV-MT26 DVB-T2 modulator also supports single-PLP and multi-PLP (option) to receive T2-MI from DVB-T2 gateway through its ASI and IP port. (This function is also option.)

Moreover, OTV-MT26 DVB-T2 Modulator can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.

Key Features:

4 ASI inputports (for 1 channel TS input with 3 ports for backup)

DVB-T2 RFoutput

TS over IP input (UDP); T2-MI over IP input (Option)

Fully complying with EN302 755 standard

10MHz input/loop out, 1PPS input/loop out

Supports single PLP, multi-PLP (Option) , Support MISO and SISO

Support QPSK/16QAM/64QAM/256QAM (normal or rotated)

Support TS format: T2-MI (Option) or TS (Mode A)

High performance output: MER>43dB, shoulder level>56dB

Output signal bandwidth: 5M, 6M, 7M, 8MHz

Support MFN and SFN (Option) net mode

Supports non-linear and lineardigital pre-distortion (DPD)(To Video)for optional.

RF output level: -25~+3 dBm, 0.1db stepping

Constant temperature crystal oscillator, as high as 0.1ppm stability

Keyboard operation and LCD display

Web Network management system(GUI)

Technical Specifications:

Item

Description

IP Input

T2MI input over ASI and IP (Option), 100 Mbps Ethernet port

TS input over ASI andIPport (UDP)

10MHz reference clock input and loop out, BNC interface

1PPS input and loop out, BNC interface

RF Output

Connector

N Type, 50ΩImpedance

RF range

30~999Mhz, 1hz stepping

Output level ATT

-25~+3 dBm, 0.1db stepping

MER

> 43db

Shoulder Level

>56dB

Modulation Part

Standard

EN302 755

Mode

Mode A: single-PLP;

Mode B: multiple-PLP (Option)

PLP Constellation

QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated)

L1Post Constellations

BPSK, QPSK, 16QAM, 64QAM

FEC Length

Short(16K), Normal (64K)

FEC Rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Pilot Pattern

PP1 - PP8

Guard Interval

1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4

FFT Mode

1k, 2k, 4k

8k, 16k, 32k (normal or extended)

Bandwidth

5MHz, 6MHz, 7MHz, 8MHz

Net Mode

MFN, SFN (Option)

System Management

LCD display, keyboard and web Network management

Supporting software upgrading through network

The Working Environment

Warranty

3 years with free telephone support

Power Supply

AC 100V-220V±10%, 50/60Hz

Operation/Storage temperature

-10 -50°C/-20-80°C

Dimensions

482mm x 410mm x 45mm

Weight

6.5Kg

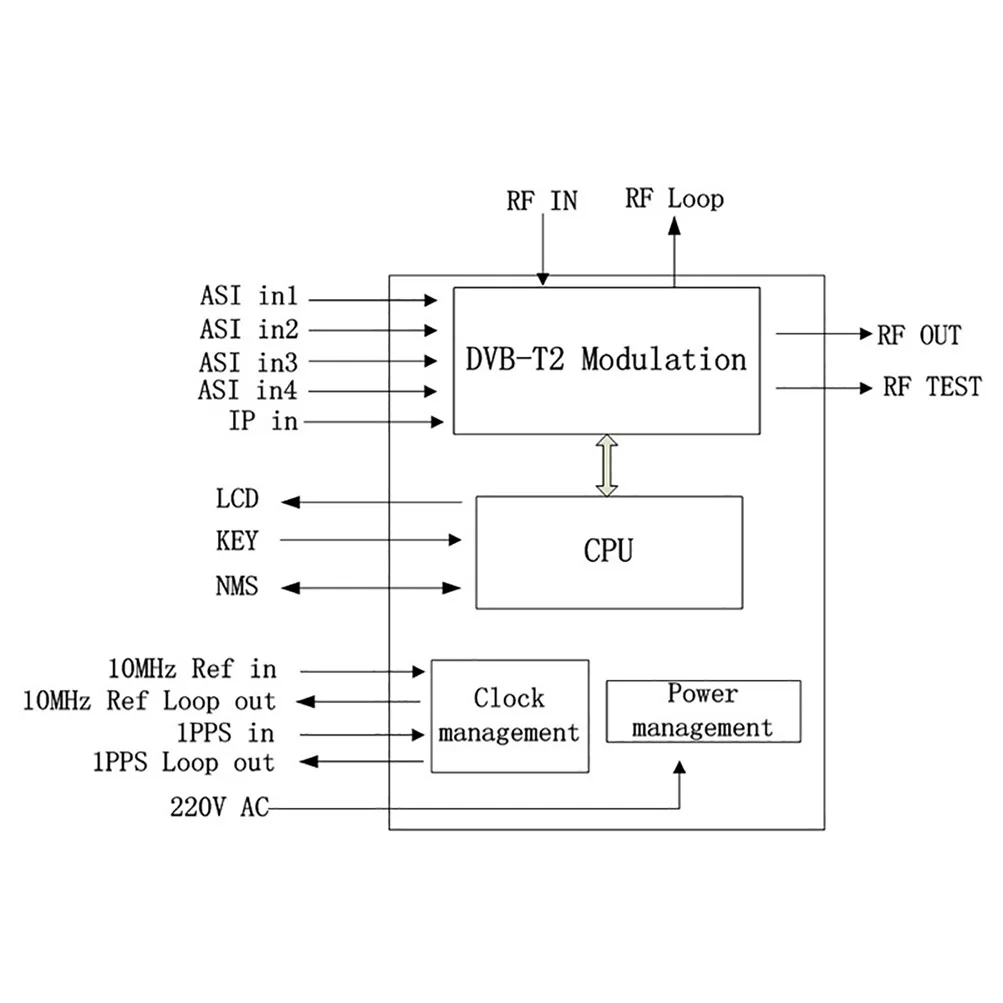

Key Diagram:
