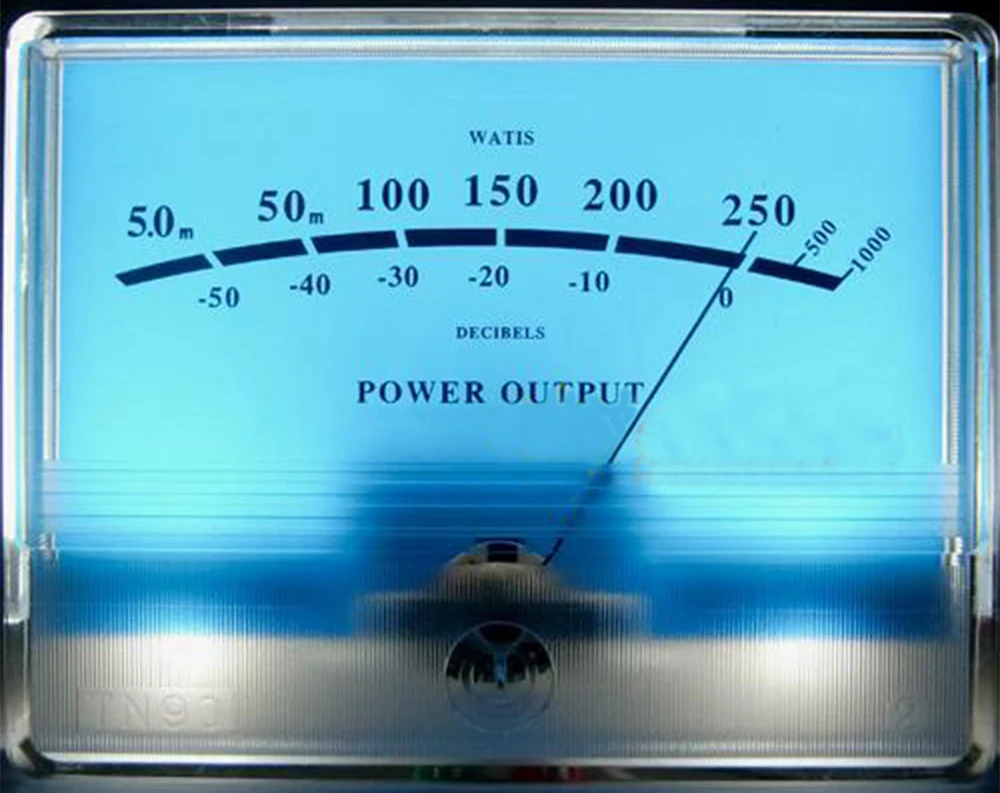

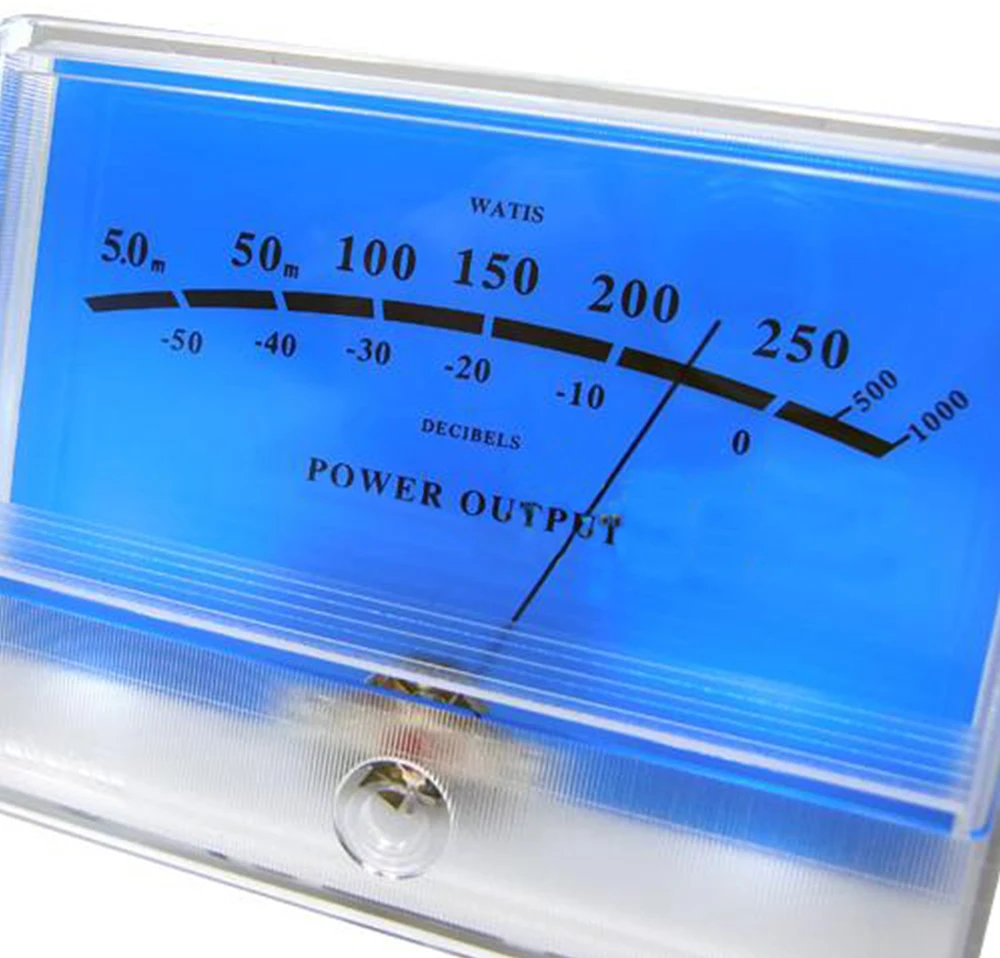

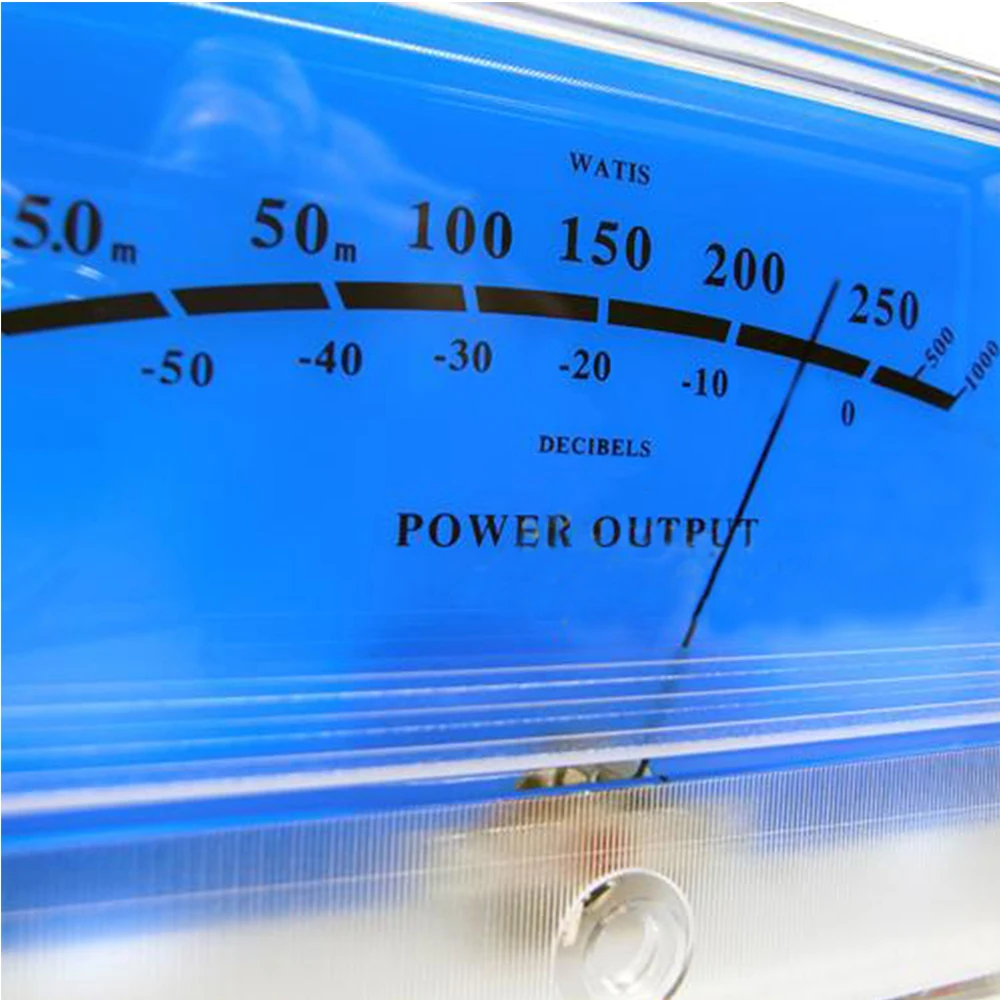

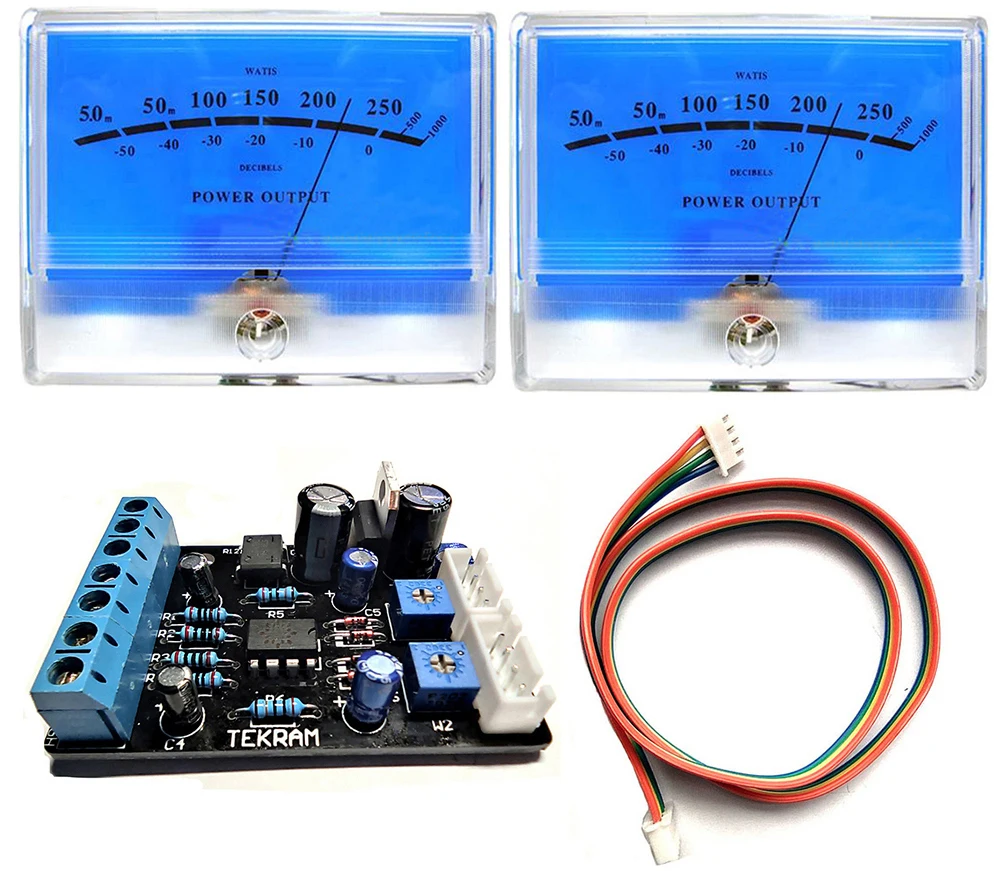

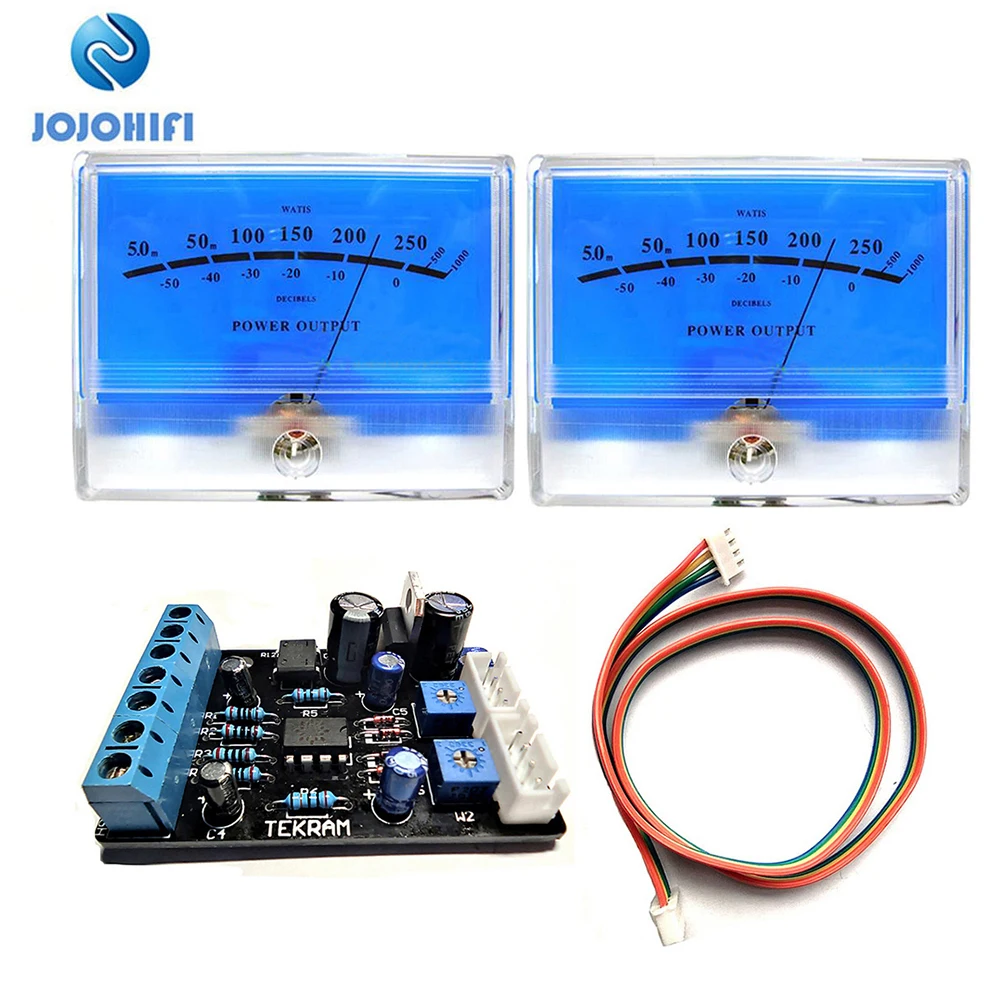

2pcs VU Meter Classic McIntosh Water Lake Blue + 1pcs Driver Board Figure Head Table DB Table Audio Power Amplifier With Backlight

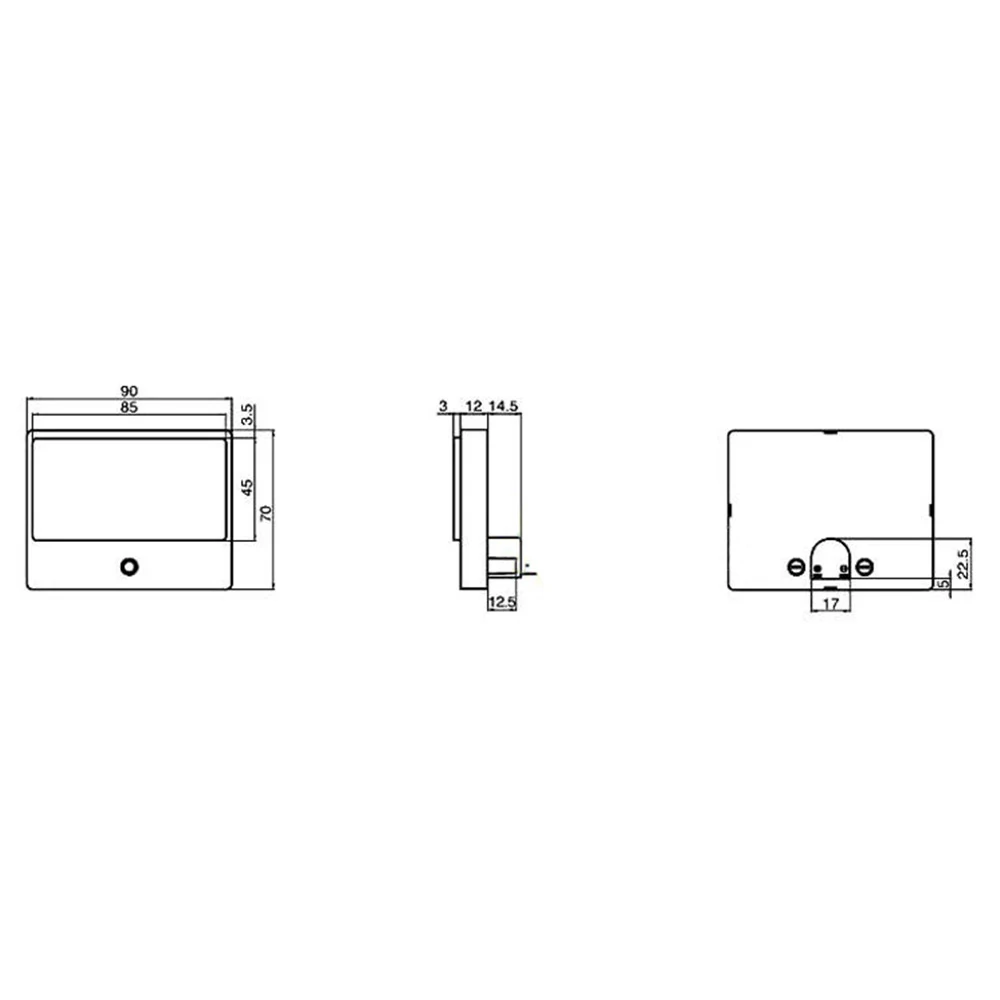

Parameters：

● Pointer Material: Zinc White Copper
● Pointer Color: Black
● Pointer swing direction: from left to right
● Pointer length: 44 ± 1mm from the center axis to the needle end
● Pointer width: 0.45 ± 0.05 mm
● Electric meter use direction: Vertical

Electrical performance:

● Standard test conditions: temperature 20 ℃, humidity 70%,can also be tested under normal temperature and humidity.

● Current sensitivity: the pointer is in the zero scale to the maximum scale (full scale position) sensitivity 960uA ± 8%.

● Internal impedance: 650 Ω ± 10%.

● Insulation resistance: 500V DC plus 50M ohm or more is used for the outer box of the meter and the electrical circuit. The insulation resistance of the meter shell and the electrical circuit is tested by 500V DC voltage.

● Zero position: The standard position of the meter is used. The place where the front of the pointer and the center of the zero scale are unified is the reference. The tolerance of the overlap between the pointer and the zero scale is ± 1mm.

● Balance: The allowable error range of the meter when the standard position is tilted 90 degrees forward and backward is ± 1mm.

● The pointer sticks: When the full-scale current triples the overcurrent in an instant and slowly reduces to the current sensitivity reading of 1/2, the pointer will return to the scale of 1/3.

● Friction: When the electric meter is added with current and slowly increased or decreased to a certain value, the error range of the indicated point is ± 1mm.

● Braking: instantly add 2/3 of the current value of the scale plate, within one second from the start to the position indicated by the pointer.

Special Test:

● Overload test: input ten times of full-scale current every five seconds, this action is repeated nine times. Each time is 0.5 seconds, and the test remains normal.

● Vibration test: After packaging, the meter will vibrate 1,000 times up and down 4mm per minute on the vibration plate for 10 minutes in each direction. After this test, 7-14 items remain normal.

● Impact test: After the packaging of the electric meter, it is dropped from a height of 30 cm on a 3cm thick wooden board. The X.Y.Z. three-direction test is normal.

● Reliability test "After 100,000 times of correction point current input, the current sensitivity limit is still within the standard

● Environmental impact test: temperature 50 ℃, humidity 85%, lasts 100 hours, after this test 7-14 items remain normal.

● Terminal pull test: The terminal must withstand 1 kg of pull for 60 seconds without being affected.

The Others：

● Operating temperature limit: -10 ℃ to + 60 ℃ RH 35 to 85%

● Storage temperature limit: -20 ℃ to + 60 ℃ RH 35 to 85%

● Do not put the meter under direct sunlight, and store the meter in the packing box to prevent foreign matter from entering the meter.

● Soldering conditions: Put the terminal about 3 mm into a tin plate at a temperature of 230 ℃ for 3.5 seconds, and the test will remain normal

● Solder temperature: The temperature of the soldering gun is 350 ℃, the terminal is contacted for 3.5 seconds, and the front end of the terminal is about 3mm in contact with the solder gun.The test remains normal after this test.

● Anti-static: dry nylon cloth is tested three times in the same direction on the surface of the transparent cover.

● Light bulb specifications: two white LEDs 2.8-3.0V backlight board(You can also change the backlight to 12V, and we will send you divider resistors for free, just follow the method below to solder.)

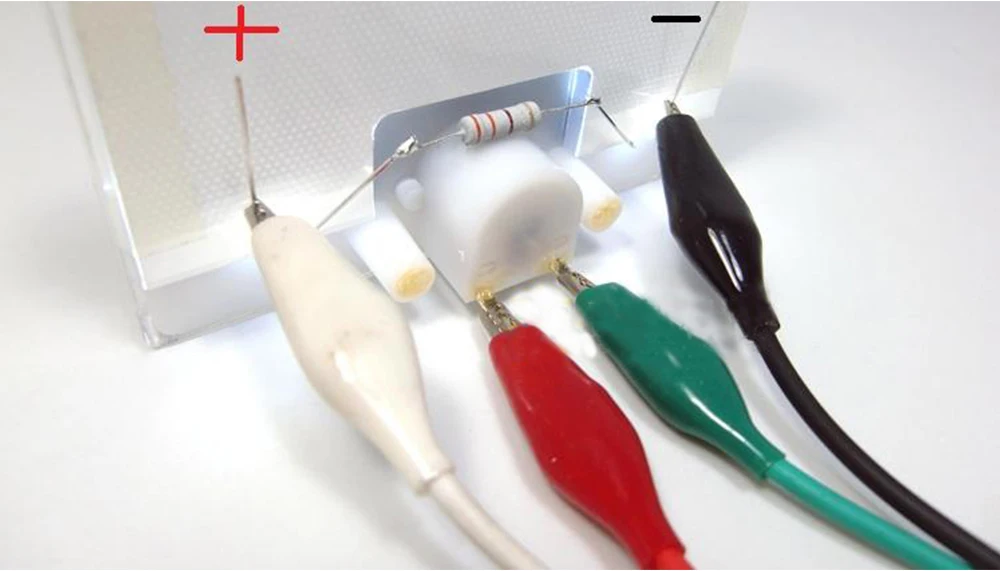

After the voltage divider is connected in series, the backlight voltage is changed to 12V, as shown in the figure:

Package include:

2pcs Water Lake Blue VU Meters

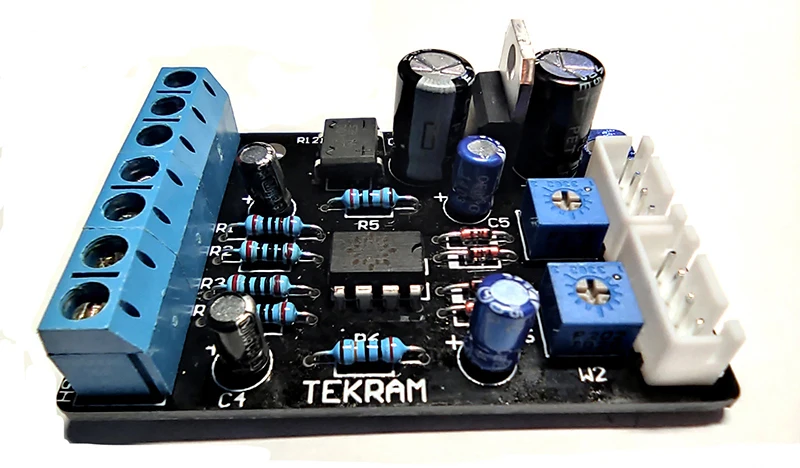

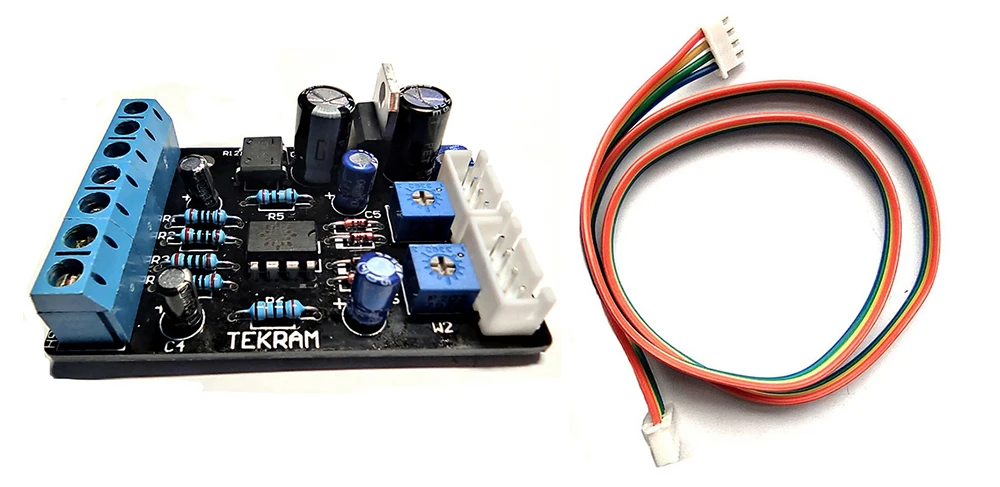

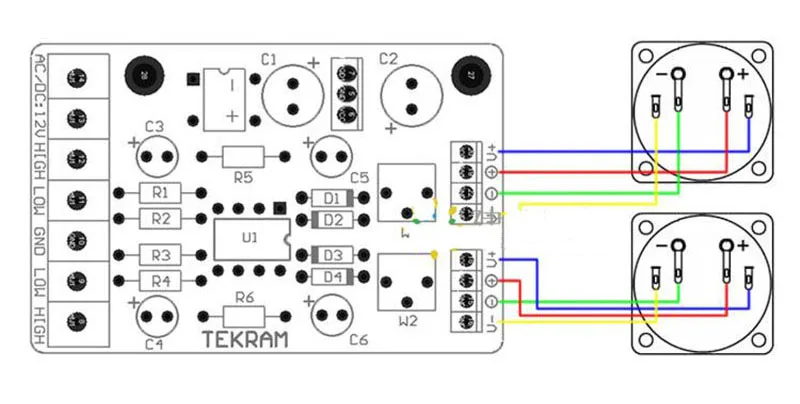

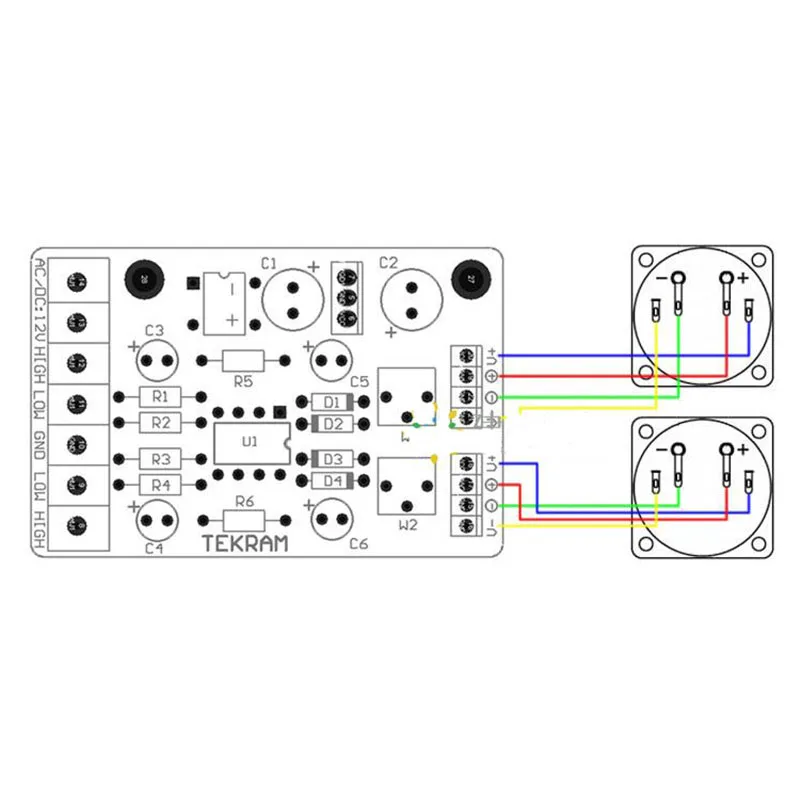

1pcs Driver Board for VU Meter
