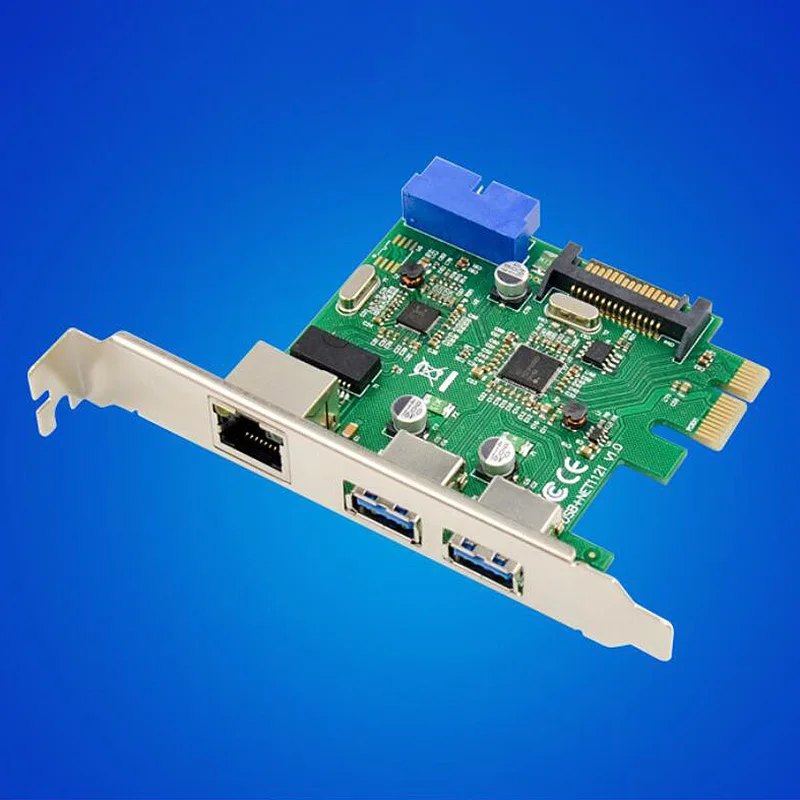

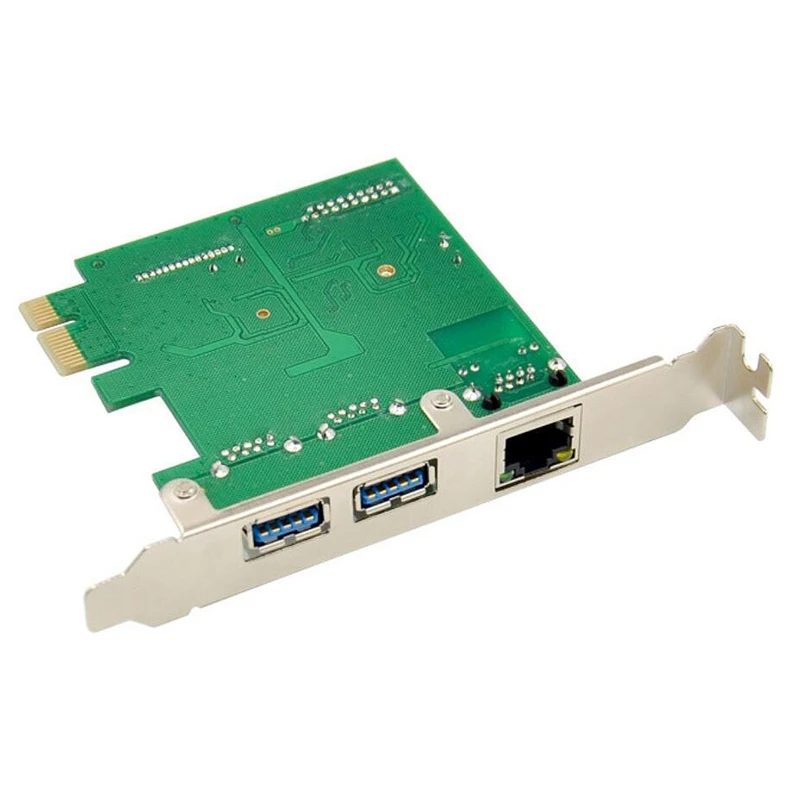

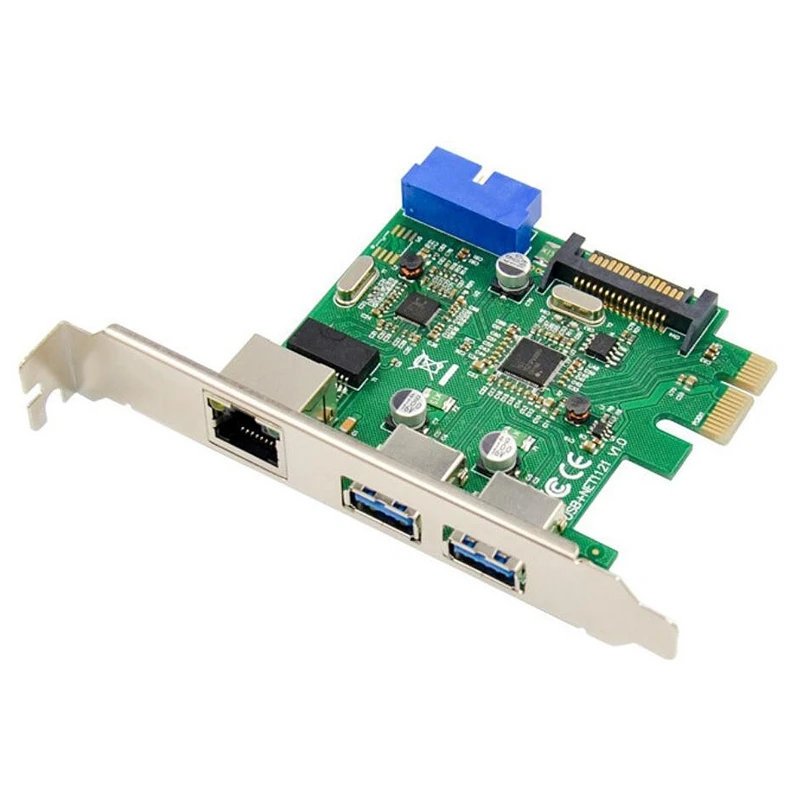

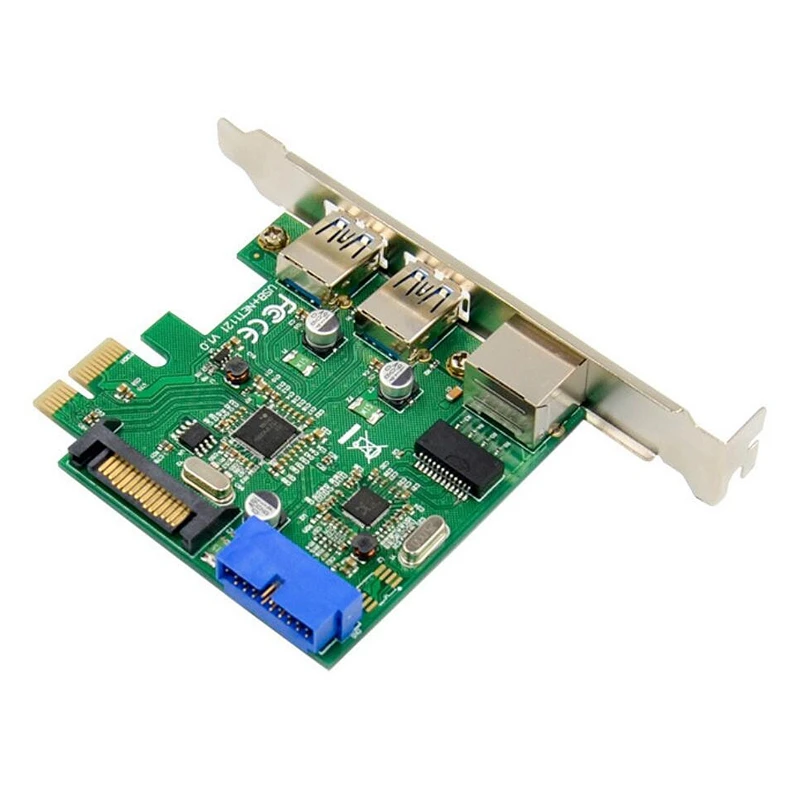

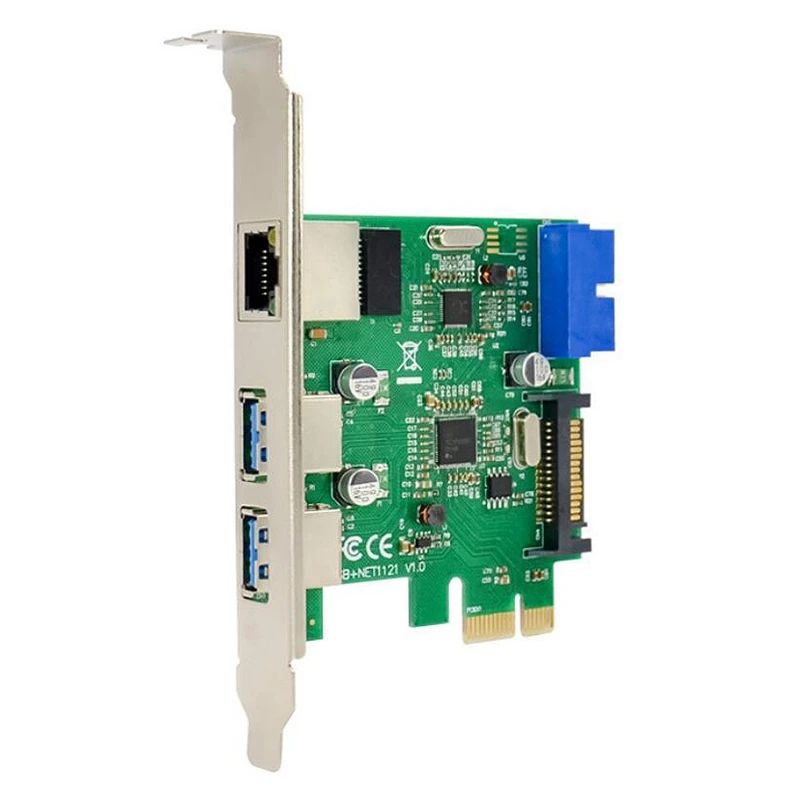

body { font-size: 100%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } NEC720201 + RTL8153 is a dual-chip USB3.0 + LAN PCI Express host control expansion card, equipped with a Gigabit network interface and 2 USB3.0 sockets, which can support 2 USB devices to work simultaneously. The laptop can be connected to Internel via LAN.
USB can be connected to mouse, keyboard, mobile hard disk, printer and other devices. The product comes with a driver CD, which is simple to install and has strong compatibility.
Performance characteristics:
Compliant with PCI Express Basic Specification Revision 2.0
Complies with Universal Serial Bus 3.0 specification revision 1.0
Backwards compatible with USB 2.0 and PCI-Express 1.0
Built-in 4-pin and 15-pin SATA power connectors for additional power
USB3.0 interface:
Support low speed (1.5Mbps)/full speed (12Mbps)/high speed (480Mbps) / overspeed (5Gbps)
Up to 5V / 900mA power output for each USB 3.0 port
Fully compatible with plug and play and hot plug
RJ45 port
Fully comply with IEEE802.3, IEEE802.3u. IEEE802.3az
Support full duplex flow control
Support online wake up and remote wake up.
Support 10/100 / 1000M data auto-negotiation
Integrated 10/100 / 1000M transceiver LED light
USB3.0 bandwidth up to 5Gbps, users can enjoy Gigabit network through RJ45 interface
Onboard hardware driver, easy to use
Bus type: PCI-E X1 * rev2.0
Main controller: NEC720201 + RTL8153
Media interface: 2 x USB3.0 ports
1 x Gigabit RJ45 LAN port
1 x 4-PIN power connector
1 x 15-PIN SATA port
Transmission rate: USB3.0, low speed (1.5Mbps) / full speed (12Mbps) / high speed (480Mbps) / overspeed (5Gbps)
RJ45 Ethernet: 10/100 / 1000Mbps (adaptive)
System requirements: XP / Vista / Win 7 / Win 8 / Win8.1 32 & 64bit, DOS, Linux support PCI-E system, need to have 1 available PCI-Express X1 slot
colour:green
Material:ABS + Metal

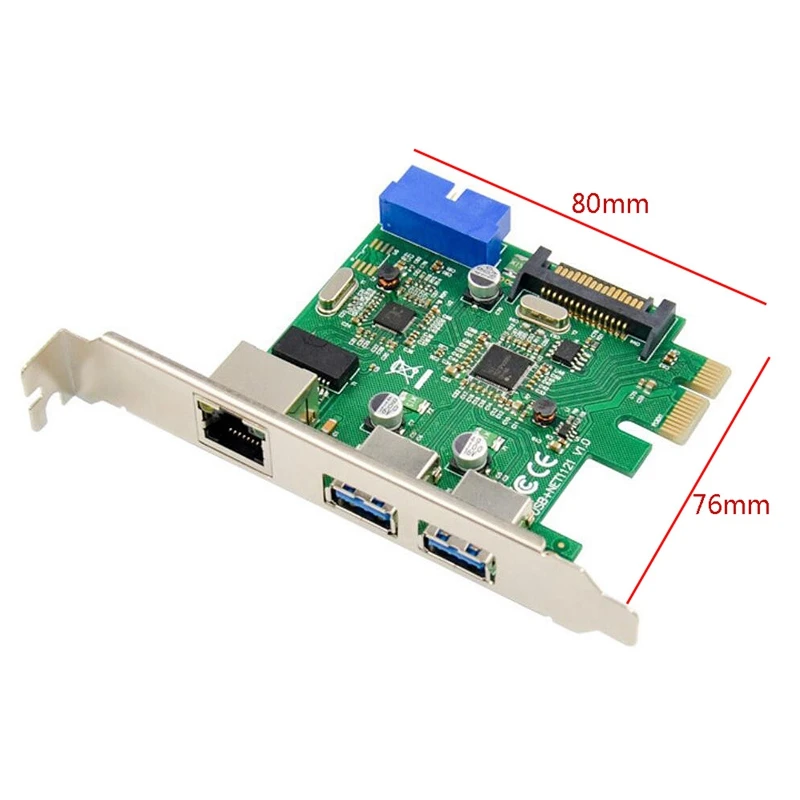

size:PC board about: 76 * 80 * 30mm
Package Contents:
1 x PCIe USB3.0 + Gigabit RJ45 LAN host control expansion card
1 x CD-driver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
