Amoonsky audio video processor LVP613 similar vdwall lvp300 video controller for outdoor full color led display

Key Features

>>>Seamlessly switch between any channel , fade in fade out

>>>One key black screen and freeze

>>>Support oversized splice 10x10

>>>Audio input and output

>>>Signal detection function

>>>Maximum output resolution: 2304*1152@60Hz 2560*816@60Hz

>>>6-channel digital-analog video input: 3AV 1DVI 1HDMI 1VGA

>>>Pre-switching technology

>>>16 test patterns

>>>PIP function,P0P function

>>>Preset save and recall

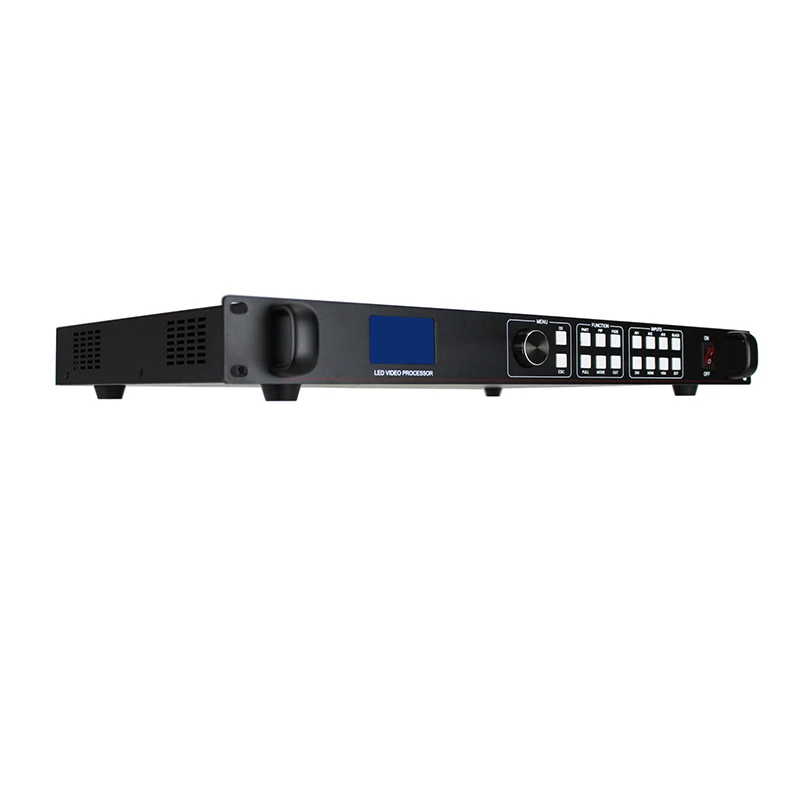

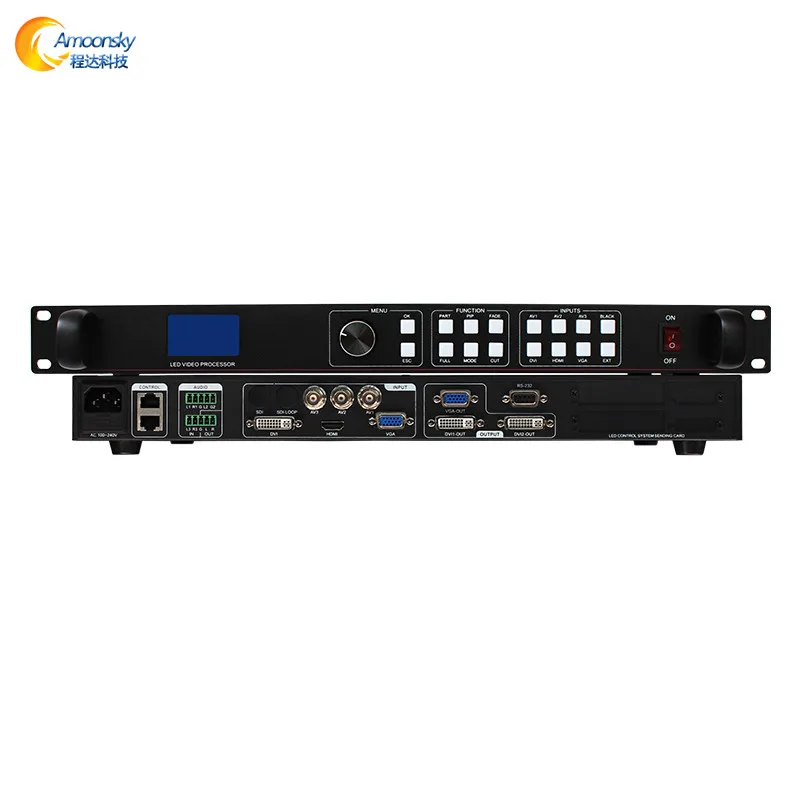

Appearance

Parameter

3 Composite Video

1 VGA

1 DVI

1 HDMI

Audio

2 DVI

1 VGA

1024×768@60Hz       1280×720@60Hz

1280×1024@60Hz     1440×900@60Hz

1536×1536@60Hz     1600×1200@60Hz

1680×1050@60Hz     1920×1080@60Hz

1920×1200@60Hz     2048×640@60Hz

2048×1152@60H      2304×1152@60Hz

2560×816@60Hz      1280×720@50Hz

1920×1080@50H

FCC CE Rohs

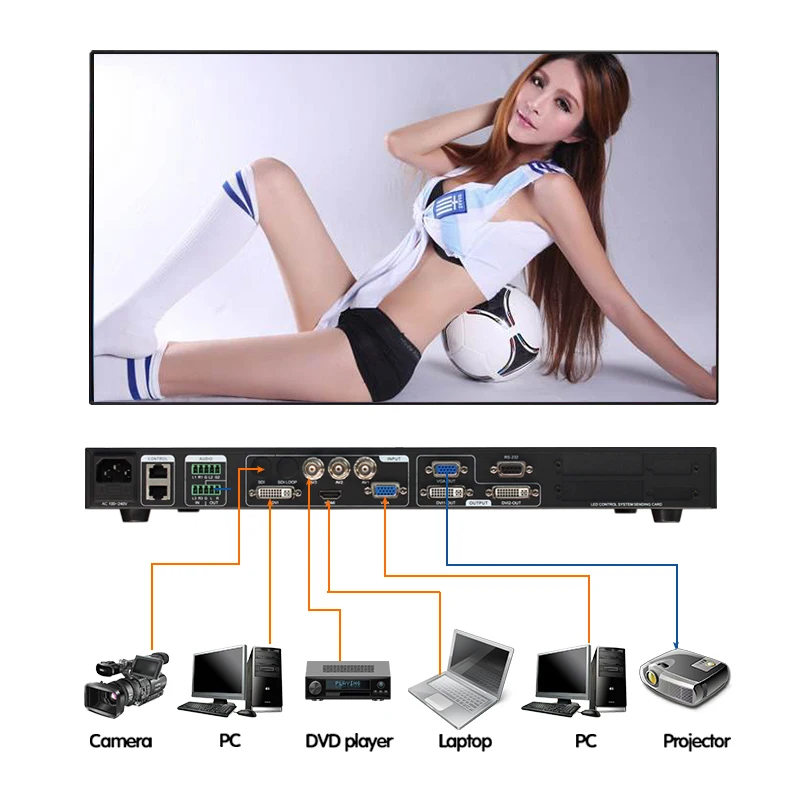

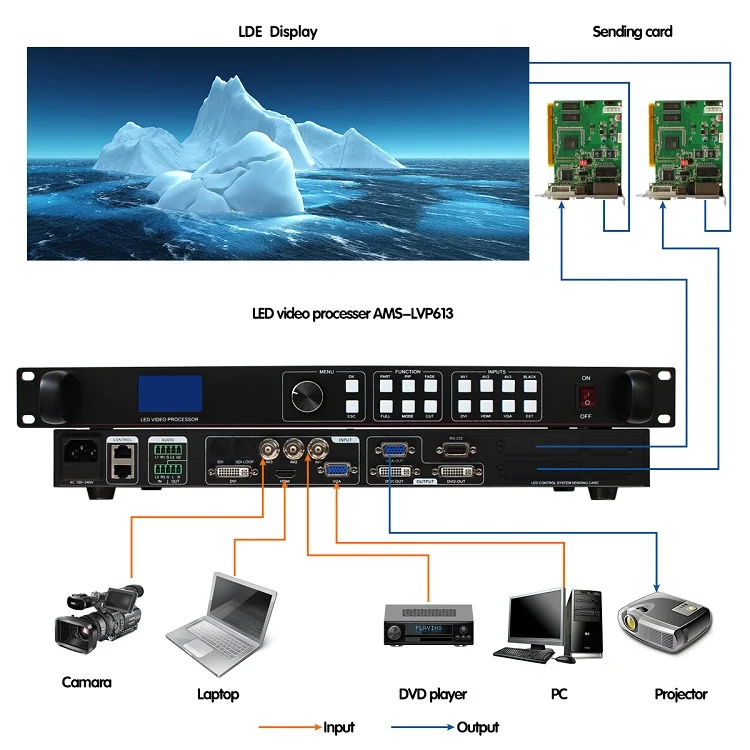

Topology

Function

More video input - LED Video Processor 6-channel video input, 3 CVBS, 1 VGA, 1DVI, 1 HDMI, Basically covers the civil and industrial uses. All video input switching and enables fast cut and fade transitions.

Practical video output interfaces - LED Video Processor has three video outputs. 2 video output using two DVI outputs, including a VGA output and DVI outputs share one output connector. After these three videos are programmed to send output to the LED card or monitor.

Seamlessly switch between any channel - LED Video Processor can also seamlessly switch between any channels switching, the time adjustable from 0 to 3.0 seconds. With a fade transition effect, switch the input channel, so that the screen can be switched smoothly to the second screen. Using fast switching, switching input channels; you can instantly switch the video output.

Full output resolution - LED Video Processor designed for users with useful output resolution, the widest reach 2560 points, the highest of 1536 points, for a variety of dot matrix display. Up to 20 kinds of output resolution for users to choose, and can be adjusted to point output.

Pre-switching technology - Pre-switching technology, is switching the input signal is switched to predict in advance whether the input channel signal. This feature reduces the line is disconnected or may be due to the case of no signal input to switch directly lead to errors, improve the success rate performances.

Signal detection - LED Video Processor will detect automatically whether the signal input or not when the corresponding inputs connected , if the current channel has signal input, the signal channel led indicator light is normally on and LCD screen will show the signal source type and the resolution ;If the current channel has no signal or signal unnormal, the signal channel led indicator light will flashing, LCD screen shows no signal.

Support PIP &POP - PIP technology unaltered state in the original image, the other input of the same or different overlay images. LED Video Processor PIP function, not only can be adjusted overlay size, location, borders, etc. You can also use this feature to achieve Picture outside Picture (POP), dual-screen display.

One key black - Black screen during a performance is an essential operation, during a performance, you need to close the image output, and you can use the black keys for fast black.

Support Freeze - During playback, you may need to freeze the current picture together to achieve "pause" screen. Freeze the screen, the operator can also change the current input selection or change lines, etc., to avoid background operation affect performance results.

PART & FULL fast switching - LED Video Processor a simple and functional operation of the interception part of the screen and full-screen operation, any one input channel can be independently set different interception effect, and each channel is still able to seamlessly switch. Users can arbitrarily set the current channel interception of part of the screen size and position, and the other channels remain unchanged intercept method. When switching between channels most of its screen or full screen function follows.

Mode save and recall - LED Video Processor user presets with 4 groups, each user can store all user default setup parameters, use the “MODE”preset shortcut keys you can quickly recall. Can achieve rapid field parameter backup and recall function.

Equal and unequal stitching - stitching is LED Video Processor important part, which can be achieved equal stitching and unequal stitching, stitching on greatly satisfy users' needs. On multiple processors to achieve frame synchronization, 0 delay, no tail and other technologies to enable smooth performance perfect. Unequal spliced portion of the output is the same with the picture settings; the user can read the following chapters for instructions.

30bit scaling technology - LED Video Processor using a dual-core image processing engine, a single core can process 30 image scaling technology to achieve pixel output from 64 to 2560, while achieving 10 times the image to enlarge the output, i.e., the maximum screen more than 25,600.

Brightness adjustment technology - LED Video Processor unique brightness adjustment function, reduce the brightness solved after layering lost, so that more true color reproduction.

Saved directly technology - Saved directly technology to solve the user's settings and manually save tedious process, that users of co-ordination or adjust parameters without the implementation of artificial save operation, LED Video Processor user parameters automatically stored in EEPROM, even if the power When turned on, the parameters before power remains in the device.

34 GAMMA curve - A rich pool of GAMMA curve, users can meet in a variety of light conditions and the use of color environments.

ACC &ACM image filtering - LED Video Processor using ACC and ACM image filtering engine, handling each color, nonlinear filtering effect of the lowest loss rate of the image, restore the color fidelity.

Packing List

Application

Details Compare

Our Advantage

Specific GAMMA algorithm, adaptive adjustment algorithm can restore to real natural color adapting

to human eyes.

LED Accessories

FAQ

Question:

How can I get technical support?

Answer:

We can provide technical support by phone by whatsapp wechat, or technician can be sent to customer for tranning.

Question:

How can i get the goods?

Answer:

We can deliver the goods by express or by sea, pls contact us to select the most favorable delivery way.

Question:

How can i pay for the order? Is safe enough?

Answer:

Yes, we provide trade assurance.payment will be taken untill you confrim the goods received in good condition.

Warm Tips

*If any other deliver method chosen, please kindly contact us before your payment. We will check the shipping cost for you such as DHL, EMS, UPS.

*If quantity order for better price,please contact us for inquiry.

*Generally we will declare full value of the order, because different country have different import taxes buyer may need to pay for customs duty. If you have any issues including using and technology problem, please CONTACT US ,we will reply email in 24 hours.

Remark: When you received the goods, Please check the package not damaged and open to check goods before sign for accept. Should package or goods damaged, please take picture and contact us. Customer got the right to reject.
