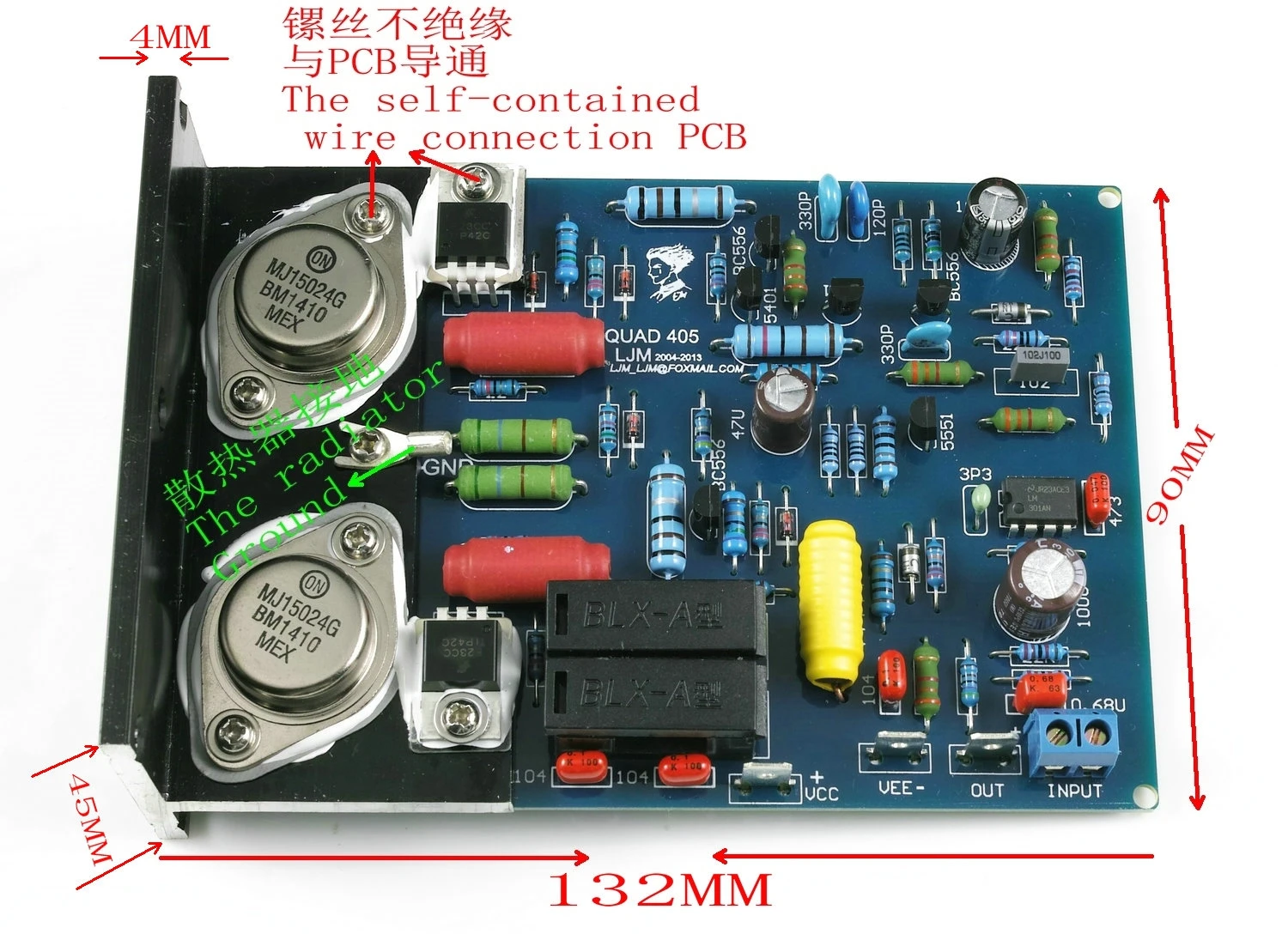

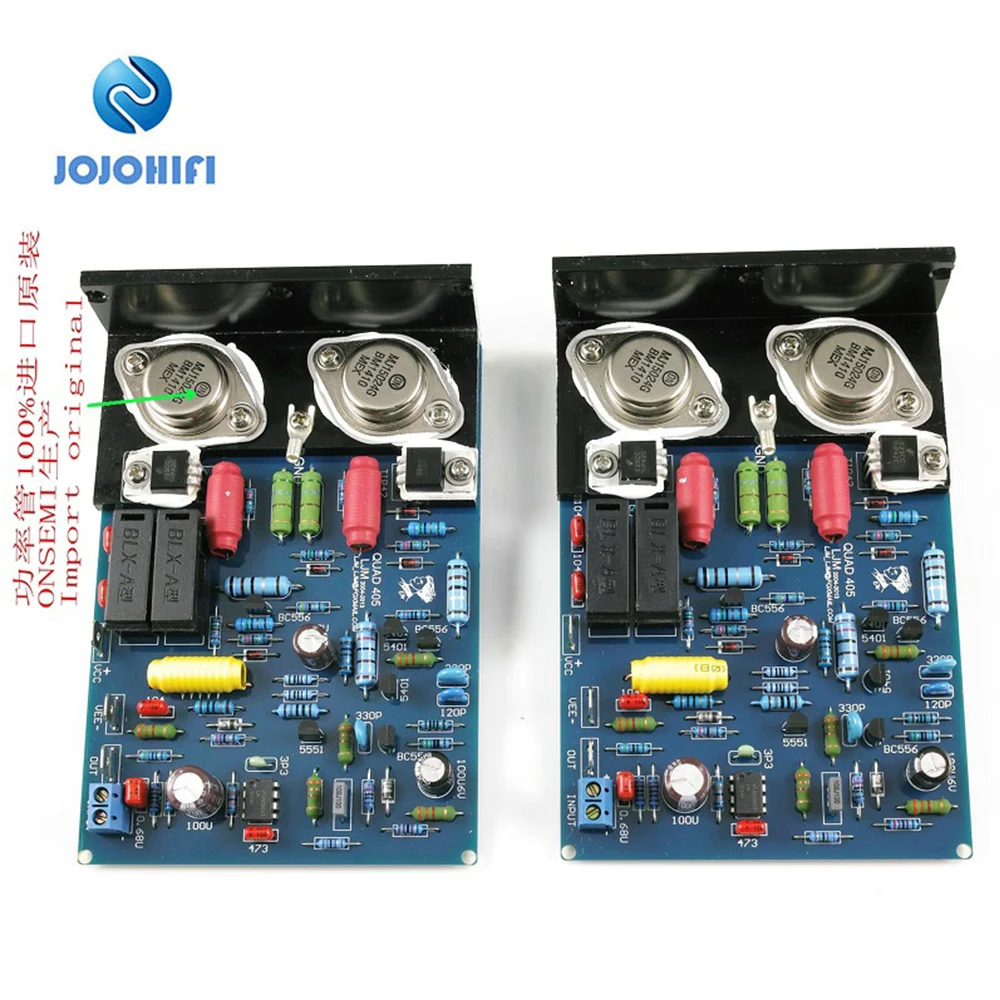

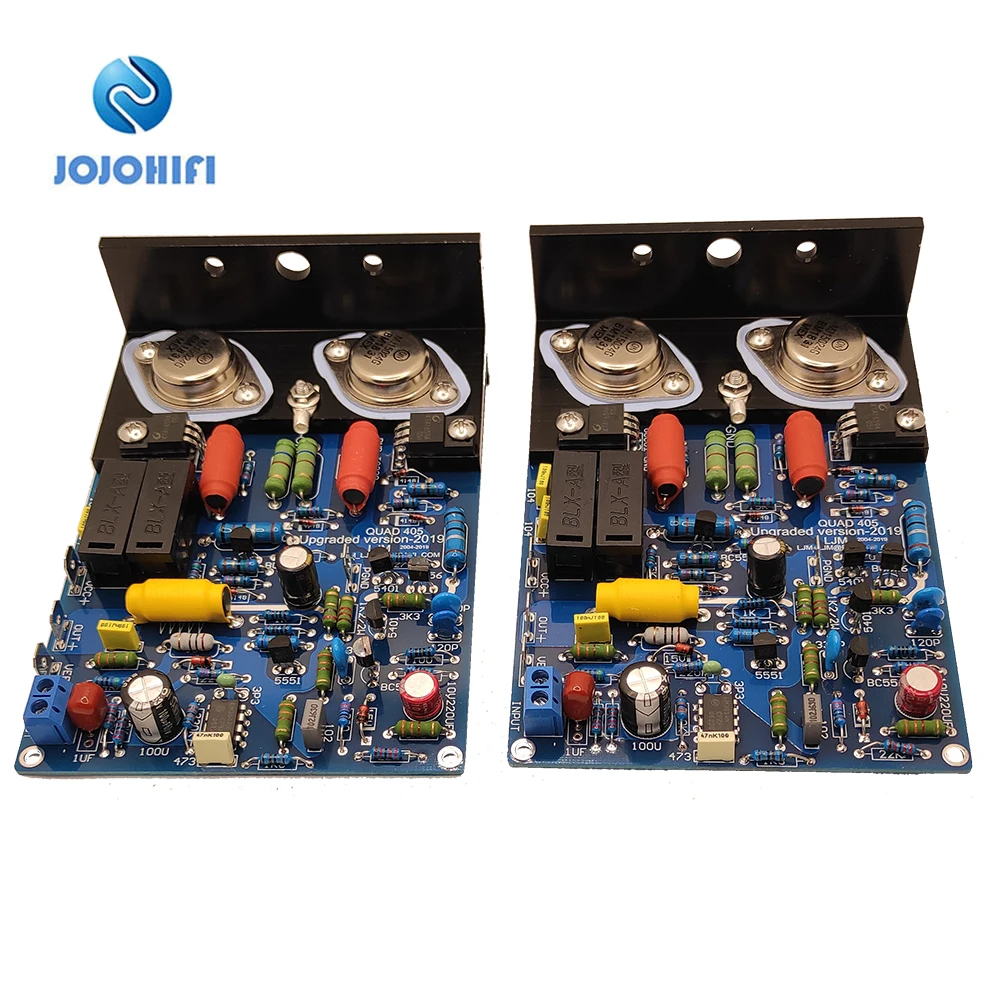

One Pair QUAD405 CLONE MJ15024 100W 8R DIY KITS Finished Baord Dual Channel Amplifier Board w/Angle Aluminum

Three options:

● DIY KITS does not include 4pcs ONSEMI MJ15024 high power tubes
● DIY KITS full set
● Finished board

Note:

● PCB blue or green are shipped randomly, except for the different colors, everything else is the same.

Features:

● All parts are brand new and original.

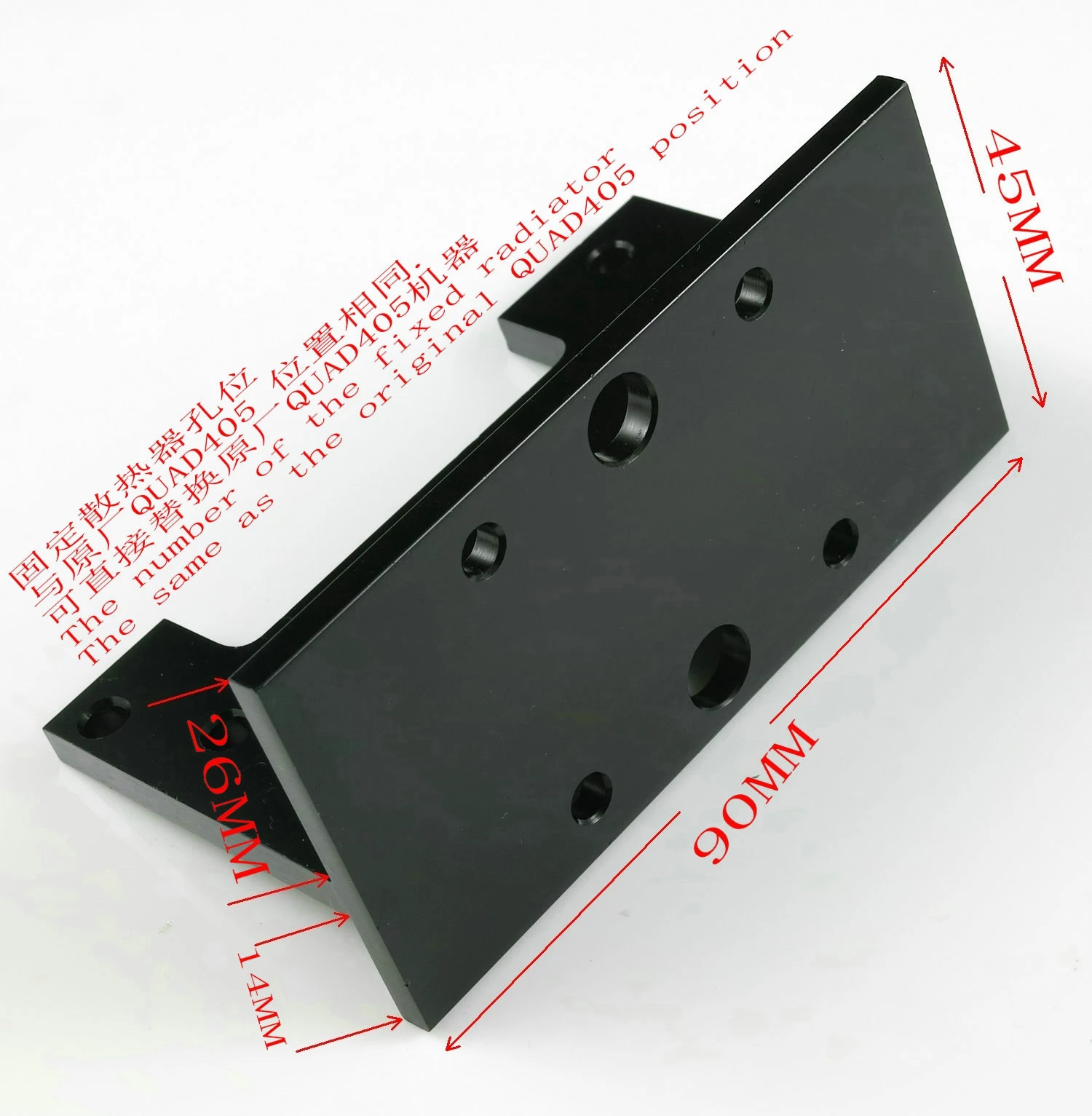

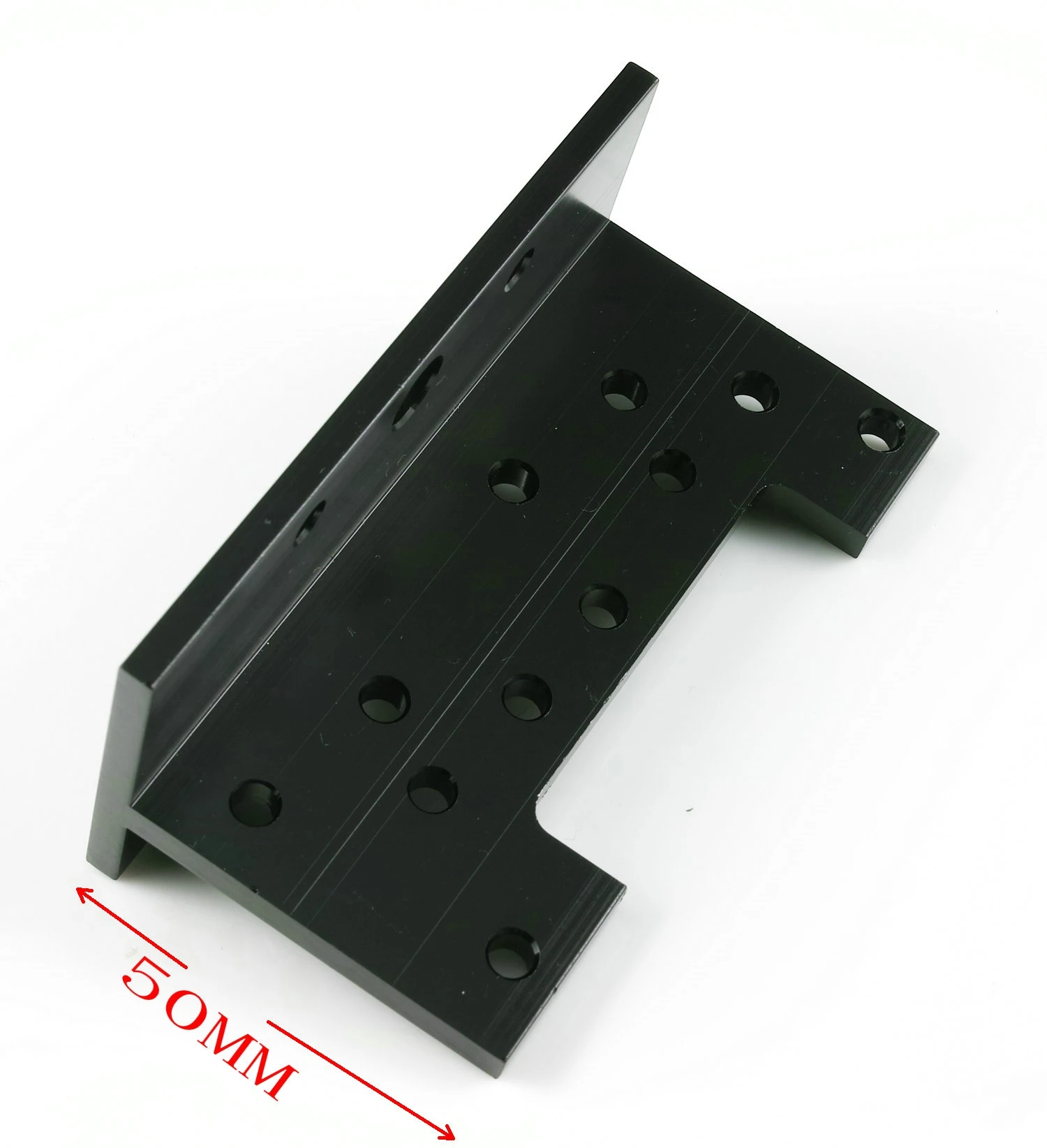

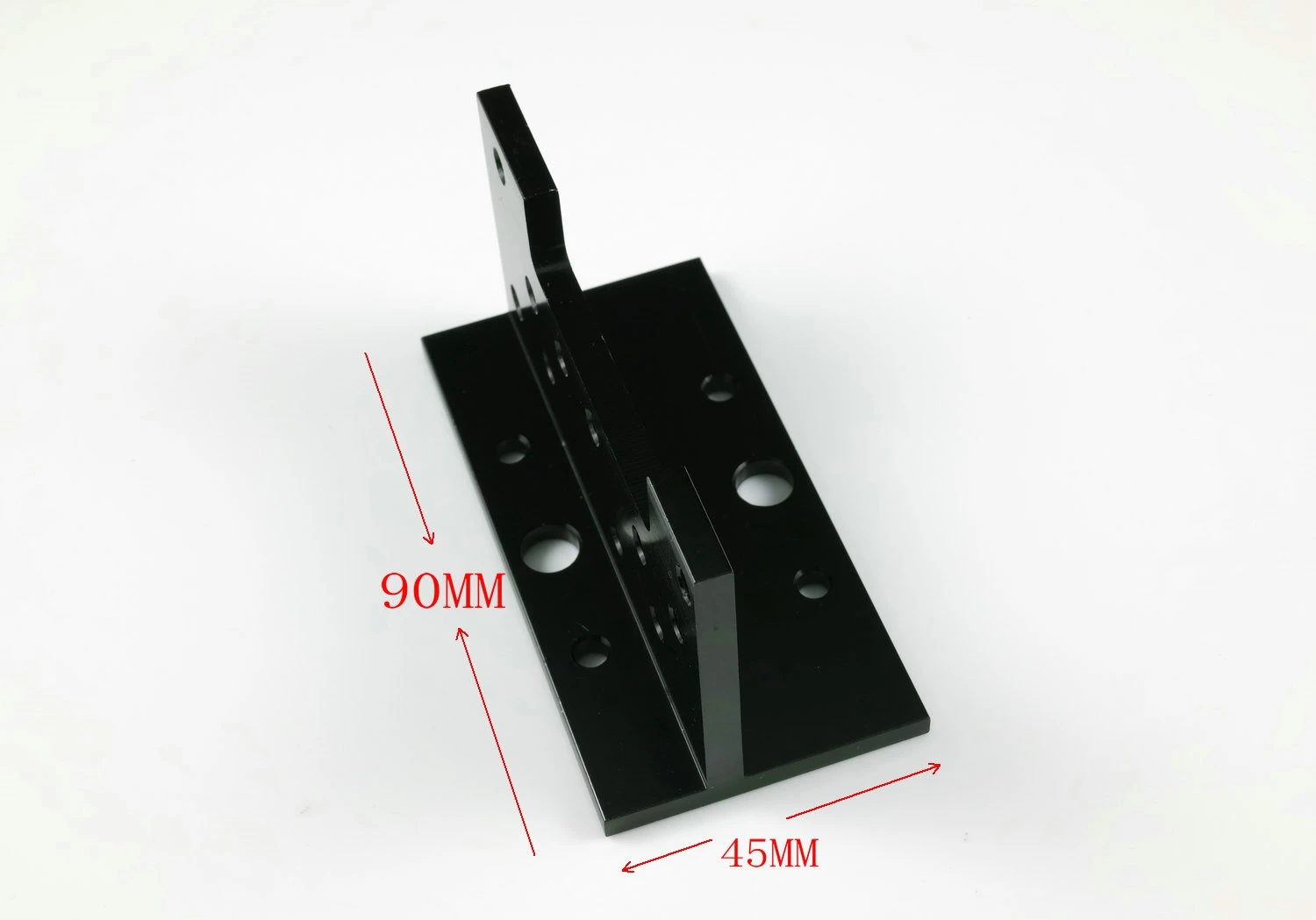

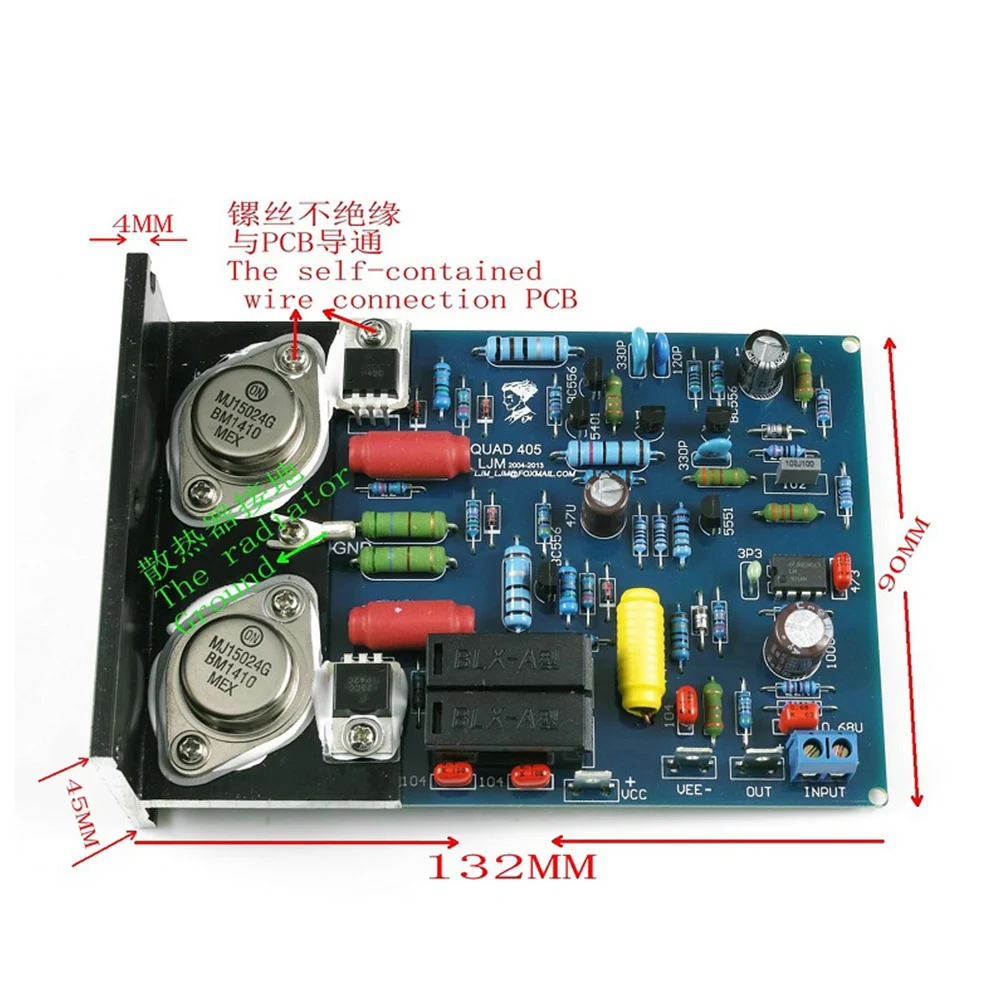

● Angle aluminum specification is 45MM * 50MM * 90MM width, height, length, thickness 4MM

● All small signal transistors are imported.

● High-power tube is imported from MJ15024

● LM301A brand new original NS. All resistors use genuine metal film resistor copper feet with 1% accuracy, including high power resistors.

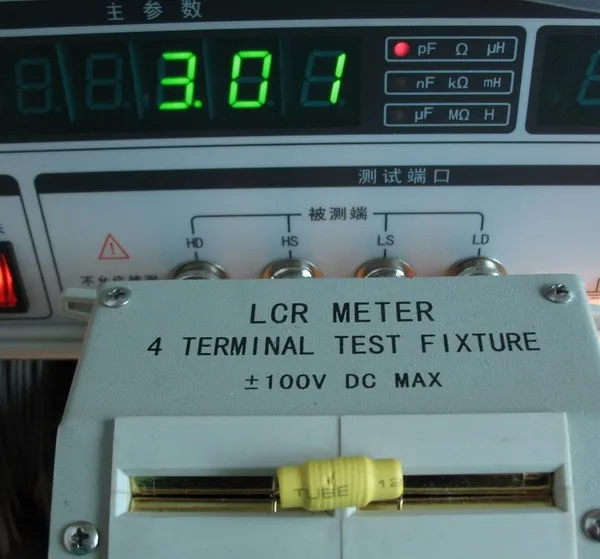

● The inductance is manually measured by a precision digital bridge, accurate to 0.01UH 0.1%.

Operating Voltage :

+ -30V to + -50V
100W 8R power (+ -50V)

AuFrequency response:dio precision 2 test data:

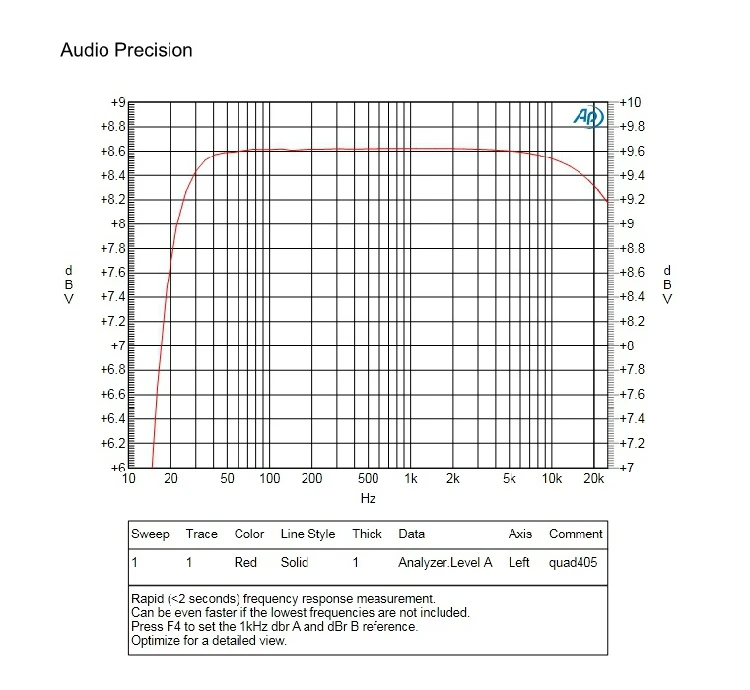

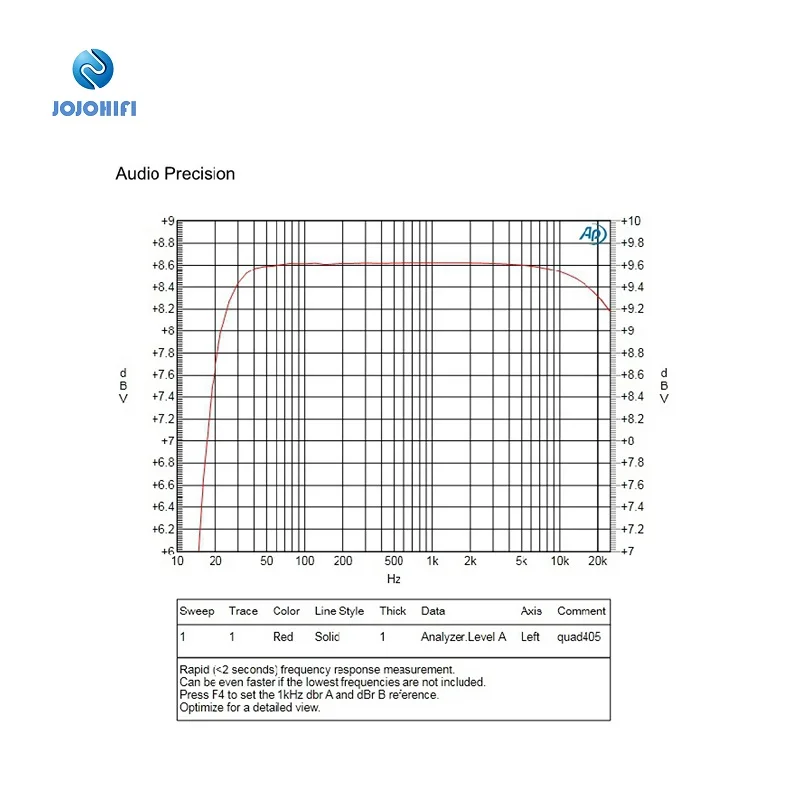

Frequency response:

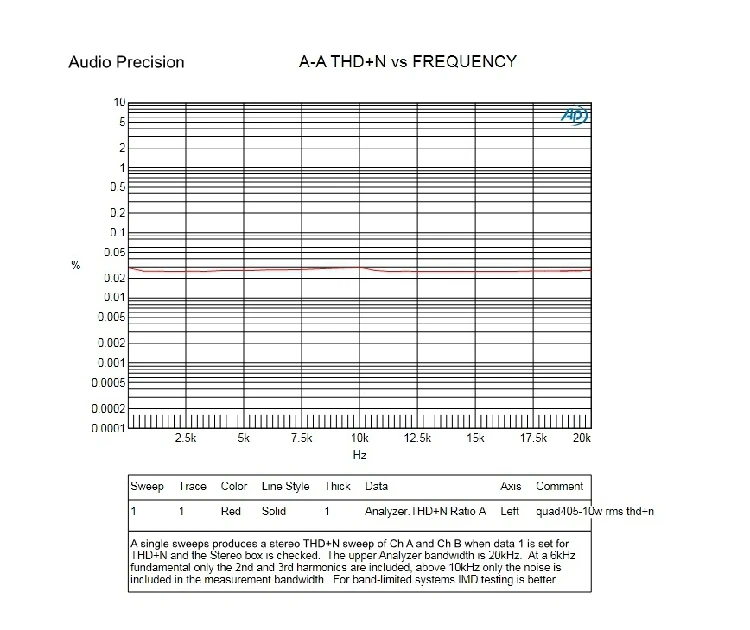

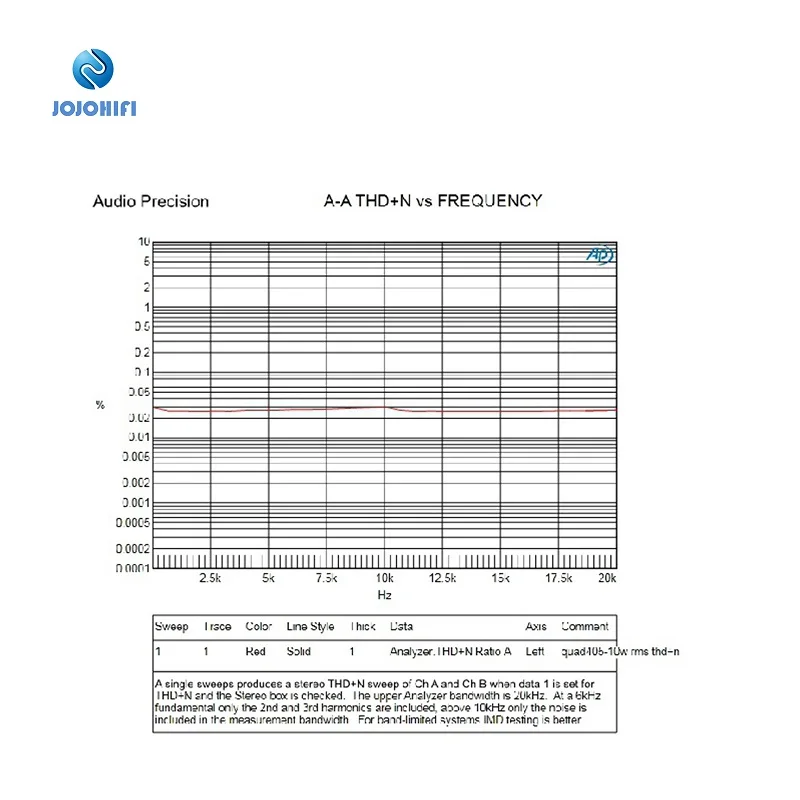

THD + N actual measurement data:

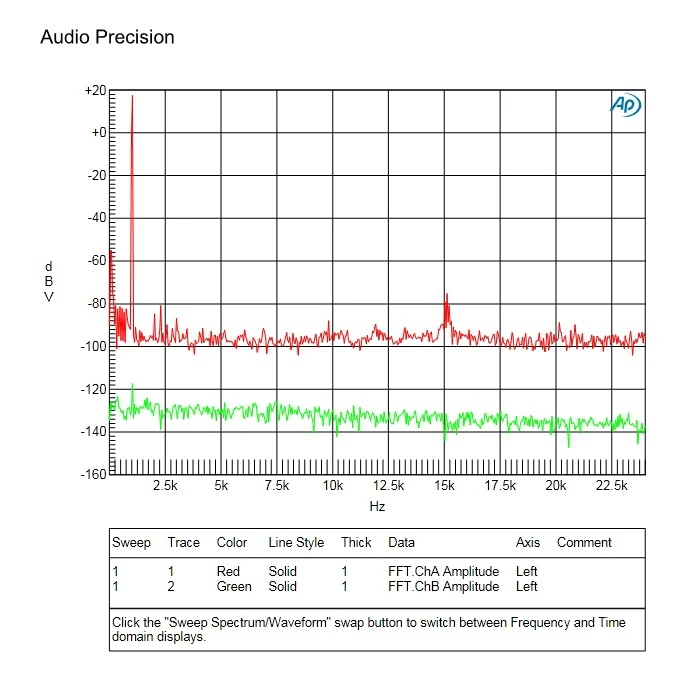

FFT distortion graph actual measurement:

Package include:

One Pair QUAD405 CLONE 100W 8R Dual Channel Amplifier Board with Angle Aluminum with Insulation sheet
