LED массивные световые панели для LG 32LS3400-UA -SA -ZC матричные полосы подсветки лампы линзы полосы 6916L-1030A 1031A 0881A 0923A включены.

LED массивные световые панели для LG 32LS3400-UA -SA -ZC матричные полосы подсветки лампы линзы 6916L-1030A 1031A 0881A 0923A включены.

Kind Reminder

▶▶The TV model can only be used as a reference, and the TV model may not be accurate. Because the same TV (but different production batches or different production areas) may use different light bars.

▶▶ You must open the TV casing and confirm that the backlight light bar model code, connector shape, light bar length and other parameters are consistent with the content we provide before you can buy it, otherwise we will not be liable if you rely solely on this TV model. This is the particularity of the electronic accessories industry, I hope customers can understand.

▶▶The new LED backlight strip is the same as the original one, easy to install, and the price is more favorable.

LED Array Light Bars For LG 32LS3400-UA -SA -ZC LED Backlight Strips Matrix LED Lamps Lens Bands 6916L-1030A 1031A 0881A 0923A

Bran New 4 piece (2A+2B) LED backlight strip / Kit,
Consistent with the original shape, double-sided tape on the back allows you to install it quickly without the need to purchase additional double-sided tape

Applicable TV model

If you have not opened the TV, we recommend that you compare the TV model. The model number of the TV is on the nameplate on the back of the TV. As shown below
For LG 32LS3400-SA 32LS3400-UA 32LS3400-ZC 32inchs

Light strip information

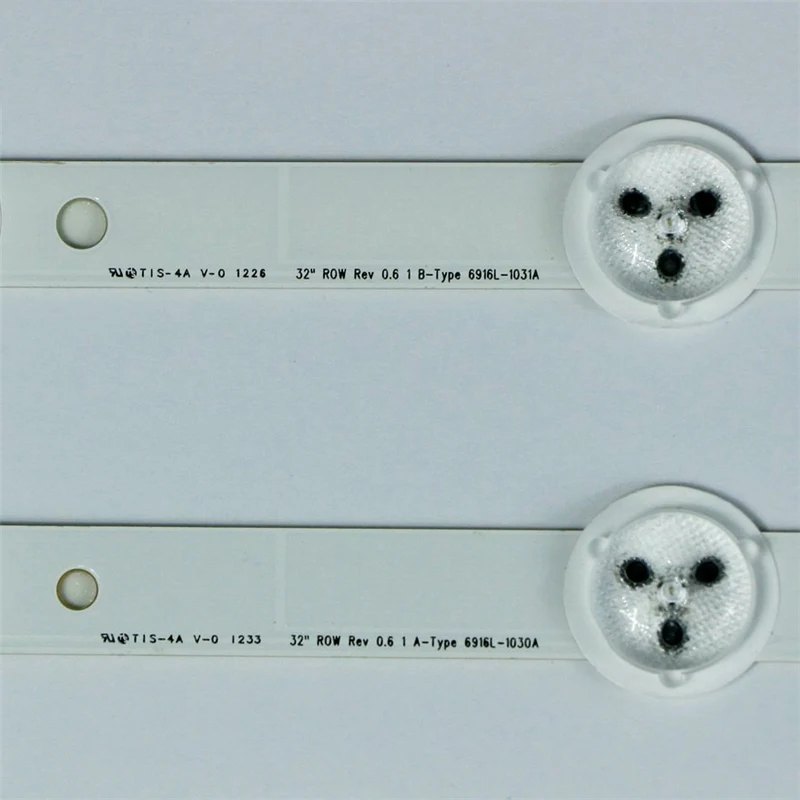

If you have already opened the TV, we recommend comparing the light bar code or screen code. You could find these numbers in the light bar or screen panel. As shown below, Or you can refer to the data we provide.
1223 32" ROW Rev0.6 1 A-TYPE 6916L-1030A
1223 32" ROW Rev0.6 1 B-TYPE 6916L-1031A

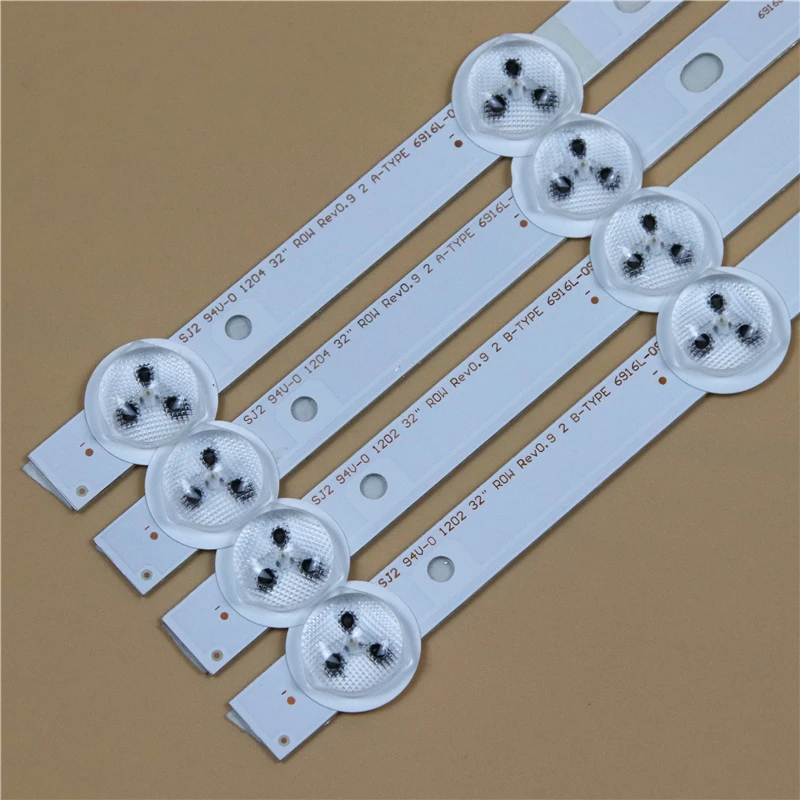

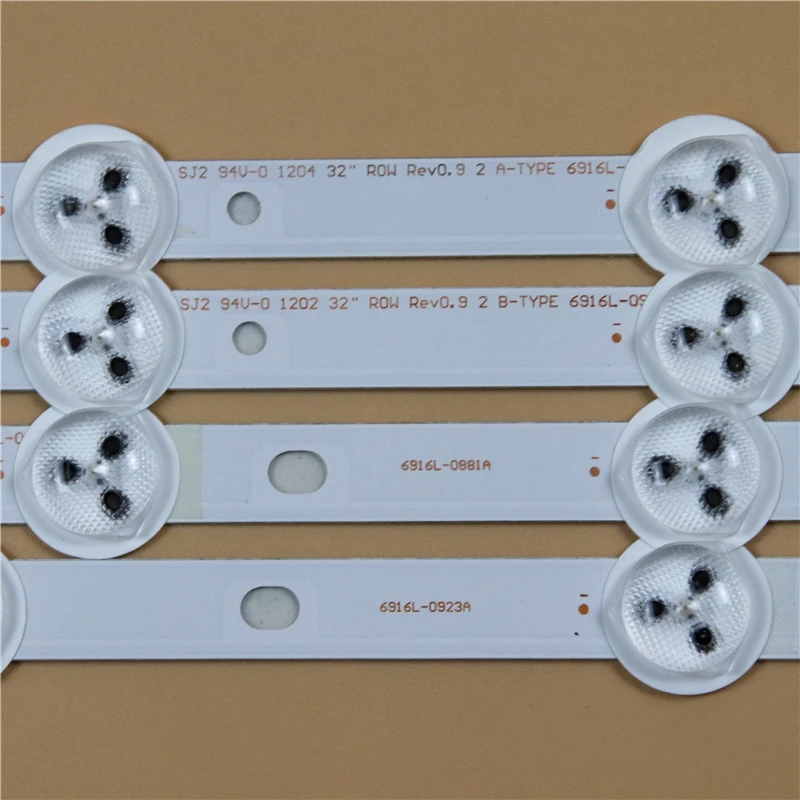

SJ2 94V-0 1202 32" ROW Rev0.9 2 A-TYPE 6916L-0881A
SJ2 94V-0 1202 32" ROW Rev0.9 2 B-TYPE 6916L-0923A

The LED Backlight Lamp Strip Features:

1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original
4.Product length:
648 mm ( length) * 12 mm (width) * 1.0 mm (height) 9 LED Lamps
5.Aluminum backplane makes it easier to dissipate heat
6.Voltage: 0-94V, Single lamp bead is 3V, brightness up to 700 nits

Packaging Information

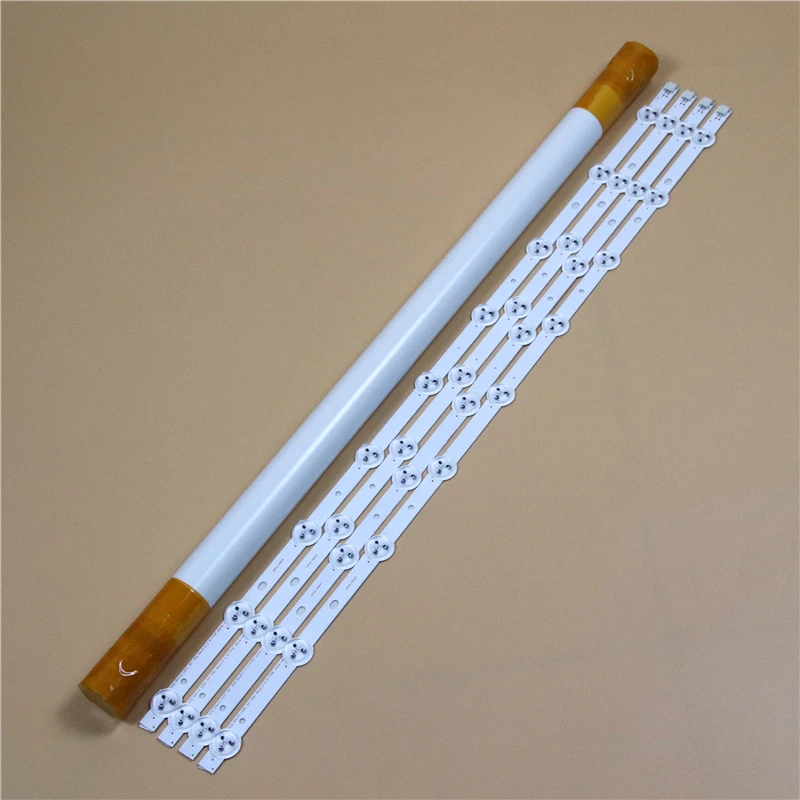

1. Package: PVC Plastic pipe (it will be safer during transportation)
2. Product contains: 1 piece backlight Strips , 4 piece / , 1 TV uses 4 light bars (2A and 2B)
3. Logistics information could be tracked

Precautions for buyers before buying

1.The connector, the length (spacing) and the LED quantity all in our description, please sure our LED Strip suitable for your TV befor buying. If not , contact us first, thanks!

2.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.

3.Please contact us if you have any questions.

4.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.

5.You could always contact us if you have any uncertainty or you want to get more offers.

6. Warranty: 90-Days Warranty

7.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.

Precautions & FAQ:

Q1: What are the common symptoms of LED Backlight failure?

A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.

It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!

Q2: How do I test my LED Bars?

A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use


Q3: What should I do if my product is not suitable for my monitor / TV?

A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost

Q4: Do you offer trade discount?

A4: Yes, please contact us about trade benifits
