USB3.1 male to female to female flat extension line A female to C male type-c corner Transfer extension cord 10G/bps USB3.1cable



ADT factory direct sales, excellent product performance, super good reputation, 100% full inspection, power-on test and delivery



Product model: UTS series

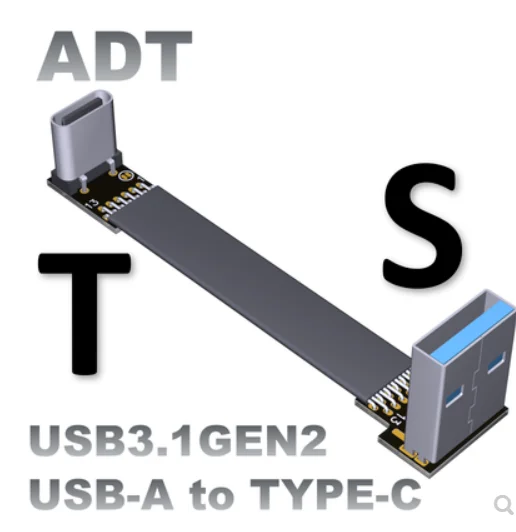

  Product name: USB3.1 Type C extension cord   Wire length: 3-300cm(support length customization)   Adaption range: USB 3.1 type-c to type-a   Speed bandwidth: USB 3.1 standard 10G/ BPS full speed (10G/ BPS high speed is supported within 50cm of measured line length, 5G/ BPS is supported within 1 meter)   Current capacity: 3A (3A is supported within 50cm and 1.5a is supported within 1m)   Application: GPS navigator, ROCK Pi 4 raspberry Pi MCU development board, built-in USB device to extend the purpose of switching, convenient for brushless head, steering gear head, sios head, DSLR handheld head USB power supply and AV transmission, etc   Description of wire length: The length of the wire in this shop refers to the part of the visible wire, excluding PCB and connector. If PCB and connector are included, another 4cm will be added. The total length is about 9 cm, please refer to the line 5cm below for marking.     USB-A to TYPE-C UTS series products     Product name                                                                  Product model                                                             Speed ​​bandwidth   Type-C adapter cable A-type straight male to C-type straight male; US1B-UT1A; 10G positive and negative plug   Type-C adapter cable Type A straight male to C type angled male; US1B-UT2A; 10G positive and negative plug   Type-C adapter cable Type A straight male to C type straight female with chip; US1A-UT4A; 10G positive and negative plug   Type-C adapter cable A type straight male to C type straight female; US1A-UT4B; 10G positive and negative plug   Type-C adapter cable A type straight male to C type angled female socket with chip; US1A-UT5A; 10G positive and negative plug   Type-C adapter cable A type straight male to C type angled female socket; US1A-UT5B; 10G positive plug, 480M reverse plug   Type-C adapter cable A-type upper elbow male to C-type straight male; US2B-UT1A; 10G positive and negative plug   Type-C adapter cable Type A male male to C male male; US2B-UT2A; 10G positive and negative plug   Type-C adapter cable Type A upper elbow male to C type straight female with chip; US2A-UT4A; 10G positive and negative plug   Type-C adapter cable Type A upper elbow male to C type straight female; US2A-UT4B; 10G positive and negative plug   Type-C adapter cable Type A male to C-angle female with chip; US2A-UT5A; 10G positive and negative plug   Type-C adapter cable Type A upper elbow male to C type elbow female; US2A-UT5B; 10G positive plug, 480M reverse plug   Type-C adapter cable A-type lower elbow male to C-type straight male; US3B-UT1A; 10G positive and negative plug   Type-C adapter cable A-type lower angle male to C-type angle male; US3B-UT2A; 10G positive and negative plug   Type-C adapter cable A-type lower elbow male to C-type straight female with chip; US3A-UT4A; 10G positive and negative plug   Type-C adapter cable A-type lower elbow male to C-type straight female; US3A-UT4B; 10G positive and negative plug   Type-C adapter cable A-type lower bend male to C-type angle female with chip; US3A-UT5A; 10G positive and negative plug   Type-C adapter cable Type A downward bend male to C-type angle female; US3A-UT5B; 10G positive plug, 480M reverse plug   Type-C adapter cable A-type straight female to C-type straight male; US4B-UT1B; 10G positive and negative plug   Type-C adapter cable A type straight female to C type angled male connector; US4B-UT2B; 10G positive and negative plug   Remarks: Speed ​​bandwidth: 10G/bps high speed is supported within 50cm, 5G/bps within 1 meter     Common USB extension cables are available in our shop, the models are as follows:       Product advantages:   One. Use German patent imported wire, support USB3.1 10G/bps speed within 50 cm   two. Cable length advantage, from 3 cm to 3 meters can be customized   three. Differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable   four. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.   Product Image:









Product advantage 1.Advantages of wire, imported wire with German patent, support USB 3.0 5G/ BPS stable transfer within 1 meter, support USB 3.1 10G/ BPS within 50 cm   2.Line length advantage, from 3 cm to 3 m can be customized   3.The differential signal has no hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro-short circuit phenomenon, the product is durable   4.PCB is made of high frequency and low resistance high quality materials, PCB is made of fine workmanship, PCB is made of high TG plate, copper material thickness is increased to 1oz, PCB power circuit is reinforced, and two 5V power core wires are used for reinforcement, so the transmission current is more powerful and can be supported up to 5V/3A Product picture:

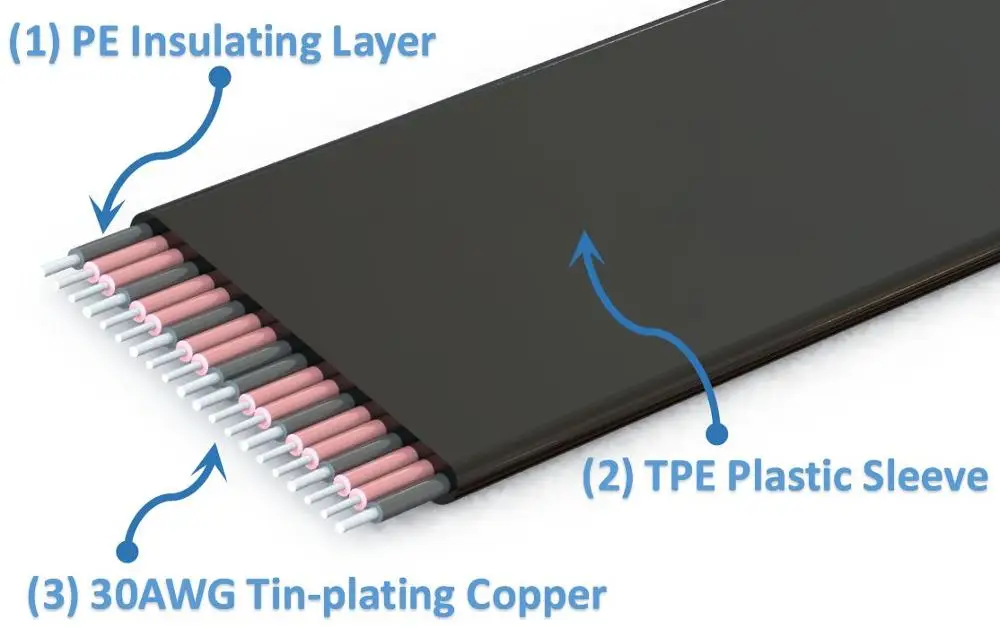

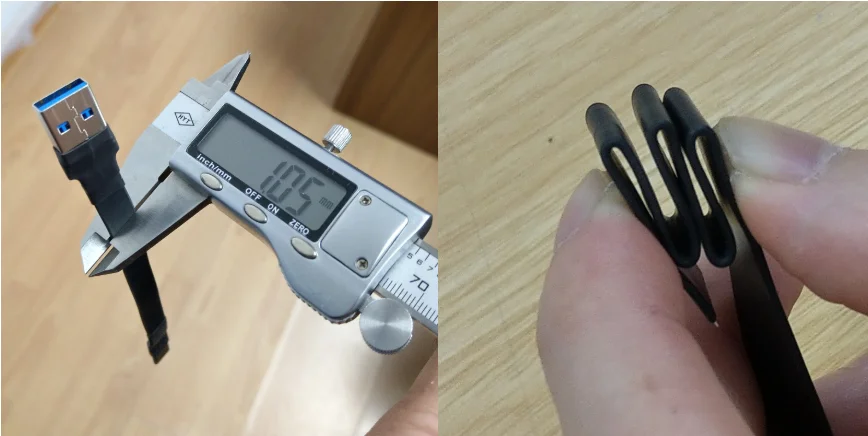

Summary of technical problems What is the quality of the wire?Is it shielded? EMI shielding conductive polymer, new materials for EMI shielding, flat cable design.This technique allows each cable to be fully covered by an emi shield of the conducting polymer to prevent electromagnetic frequency incidence or emission, minimize interference and performance degradation, and reduce the weight of the extender.       What is the difference between T4A-W6 and T4B-W6?   T4A-W6 is equipped with chip and type-C interface, which supports high-speed transmission of positive and negative insertion.   T4B-W6 has no chip, type-C also supports forward and backward plug, and forward plug can support USB3.0 (high-speed); However, only USB2.0 (low speed) is supported for anti-plug.     What is the thickness of the wire?Soft? The wire thickness of this product is only 1.05mm, so the wire of this product is relatively soft.



What is the difference between T4A-W6 and T4B-W6?   T4A-W6 is equipped with chip and type-C interface, which supports high-speed transmission of positive and negative insertion.   T4B-W6 has no chip, type-C also supports forward and backward plug, and forward plug can support USB3.0 (high-speed); However, only USB2.0 (low speed) is supported for anti-plug.
