Dps3510 150W Step-Down Power Supply Module Lcd Display Constant Buck Converter

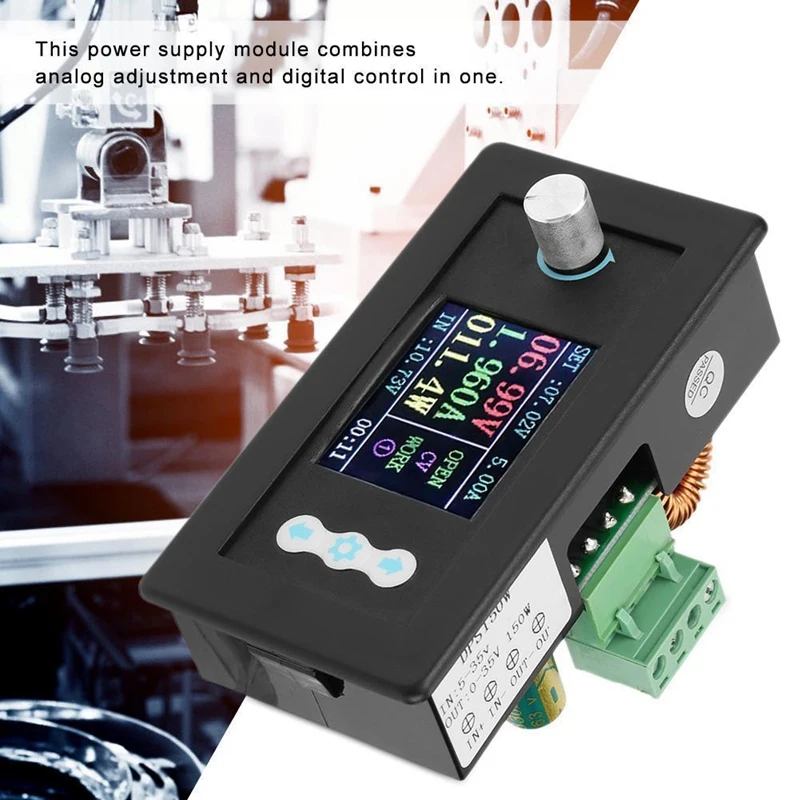

1. This power supply module combines analog adjustment and digital control in one.

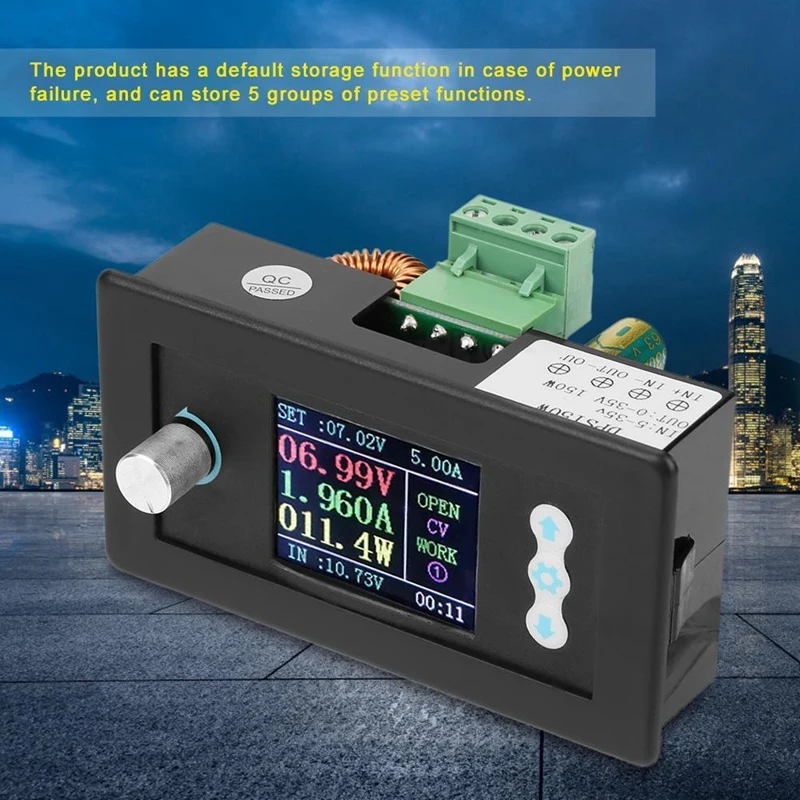

2. The product has a default storage function in case of power failure, and can store 5 groups of preset functions.
3. This module is integrated with voltage current meter function and its LCD screen makes it easy to view the preset voltage, preset current, output voltage, output current and so on.
4. The output status display area shows if the output is on/off, constant voltage/current output status, whether the output is normal and the data set currently being called.
5. You can adjust the overvoltage value, overcurrent value, overvoltage power, data setting, LCD brightness in the data setting interface.
Model: DPS3510
Max Power: 150W
Input Voltage Range: 5-40V
Max Voltage at Constant Voltage Mode: 35V
Max Current at Constant Current Mode: 5A
Output Voltage Range: 0-40V
Output Current Range: 0-10A
Output Voltage Resolution: 0.01V
Output Current Resolution: 0.001A
Output Voltage Accuracy: ±(0.5%+1)
Output Current Accuracy: ±(0.5%+3)
Weight: Approx. 143g / 5.0oz
Fault & Solution:
1. If you connect it to the output and it works on a black screen, you need to switch to a more powerful power supply.
2. If the output cannot be pressed, check if the load is shorted.
colour:black
Material:metal
size:9.5*5*5.4cm
Package Contents:
1 * Power Supply Module
Note:
1. The output can't be shorted.
2. Pay attention to heat dissipation when the output is full load.
3. The wiring must be firm enough to prevent electric sparks.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
