Technology Parameter

Machine Name

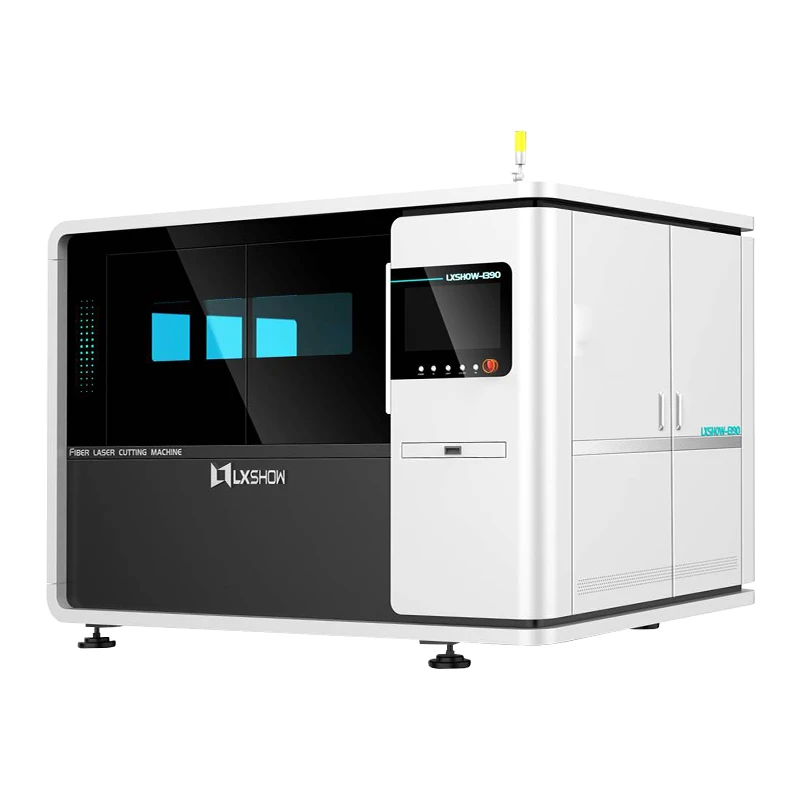

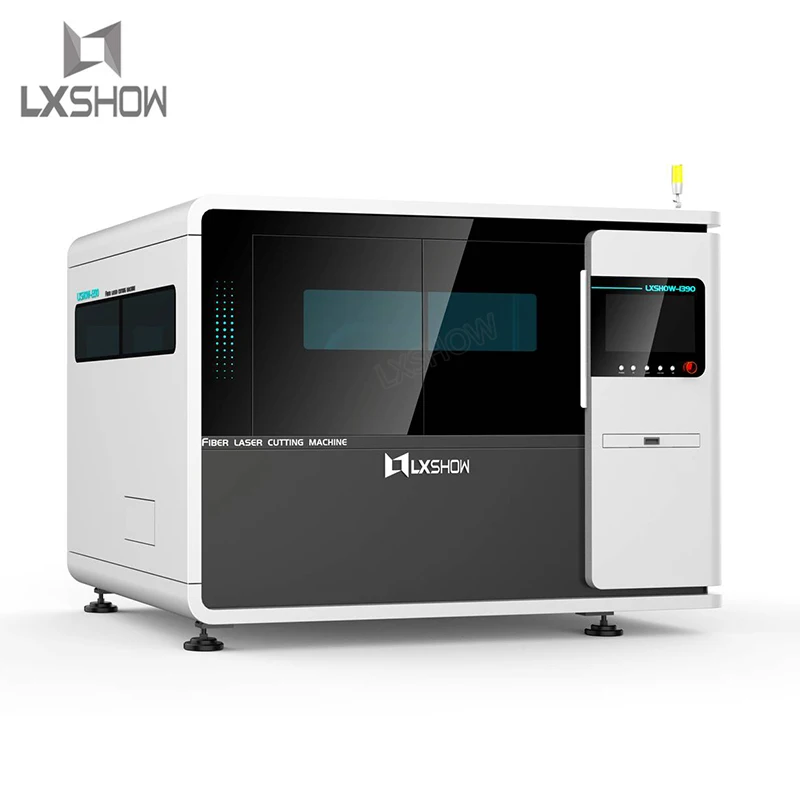

Precision Metal Plate Fiber laser cutting machine

Model

LXF1390

Laser machine cutting area

1300x900mm

Fiber Laser Power

500w/750w/1000/1500W

Laser wave length

1064nm

Transmission system

High quality ball screw transmission

X.Y axis location accuracy

±0.01mm

X.Y axis repeat location accuracy

±0.01mm

X.Y axis max moving speed

30m/min

Max cutting speed

1--30m/min(it will according to metal material and laser power)

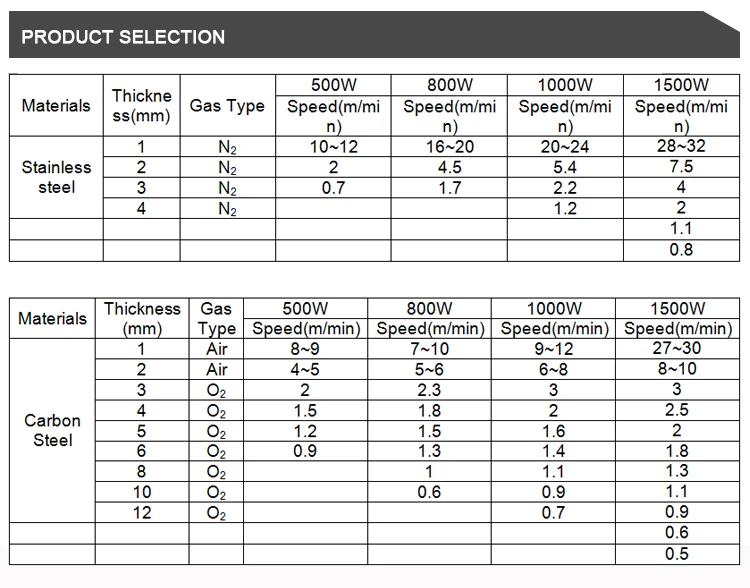

Cutting thickness

Detailed in the following cutting thickness

Application Material

Metal sheet

Iron/CS/SS/Aluminum/Copper and all kinds metal

Gross weight

2200KG

Net weight

2000KG

Machine size

2724*2110*2021mm

Applied materials and Industry:

Fiber cutting head (Metal Material):

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

Applied  Industry:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.

2. High Cutting Speed:  Cutting speed is 2-3 times than same power CO2 laser cutting machine.

3. Stable Running:  Adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.

5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.

6. Low Maintenance: Fiber line transmission no need reflect lens, save maintenance cost;

7. Easy Operations: Fiber line transmission, no adjustment of optical path.

We can also customized non-standard assist equipment as your detailed work requirements.

 Feedback from around the world :

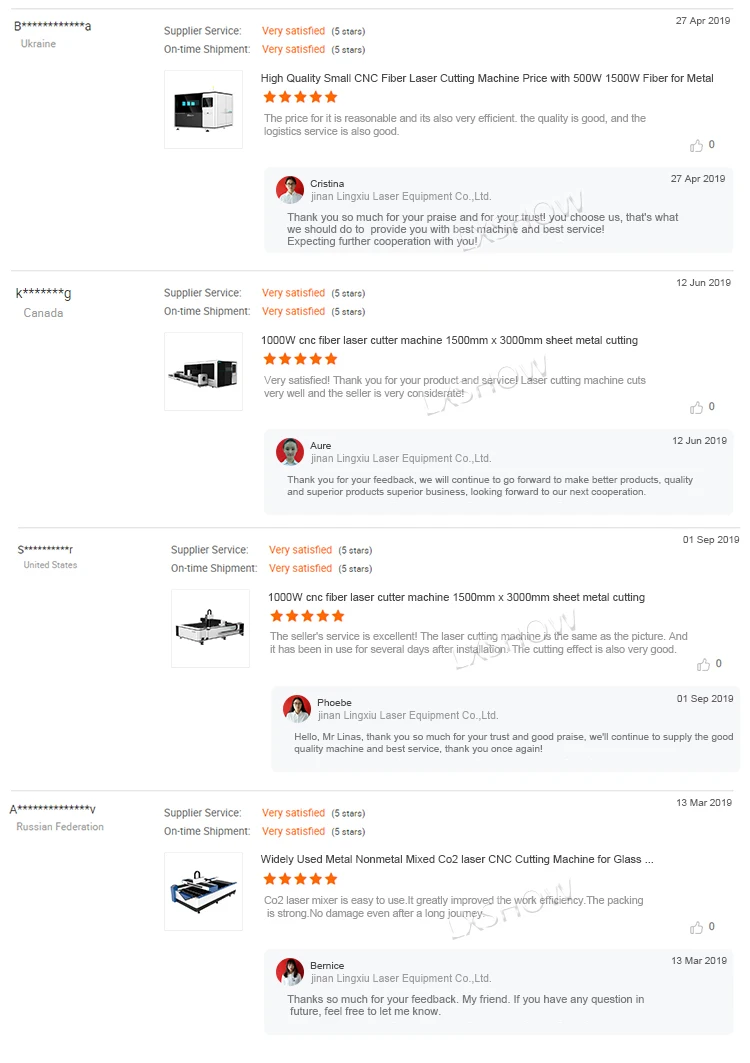

 Voice from customer in the world :

FAQ

Q1 :How about warranty?

A1: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me

1). Your materials.

2). Max size of your material.

3). Max cut thickness.

4). Popular cut thickness.

Q3:Payment terms?

A3:  Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive Or i have problem during use,how to

do?

A5:

1).  We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2).  If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
