New Mini Digital Smart Satellite Signal Finder Meter with LCD Display Satfinder Compass Supports APP Control | Инструменты

New Mini Digital Smart Satellite Signal Finder Meter with LCD Display Satfinder Compass Supports APP Control | Инструменты

The digital satfinder is very sensitive and can detect the weakest of signals, strong incoming signals (powerful satellite, big dishes) can easily be attenuated for better readout.

Features:
Mini size and light weight, really portable.
Designed with a compass for easier and quicker tuning.
LCD graphic display with LED backlit to show the satellite signal intensity.
Real time online updating of satellite parameters.

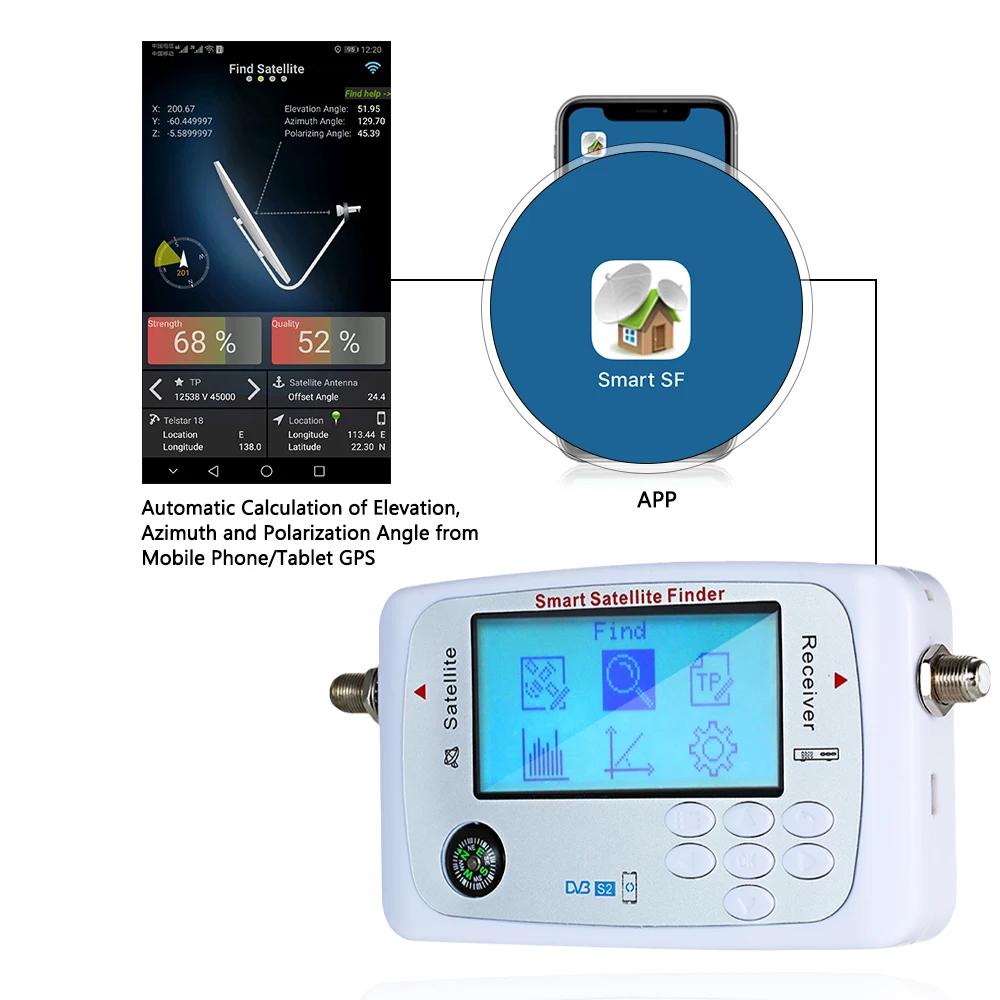

Automatic calculation of elevation, azimuth and polarization angle from mobile  phone / tablet GPS horizontal sensors and directional sensors.
Graphical display of elevation, azimuth, the antenna can be adjusted to the correct angle in 10 seconds.
With buzzer easy user-friendly operation.
Search the APP name of Smart SF from iOS Store or Android Market or scan the QR code to download the APP.

Specifications:

HARDWARE
CPU: Enhancement Tensilica's L106 diamond 32-bit CPU
Power: DC 13~18V / 5V

TUNER AND DEMODULATION:
Symbol Rate: 950~2150MHz
Symbol Rate: 2<RS<45Mband(SCPC/MCPC)
Signal Input Level: -65~-25 dBm
Demodulation: QPSK, 8PSK, 16ASK, 32ASK
22KHz Tone: Supported
DeSEqc1.0/1.1: Supported

W-F:
W-F Protocols: 802.11 b/g/n/e/i
Frequency Range: 2.4GHz~2.5GHz (2400M~2483.5M)
Output Power: 14dBm~20dBm
Security: WPA/WPA2 PSK and WPS
Hardware Accelerator: CCMP(CBC-MAC), TKIP(MIC,RC4), WAPI(SMS4), WEP(RC4), CRC

APP SOFTWARE
Satellite and TP: Auto download or manual edit
Sensor: Auto get the longitude/latitude for GPS, auto get the compass/gradient, auto calculate the elevation angle/azimuth angle/polarizing angle
Angle: Imaging
Find: 2 step to find satellite, easy
Spectrum: 950~2150MHz
Update: Update APP and device SW and database by Phone/Tablet or Network server
Beep: Beep integrated
LNB Short: LNB short protect

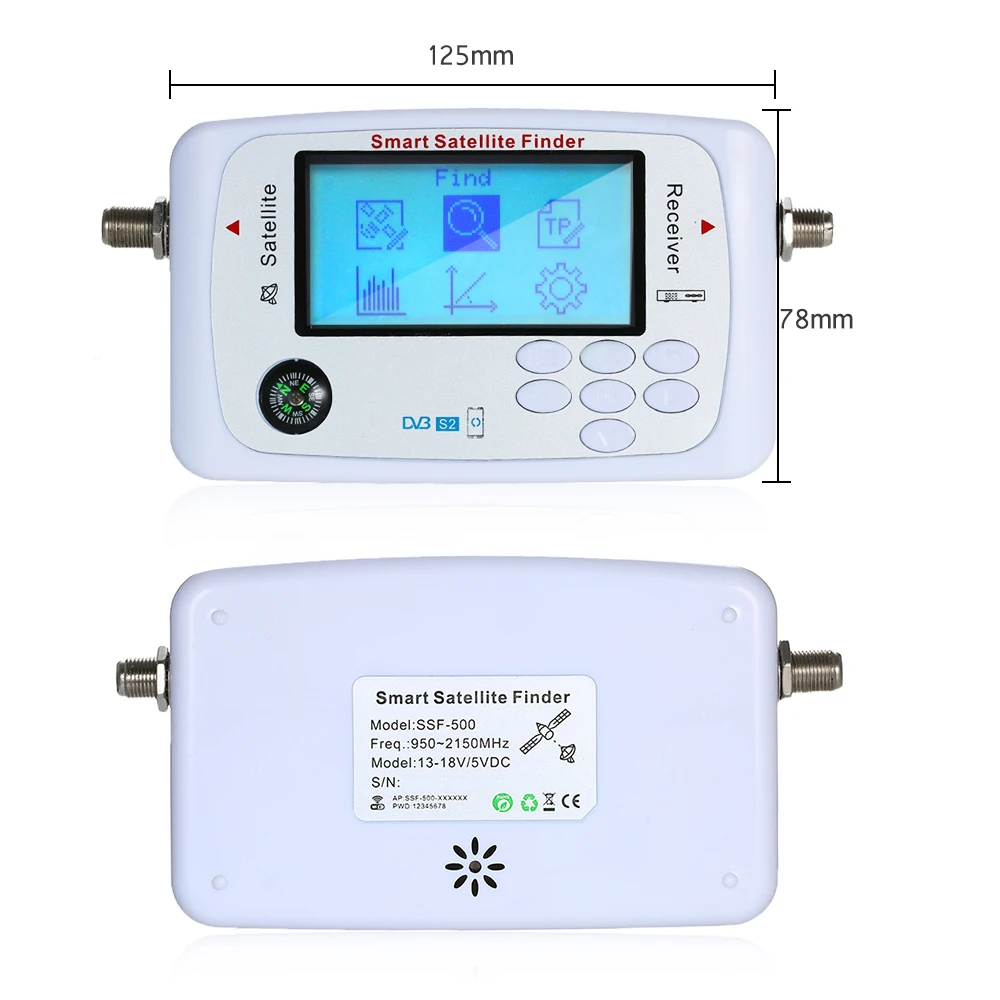

Item Size: Approx. 125 * 78 * 25mm / 4.9 * 3.1 *1.0in
Item Weight: Approx. 133g / 4.69oz
Package Weight: Approx. 220g / 7.83oz
Package Size: Approx. 19 * 14 * 4.5cm / 7.5 * 5.5 * 1.8in

Package List:
1 * Satellite Finder
1 * Connecting Line
1 * User Manual (English)
