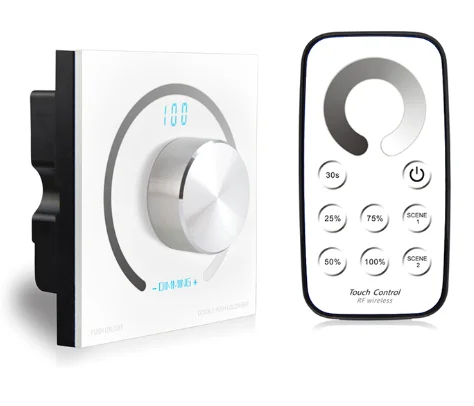

 This LED signal dimmer is AC85-265V input, and outputs AC85-265V,0-10V analog signals,PWM 5V and PWM 10V signal. With our T1 wireless remote to control led lamps by radio frequency, and adjust the signals, easy to install, it's suitable for commercial or household standard 86 type socket base.

Specification:

Model:                            K1- 010V

Input/ Output Voltage:     AC85-265V

Max Output Current:      10A

Output signal:                 0/1-10V Analog Signal

Dimension                      L86×W86xH51(mm)

Model:                            T1

Working Voltage:            3V (CR2032)

Working Frequency:       433.92MHz

Dimension:                     L106 x W56 x H9(mm)

Feature:

1. Automatically adapt to AC85-265V working voltage.

2. High voltage input, isolation power supply, can be used with dimming power.

3. Standard 86-style socket, easy to install.

4. Rotary  knob adjustment,fashion design, simple to use.

5. 2CH output, 100 brightness level

6. Power loss memory function.

Dimension:

Operating instruction:

The Learning ID Method of Remote Control:

Remote control has been matched to the dimmer before delivery, if deleted accidentally, you can learn ID as follow.

Learning ID: In the state of power off, long press rotary for 3 seconds,  when the digital tube displays 'FF', then press any key on the remote control . The digital tube flashes 3 times, and the controller is ON, the remote and is controller is matched.

 Note:

The controller is inactive if no settings are made to it after 1 minute, press any key to turn it on before normal operation.

*Short press: turn on/off LED controller

*Adjust rotary: increase or decrease brightness, range from 1~100.

Typical Wiring Schematics:

2. Diagram of 0-10V signal dimmer and 0-10V dimming driver:
