Asymmetric Cycler Timer Relay 220V 16A AC/DC12V-240V Electronic Repeat Relay GRT8-S

Applications

-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.

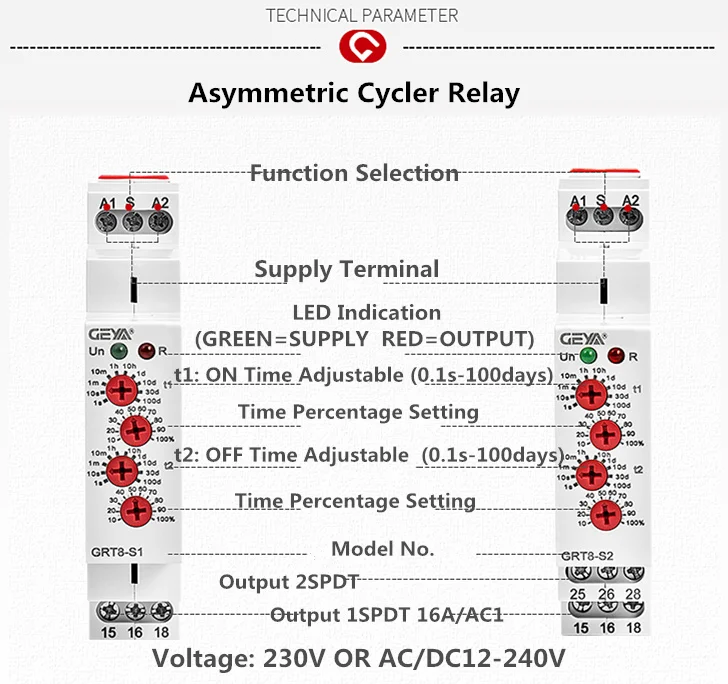

Function Features

-Voltage AC230V or AC/DC12V-240V
-Output 1SPDT or 2SPDT (16A/AC1)

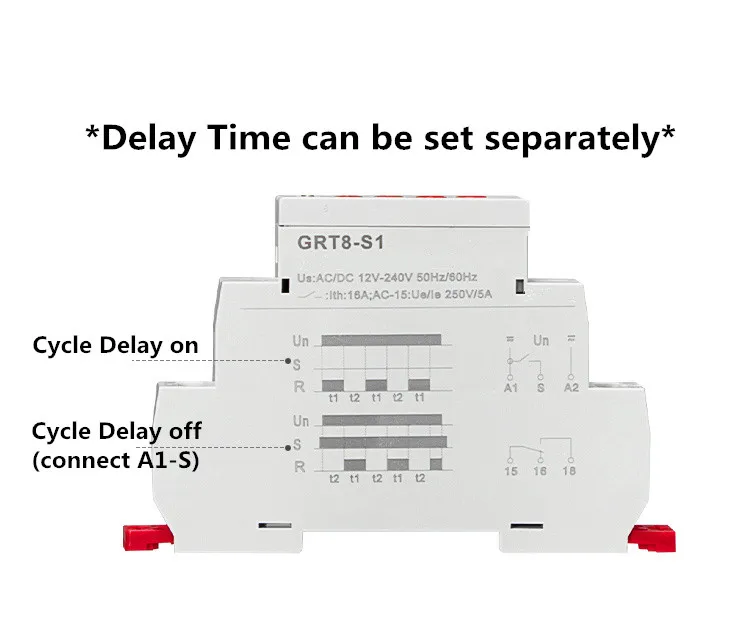

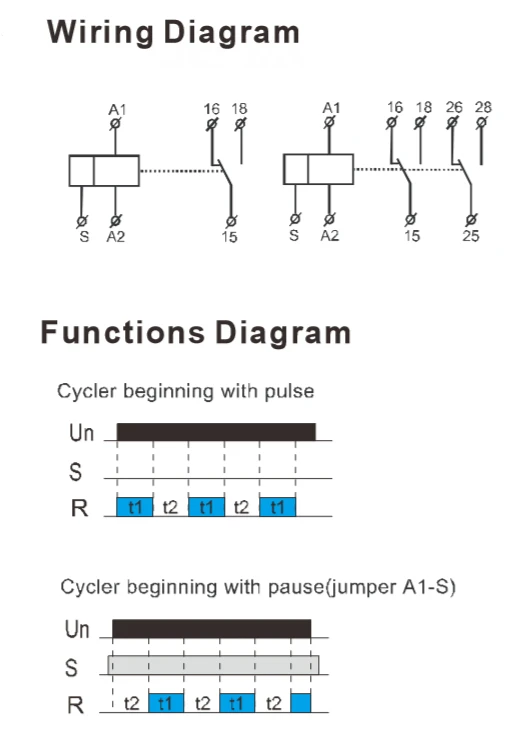

-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

Technical Data

SINGLE FUNCTION TIME RELAY

Delay on or Delay off Function

MULTI FUNCTION TIME RELAY

10 functions, 10 time ranges, multi-voltage

LATCHING RELAY

IMPULSE RELAY
