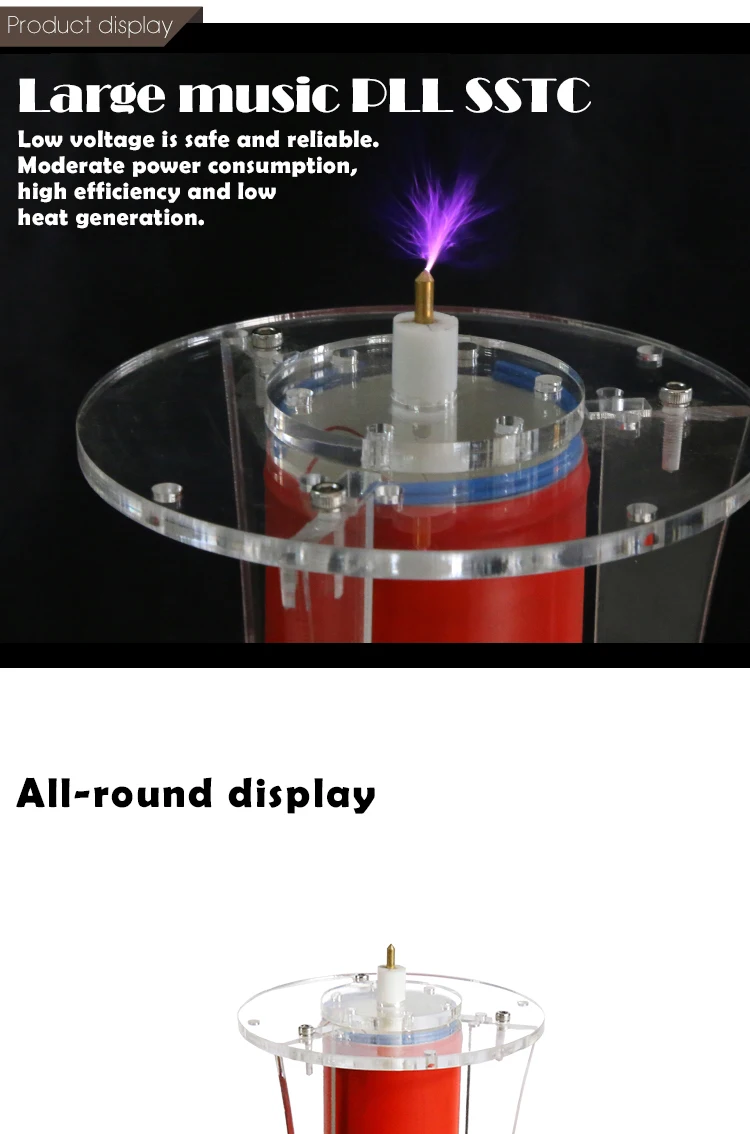

Large music PLL SSTC

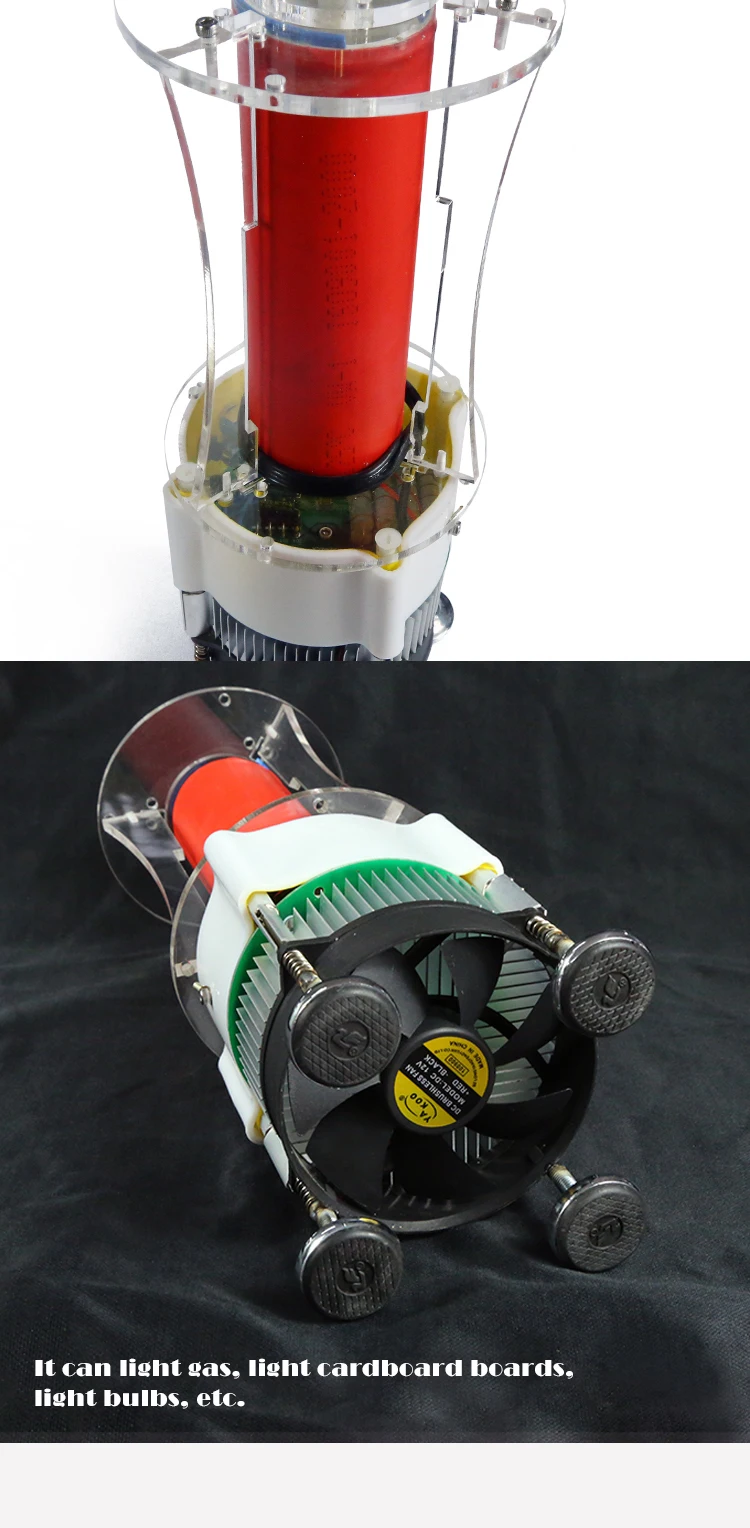

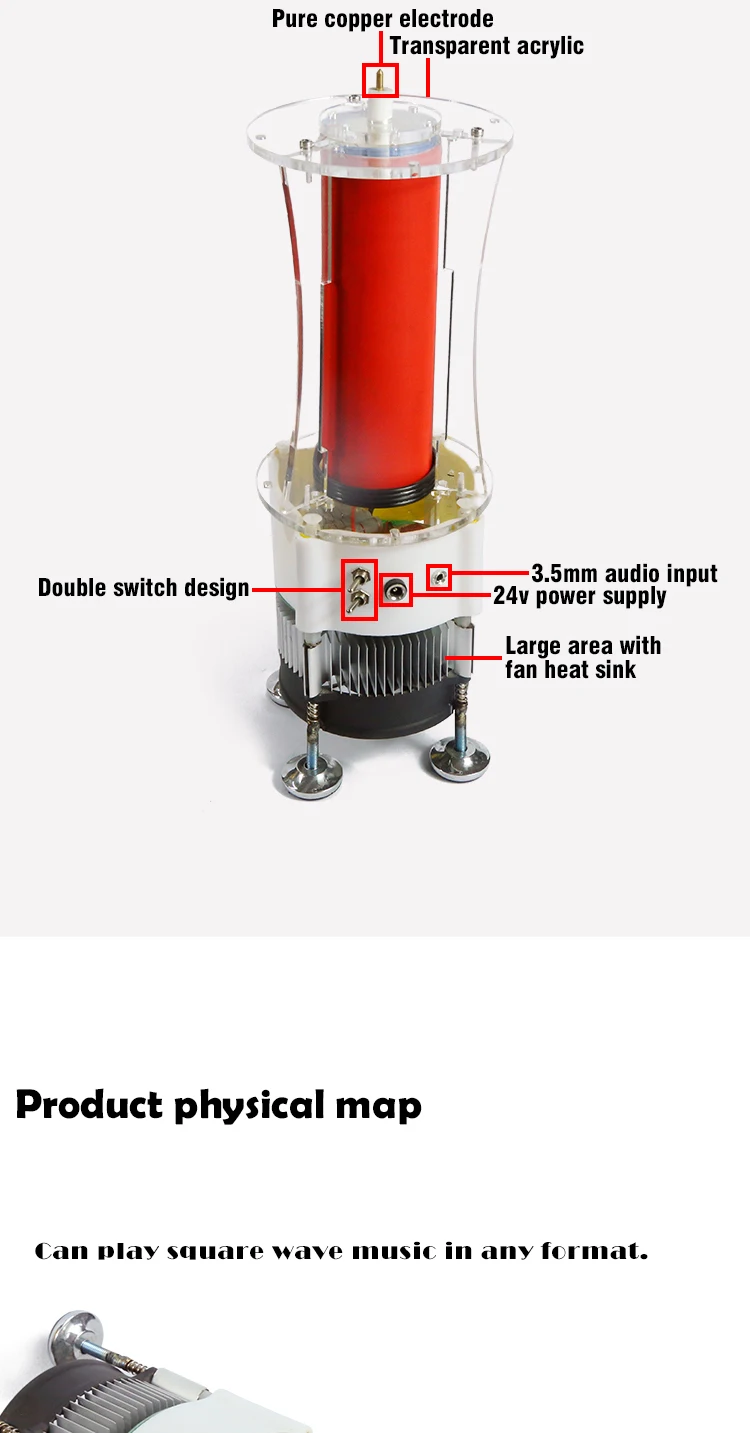

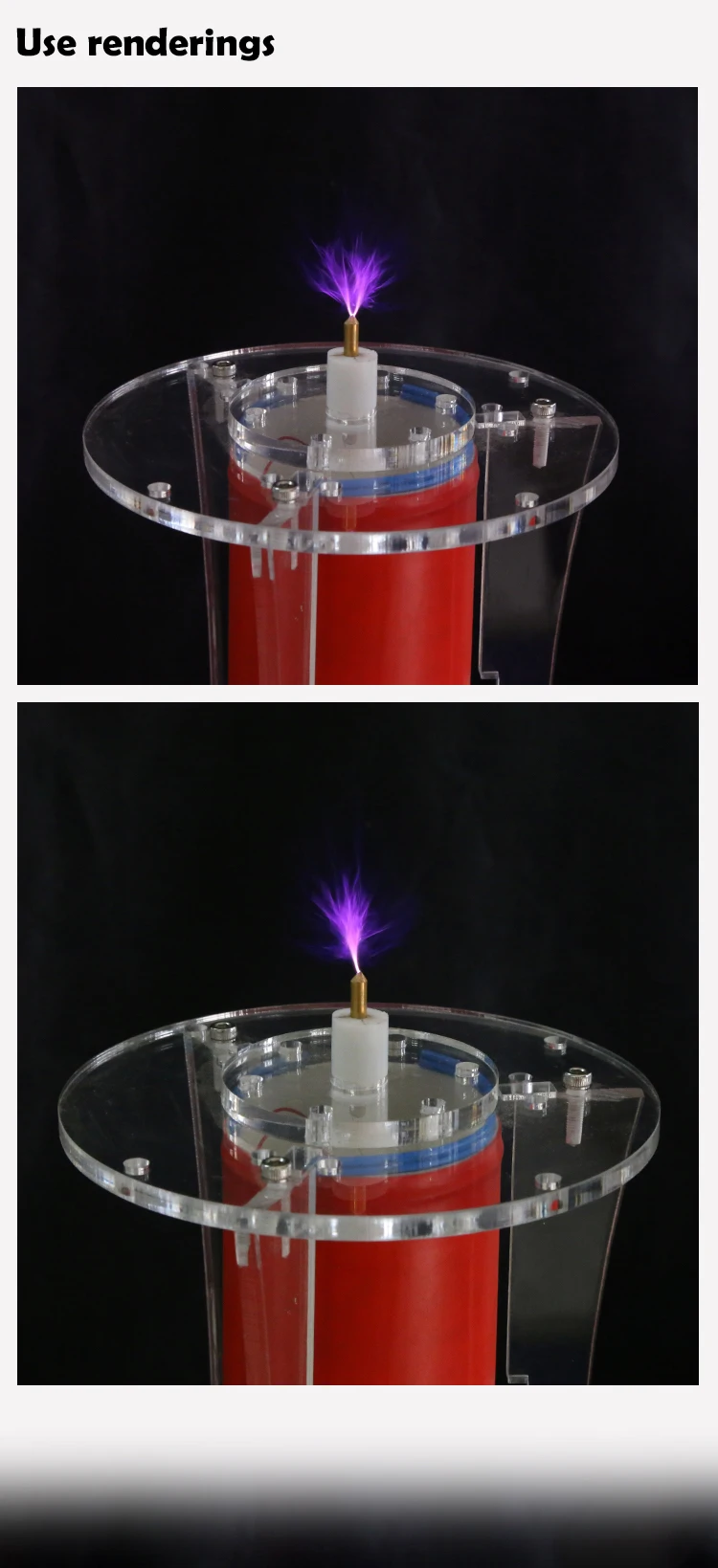

This Tesla is our latest pll sstc. Prior to this, there were 3 small ones that were powered by 24v, but the sparks were relatively small and the heat was large, so they could not work for a long time. There is also a large one, but it must be powered by 110. Although the arc is relatively large, the heat is also relatively large.     Based on the previous products, we redesigned the circuit, changed the area, updated the components, and redesigned the coil parameters. After several optimizations, we now have this product, which basically perfectly solves the previous problems of heat generation. This product can be used for a long time power supply, the arc is obvious, the arc length is about 2cm, the power consumption is reasonable, the heat sink has an active cooling fan, the heat is lower, and the component life is longer.     The product comes with a switch, which is no longer powered on before plugging in, reducing the difficulty of use and increasing safety.     The product can use a 3.5mm audio cable as an input, play ordinary songs, not limit the square wave music, but also light up the gas, light up the cardboard and wood board, and let the light bulb shine. Product parameters Weight : 737g Size : 340*105mm Voltage supply: 220v Power output: 24v Current: 8A Direction for use 1. After receiving, please place the product near an object that can be grounded, and use the free copper wire to link the product to the ground. 2. Turn all the switches to the left. 3. Insert the power plug into the socket and the round plug on the side of the product. 4. Finally, flip the switch under the product to the right to use it. Matters needing attention（） 1. The voltage of the coil and the electrode is extremely high. Do not touch it with or without an arc after power on. 2. The ground wire must be connected before operation, otherwise the power will be damaged immediately. 3. It is strictly forbidden to use other power supply or change the structure. 4. Do not touch when the fan is rotating at high speed.
