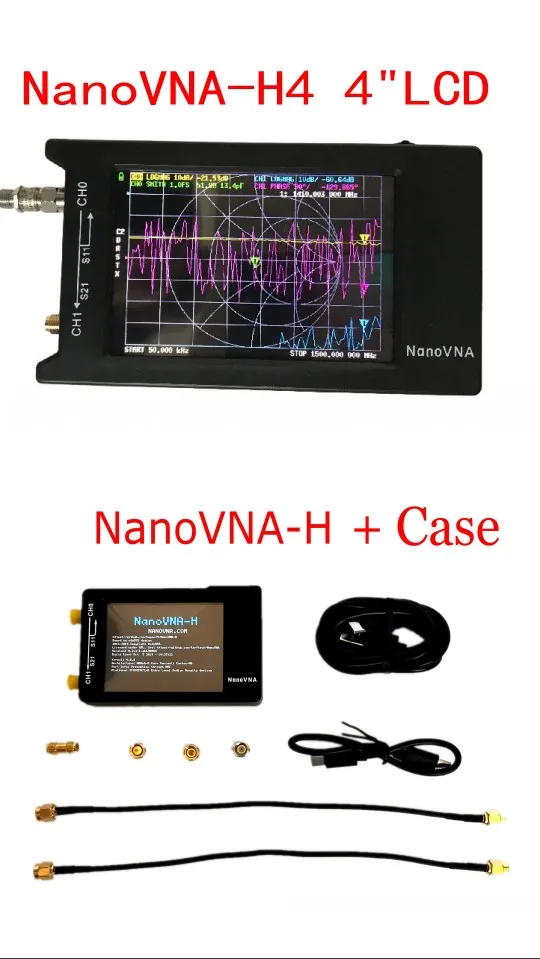

Bundle 2  :     Nanovna-H4 4 inch LCD

50KHz-1.5GHz Vector Network Analyzer NanoVNA Vector w/ 4" LCD Display For UHF Antenna NanoVNA-H4

Features:
- With DC dimming method, 4" full-view LCD screen can be seen more clearly for outdoor uses, and more comfortable for indoor uses
- Optimized Electric Bridge: Making full use of the harmonics of Si5351, it can use the 5th harmonic to measure up to 1.5GHz
- When fundamental wave is used, the output level of CH0 is increased to 0dBm, making reflection measurement more accurate
- Solved the abnormality of NanoVNA-H when operating at around 6MHz before
- Redesigned power management circuit reduces power noise, USB power interference, and charging current
- Improved PCB layout
- Reserved UART interface for DIY expansion
- Lightweight ABS shell keeps the device well protected

Basic Parameters:
- ABS Shell: 75mm x 133mm x 18mm (excluding protrusions)
- Measurement Frequency: 50KHz ~ 1.5GHz
- RF Output: 0dbm (±2dB, fundamental wave)
- Frequency Accuracy: <2ppm
- Frequency Stability: <0.5ppm
- Measurement Range: 70dB (50kHz-300 MHz), (60dB (300M-900MHz), 40dB (0.9G-1.5GHz) enable expansion firmware)
  Note: Please pay attention to the error caused by nonlinear transformation of the fundamental wave when using harmonic measurement.
- Port SWR: <1.1
- Display: 4" TFT (320 x 480)
- USB Interface: USB type-C; Communication Mode: CDC (serial)
- Power Supply: USB 5V 200mA. Maximum charging current 1A
- Number of Calibration Points: 101 (fixed)
- Number of Scanning Points: 101 (fixed)
- Display Tracking: 4, Marking: 4, Save Setting: 5
- Measurement of S-parameters, voltage standing wave ratio, phase, delay, Smith chart, time domain analysis, etc.

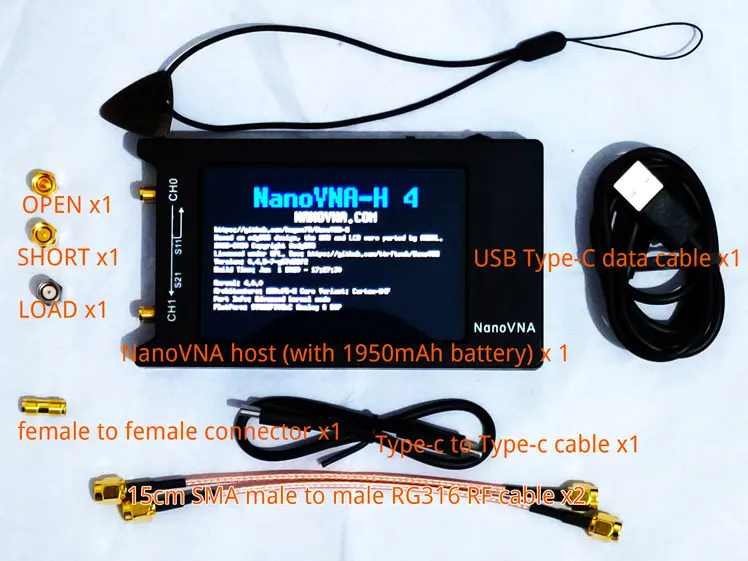

Package Included:
- 1 x NanoVNA Main Unit
- 2 x 15cm SMA Male to Male RG316 RF Cables
- 1 x SMA Female to Female Connector
- 1 x SMA Simple Calibration Kit SHORT
- 1 x SMA Simple Calibration Kit OPEN
- 1 x SMA Simple Calibration Kit LOAD
- 1 x USB Type-C Data Cable
- 1 x Type-C to Type-C (For Android mobile phone connection)

Download Manuals & PC Control Software:


Test Short-wave Antenna:

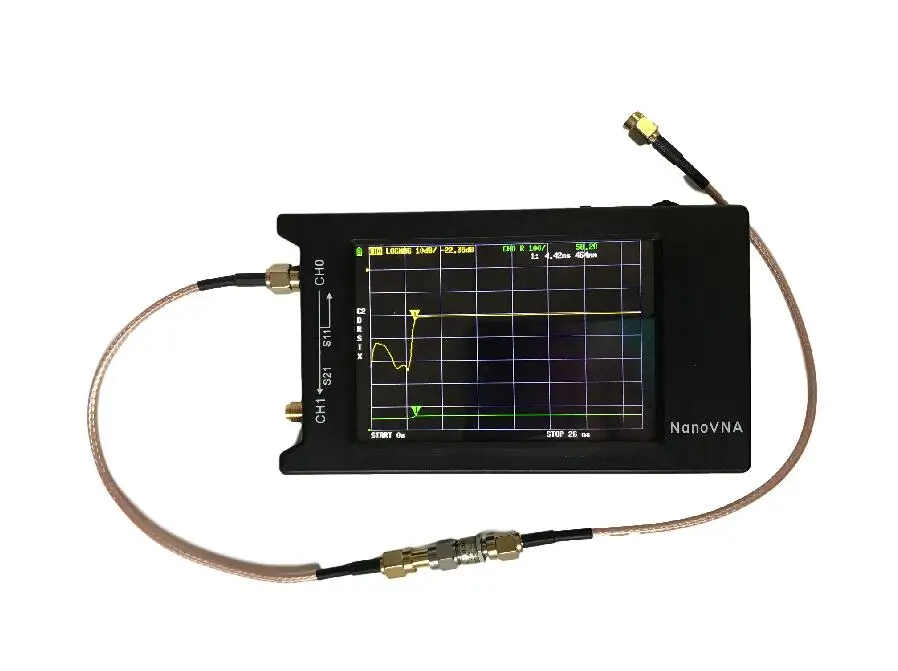

- The yellow line pictured is the standing wave ratio.
- Note: As the SMA ports are made of cast copper, please not connect hard 50-7 / RG213 and other cables directly to the SMA ports through M-to-SMA connector to avoid damaging the SMA ports. You can use the included SMA cable to connect to the SMA port as shown in the picture below, and then use M to SMA connector.


Test UHF Antenna:

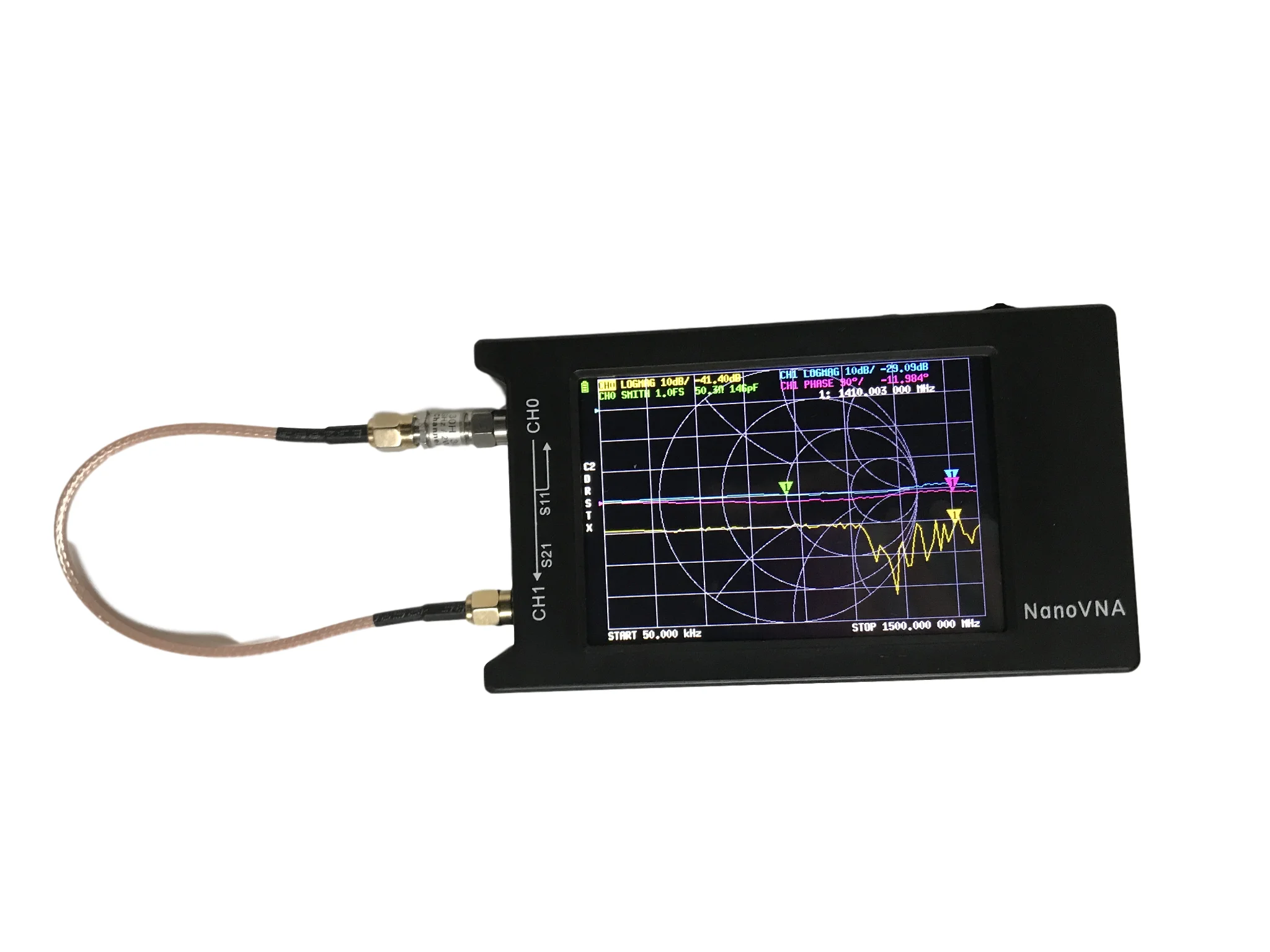

Test VHF Low-pass Filter:


Test 455K SSB Filter with Bandwidth 2.4K:


PC Software:
Computer software supports control and real-time display. And it support for exporting Touchstone (snp) files for various radio design and simulation software.


As a measuring device, accuracy is of great importance. Simple calibration parts are included in the package. We have calibrated the product's dual ports before delivery. When your measurement conditions change (for example, switching from a narrower calibration bandwidth to a wider measurement bandwidth with an extension cable measurement), you need to re-calibrate. After calibration, it is saved as setting 0, which can be used directly at the next boot, or it can be saved to the other 4 saved items through recall when needed.

The following figure is the comparison data of a V-band duplexer measured with NanoVNA and E5062A for Agilent under the same test conditions:
