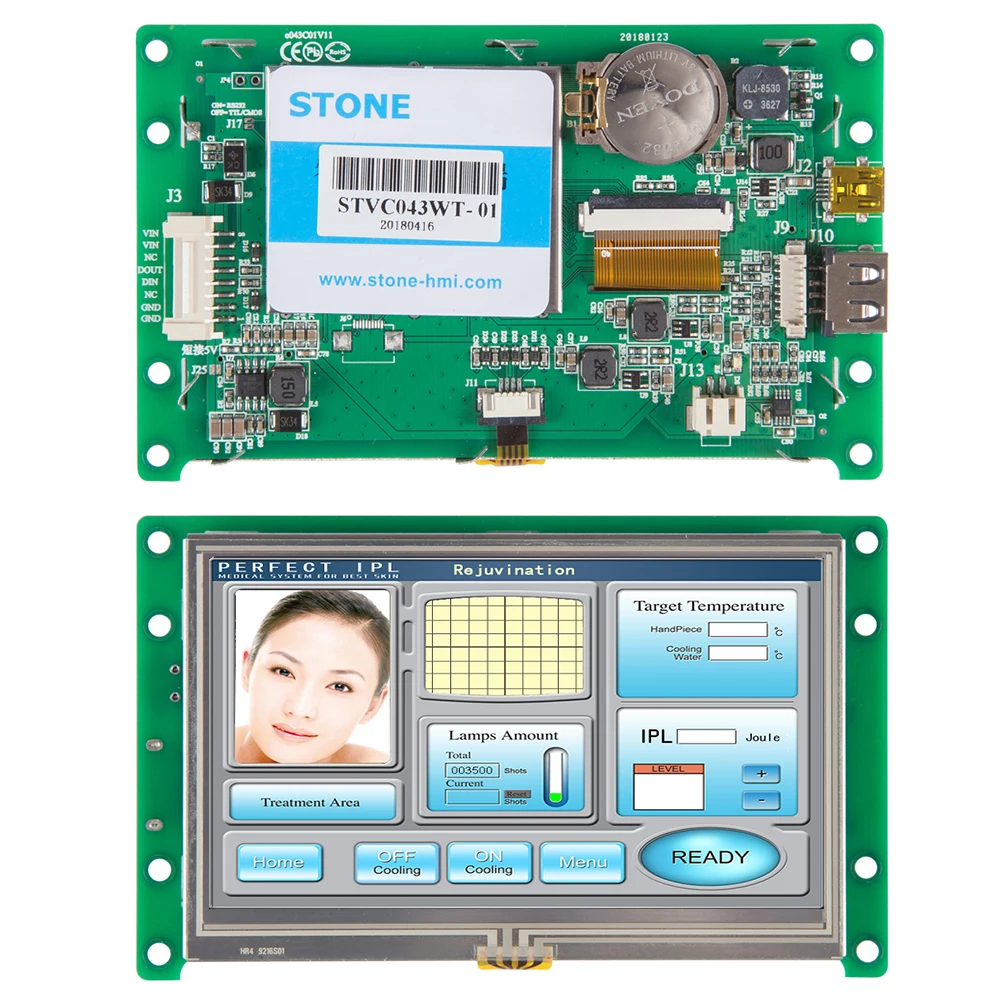

STONE 4.3 Intelligent HMI TFT LCD Touch Screen with Serial Interface+Software for Industrial

Product Parameters

Physical Parameter

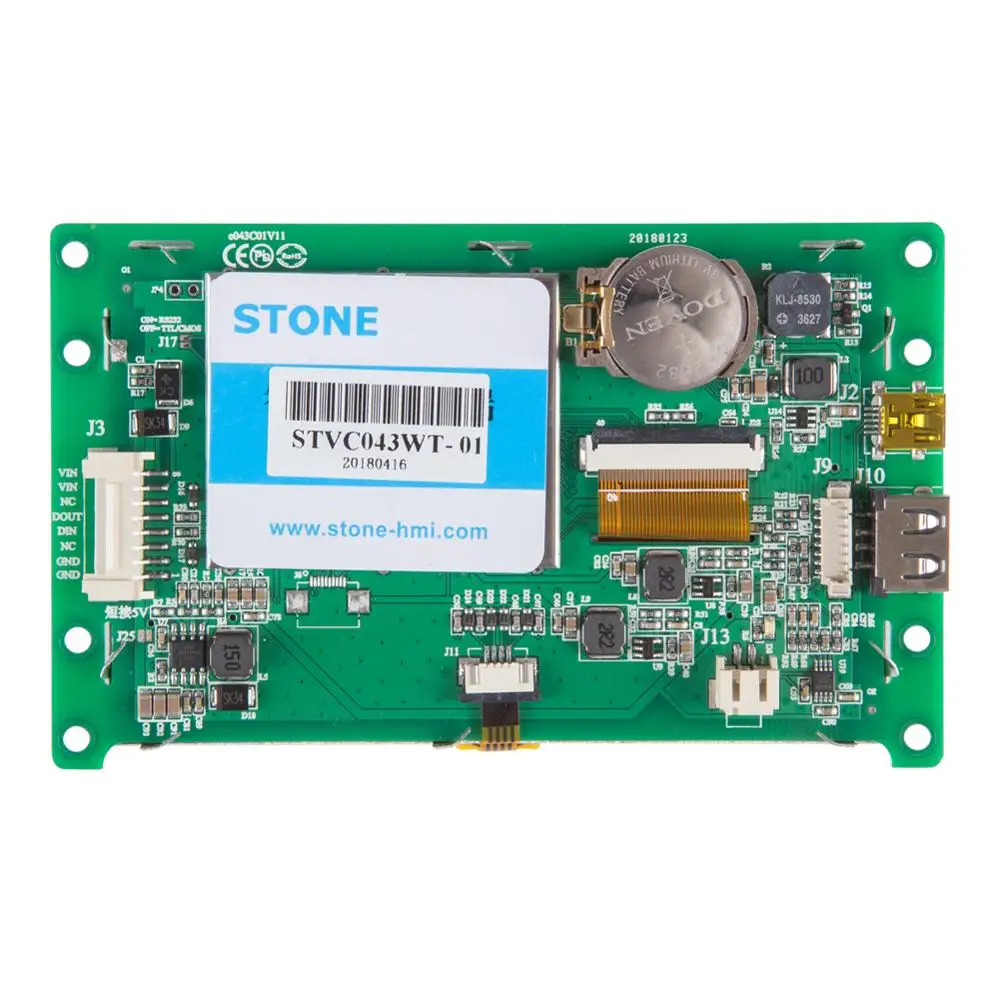

 Model  STVC043WT-01  Size (Inch)  4.3"  Resolution  480×RGB×272  Color  65536 colors (16 bit)  Viewing Area  95 mm × 53.9 mm  Pixel Spacing  0.1905 mm × 0.0635 mm(H×V)  Overall Dimension  121.9mm×74.7mm×13.8mm(N)/15.4mm(T)  Net Weight  115 g(N)/ 155 g(T)  TFT Panel  A+ Class Industry Panel  Touch Screen  Industry Level 4 wire resistance Or without touch screen is optional.

Backlight Parameter

 Backlight Type  LED  Brightness  350 cd/m2(Brightness can be adjustable in 100 levels.)  Contrast  500:1  Backlight life  50,000 hours  Viewing Angle  70°/ 70°/ 50°/ 70° (L/R/U/D)  Working Temperature  -20°C ~ +70°C  Working Humidity  55°C, 85%  Storage Temperature  -30°C ~ +85°C  Screen Mode  Digital

Performance Parameter

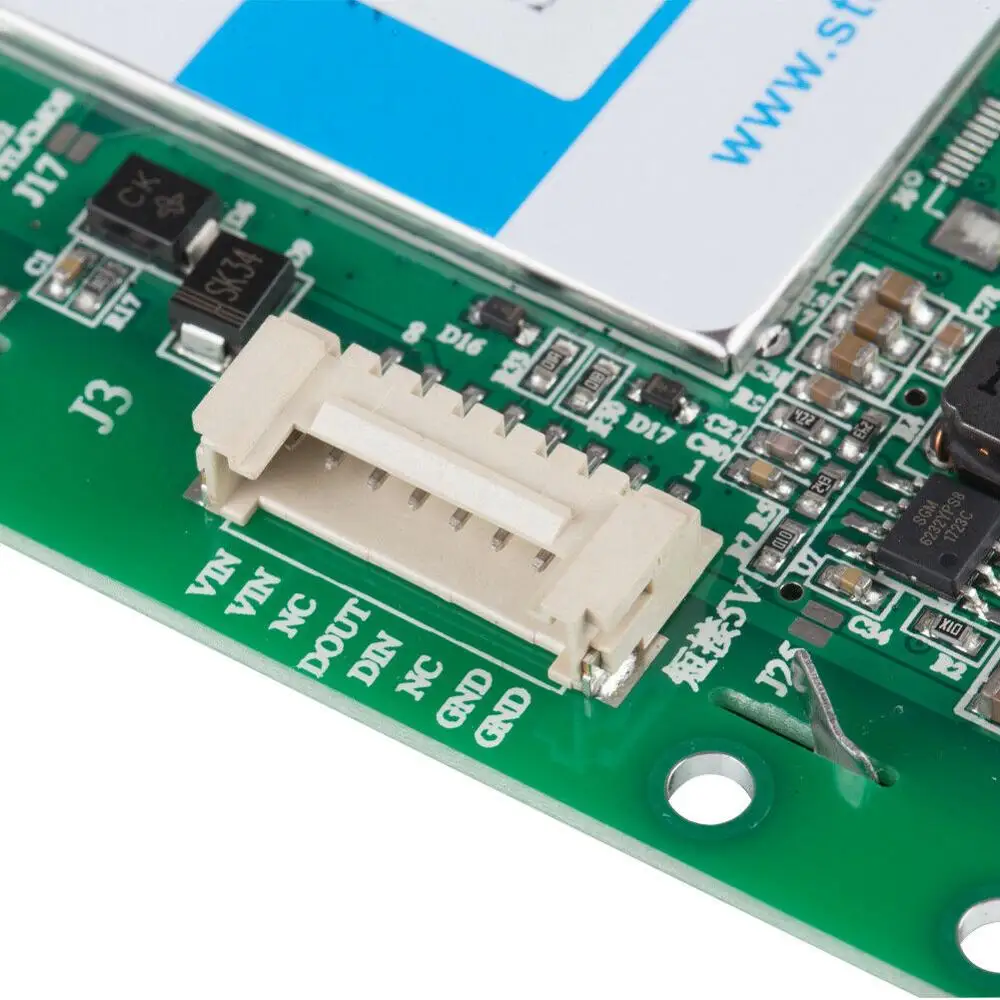

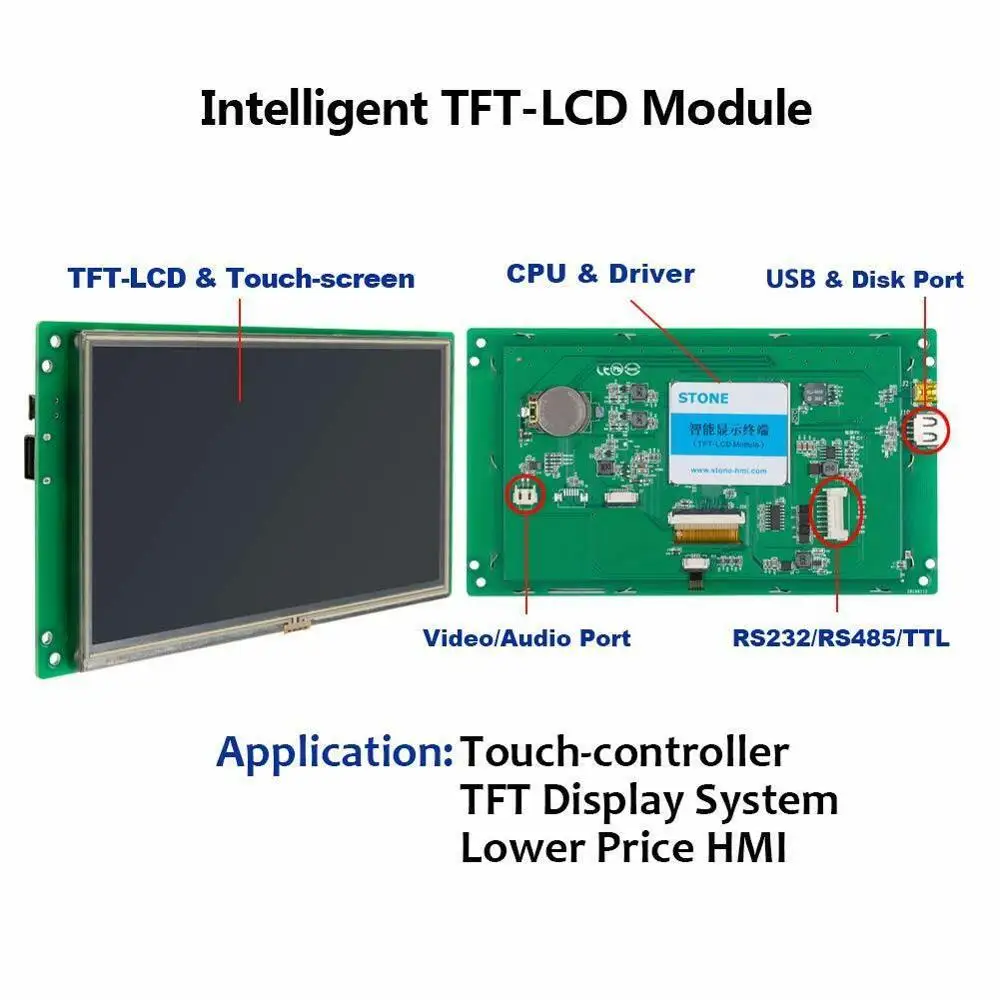

 CPU  CortexM4  LCD Controller  CPLD EPM240  Refresh Rate  200MHz  Picture Switching Speed  19 ms/picture (53 pictures/s)  Flash Memory  Standard 128m, Extension 1GB  Memory Amount for picture  According to the capability of the image, Suggest "JPG" format  Interface  RS232/ RS485/TTL/USB Interface  Pictures downloading  USB2.0 (12Mbps) & U storage Disk downloading  Voltage Range  DC6.0V ~ 35V (typical value: 12V)  Power  1.0W

 Test Report

 MTBF  4,250,000H  Working Temperature  -20°C ~ +70°C  Air Humidity  60°C, 90%  Continuous Vibration Testing  10-55Hz, 1.5mm, 10G  Impact Acceleration Testing  6ms, 100G  ESD Testing  10KV  Radiation Reliability Testing  44W

Main Size of TFT LCD Module

 Size  Resolution  3.5''  320*240; 320*480  4.3''  480*272  5''  480*272; 640*480; 800*480  5.6''  640*480  5.7''  640*480  7''  800*480; 800*600; 1024*600  8''  800*600; 1024*768  9.7''  1024*768  10.1''  1024*600  10.4''  800*600  12.1''  1024*768  15.1''  1024*768
