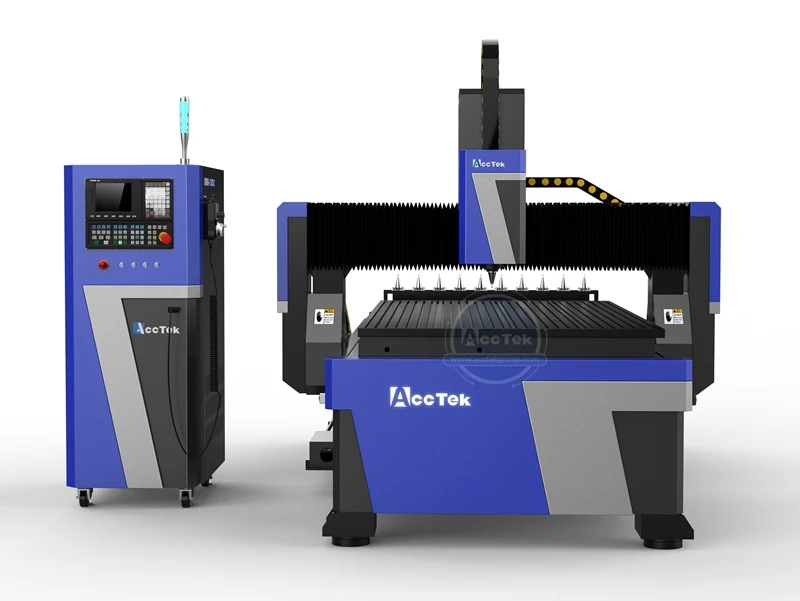

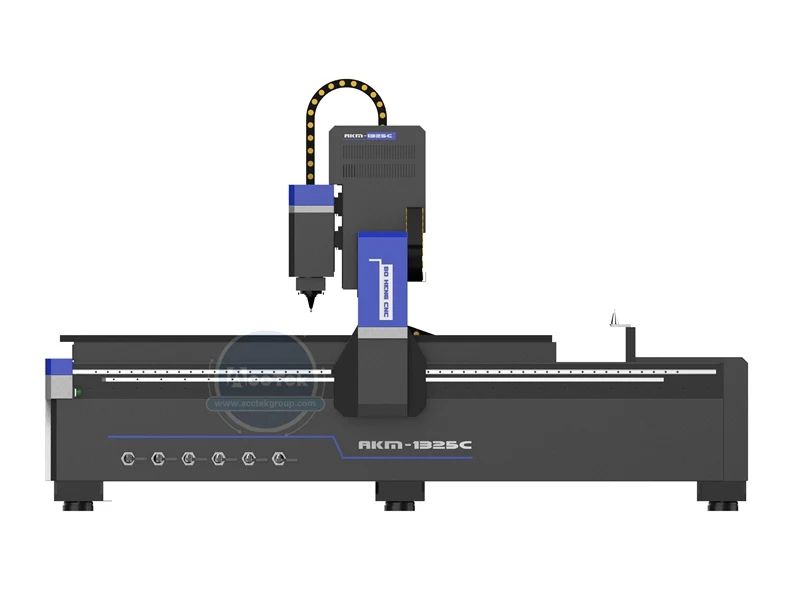

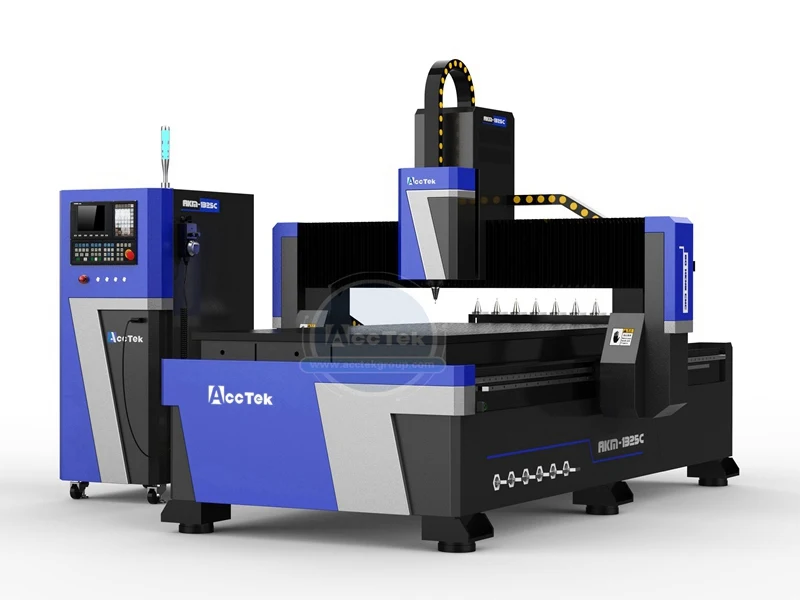

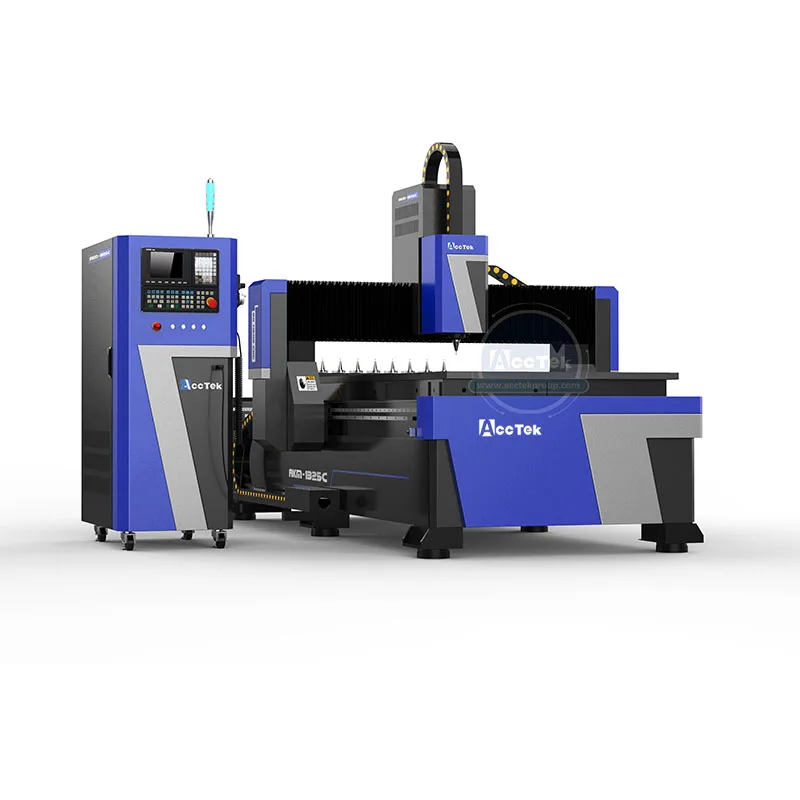

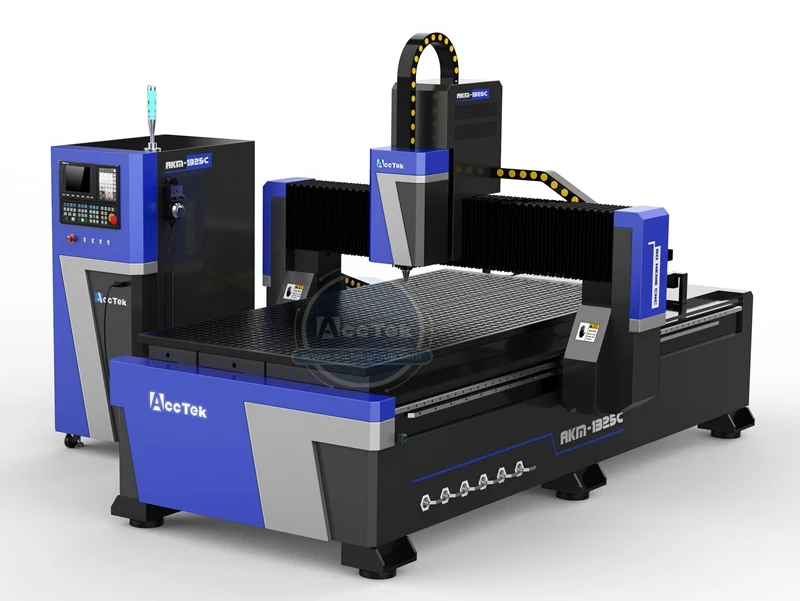

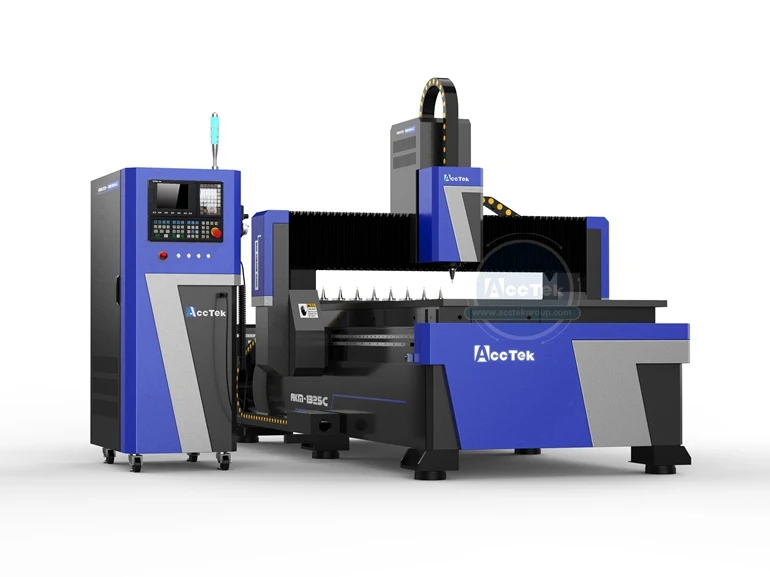

 AKM1325C2  LINEAR ATC CNC ROUTER FOR WOODWORKING

1. Working area:1300*2500*250mm

2. 9kw Chinese  ATC air cooling spindle,18000RPM,8  Pcs Linear bits

3. Taiwan SYNTEC 6MA control system

4. Cylinder oposition system

5. Spindle cover for safety operation

6. auto oil lubrication

7. ISO 30 tool holder,can be with 20mm max.diameter tools

8. Auto oil mist cooling sprayer for working on metal

9. 25mm Taiwan HINWIN linear guide rail

10. High-precision helical rack gear

11. Vacuum & T-slot working table with 4 zones

12. 750W Taiwan Delta servo system

Description

Parameter

X,Y,Z Working Area

1300x2500x250mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

Table Surface

Vacuum&T-slot Table

Frame

Welded Structure,heavy duty T-structure

X, Y Structure

Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings

Z Structure

Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings

Max. Power Consumption

5.0KW

Max. Rapid Travel Rate

45000mm/min

Max. Working Speed

30000mm/min

Spindle Power

9.0kw CHinese ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Taiwan DELTA servo motor and driver

Working Voltage

AC380V/50/60Hz,3PH

Control System

Taiwan SYNTEC control system

X,Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

1.Solid gantry,well structure of lathe bed,stable and high speed,high accuracy.

2.High speed air cooling spindle and high performance subdivision driver ensure work stably for long time.

3.With easily-learned sofware,conveniently check the moving path

of tool,and adjust the processing depth of Z axis and the speed of motor.

4.Vacuum table with great absorption strengt,high efficient for mass production, cutting speed over 20m/min. Low vibration and smooth motion ensure higher work piece quality.

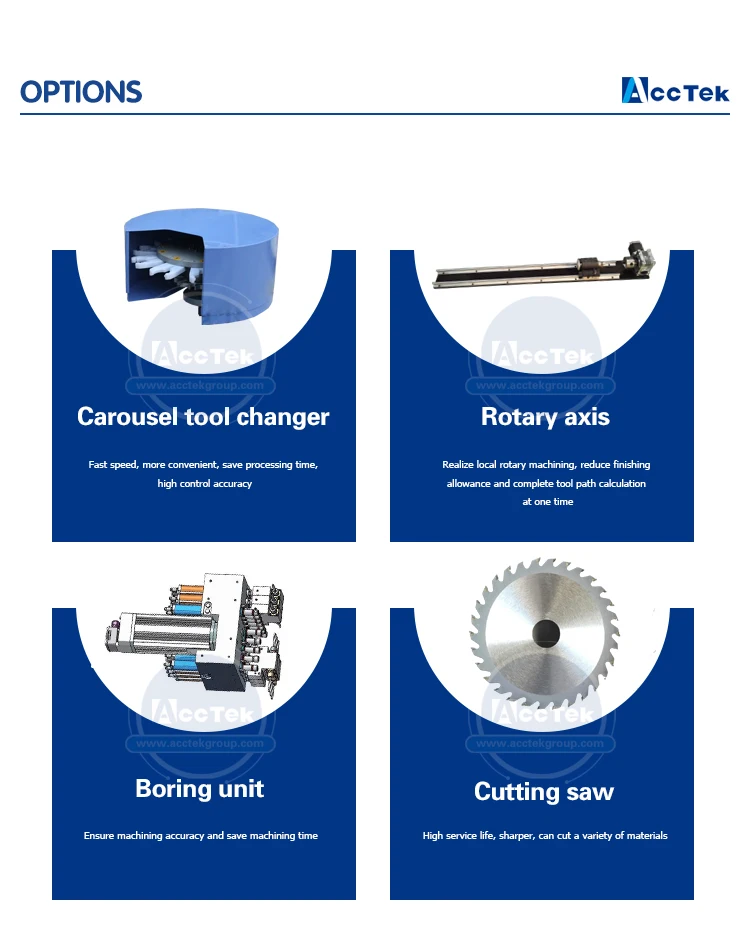

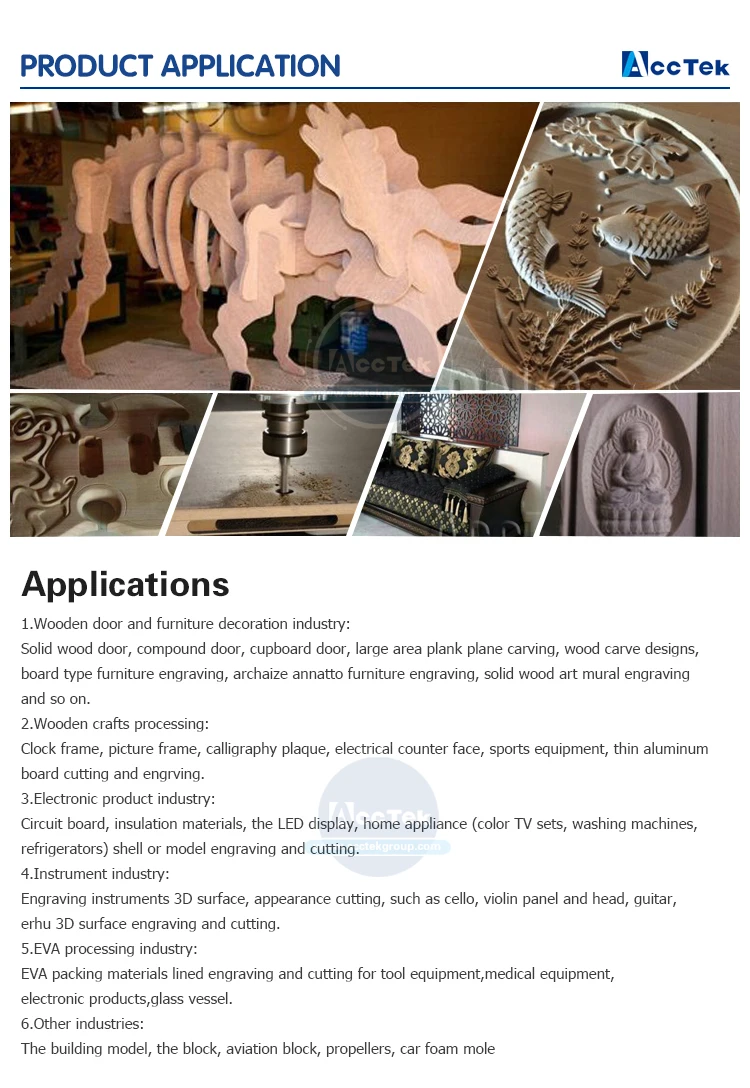

5.optioanl parts, like saw .saw cutting for wood,MDF, etc, fast speed ,high efficiency.

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.





Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.



Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.

All of our cnc machine appraoched CE Standard quality test ,America FDA certificate

About the delivery.

Its need about 15-20 working days to produce the machine after get your deposit.

all thing is tested well,then we arrange the delivery.

 About payment:

We accept T/T , you can pay 30% in advance, 70% before delivery.

The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.

After you agree, please finish the balance.Finally.we arrange the delivery.

After sale service:

1.12months guarantee of the whole machine.some model machine warranty 2 years

2. Main parts(excluding the consumables) shall be changed free of charge if there is any problemduring the warranty period.

3.Lifetime maintenance free of charge.

4.Our staff can be sent to your company to install or adjust if necessary.

5.technical support online whole life
