Outdoor Misting Cooling System 12V Water Pump Kit Fog Nozzle For Greenhouse Garden Patio 8M-18M Timer Smart Irrigation Kits S346 | Дом и сад

8M-18M option mist cooling kit: Easy to operate, easy to use, and fast to clean;​
Can be used for garden humidification and watering;
Automated irrigation to free your hands；
PE material, high safety factor, more confidence in use;         Description:

Nozzle Material: Brass body with stainless steel orifice inside.



Nozzle Thread: 10/24UNC

  Mist hose: Food grade material, 1/4" size;   Function:   Cooling, Humidification, dedusting and Garden Micro irrigation.     Details   Pump description:   Temperature------------------0-60 degree celsius Multi-purpose-----------------Home use for garden sprinklers,shower,water taps in the boat,caravan or motor home Agricultural purposes-------spray for farm chemical pesticid corrosion resistant 12vDC Power---------------------------60w Working pressure------------0.8Mpa Flow rate------------------------5L/min Size:------------------------------16.5*10*6cm Rubber bracket can absorb vibration from the pump when working Connector size: 1/4'' pipe   Caution:pump should be used in dry condition,cannot submerge into water

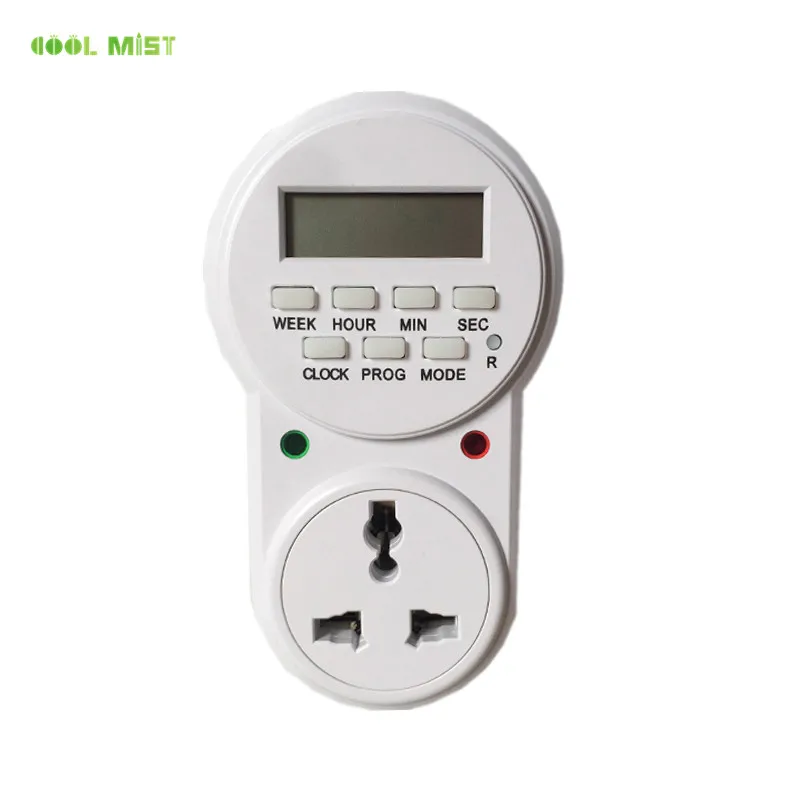

Timer:

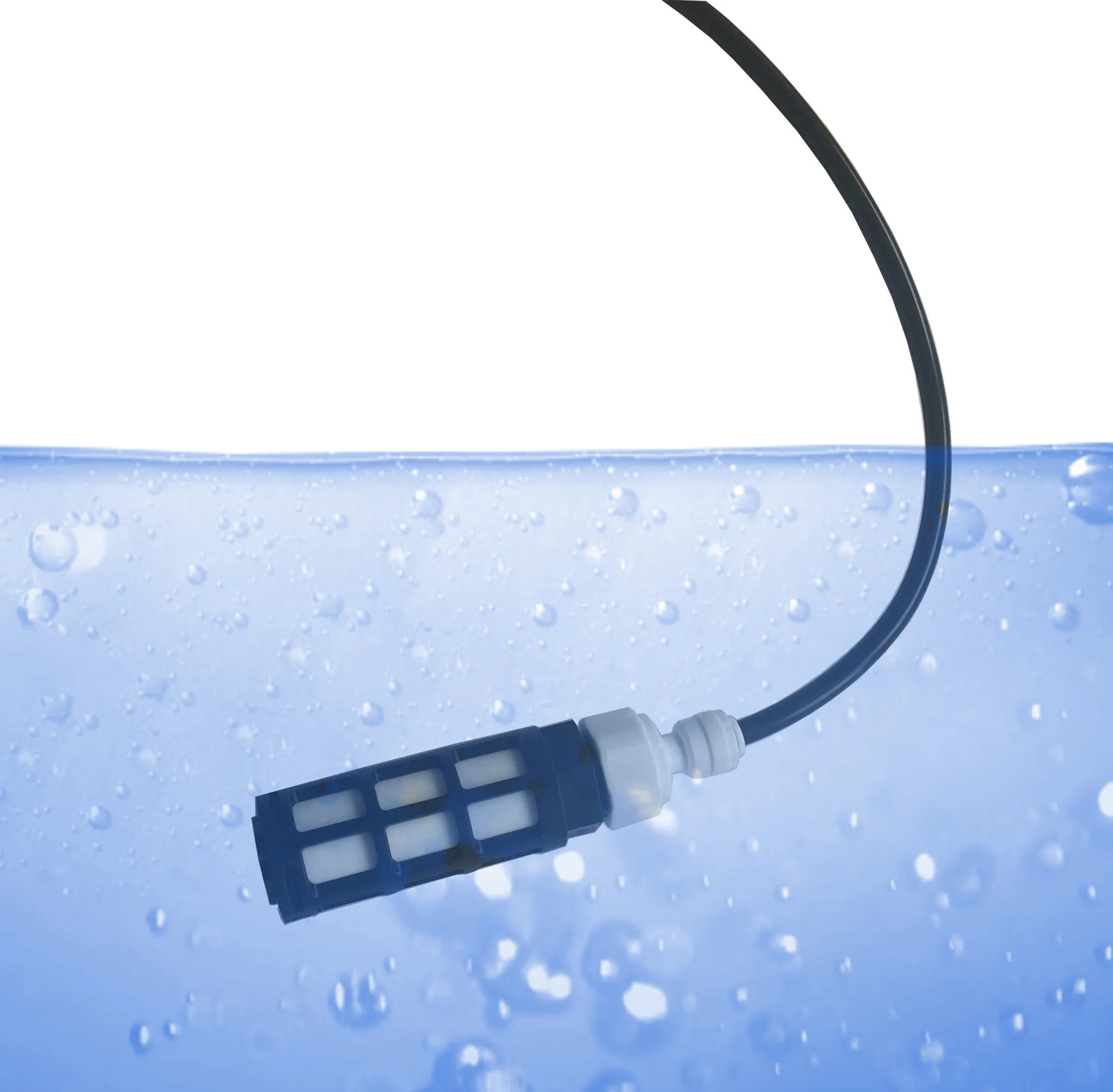

Inlet filter head:

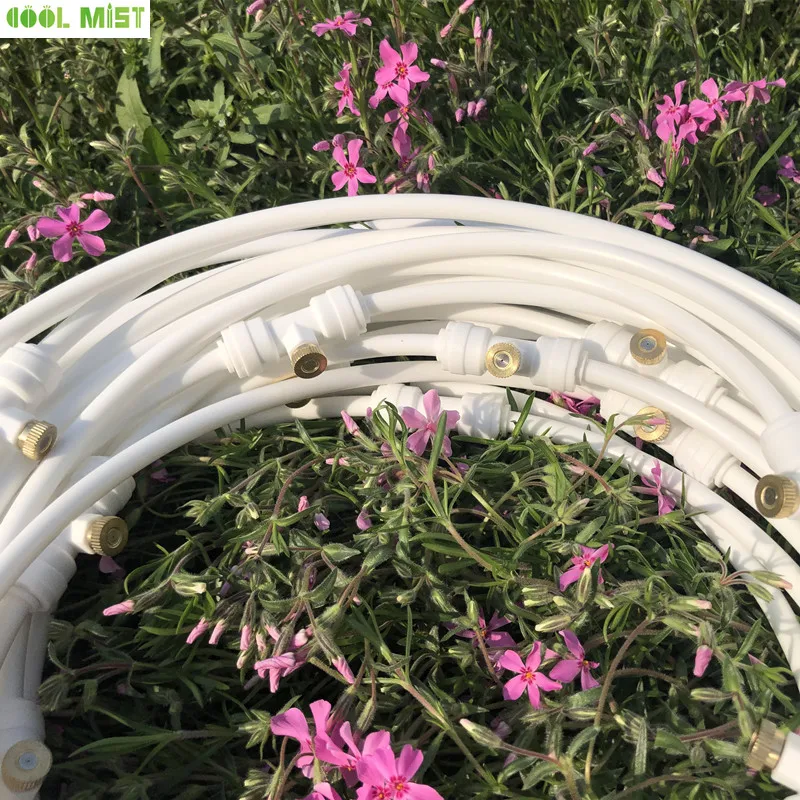

Hose:

Nozzle:

Fitting:

Connector:

120mm length Cable ties and 7mm Clamps:

End plug:



Design Features

  Water inlet port can absorb water by itself then spray mist from nozzles on water outlet,  which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.       Instruction as below:

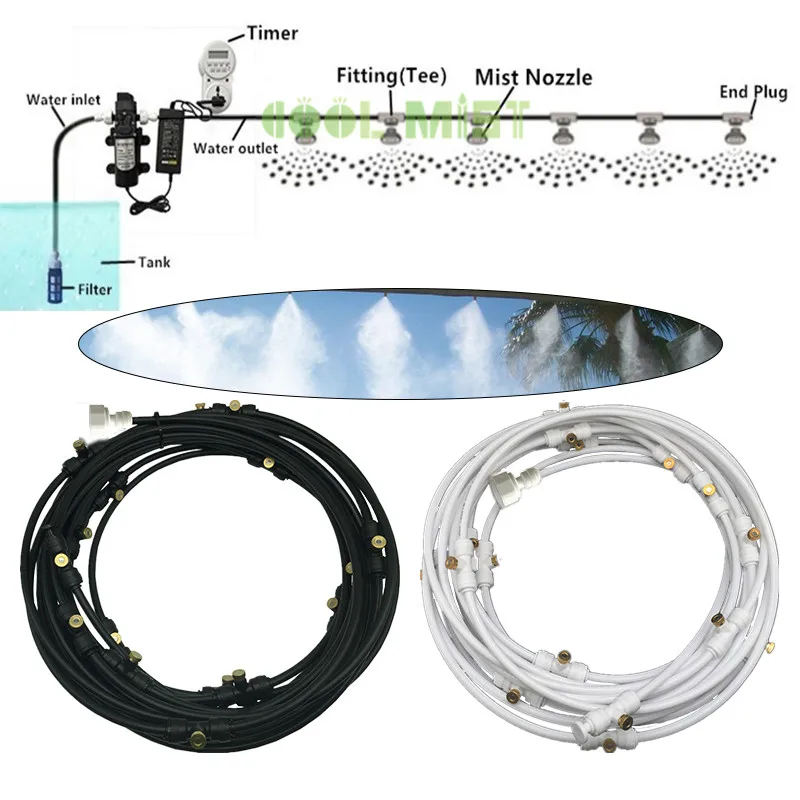

Installation Steps:

1. Keep the 3M water inlet totally immersed into the tank.

2. Connect hose and pump with 1/2'' white connectors, note the arrow direction of inlet and outlet on the pump.

3. Connect the power supply to wash the system for 1 minute to purge the system and remove any impurities.

4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.

5. Turn on the power to wash the system for 2 minutes to insure that the system is fully purged.

6. Turn off the power and install the last nozzle into the fitting with the end plug.

7. Fix the misting line by the cable ties saddle clamps provided.

8. Turn on power then jets will work, enjoy the cooling misting system.

9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.

Application as below:   Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc   Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.
