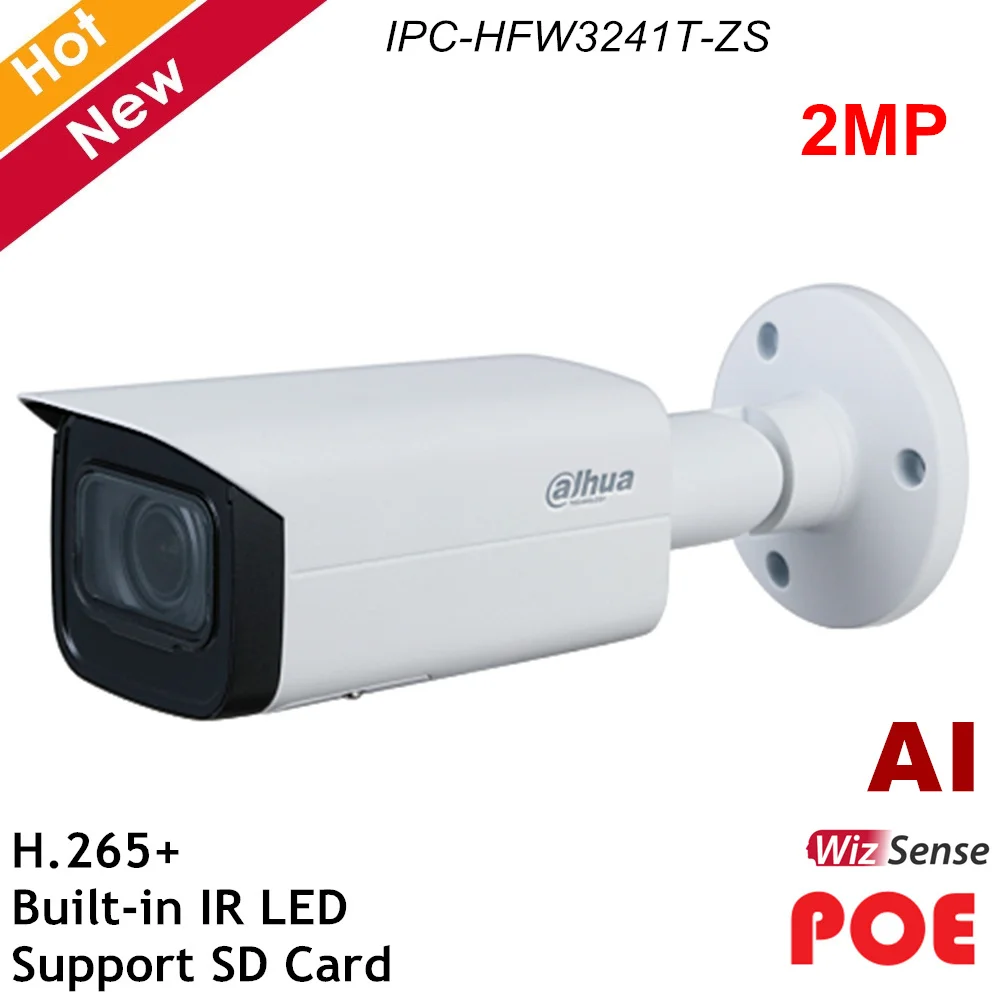

Dahua 2MP POE IP Camera 1/2.8 CMOS H.265+ 2.7-13.5mm Motorized Motion Detection Support SD Card 256G and POE IPC-HFW3241T-ZS

Notice:

Features:

System Overview With advanced deep learning algorithm, Dahua Lite AI series network camera supports some intelligent functions, such as perimeter protection and smart motion detection. It adopts starlight solution, which makes a better image effect in low illuminance.

2MP Lite AI IR Vari-focal Bullet Network Camera

Specifications:

Camera

Image Sensor

1/2.8”2Megapixel progressive CMOS

Effective Pixels

1920 (H) ×1080 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002 Lux@F1.5

IR Distance

60 m (197 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

4 (IR LEDs)

Pan/Tilt/Rotation Range

Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 108°–28°

Vertical: 57° –16°

Diagonal: 130° –33°

Iris Type

Fixed aperture

Close Focus Distance

0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44.1 m

(144.7 ft)

17.6 m

(57.7 ft)

8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

T

153.1 m (502.3 ft)

61.2 m

(200.8 ft)

30.6 m

(82.9 ft)

15.3 m

(50.2 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (1920 × 1080@1–25/30 fps)
sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64 M)

Edge Storage

FTP; SFTP; Micro SD Card (support max. 256 G);Cloud; NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 9.4W

Environment

Operating Conditions

-30°C to +60°C (-22°F to +140°F)/less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.2" × Φ4.3")

Net Weight

378 g (0.8 lb)

Gross Weight

523 g (1.2 lb)
