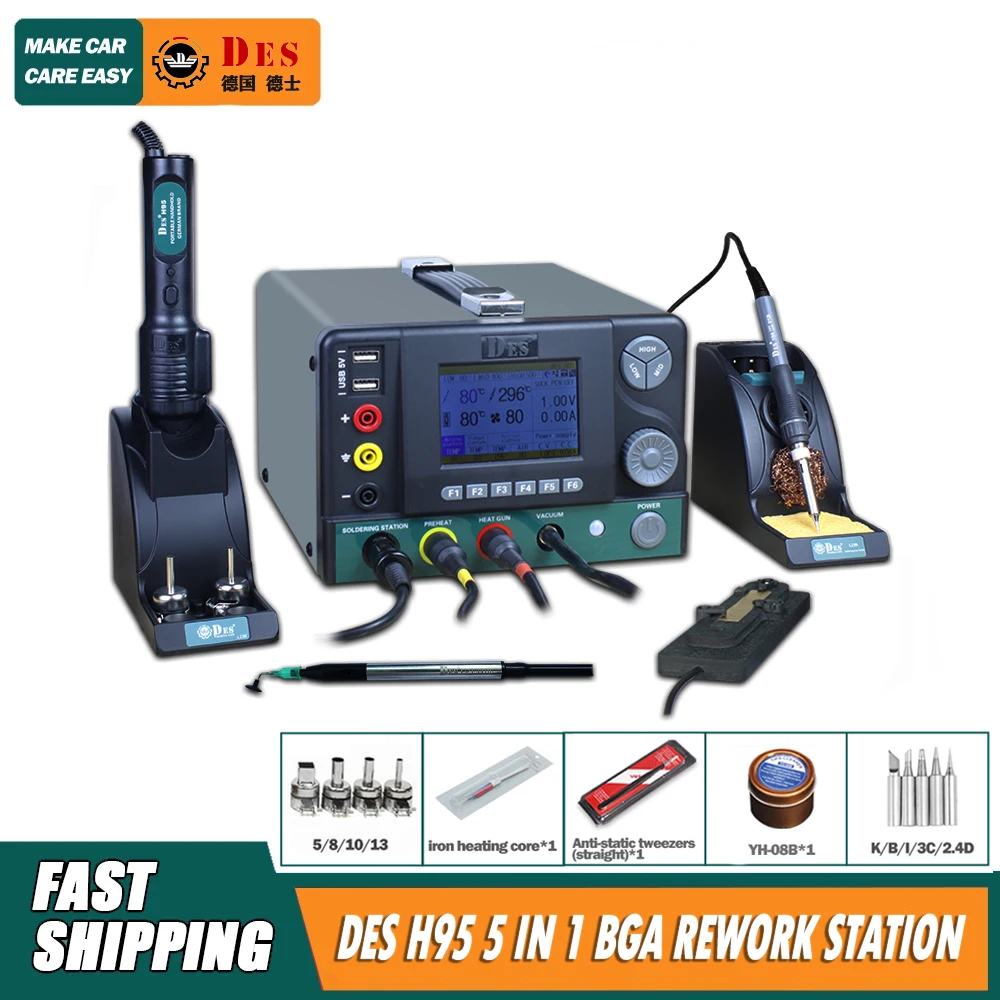

DES H95 5 in 1 rework station hot air station soldering iron station powerful vacuum suction pen CPU desoldering preheating platform 0-20V 0-5A stable current power supply cost-effective complete function easy to use

Products include: soldering iron, hot air gun, SMD anti-static pen, desoldering platform, regulated power supply
German Brand, Precision Manufacturing, Comprehensive repair kit

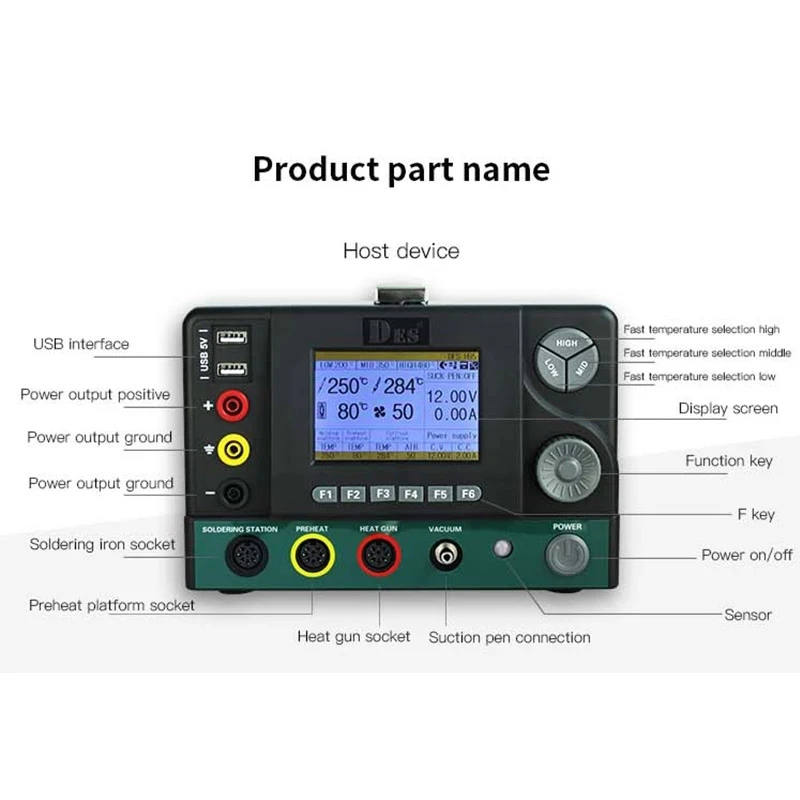

Equipment features
* 5 in 1 multi-functional integrated maintenance platform, with functions of welding platform, pull-out platform, preheating platform, vacuum suction and discharge table, adjustable stabilized voltage supply.
* Unique appearance design, 5 in 1 function, working space saving design
* It is equipment which can be set intelligent startup and shutdown. It will be turned off if there is nobody around the welding platform for 15 minutes after intelligent mode is started; the induction will be started automatically and the machine will be on standby if there are people coming.

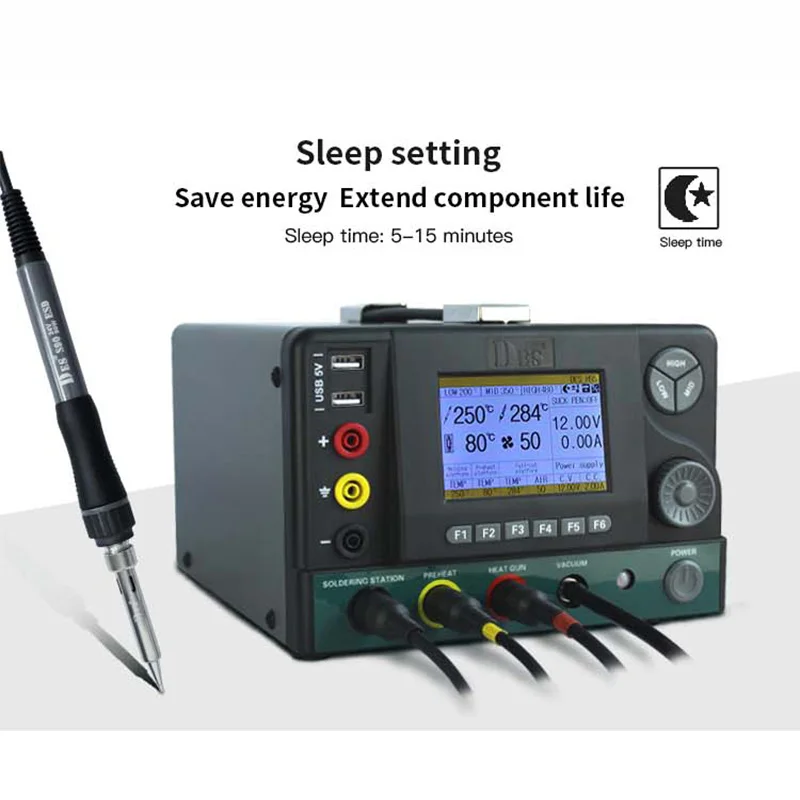

* Have intelligent sleep function which saves energy.
* Have microcomputer temperature offset value so that temperature error is less than ±5℃.
* Have password management function.
* Have eliminate static design, which is specially safe for sensitive elements.


Soldering iron features
* Light and handy handle, suitable for long time use
* Fast temperature returning in 8 seconds
* Have sleep function which saves energy.
* High quality heating element; platinum, strong temperature sensing
* Two ways of temperature display modes (centigrade ℃, Fahrenheit ℉ )
* Have microcomputer temperature offset value so that temperature error is less than ±5℃.
* High, middle, low three levels of fast selection of temperature
* Have LCD display, the contents are clear.


Pull-out platform features
* Cyclone outlet design to reduce temperature irregularity.
* Small and precise design, operation controlled by handle which saves working time
* Adjustable air volume and temperature, suitable for dismantling various kinds of chips such as QFP, SOP, PLCC or SQJ etc.
* Have automatic cooling function, the system will blow cooling air continuously after turning off until the temperature inside nozzle casing reduces below 100℃ to prevent heating element overheating.
* Built-in temperature sensor which outputs temperature stably regardless of air volume size
* Have eliminate static design, which is specially safe for sensitive elements

Preheating platform features
* Fast temperature returning in 8 seconds
* High quality heating element, platinum, strong temperature sending.
* Two ways of temperature display modes (centigrade℃, Fahrenheit℉)
* With LCD display, the contents are clear.

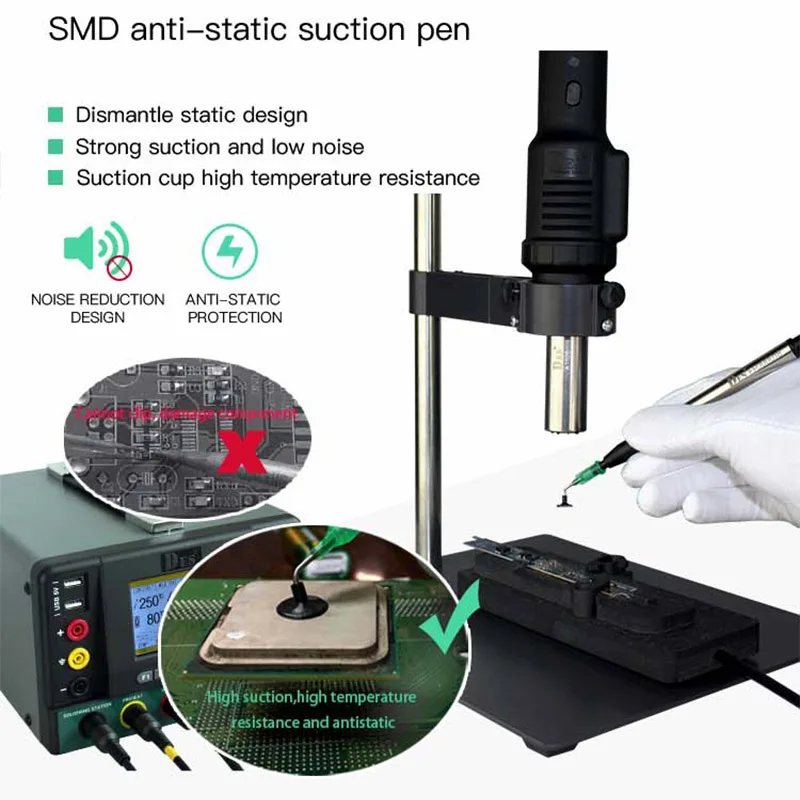

Suction and Discharge Table features
* With strong suction, small noise, long life, it can work for long time continuously.
* Able to suck flat integrated circuit, resistance and various kinds of round and small objects
* Built-in diaphragm vacuum pump, no need to connect air system.
* Have strong suction, able to suck objects of which weight is up to 120g.
* Eliminate static design. The suck pen, suction cushion are hose are all made of eliminate static material which are safer for sensitive elements.

Features of adjustable stabilized voltage supply
* Overvoltage, overcurrent and short circuit protection
* High precision, high resolution, low temperature drift, high stability (temperature drift of the whole machine is less than 50ppm, precision is 0.1%, resolute V = 10MV, I = 10MA).
* CPU real time tracking to make the output value more stable
* LCD four-bit display voltage value, current setting value and output value
* Return function (able to absorb external current upto 500mA). It is able to reduce the voltage on output terminal instantaneously to zero (zero-impact to load), when output is stopped or the machine is turned off.
* Ideal combination of switching power and linear power (with high efficiency of switching power and low ripple of linear power both)
* Unique circuit topological structure. The circuit structure which can adjust and stabilize voltage on both poles makes the power zero-impact to load at the moment of starting.

Features of USB interface: 5V/2.1A

Product specification
Model H95
Display Intelligent LCD display
Peak power 1800W
Voltage 220VAC/50Hz 110VAC/60Hz
Main machine dimension 230(L)*197(W)*140(H)mm
Machine weight 2.37KG

Welding Platform
Model S90 handle
Power consumption 90W
Temperature controlling range 80-500℃
Resistance between welding nozzle and grounding Below 2Ω
Potential between welding nozzle and grounding Below 2Mv
Welding nozzle model Match with T series of soldering bit
Heating element A1529
Output voltage 24V
High temperature cuff GT04
Cable length 1.2m
Handle weight 100g

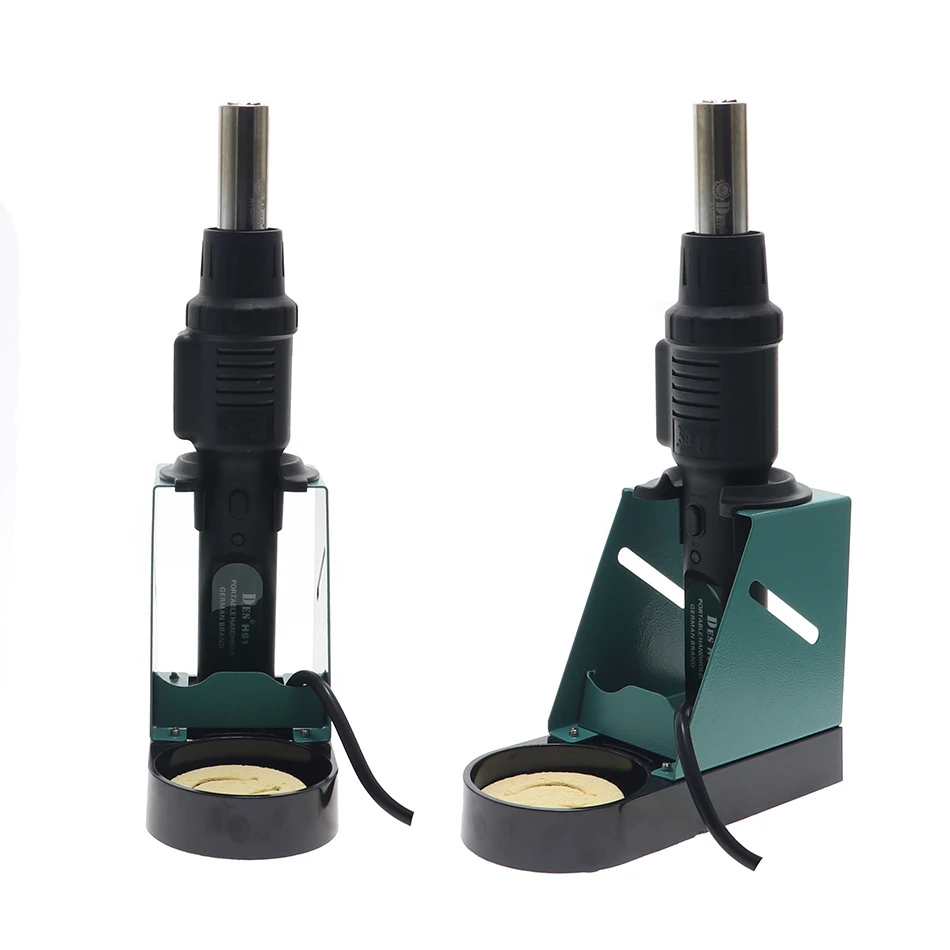

Hot air soldering station
Model H95 heat gun
Peak power 1500W
Temperature controlling range 80-500℃
Temperature stabilization ±5℃(when there is no negative charge)
Air volume Level 10-80
DC turbine fan 24V/8300rpm
High temperature cuff GP5/GP6(purchase separately)
Heating ele
