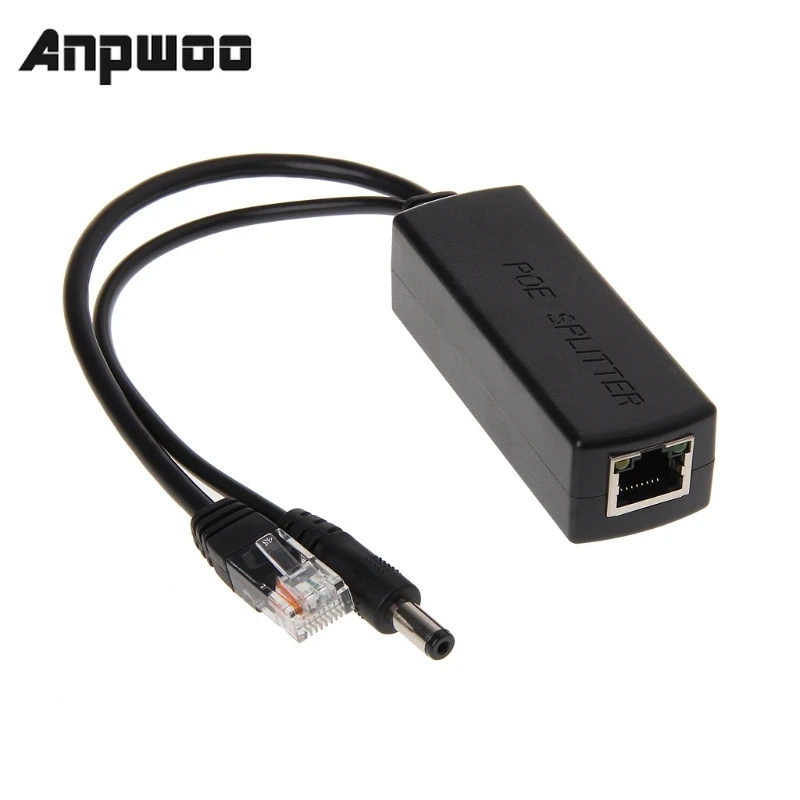

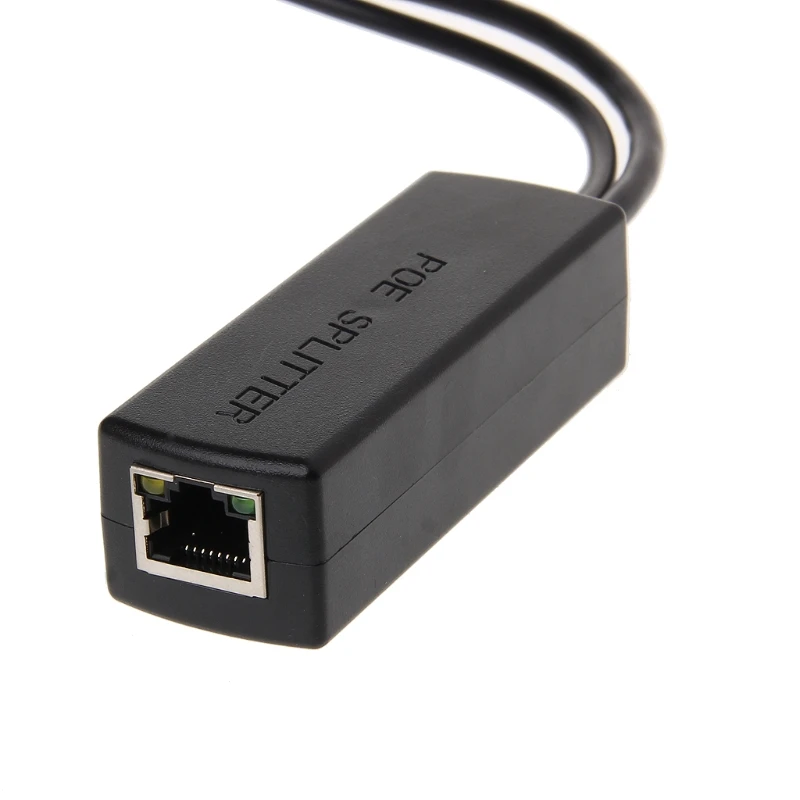

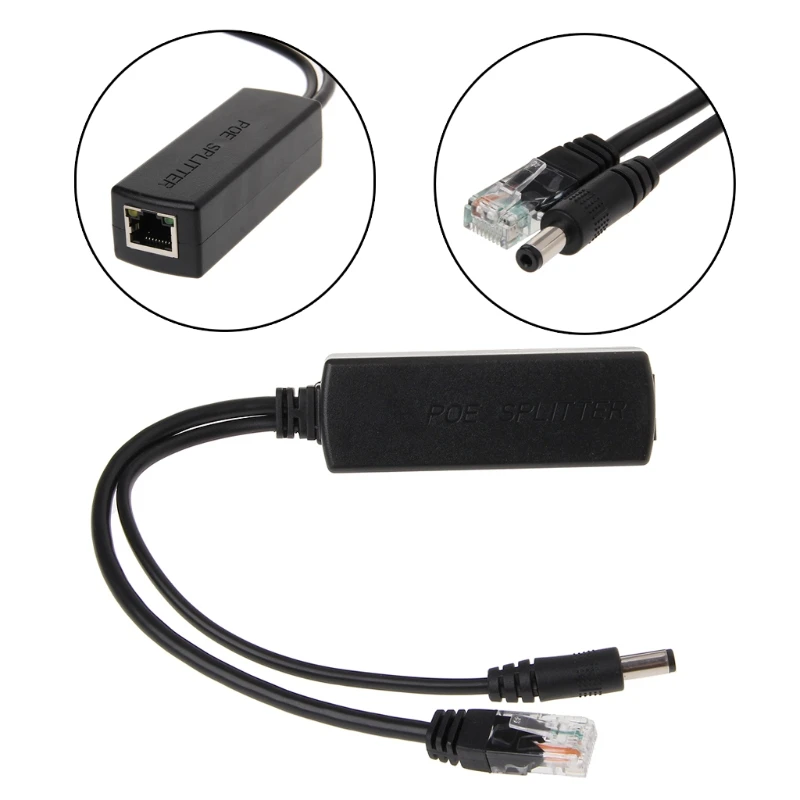

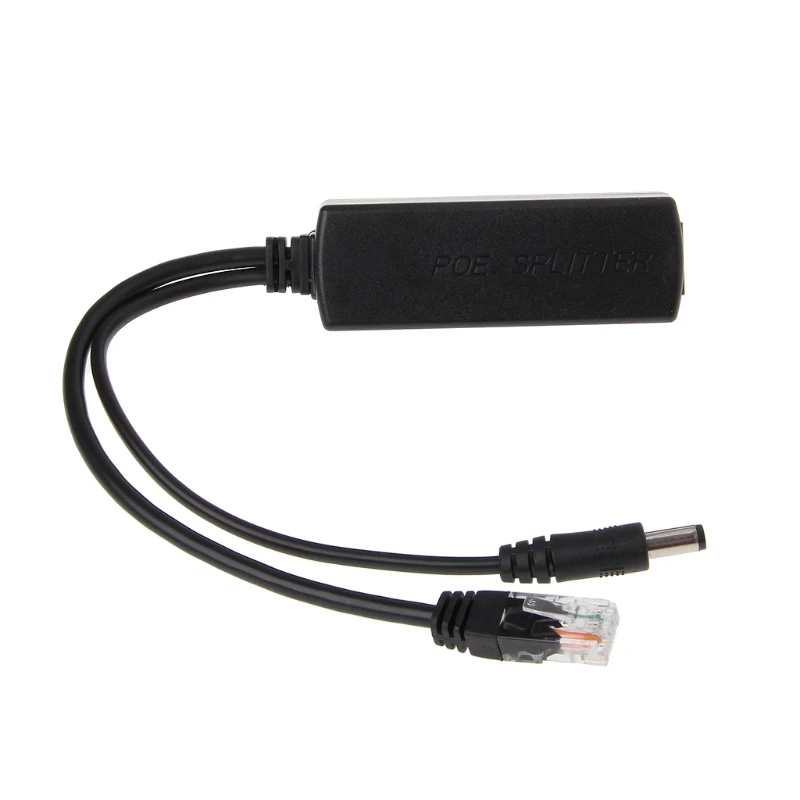

ANPWOO 10/100M IEEE802.3at/af Power Over Ethernet PoE Splitter Adapter For IP Camera 80x27x22mm/3.15x1.06x0.87in

Description:

Features:
100% brand new and high quality.
1. Support IEEE802.3at PoE standard.
2. Support 10/100M Data Transmission.
3. DC12V output, used for various small network devices.
4. Circuit Insulation blocking, effective protection of powered device.
RJ45 female INPUT Port:
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Notice:
Yellow LED(power) will be light up when DC Port connects to the device.
Green LED(data) never light in any circumstances,two reasons are below,
1.The splitter does not have the function to monitor the data of the network cable.
2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.

Specifications:
Material: ABS
Color: Black
Size: (Approx.)
Body Size: 80×27×22mm/3.15×1.06×0.87in
DC cable length: 190mm/7.48in
RJ45 Modular Plug cable length: 190mm/7.48in
Power Input: DC40~57V
Power Output: DC12V
Data&Power INPUT Port: RJ45 female
Data Output Port: RJ45 male

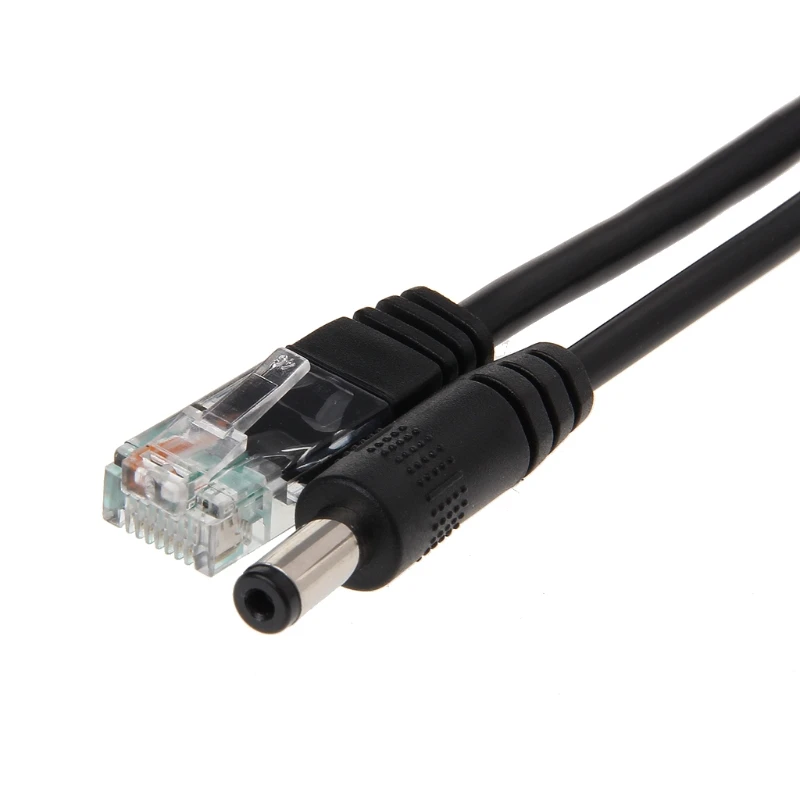

Power Output Port: 5.5x2.1mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Compliant with IEEE802.3af 15.4W
Isolation: 2.5kV
Devices will be detected before poe input
Power Pin:support both 1/2(+),3/6(-) or 4/5(+), 7/8(-)
Quantity: 1 PC

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)
1 X Standard Type Active PoE Splitter(5.5x2.1mm DC Power Plug)
