HIFIDIY LIVE HiFi 2.0 Полностью Цифровой Аудиоусилитель Мощности 100W*2 Bluetooth 5.0 QCC3003 TPA3116 с настройкой тембра и высоких и низких частот.

HIFIDIY LIVE HiFi 2.0 Полностью Цифровой Аудиоусилитель Мощности 100W*2 Bluetooth 5.0 QCC3003 TPA3116 с настройкой тембра и высоких низких частот.

Unit Price

1 Piece = $ 45

Parameters:

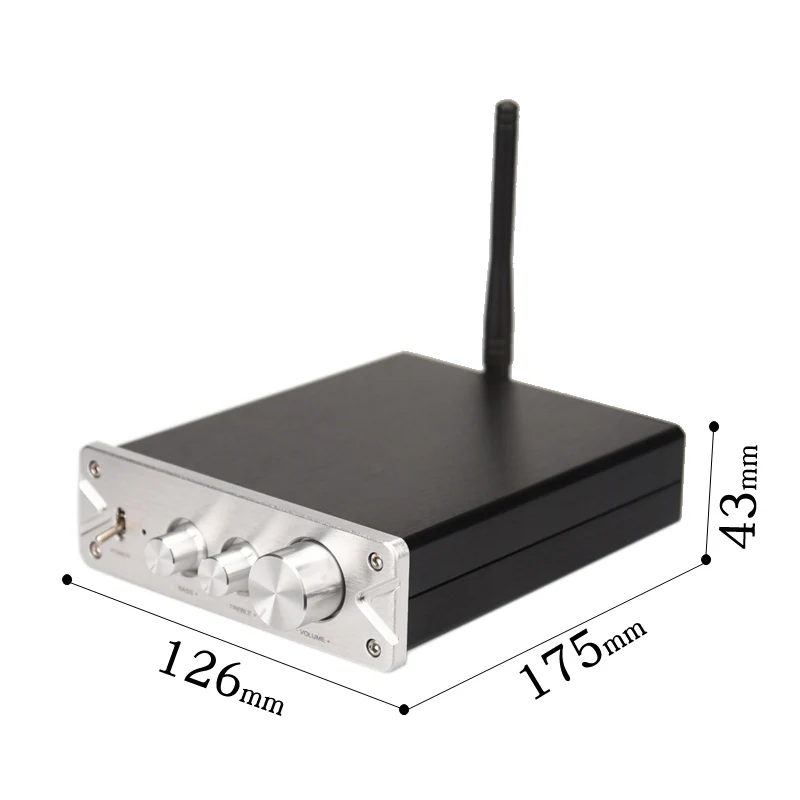

1. Working mode: type D 2. Static current: 50mA 3. Work efficiency: 90% 4. Rated output power: 2*100W 5. Frequency response: 20Hz to 20KHz 6. Working voltage: DC18V to DC24V 7. Maximum output current: 4A 8. Machine size :175*126*43mm(without antenna height) 9.NET weight about: 0.62kg.

Introduction

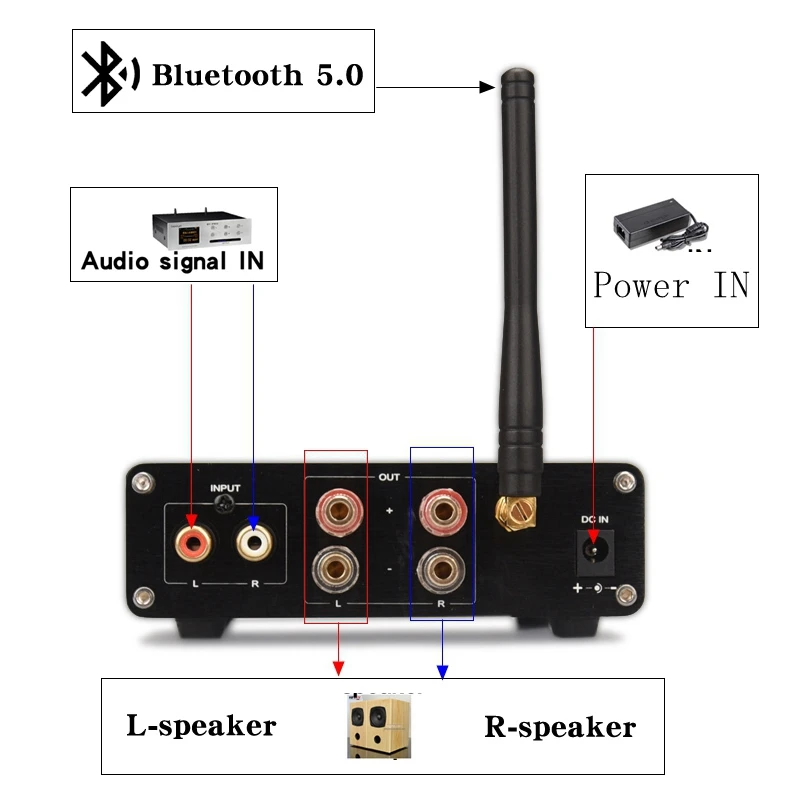

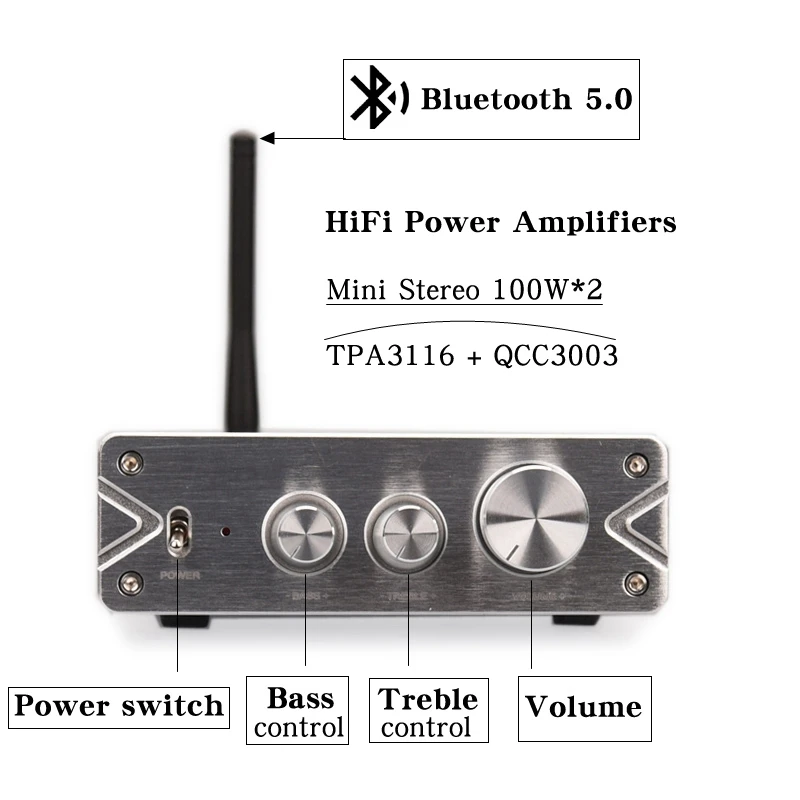

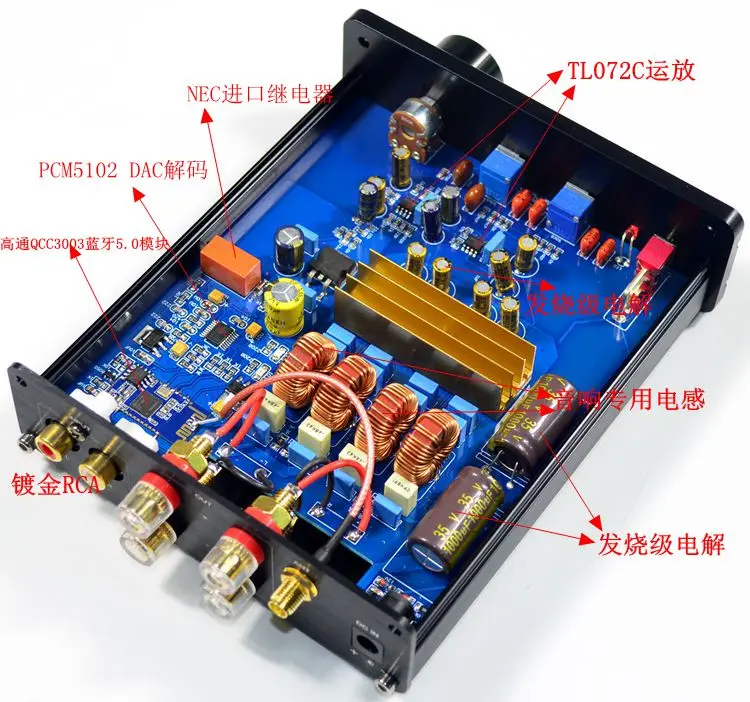

Tonal treble and bass adjustment Original TPA3116*2,PCM5102 DAC decoding chip The power filter capacitor adopts two 1000UF/35V electrolytic capacitors to ensure strong and continuous power support The coupling capacitor is made of Siemens ac capacitor and nikon ac electrolysis, making the human voice more attractive The resistance adopts SMD resistance with 1% accuracy to ensure the good signal-to-noise ratio of the whole machine PCB adopts 1.6mm thick double-sided plate, 2.0 oz copper thickness, full process of tin spraying, to ensure the good passing performance of large and small current. First-class PCB quality. Red - gray ring special power amplifier inductor, to ensure the sound crisp and powerful. Connect to bluetooth in the same way as a normal phone! Input mode: analog and bluetooth input.When both methods are input simultaneously, bluetooth input is preferred. After bluetooth connection, Automatically disconnect RCA input;Please turn off the bluetooth function of the phone when you need to simulate input.

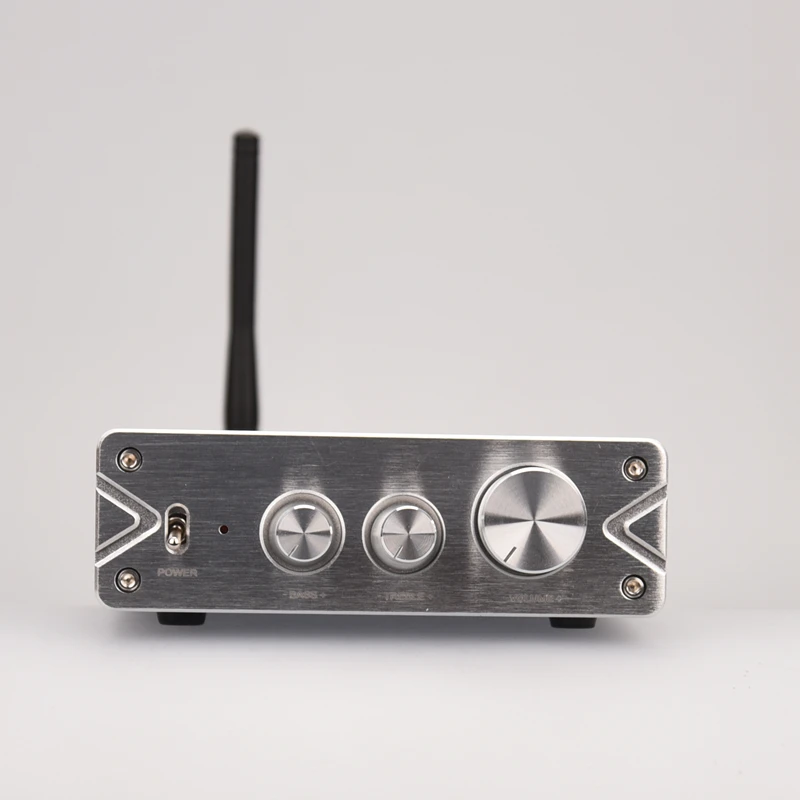

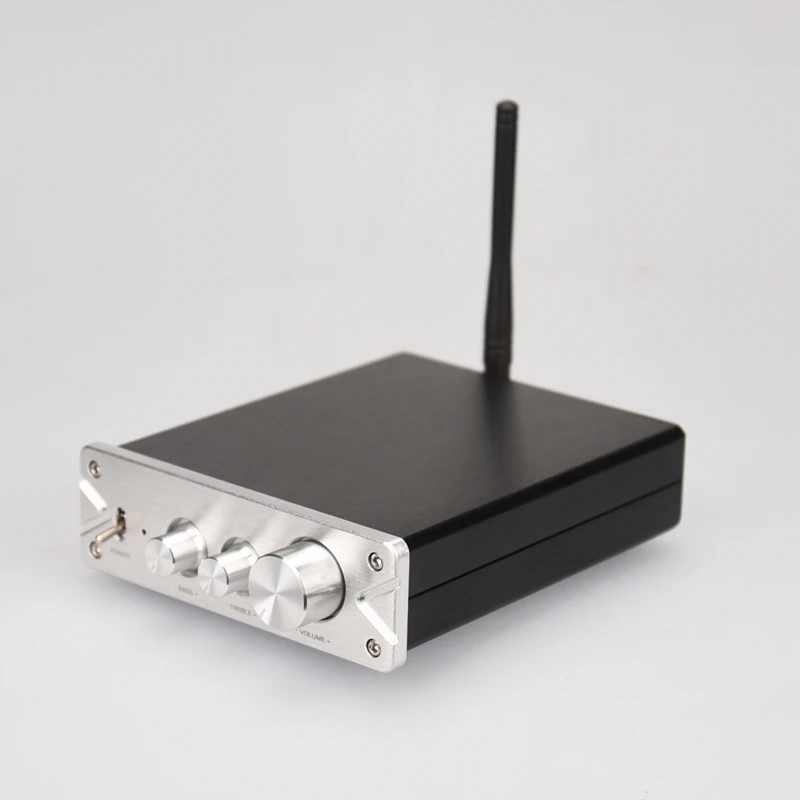

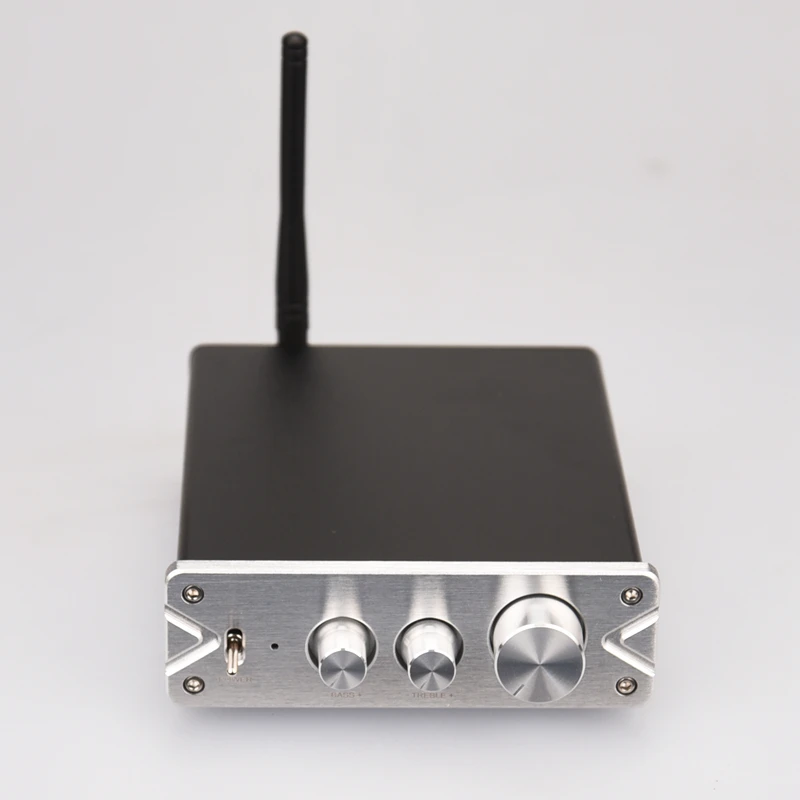

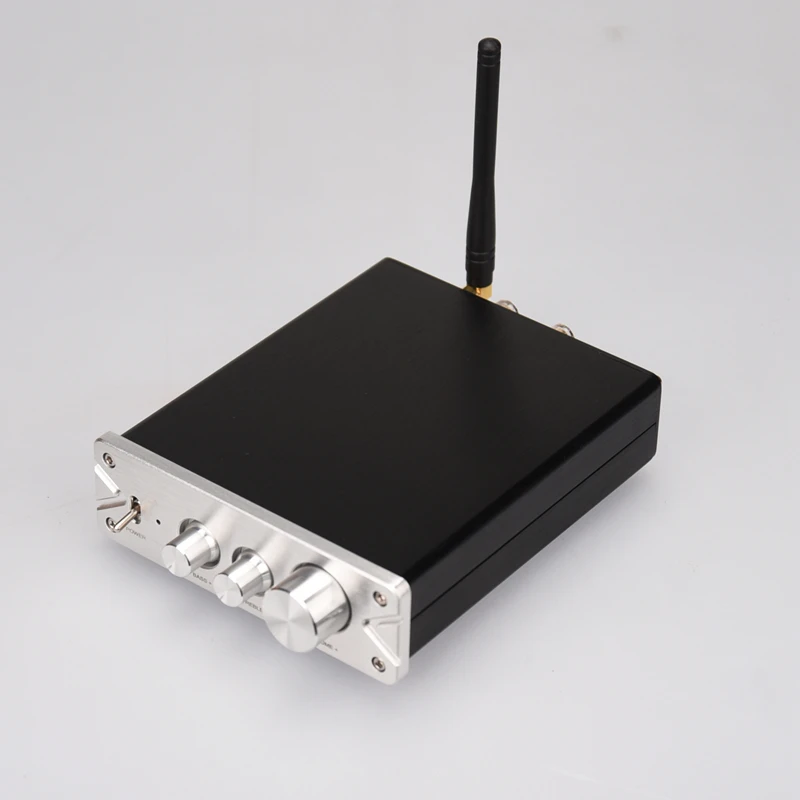

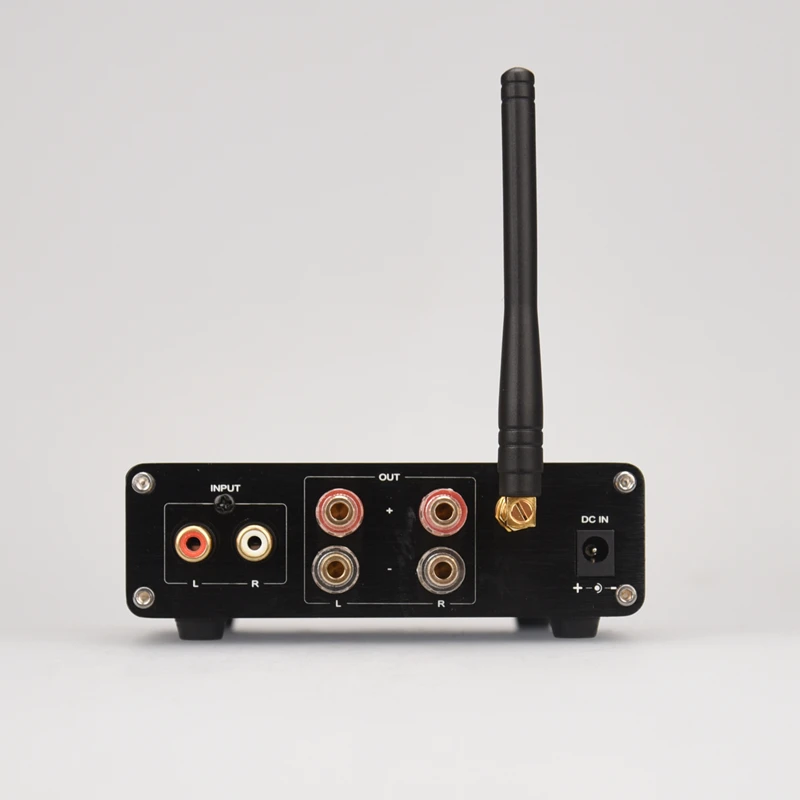

Product picture：
