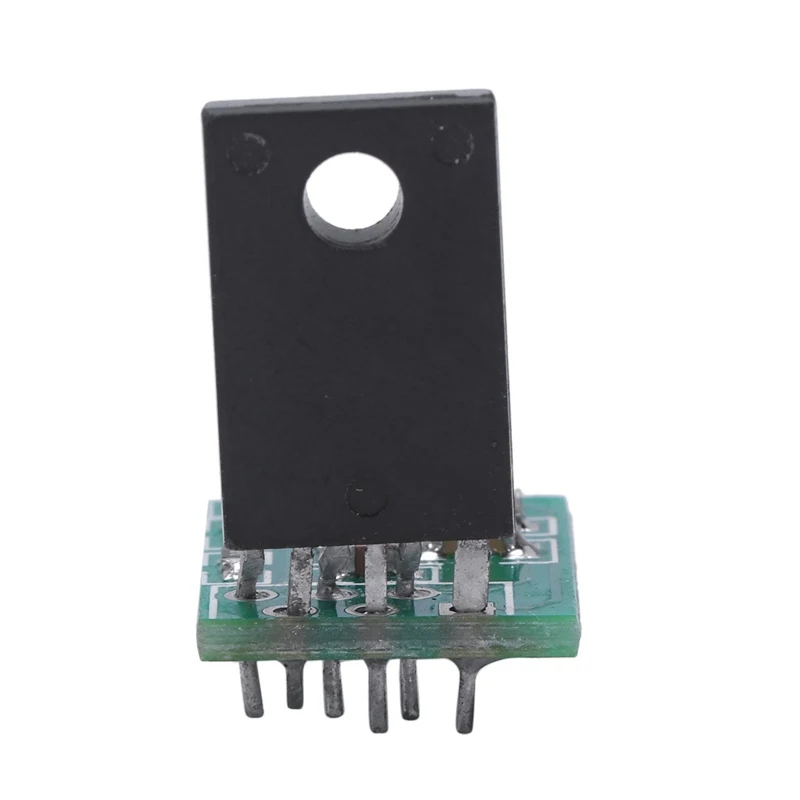

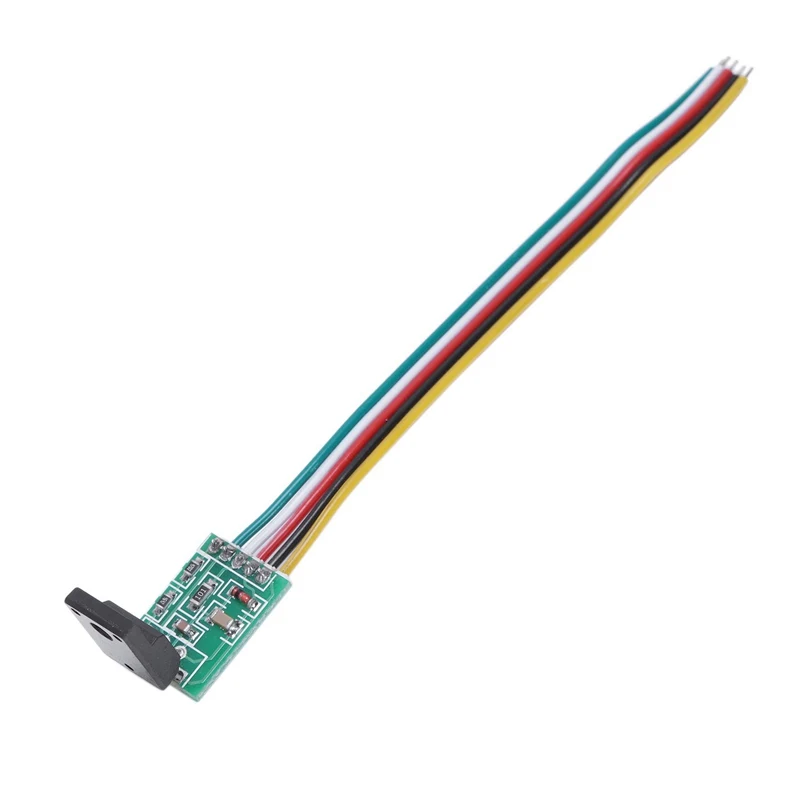

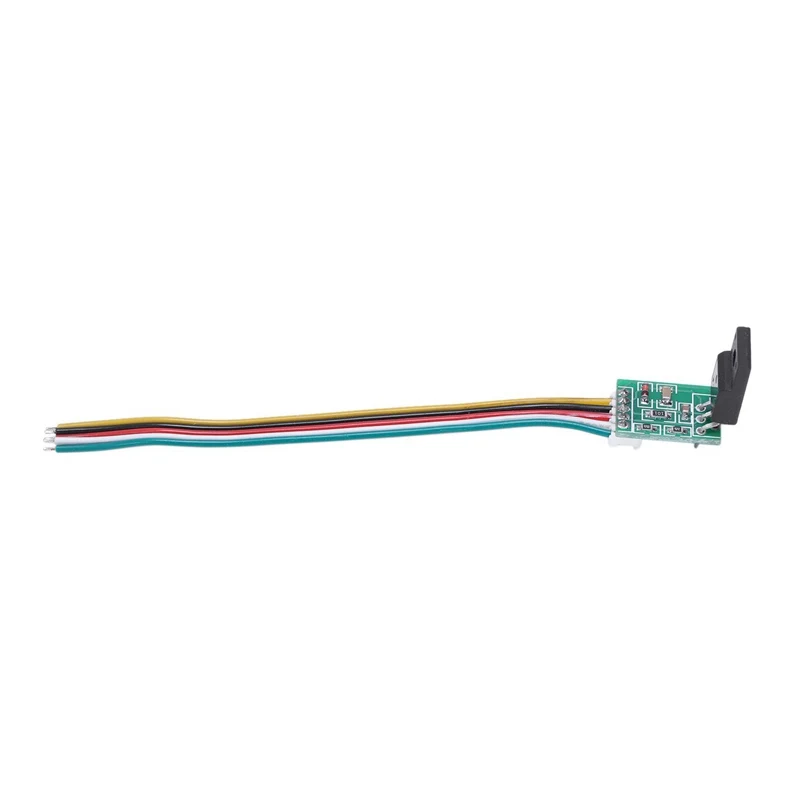

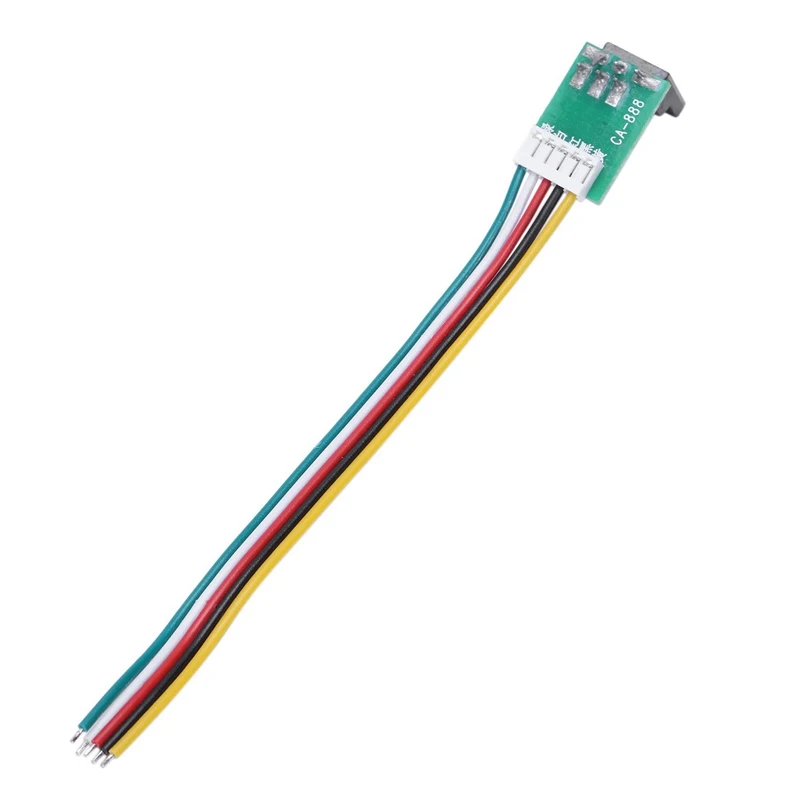

10Pcs/Lot Ca-888 15-24 Inch 12-18V Universal Lcd Display Monitor Power Supply Board Module Tv Maintenance Repair Parts | Безопасность и

ca - 888 super lcd power supply circuit board universal power modules display universal power supply module. applications: solve the 15 - 24 - inch lcd monitor power supply maintenance problems . lcd tv power board damage a large proportion. one of the power, the chip, high power switch
sampling resistance damage is the most common because these component models, and variety. often there is no same spare parts, and can not be repaired. the module has: wiring is simple, easy to install, save time, improve the success rate of maintenance and so on. the maintenance problems of friends met may consider the development of a universal power supply module.
1. remove the power supply chip on the board (usually 8 meters), and switches (mos tube)2. check the capacitor 300 v, and the capacity of lastseite of the package, there is no drum, a problem on the first replacement. 3. check the last page, there is no short circuit, ad board, high voltage board
4. connect the module to the corresponding line, and carefully check that there is no wrong, if wrong, the module burst. 5. installed in the original position of the radiator, ensure insulation, short circuit
6. power, measuring voltage is not the performance, there is no issue, then check the cause
Color: green
material: plastic

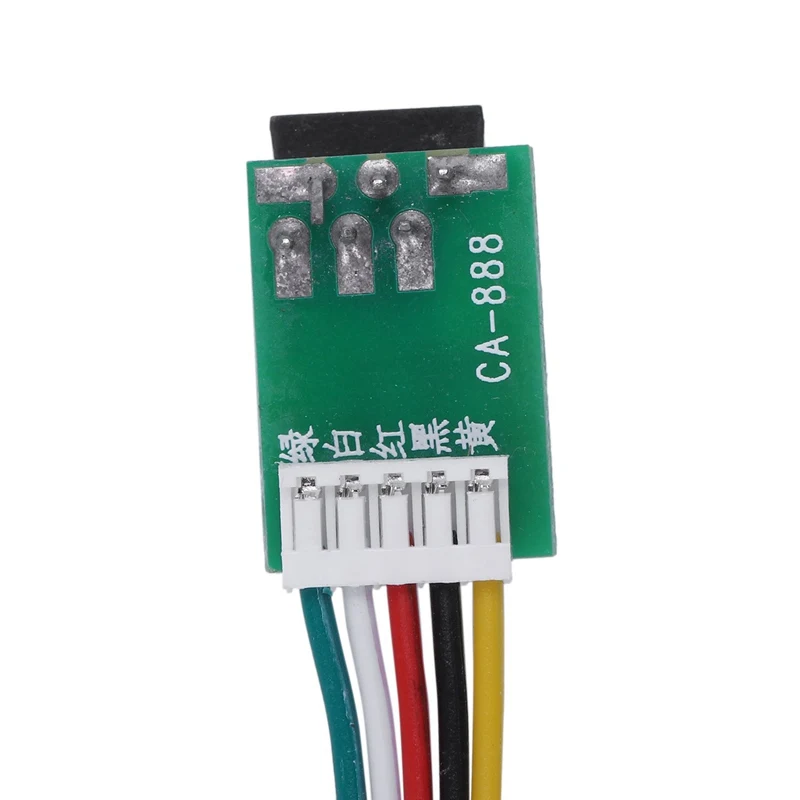

second, the pin connection

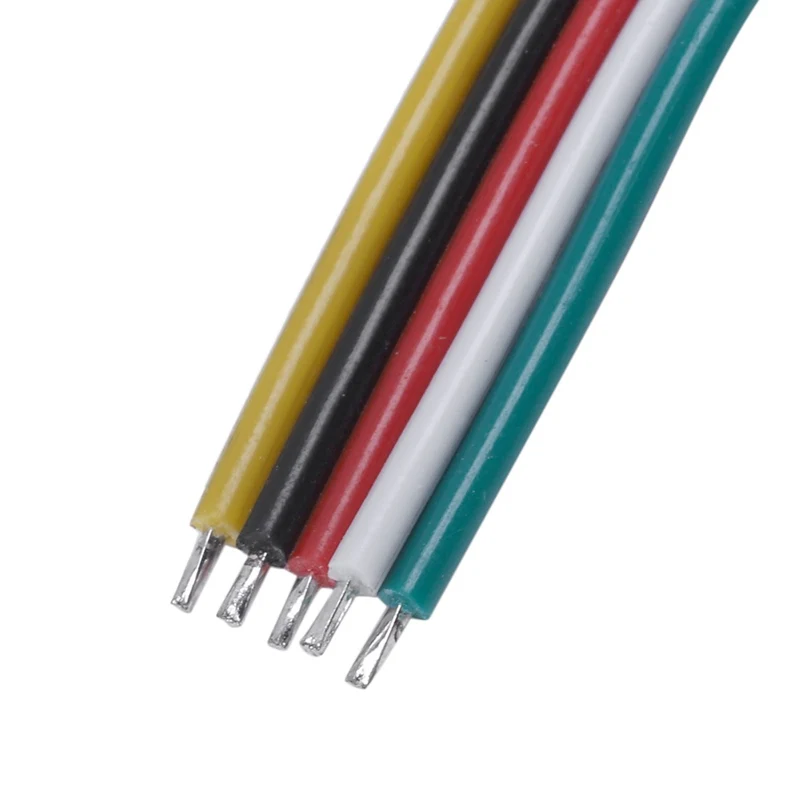

1 foot yellow line: drain, power control side, then the original high power mos power supply d - pol.
in general, the middle of the power button tube feet
2 feet black line or powder line gnd, module ground 300 v, then the negative capacitor, the same line.
directly to a large filter capacitor.
3 feet red line vcc, the module power supply, then the feedback winding terminal rectifier capacitor to the positive.
continuous power supply, the voltage between 12 - 18%
4 feet white line: fb, voltage feedback, optical couplers 4 feet, please check the optical couplers 3 feet warm, warmth
then the optical couplers, the hot ground, while the 4 pin peripheral circuit separately.
5 feet green line: start start pin, then + 300 v capacitor positive
customers must be optimistic about the specific connection method for change, not blind random access.
can/'t read more than the following comparison to see a few times.
hirdly, use
Package Contents:10 X CA-888 15-24 inch Universal LCD Monitor Power Supply Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
