4CH DC12-24V RGBW DMX 512 Decoder LED Controller, RGB LED DMX512 Decoder 4 Channel x 8A for LED Strip Light With over 30 preprogrammed color changing patterns, including gradual changing, screening and jumping, our DMX controller offers a variety of display options.
As a powerful color managing controller, it will enable you to choose the desired pattern and appropriate speed to manage your RGB LED lighting fixtures.With 0 to 100 dimming grades, you can also control the color and brightness according to your requirements easily, and mix up to 1 million different colors.The mounting bracket will enable the operator to easily fix the controller onto any place.

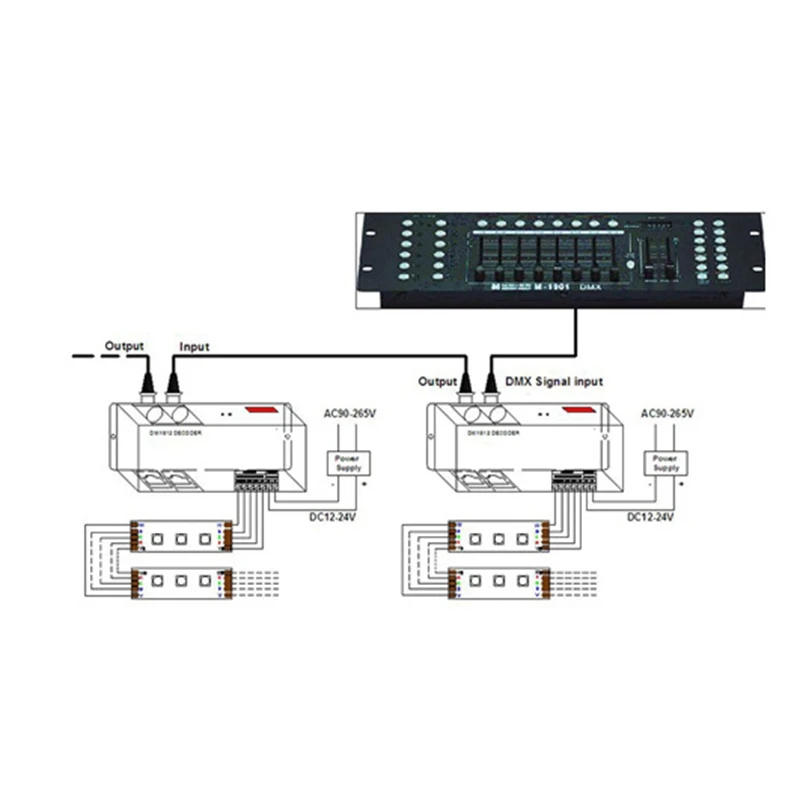

Each DMX common controller occupied 3 DMX address, adopt coding switch set address. The max output power is 144 watts, enable you to connect 20M RGB strips of 150LEDs or 10M RGB strips of 300LEDs.
Specification:
Supply Voltage: DC12V~24V
Output: 4 circuit
Connection mode:Common anode,
Static power consumption :Less than 1W
Output Current:Less than 8A(each circuit)
Output Power:12V:Less than 384W, 24V:Less than 768W
Colour:Black
Material:metal
Size:164*65*40mm
Package Contents:
1* DMX 512 Decoder led controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
