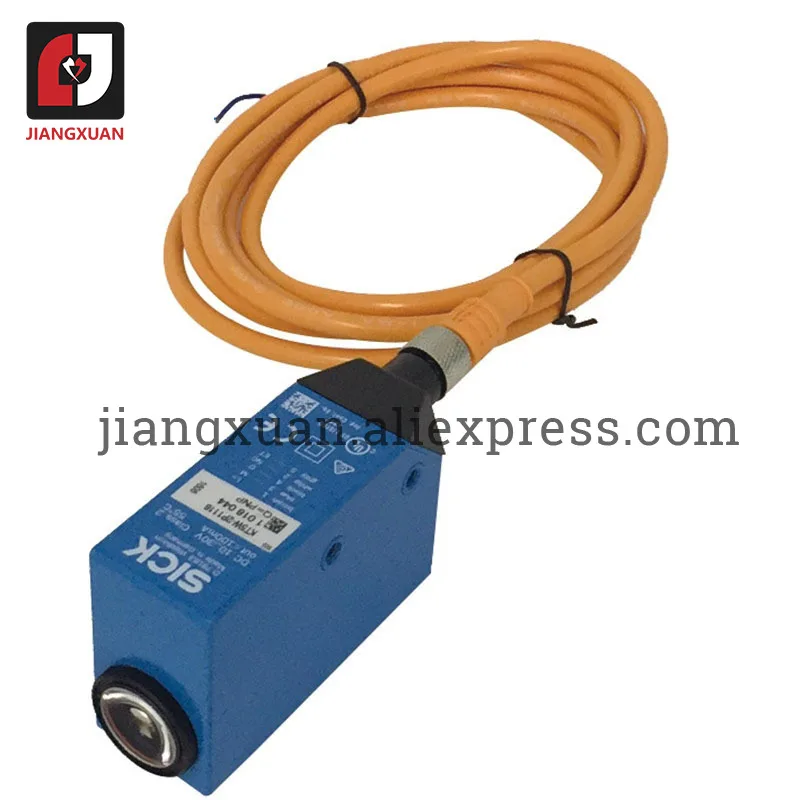

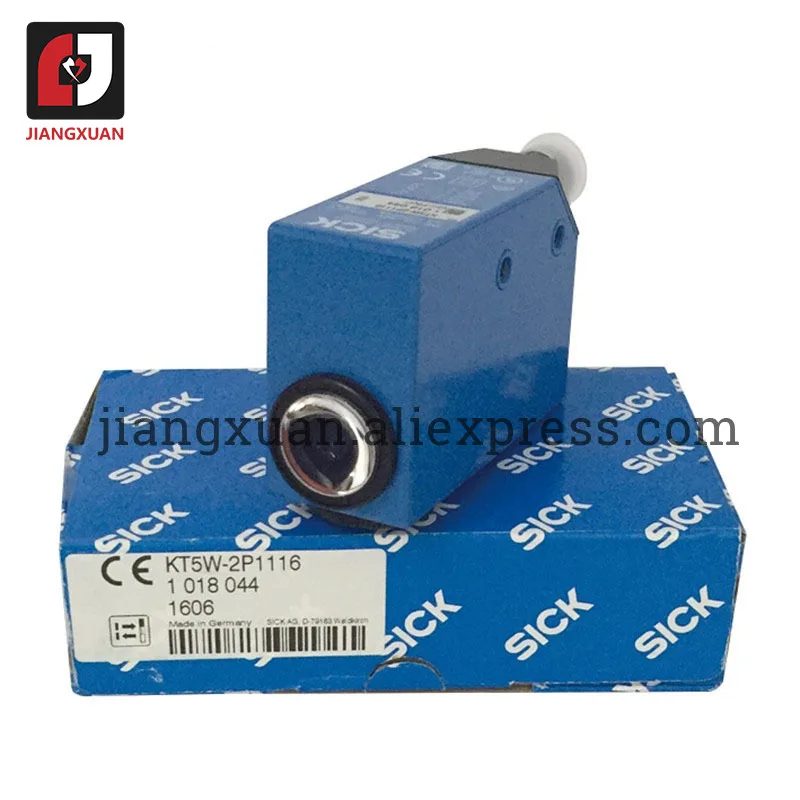

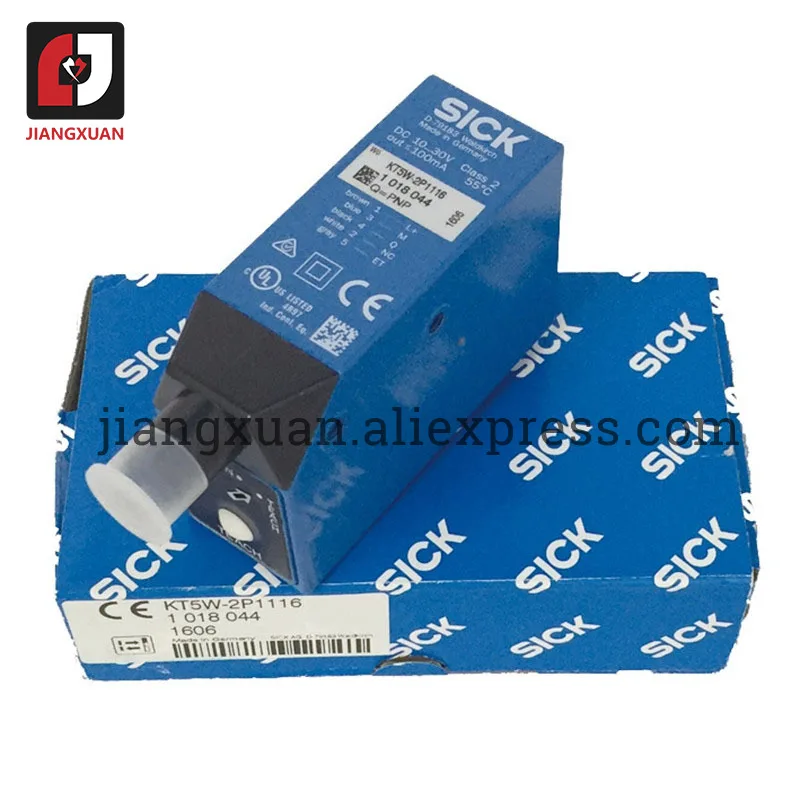

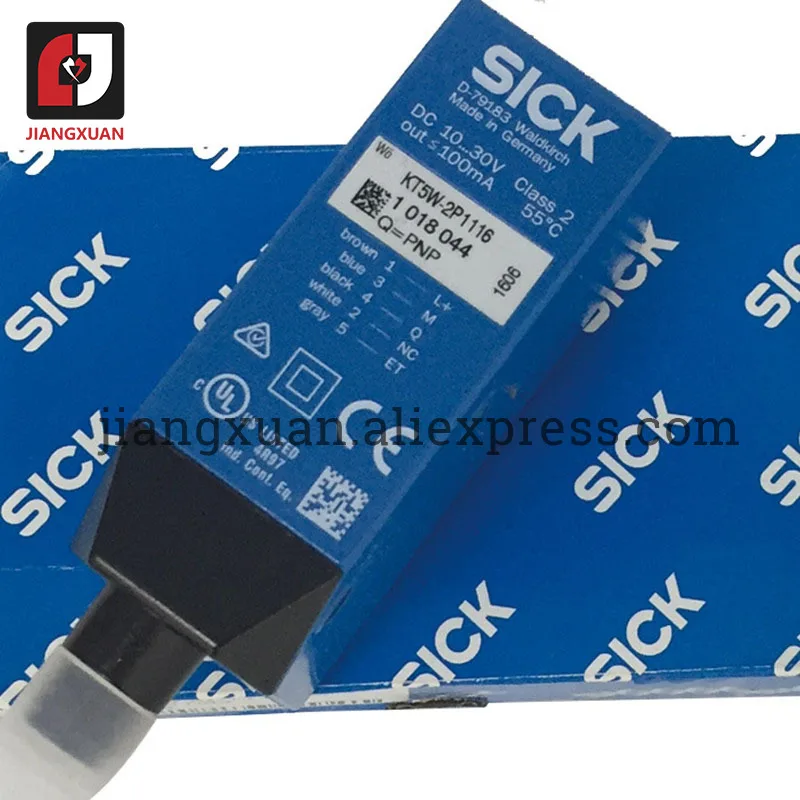

Germany SICK Contrast Sensor KT5W-2P1116 Color Mark Sensor/Photocell Sensor with cable

Model : KT5W-2P1116

Product Series : KT5

Product type : Contrast sensors

Detection distance : 10mm

Shell material : Zinc diecast

Light spot size : 1.2 mm x 4.2 mm

Dimensions : 30.4 mm x 53 mm x 80 mm

Light type : LED,RGB

Output mode : PNP

Connection : M12Plug,5pin

IP Rating : IP 67

Net weight : 400g



KT5-2 contrast sensors are ideal for high-precision contrast detection, such as for detecting marks on high-gloss ma-terials. Due to the 3-color LED technolo-gy, the sensors activate the best possible emitted light source for each contrast. In addition, the sensors feature application-specific teach-in processes. The sensor defines all necessary parameters auto-matically – either via the teach-in button on the device or via an external control cable. The sensor then determines the ideal switching threshold from the two gray values detected. High-precision contrast detection; automatic adaptation for high-gloss objects; sensing distances of 10 mm, 20 mm and 40 mm; a switch-ing frequency of 10 kHz; and individual alignment and mounting options make the device suitable for a wide range of tasks. Lastly, the 90° rotatable M12 plug provides simple mounting.

Your benefits:



1.All print marks and color combinations are reliably detected, ensuring high machine throughput

2.Reliable operation, even with jittering webs and high-gloss materials

3.High positioning accuracy improves packaging quality

4.Various sensing distances, light spot directions and light emissions make individual configuration and simple integration into the production process possible
