DGOzone 5G/H Adjustable double Air cooling Ceramic Tube Ozone Generator for water treatment KHT-5GORA1/A2/DC12V/DC24V

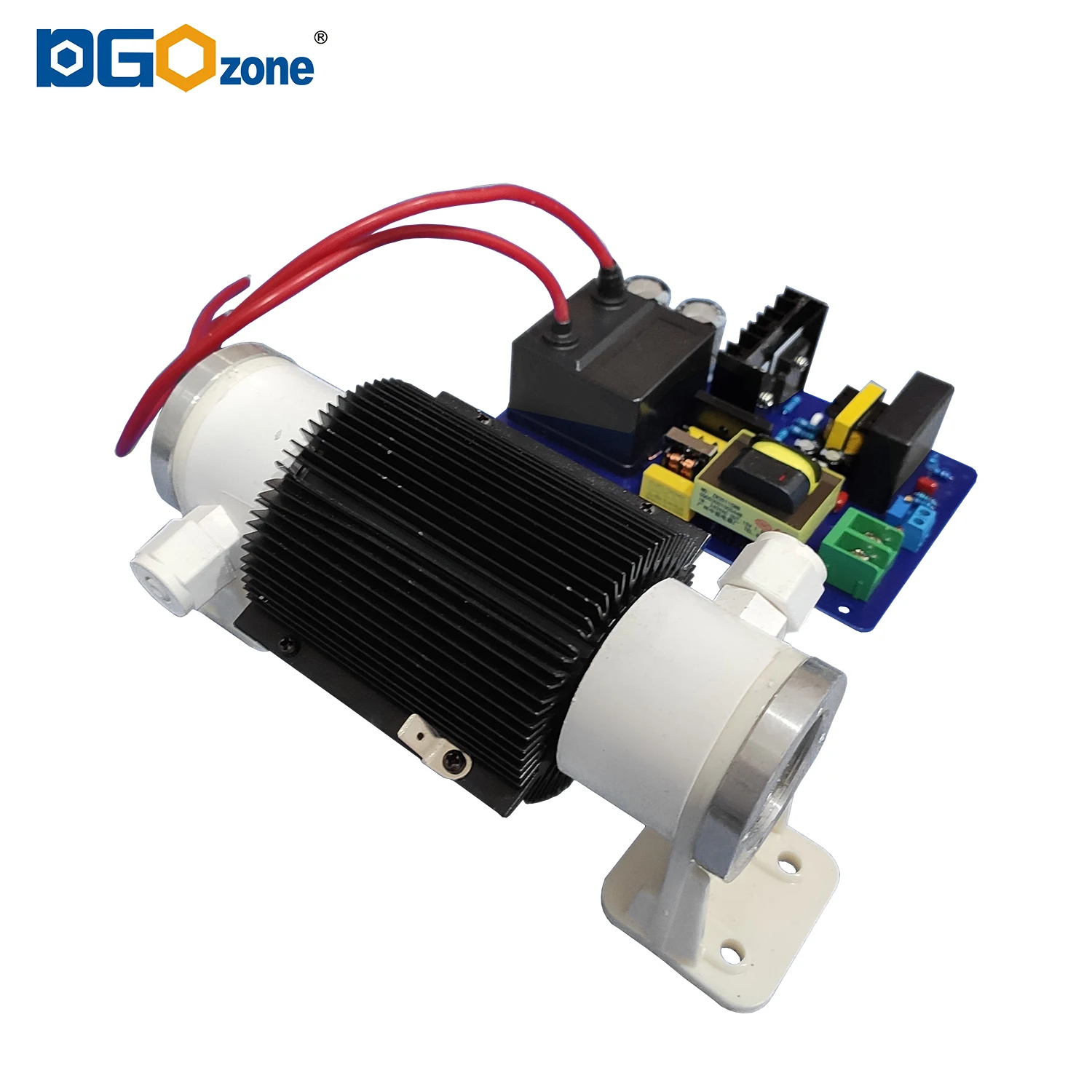

IMPROVED 5g Double Air cooling Ceramic Tube Ozone Generator KHT-5GORA1/A2 for Air and Water Treatment is a very good unit for big ozone machines or fields below.

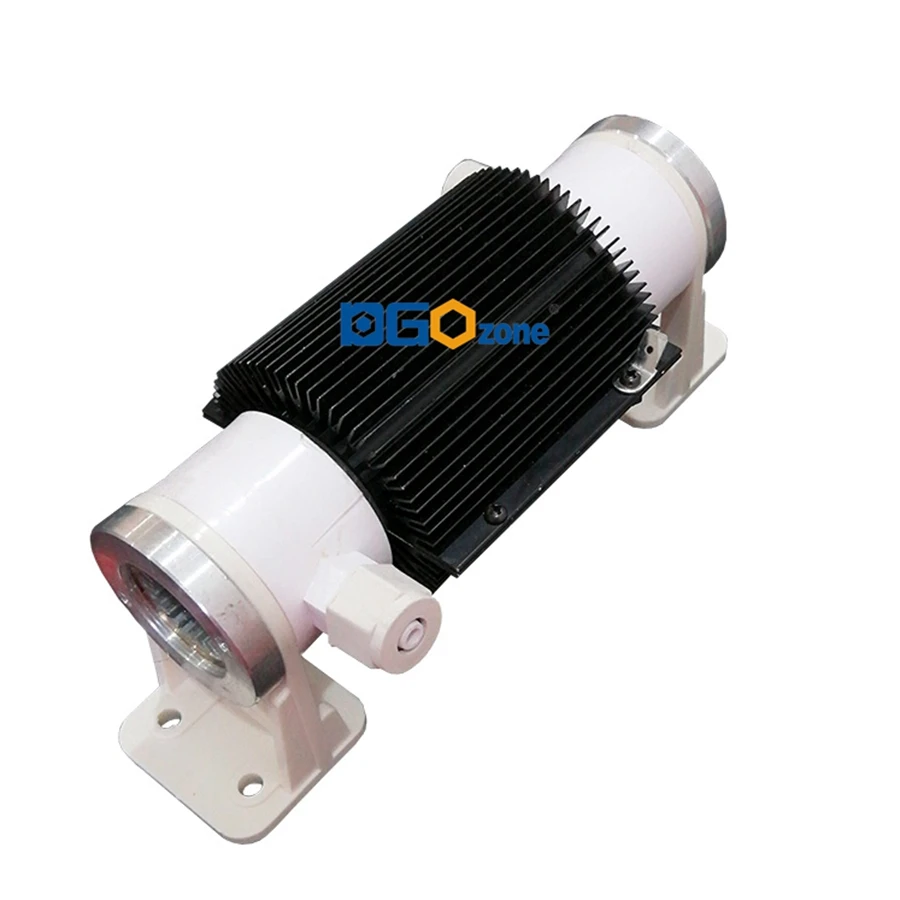

The ozone tube is newly-developed, double air cooling design, can work 7*24hours only under AIR COOLING. Besides, the electrode inside the tube is improved to change into titanium alloy, this makes the longlife of ozone tubes longer than former tubes.

One set includes one ozone tube and one transformer.

KHT-5GD12/24

.

Features

1. Narrow discharge gap, high ozone output and concentration, low noise.

2. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.

3. The ceramic tubes are with low working voltage but high dielectric constant, not easy to be breakdown.

4. Dielectric materials are made by imported high purity aluminum oxide that are sintered through high temperature, two times high-precision internal and external burnish, thus discharge uniformity. Besides, 316L stainless steel internal electrodes and tightness firmwares make its performance better. The end caps of ozone tube and ozone outlets are made of polytetrafluoroethylene, high-purity corrosio resistant fluorine rubber seal rings, with aluminum alloy external radiator, an very effective way to heat radiation.

5. Ozone decrease is lower than 5% if work for a long time, while life time is more than 20,000 hours.
