433МГц радиоприемник и передатчик модуль переключения с антенной DIY 433 МГц дистанционного управления для Arduino Uno Супергетеродин ON.

Brand NameDieseModel NumberWL102-341 Transmitter module ,WL101 Receiver moduleMaterialPVCMeasurement unitset/setsEach pack1Transmitter Working voltageDC 2-3.6VQuiescent Current1uAtransfer rate20KHzWorking temperature-30~+80 degreesTransmit deviation+/- 7. 5KHZ / narrow-band emissionTransmit Sensitivitylarger than 11dBmTransmitter Size16* 12 * 6(mm)RF Operating modeASK /OOK superheterodyne wireless receptionReceiver Working voltageDC 3.3~5VMax current5mAFrequency band+/- 150KHzReceiving Sensitivity-108dBReceiver Size30.25*8.5*6 (mm)206,91 ₽206,91 ₽there are seller's couponsAdd to CartBuy now206,91 ₽loaderDescription





433Mhz RF receiver and transmitter Module kit with antenna DIY 433 Mhz Remote control For Arduino uno Superheterodyne RF



---



Wide Availability

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Applications 1.wireless power switch, socket, remote control switch, receiver module, 2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system 3. security, surveillance systems, home security products, electric doors, alarm host, alarm 4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door 5. smart home products, remote control curtains, remote MP3, audio


---

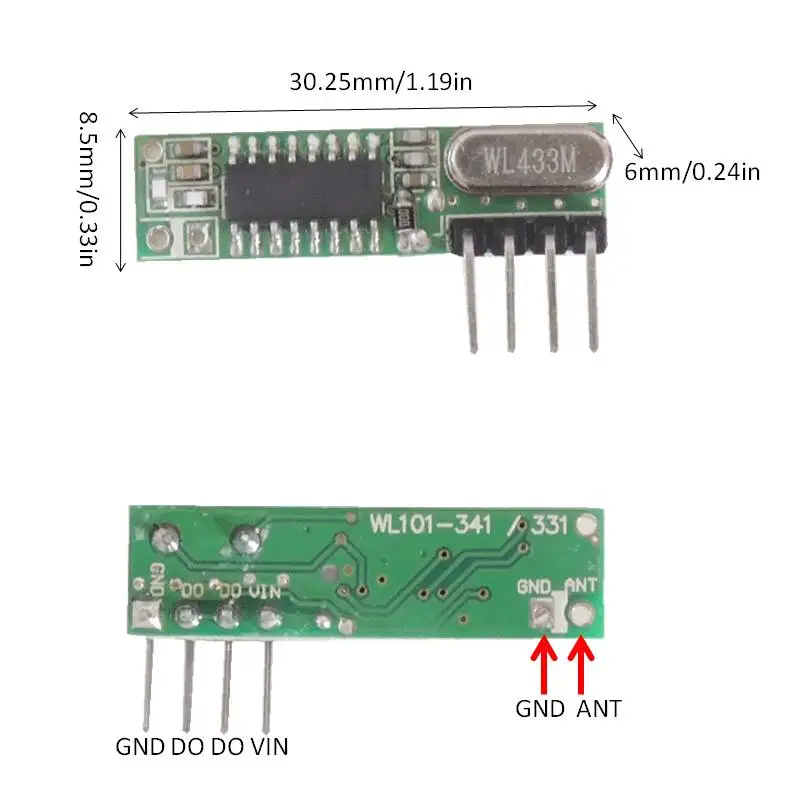

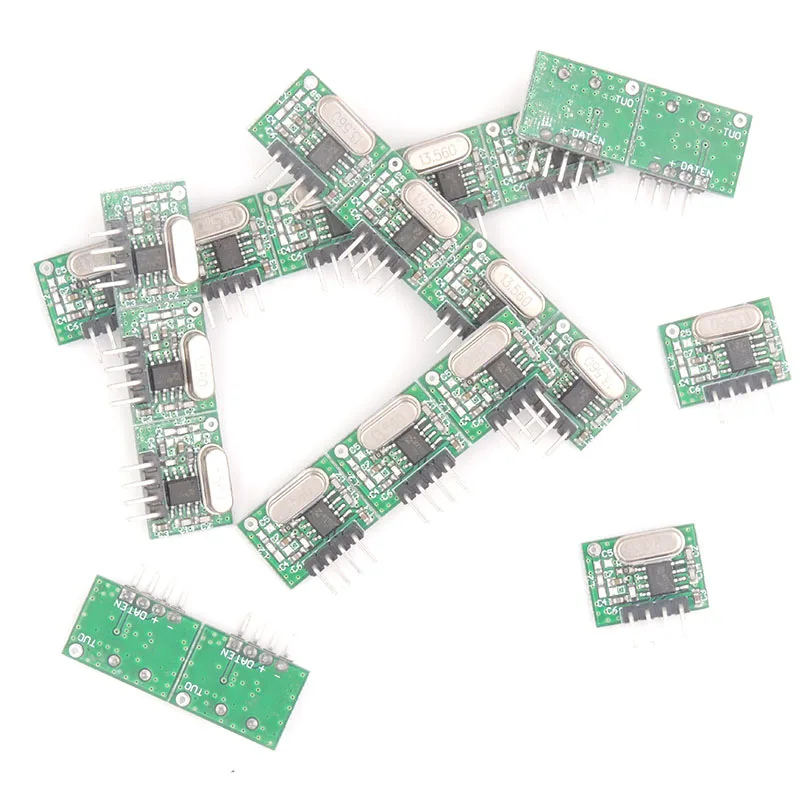

  Product Detail   receiver module Working voltage  :  DC 3~5V Quiescent Current   : 1uA Max current  :  5mA RF frequency  :  433.92 MHz Frequency band  :  +/- 150KHz transmission rates  :  2KHz to 10KHz Working temperature  :  -30~+80 degrees Receiving Sensitivity  :  -110dBm Size  :  30.25*8.5*6 (mm)  RF Operating mode  :  ASK /OOK superheterodyne wireless reception Pins Instruction GND : ground or negative pole D0: Data output D0: Data output VIN: Power input ANT:  Antenna
Features 1.Low power consumption; 2.good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification; 3.Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance; 4.External antenna: 32CM single core wire, wound into a spiral Application example

Transmitter module Working voltage  :  DC 2-3.6V Quiescent Current  :  1uA transfer rate  :   20KHz RF frequency  :  433.92 MHz Working temperature  : -30~+80 degrees Receiving Sensitivity  :   larger than 11dBm Size  :  16* 12 * 6(mm) RF Operating mode  :  ASK /OOK superheterodyne wireless reception Pins Instruction

DAT - Wave signal input

OUT - Antenna pin . RF signal output, can directly connect to the antenna.

EN - Enable Pin .But this product EN pin is connected to the power supply, no function

- - Power- ground Pin . The ground wire connects power supply.x`x`

+ - Power supply pin . Power Input



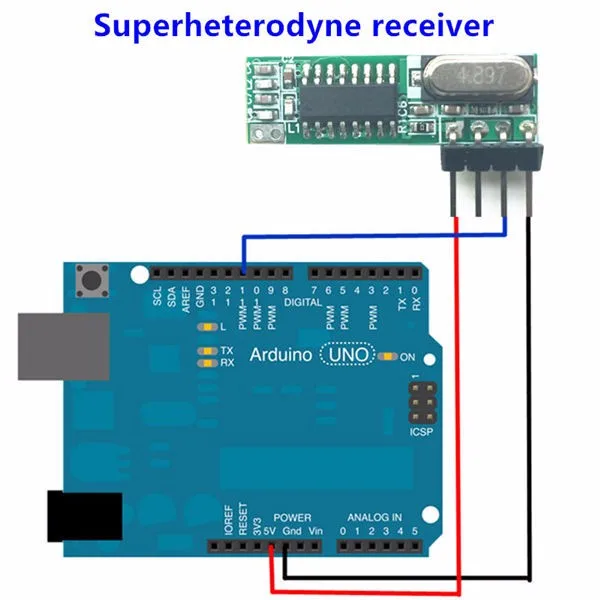

Application example

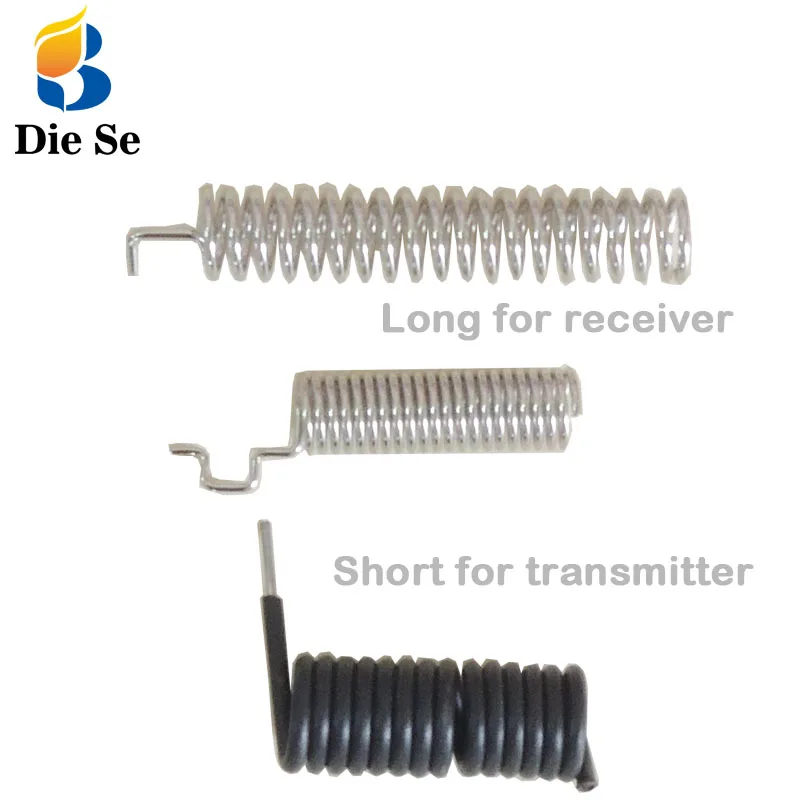

  Antenna selection Description General application mode For general application mode ,the antenna can directly adopt the general specifications from the market; The specific information as follows: The antennarsquos core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ; The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm; The diameter of antenna winding (including the Antenna skin):5mm; The turn number of winding: 15 turns

The diagrammatic drawing:   The special enhancement mode   The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows:   433Mhz Antenna   The antennarsquos core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm The wire length of weld end: 12mm The diameter of antenna winding (except the Antenna skin):3.0mm; The turn number of winding: 26 turns; The length of the winding: 36mm

The diagrammatic drawing:

---

  Package include

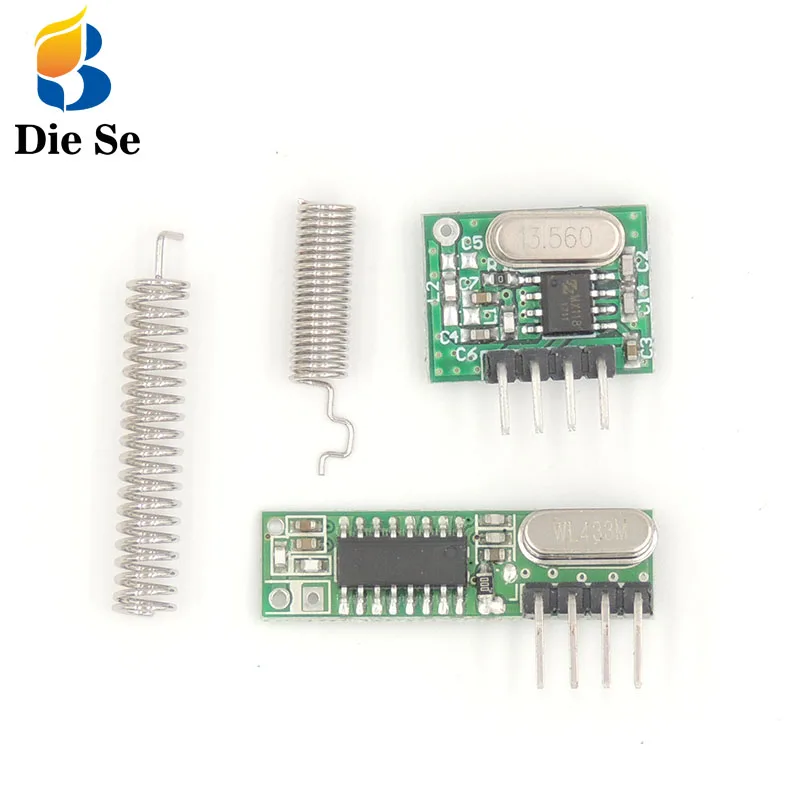

Transmitter module (WL102-341)

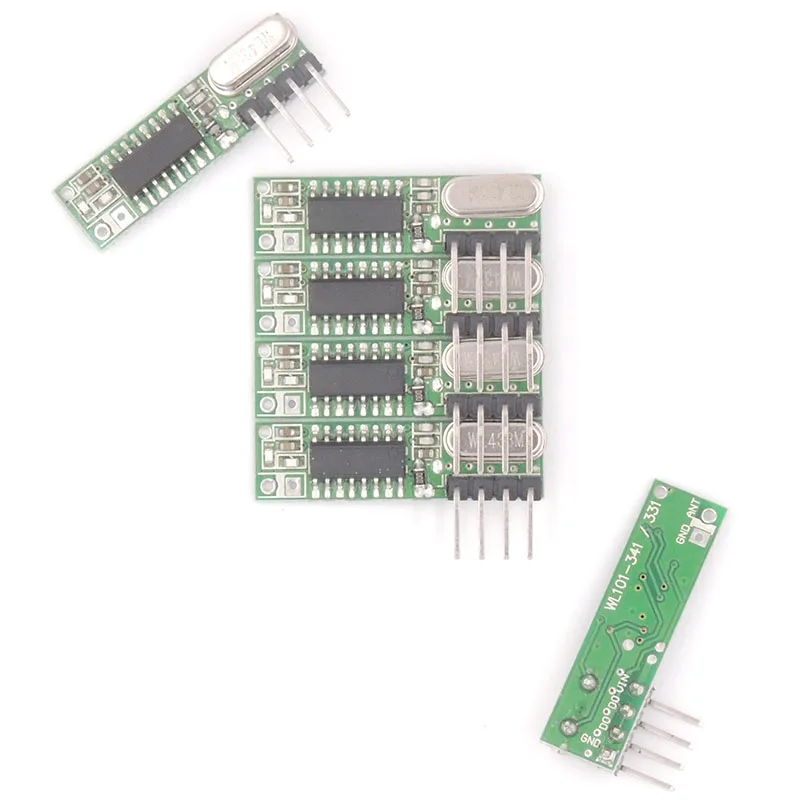

Receiver module (WL101)
With Antenna

  *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*









---
