Please Notice:
Theis is the newest version V6.26!!!

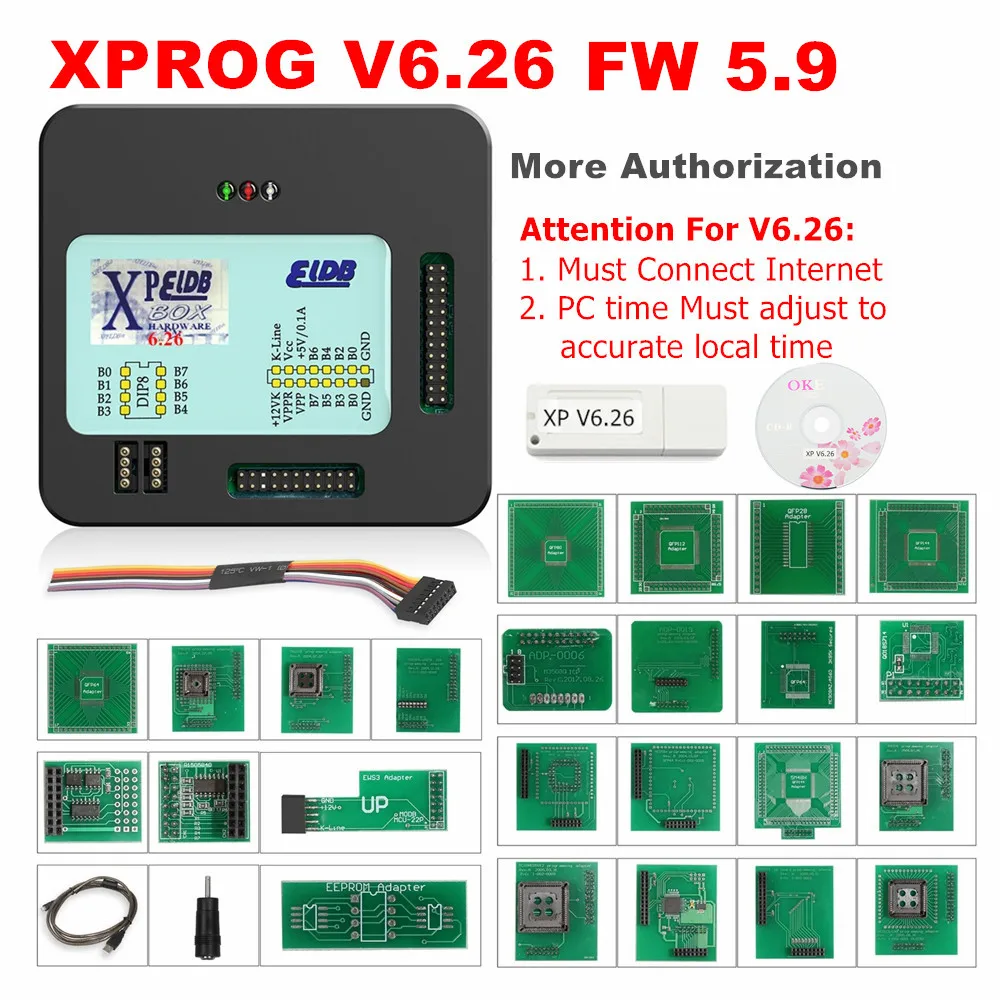

ITEM 1:XPROG V6.26 NEW !!!Please Attention For Xprog V6.26 Software Installation Tips:1. MUST Connect Internet,use online(But DO NOT UPDATE)
2. PC Time MUST adjust to Accurate Local Time
3. MUST first install 6.26registry,then run V6.26 Software
4. After used,close the software and unplug the usb dongle from the computer
5. Better to use in English System6.The computer's disk must have at least 2 or more partitions, such as C drive and D drivePlease must follow this instructions to run software,otherwise device will not installed.Please MUST READ This :1. Which XPROG version you use , before open software MUST install the right version registry. Otherwise it will runs old version registry automically and then confilt with new hardware and device dead.2. If your computer no install other old xprog version,it also require install right registry ,otherwise device runs fault and defective .XPROG V6.26 using tips:1.XPROG V6.26 dongle isn't compatible with older version Xprog. You are not allowed to update from the older version Xprog V5.55 V5.60 V5.70 V5.84 V6.12 to this newest V6.26 XPROG-M Dongle.2. Please Close all anti-virus software in your computer, because the anti-virus software will kill Xprog V6.26 driver and software3. Uninstall all the old version XPROG software and registry before you install V6.26 software, because XPROG V6.26 hardware is not compatible with other version XPROG software. Otherwise the hardware will be damaged and its warranty will be invalid.5. Never try to UPDATE it, the hardware will be damaged and lost authorization if you try to update it online. Warranty will be invalid.
ITEM 2: XPROG V6.12
XPROG-M V6.12 Highlights:
1. Latest Software Version: V6.12, Firmware: V4.4
2. Adds new authorization: AUTH-0028-1 for Renesas V850 Authorized and AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9
3. Operating System: WinXP/Win7 64BIT
4.Language: English only
Using Tips:
1. XPROG V6.12 dongle isn't compatible with older version Xprog.2. Please Close all anti-virus software in your computer, becase the anti-virus software will kill Xprog V6.12 driver.3. Disconnect internet. If not, the internet may damage XPROG hardware.4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software.5.Never try to UPDATE it, the hardware will be damaged if you try to update it online.Install Notice:XPROG-M V6.12 windows system required as below:1. Windows XP 32bit OR windows 7 64 bit required, all the patch software for the windows system should be installed already and the windows properly works well...2. The windows system should be with at lest 2 partitions (except the CD ROM.)3. Can not be working with virtual harddisk.XPROG Box 6.12 Installing Steps:1. Click the file "installation.reg", get the file information to the regedit.2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.3. Plug the Xprog main interface to the computer, install the USB driver.4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.Error About Certifate Expired:When buyer meet this problem ,it means your computer install other older version and didn't uninstall yet.and computer has old xprog software registry.red and didn't uninstall ,so it wil cause this problem .Now you need buy ATMEGA 64 chip to reflash programmer and then next time must click 6.12registry and then run 6.12 software.So No matter which version you use,before open software MUST click the right version registry .Otherwise it will runs old version registry and then confilt with new hardware and show this update error.XPROG V6.12 Authorizations included:AUTH-0001 for Motorola HC05 family authorization (allows to read/write EEPROM)AUTH-0002 for Motorola HC08 family authorization (allows to read/write EEPROM)AUTH-0003 for Motorola HC11 family authorization (allows to read/write EEPROM)AUTH-0004 for Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)AUTH-0005 for Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)AUTH-0006 for Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.AUTH-0008 for BMW EWS3 authorizationAUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)AUTH-0010 for MB ZGS001 authorizationAUTH-0011 for Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)AUTH-0018 for Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)AUTH-0020 for ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)AUTH-0021 for ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).AUTH-0023-1 MAC7xxxAUTH-0023-2 XC23xxAUTH-0024-1 MC9S12CxxAUTH-0024-2 MC9S12XEAUTH-0024-3 9S12XE SECURITYAUTH-0024-4 MC9S12HA/HY/PAUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13AUTH-0027-1 HC(S)908 update Authorized 2016/3/13AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13AUTH-0028-1 for Renesas V850 Authorized 2017/10/9AUTH-0028-2 for Renesas SuperH Authorized 2017/10/9AUTH-0028-3 for Renesas RL78 Authorized ---New!AUTH-0028-4 for Renesas M32C Authorized ---New!![]()
X-PROG V6.12 Newly Added 4 Adapters:ADP-0019 Rev.B ----New!ADP-0006 M35080 ICP adapter ---New!QFP64 MC908AZ/AS60 3K85K adapter ---New!QO18S714 ---New!XPROG-M V6.12 Adapters included:ADP-0001 TMS370 PLCC28 programming adapterADP-0002 TMS370 PLCC44 programming adapterADP-0003 TMS370 PLCC68 programming adapterADP-0004 for Motorola HC05B/X PLCC52 programming adapterADP-0005 for Motorola HC05B/X QFP64 programming adapterADP-0006 ST M35080 in-circuit programming adapterADP-0008 TMS374 family in-circuit programming adapterADP-0009 MC68HC05V12 programming adapterADP-0010 TMS374 on-board programming adapterADP-0011 HC11EA9/E9 programming adapterADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapterAdditional adapter for 5M48H P-FlashADP-0019 Rev.AEWS3 adapterEEPROM adapterQFP28 adapterQFP64 adapterQFP80 adapterQFP112 adapterQFP144 adapterPackage Includes:1pc x XPROG-Box Hardware (Aluminum Enclosure)19pc x Adapters Set1pc x USB Cable1pc x 16Pin cable1pc x CD with XPROG-Box Software (V6.12)Xprog XPLEDB V6.12 Software Display:
![]()
![]()

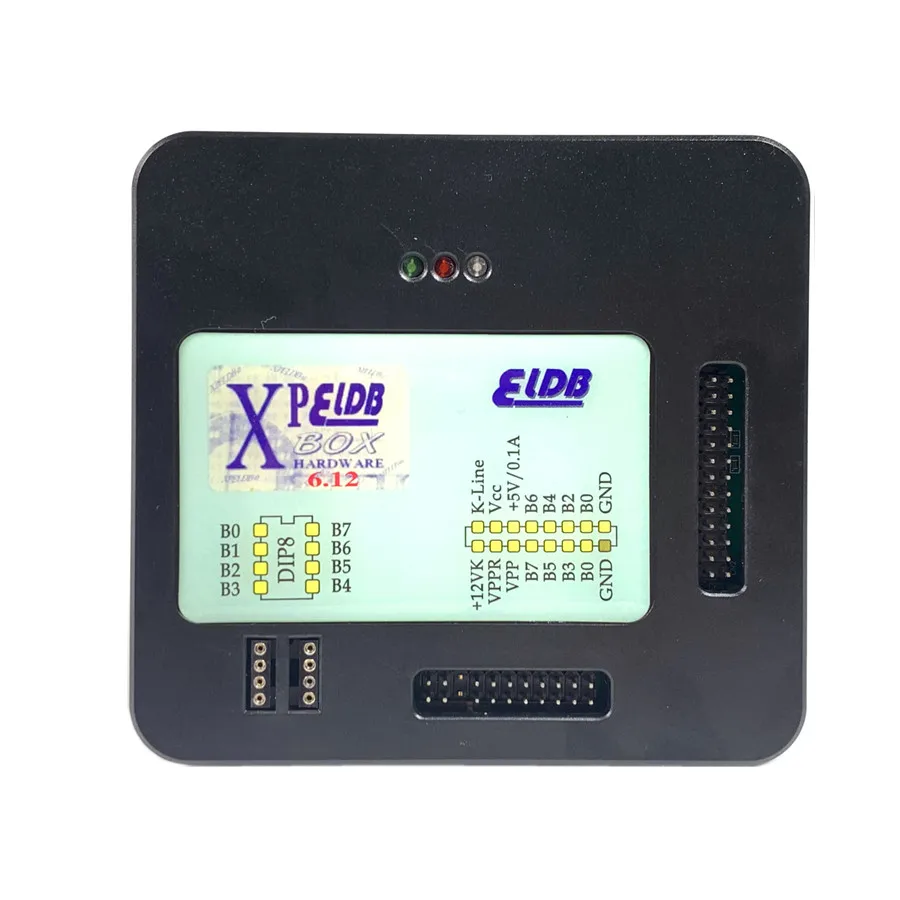

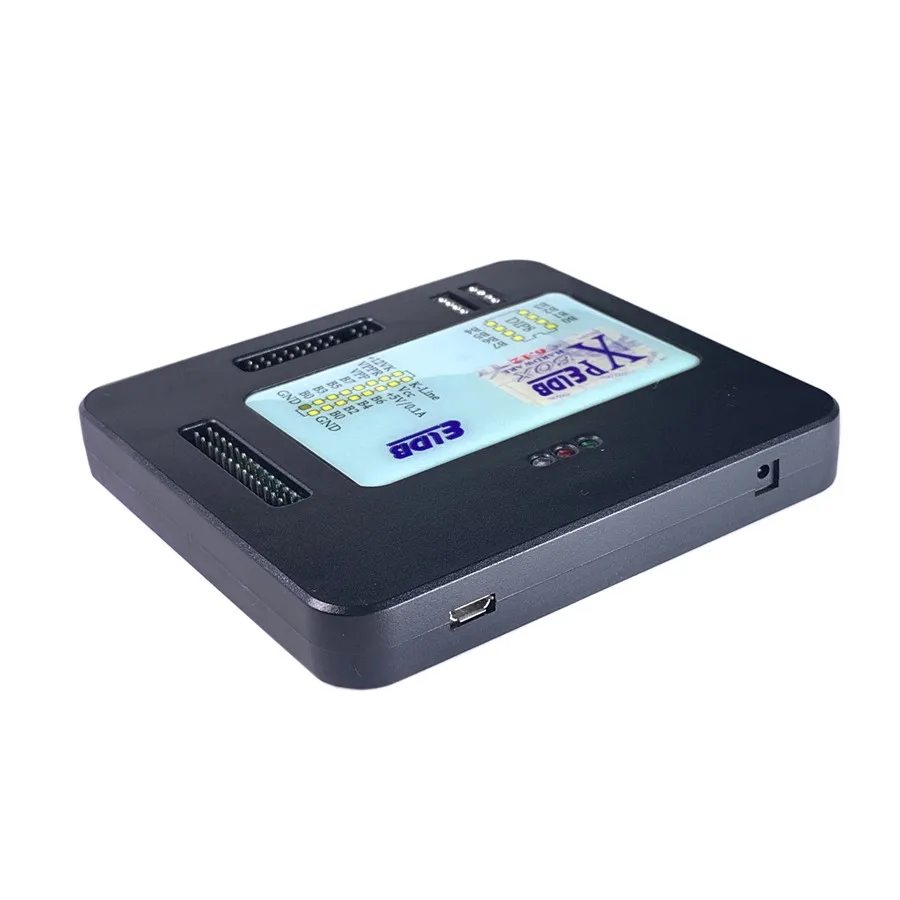

XPROG V6.26![]()
![]()
![]()
![]()
![]()
XPROG V6.12![]()
![]()
![]()
![]()
![]()
![]()
