Descriptions:

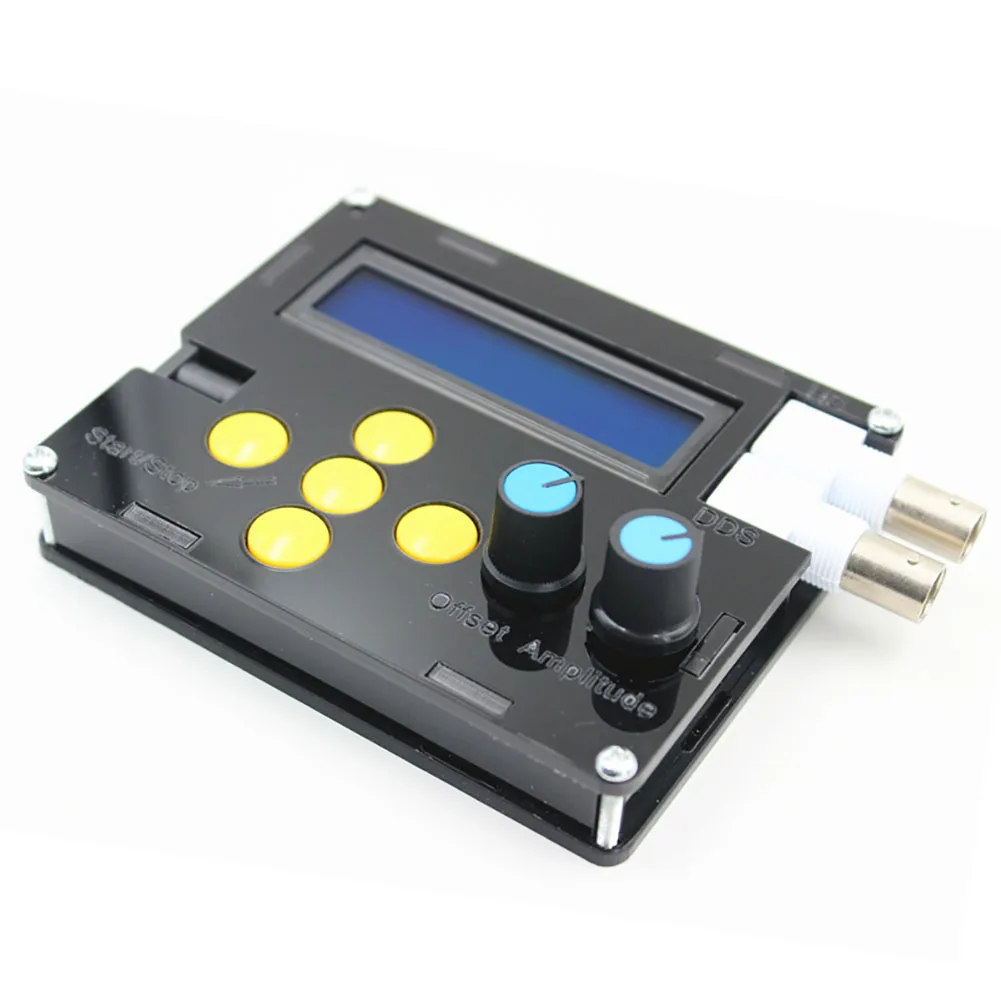

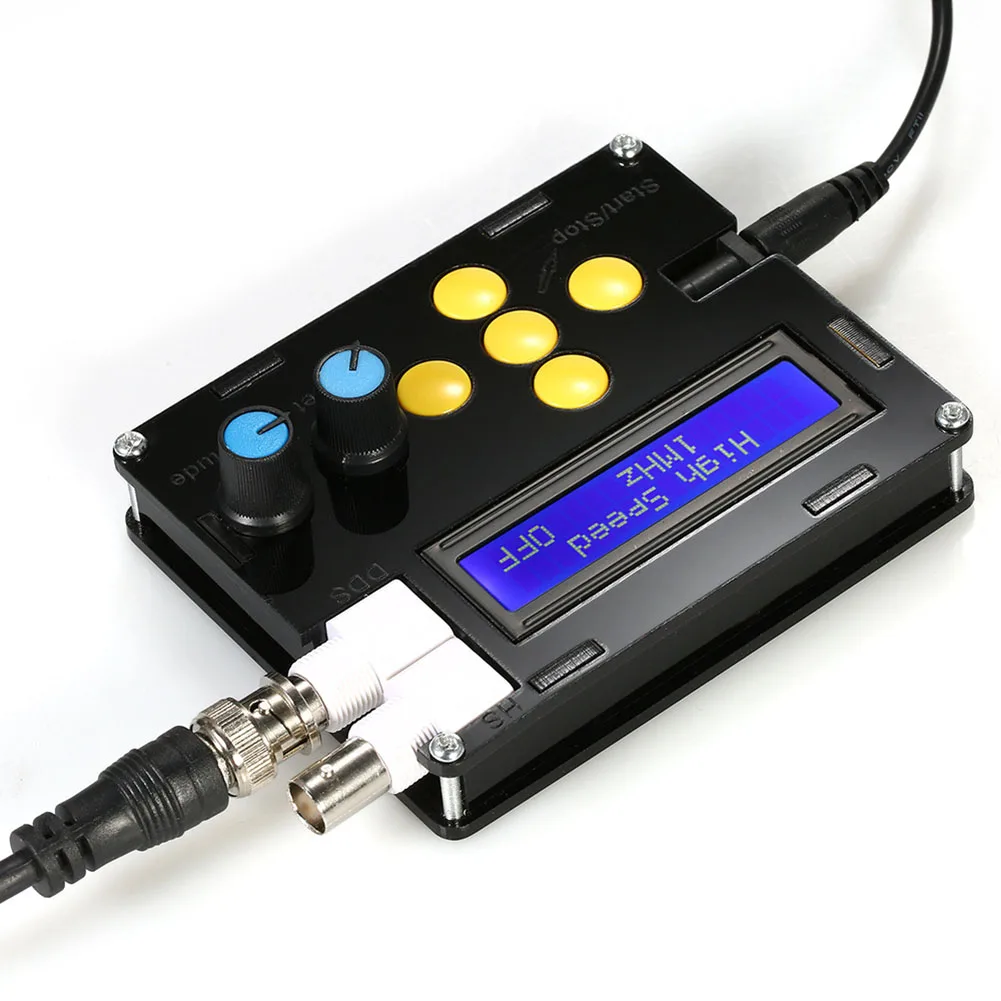

This is a function (waveform) signal generator.
It can produce some special periodic time function waveforms, such as sine wave, square wave, triangle wave, saw tooth and pulse wave, etc.
The frequency range can range from a few microhertz to a few tens of megahertz.
The offset amplitude of DDS signal can be adjusted by two potentiometers.
Signal generators have a wide range of applications in circuit testing and equipment testing.
It is also used in learning and design circuits.

Specifications:
Item type: function signal generator
Material: plastic, metal
Color: black
Frequency range:1Hz-65534Hz (almost no distortion, the enlarged part adopts the TL082)
High speed (HS) square wave: 1MHZ/2MHZ/4MHZ/8MHZ signal
DDS signal: sine wave, square wave, saw tooth wave, reverse zigzag wave, triangle wave, ECG wave and noise wave.
Screen: 1602 LCD screen
keyboard: 5 key
Step frequency: 1, 10, 100, 1000, 10000Hz
(Automatically recover the last time after power supply.)
Offset: 0.5pp-5Vpp
Amplitude: 0.5Vpp-14Vpp
Output impedance: 20-200 Ohms

Package includes:
1*  DDS signal generator

Notes:
1. Power supply and signal cable need to be purchased separately.
2. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
3. Please allow 1-3cm measuring deviation due to manual measurement.
