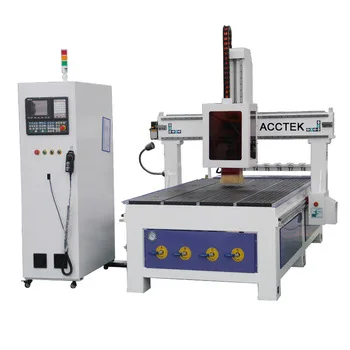

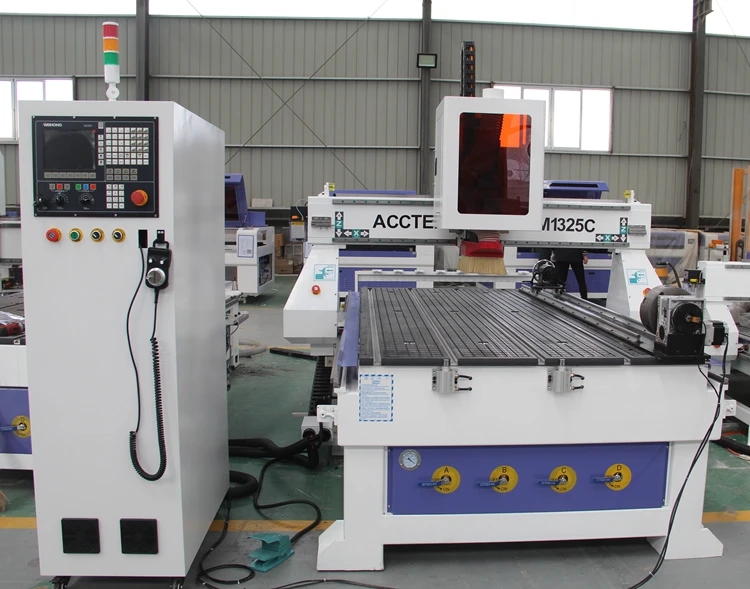

3 axis 4 axis 5 axis cnc router 3d atc cnc engraver machine woodworking cnc machinery AKM1325C2

1.Advanced Control System
Mach3 or Advanced Syntec control system and large liquid crystal display brings out much convenient operation and simpler maintenance.
Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.

2.Large Memory and Perfect Data Transmission
Large internal memory of 32M is enough to simultaneously store more than 30 processing files which can be read freely.
Apply USB interface (plug and play) to communicate with computer under the system of win98/NT/2000/XP, which can instantly complete transmission.

3.Powerful Compatibility
Internationalized directives ensure that it is compatible with CAD / CAM software like type3/ artcam/ castmate/ proe/ UG/ Artcut etc, home and abroad.

4.Intelligent and Humanized Design
It is able to continue engraving when the electricity is cut off or the tool is broken.
Intelligent control of spindle makes it able to auto-start and auto-stop, which is more safely, convenient and power-saving.
5.Powerful Diamond Drill
Powerful frequency changing spindle enables the machine to cut organic glass of 30mm~50mm thick in one cut.

Description

Parameter

X,Y Working Area

1300*2500*250mm

Z Working Area

300mm

Table Size

3500*1800mm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H25 square guide rails

Z Structure

Taiwan TBI rolling ball screw,

Taiwan Hiwin H25 square guide rails

Max. Idling Speed

60m/min

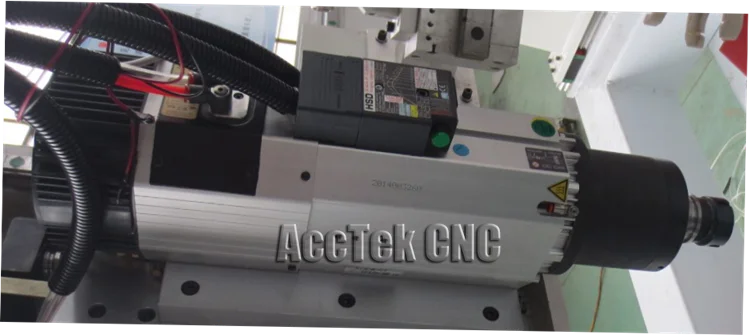

Spindle

9.0kw Changsheng air cooling ATC spindle

Spindle Speed

0-18000r/min, variable speed

Working Voltage

AC380V/ 220V 3 phase /50Hz-60Hz

Motor and driver

Taiwan Delta servo motor and drivers 750w

Working Mode

Hybrid

Command

G code (HPGL,U00,mmg,plt)

Operating System

Syntec 6MA control system

Diameter of Cutter

φ3.175-φ22

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

Vacuum

Tool Magazine

Liner 8-slot Tool Magazine with 8 ISO 30 tools

Net Weight

1450KG

Applications of wood cnc router:

1)Mould: wood, wax, wood, gypsum, foams, wax.
2)Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3)The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4)Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5)Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines.

Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.

Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.

These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few.

Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.

 Payment:

*We accept: Western Union , Trade assurance on alibaba, T/T, Western Union , Paypel , MoneyGram.
*You can pay 30% in advance, 70% before delivery.
*Most customers choose Trade assdurance,becs it is maximize the protection of the interests of buyers.

*1yearsquality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
*Lifetime maintenance free of charge.
*Free training course at our plant.
*We will provide the consumable parts at an agency price when you need replacement
*24 hours on line service each day, free technical support.
*Machine has been adjusted before delivery.
*Our staff can be sent to your company to install or adjust if necessary.

Contacter:Ada Li

Phone:+86150 5417 3617

Whatsapp:+86 17865971120

Wechat:wulilzy599

Websit:www.acctekcnc.com

We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit!
